801-012

Description
Mighty Mouse Hermetic Receptacle
File Size411KB,5 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet View All

801-012 Overview

Mighty Mouse Hermetic Receptacle

801-012

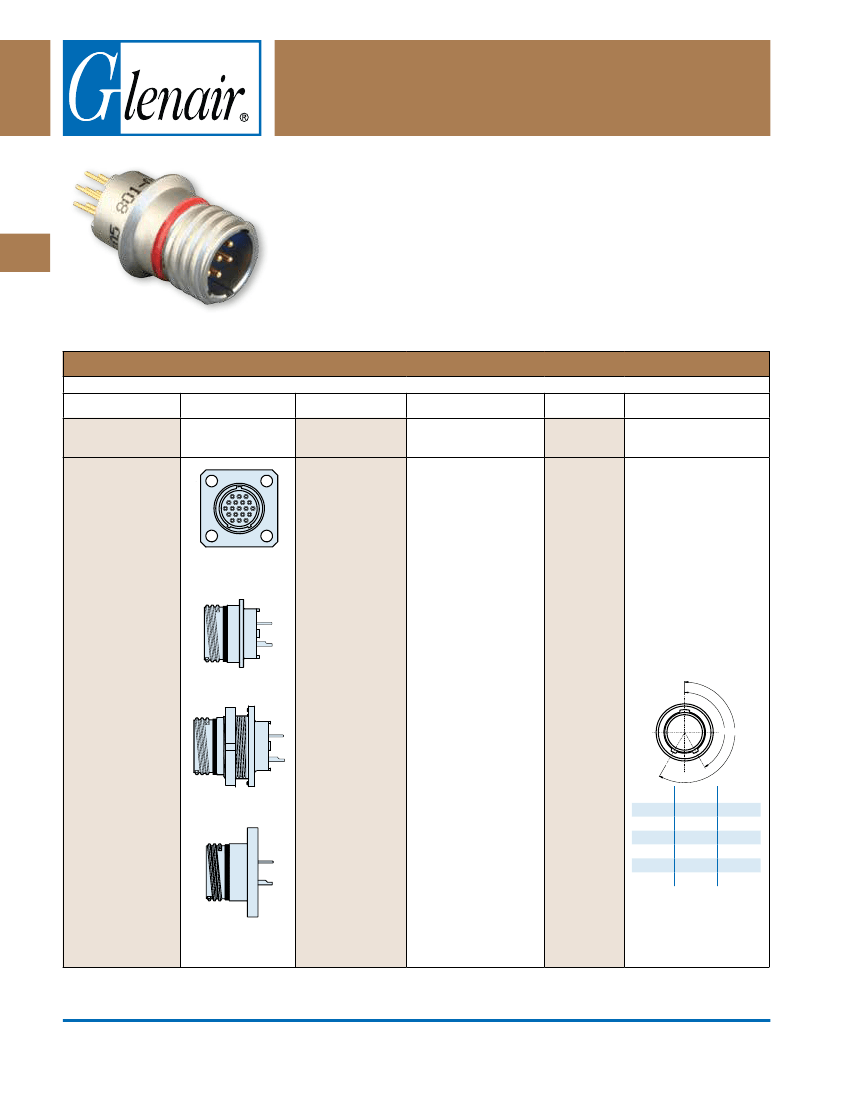

Series 801 Mighty Mouse Hermetic Receptacle
Double-Start ACME Threads How to Order Information
Series 80
Mighty Mouse
Series 801 Hermetic Receptacles
feature 304L stainless steel shells,
fused vitreous glass insulators and
Alloy 52 iron alloy contacts.
Four Shell Styles:
solder mount, jam
nut, square flange or weld Mount.
Solder Cup Contacts
or
PC Tail
Contacts
for attachment to flexible or
rigid circuits or rigid boards.
C
1 X 10
-7
cc/second
maximum helium
leak rate.
Series 801 Solder Mount Hermetic
HOW TO ORDER
801-012
Series
Hermetic
Receptacles with
Printed Circuit
Board Contacts or
Solder Cup
Contacts
-03
Shell Style
Shell Material /
Finish
Stainless Steel /
Passivated
Z1
Z1
Sample Part Number
Shell Size/Insert
Arrangement
7-10
Contact
Type
Pin, Solder
Cup
P
P
A
Shell Key Position
Normal
Pos. B
Pos. C
Pos. D
Pos. E
Pos. F
801-012
A
B
C
D
E
F
See Page C-4 for Contact
Arrangements

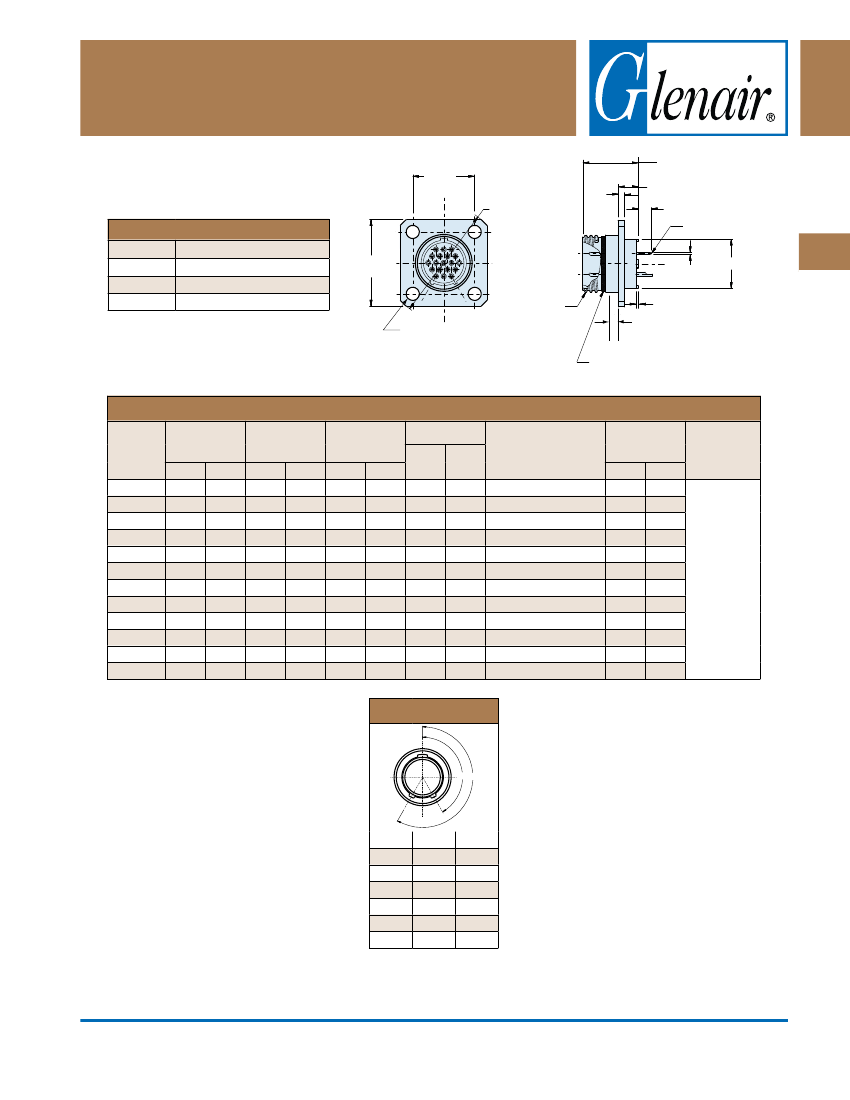

Square Flange
-02
Stainless Steel /
Nickel Plated
ZL
C
Pin, PC Tail
S
Socket,

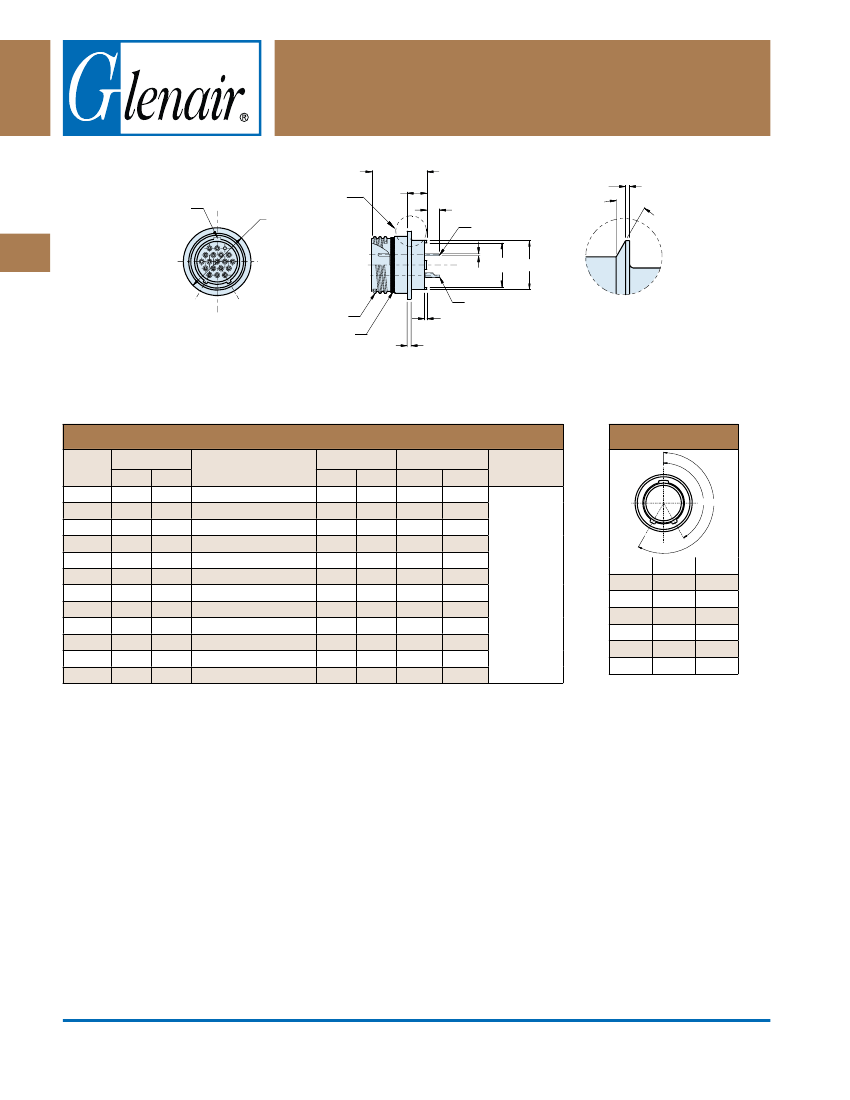

Solder Mount
-03
*Titanium and
Inconel
®
shell
materials are
available.
Consult factory
for ordering
information.
Solder Cup
D
Sockets,
PC Tail
A° B°

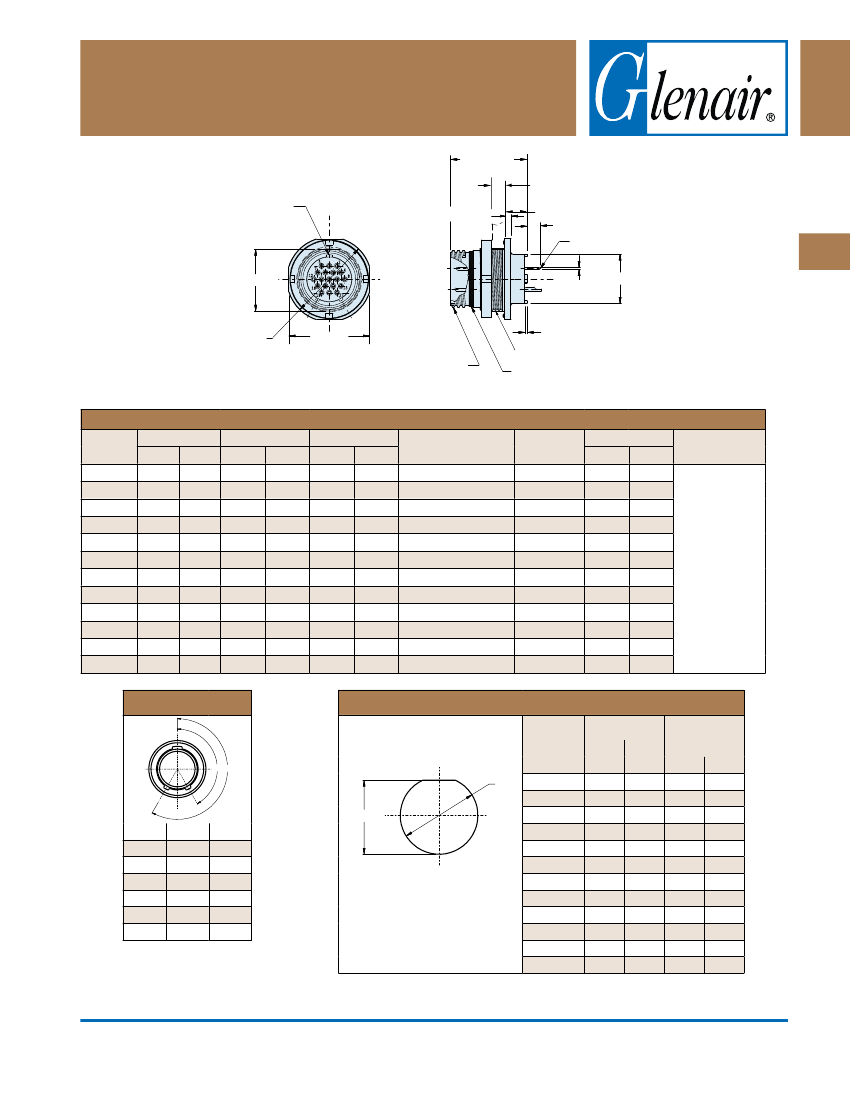

Jam Nut
-07
A
B
C
D
E
F
150°
75°
95°
140°
75°
95°
210°
210°
230°
275°
275°
210°

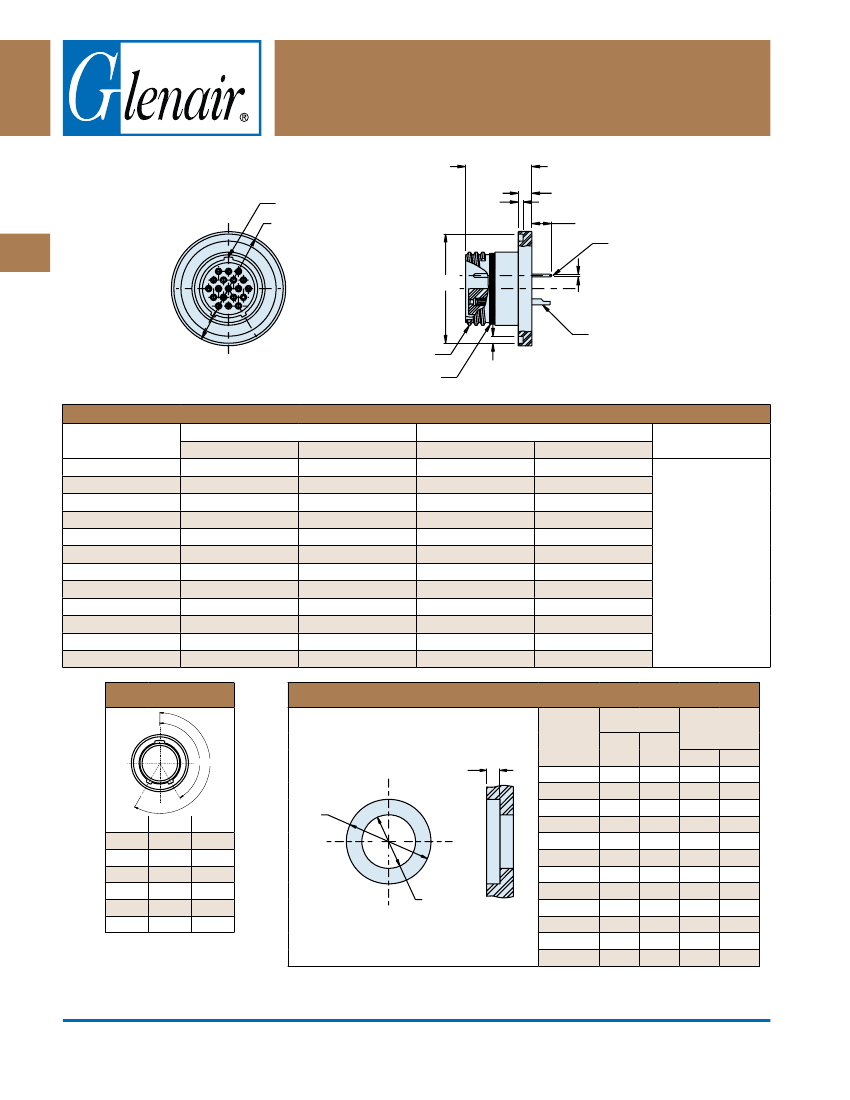

Weld Mount
Dimensions in Inches (millimeters) are subject to change without notice.
-13
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
C-48
E-Mail: sales@glenair.com
