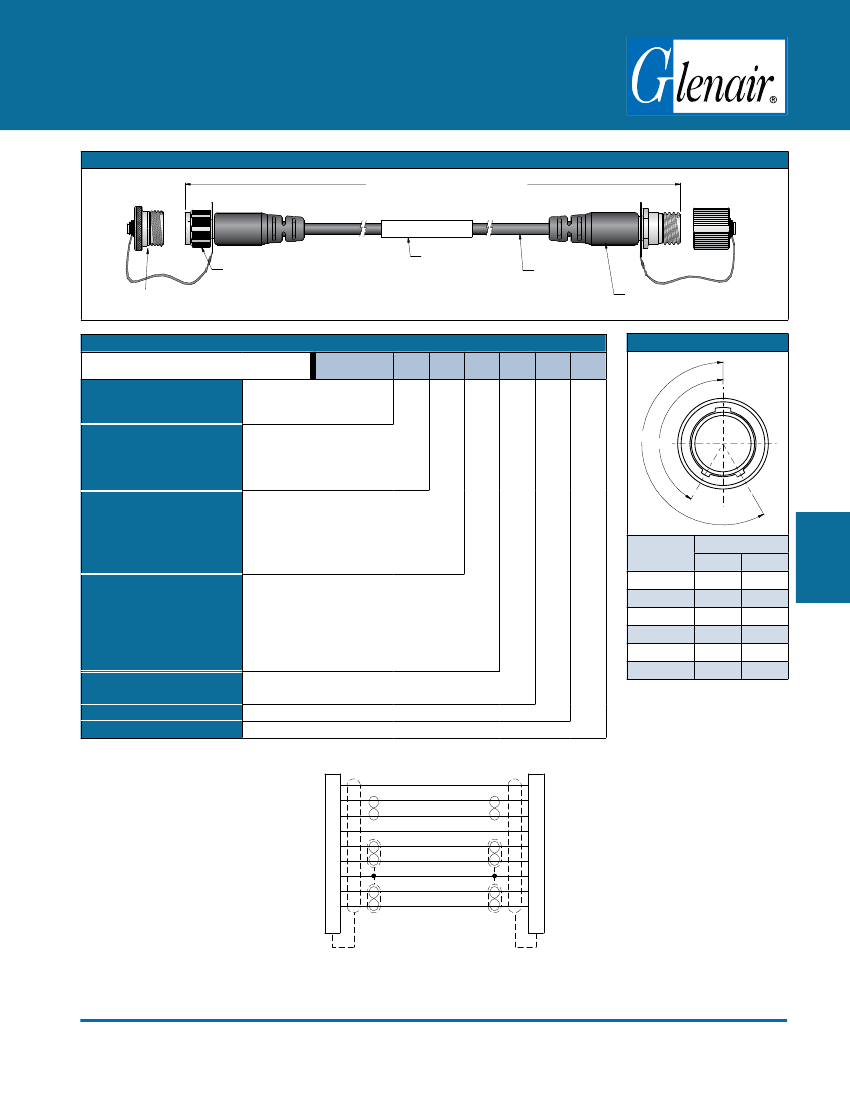

Mighty Mouse
High-Speed
Back-to-Back Connector
with Double-Start ACME Threads
801-047 Ordering Information
801-047: Series 801 Mighty Mouse
High-Speed
USB 3.0 Overmolded Cordset
"LENGTH" MIN (SEE P/N DEVELOPMENT)
P1
GLENAIR HIGH-SPEED CONNECTOR,
801-036-16 PLUG OR
801-037-01 RECEPTACLE
7-10 INSERT ARRANGEMENT
(GROMMETS REMOVED)
"PART NUMBER"
GLENAIR YYWW 06324
P2
BRADY LABEL,
LAT-18 OR EQ.
APPROX LOCATION:
CENTER OF CABLE
PROTECTIVE COVER,
667-217 OR 667-218
GLENAIR BULK
USB 3.0 CABLE,
963-012
POLYAMIDE OVERMOLD
How To Order
Sample Part Number
Series
Table I: Shell Key Positions
-A
D
NF
N
A
-48
801-047
P1 Connector
801-047
= Series 801 Mighty
Mouse Back-to-Back
USB 3.0 Overmolded cordset.
-A
= Plug with Pin Contacts
-B
= Plug with Socket Contacts
-C
= Receptacle with Pin Contacts
-D
= Receptacle with Socket Contacts
A
= Plug with Pin Contacts
B
= Plug with Socket Contacts
C
= Receptacle with Pin Contacts
D
= Receptacle with Socket Contacts
N
= No Connector (Single-Ended)
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab
Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
MT
= Aluminum / Nickel-PTFE, RoHS Compliant
Z1
= Stainless Steel / Passivated RoHS Compliant
P
= Metal Protective Covers Included
N
= No Covers Supplied
A
(Normal),
B, C, D, E, F
Overall Length In Inches 118" Max
P1
1
5
8
4
9
10
6
7
3
2
WIRING DIAGRAM
RED 24 AWG
WHT 26 AWG
GRN 26 AWG
BLK 24 AWG
BLU 26 AWG
YEL 26 AWG
DRAIN WIRES
VIO 26 AWG
ORN 26 AWG
P2
1
5
8
4
7
3
6
9
10
2
B°
A°
P2 Connector
Key Position
Normal (A)
B
C
D
E
F
Key Rotation
A°
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
Shell Material / Finish
Protective Cover
Shell Key Position (See Table I)
Length
Dimensions in Inches (millimeters) are subject to change without notice.
