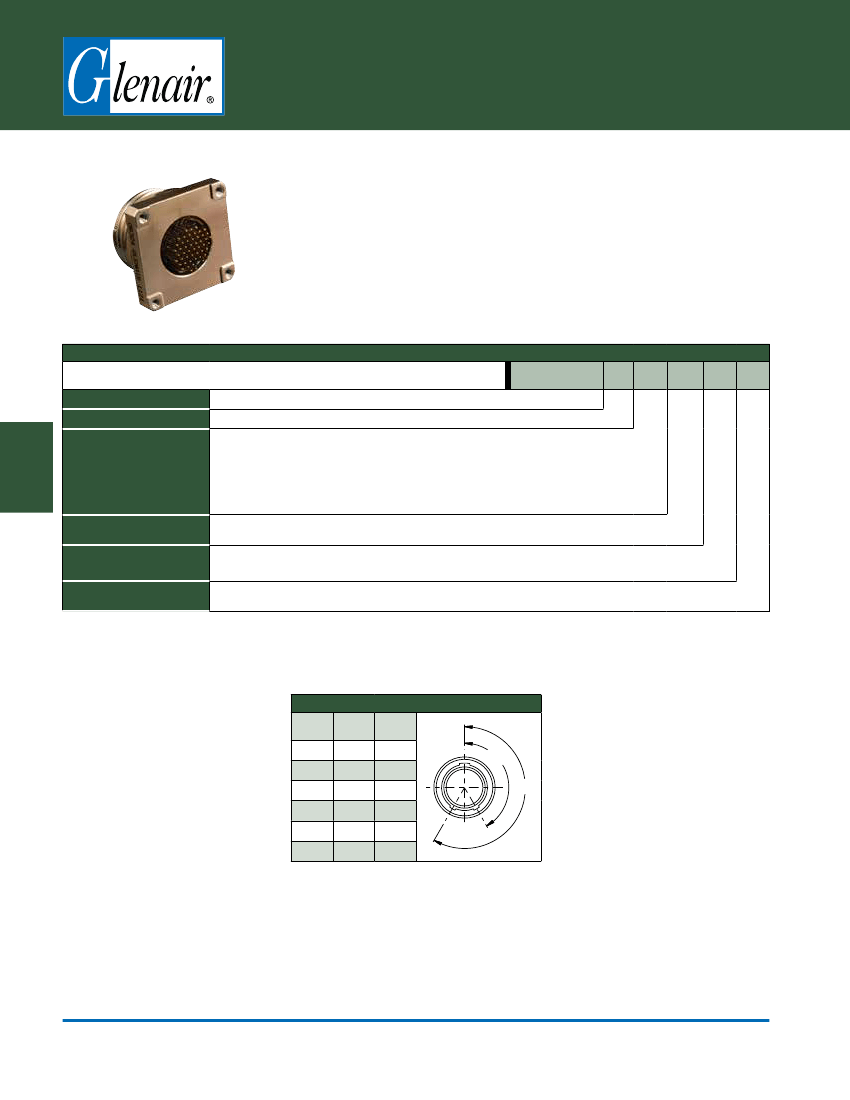

Series 801 Mighty Mouse Double-Start ACME Thread
Square Flange Jam Nut PCB Receptacle
801-075 Ordering Information
Rear Panel mount jam nut receptacle features square flange for secure attachement
of rigid boards or flex circuits. Flange has #2-56 stainless steel helicoils and integral
standoffs. PC tail contacts are facotry installed, potte with epoxy and are non-
removable. Gold–plated copper alloy contacts, aluminum or stainless steel shell,
fluorosilicone seals and LCP insulators
D
Series 801
Sample Part Number
Series
Shell Style
Material and Finish
Shell Size - Insert
Arrangement
Contact Type
Shell Key Positions
(See Table I)
A
= Normal
© 2014 Glenair, Inc.
How To Order
801-075
801-075
= Receptacle with Printed Circuit Board Contacts or Solder Cup Contacts
-07
= Jam Nut
M
= Aluminum / Electroless Nickel RoHS Compliant
MT
= Aluminum / Nickel-PTFE RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
Z1
= Stainless Steel / Passivated RoHS Compliant
See Contact Arrangements page D-2
P
= Pin, PC Tail
S
= Socket, PC Tail
B
= Pos. B
C
= Pos. C
D
= Pos. D
E
= Pos. F
F
= Pos. F
-07
M
6-7
P
A
Table I: Key Positions
A°
A
B
C
D
E
F
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
A°
B°
Dimensions in Inches (millimeters) are subject to change without notice.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
D-28
