Hermetic Receptacle How to Order Information
Sizes 12 and 16 Only
Series 802 Hermetic Receptacles
feature 316L stainless steel shells,
fused vitreous glass insulators and
Alloy 52 iron alloy contacts.
Four Shell Styles:
front mount jam
nut, front panel square flange mount,
weld mount and rear panel jam nut
mount.
Cable Adapters with Crimp Rings
provided with each connector for
reliable cable termination.
802-040
Series 802 “Aqua Mouse” Submersible
Series 80
Mighty Mouse
C
802-040-00 Front Mount
1 X 10
-7
cc/second
maximum helium
leak rate.

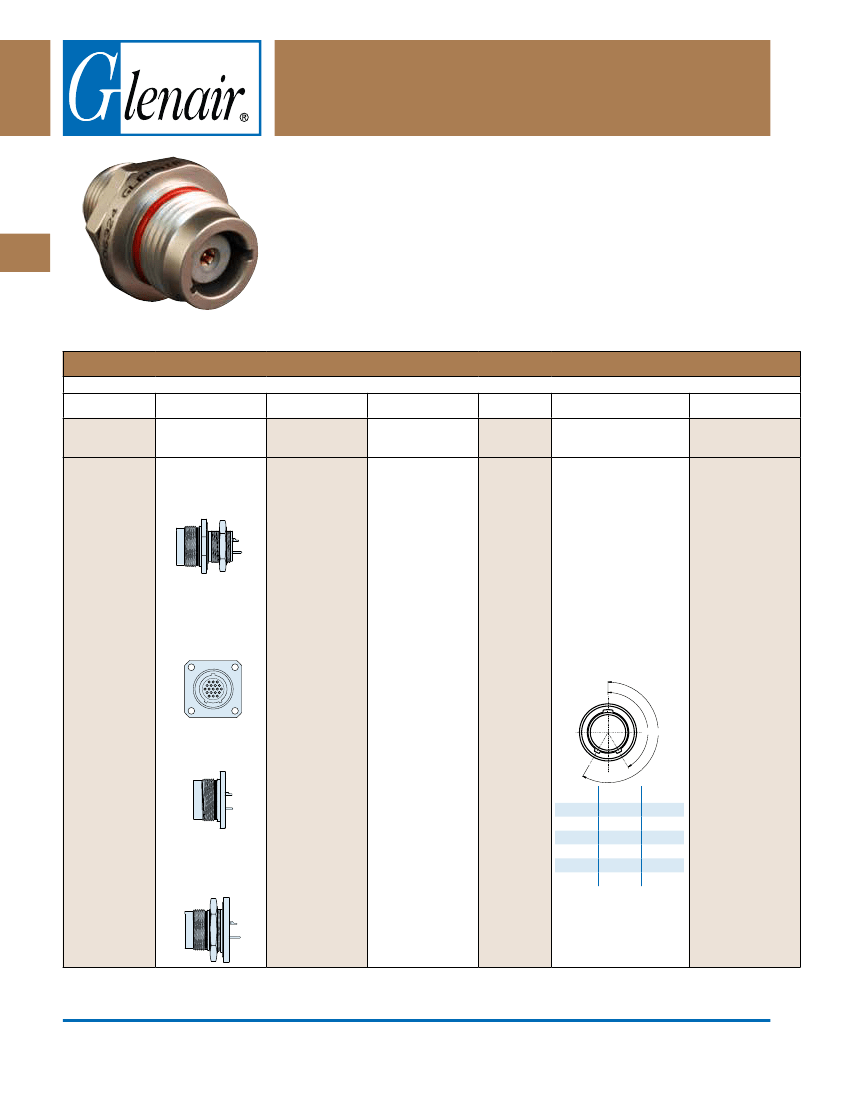

HOW TO ORDER
802-040
Series
Hermetic
Receptacle,
Co-Ax
Contacts,
Sizes
12 and 16
Only
-07
Shell Style
Front Mount
Jam Nut
Shell Material Shell Size/Insert Contact
/ Finish
Arrangement
Type
Stainless Steel /
Passivated
Z1
Z1
Sample Part Number
12-3
P
P
A
Shell Key Position
Normal
Pos. B
Pos. C
Pos. D
-210
Cable Style
Specify BIN Code
per AS39029/27,
/28, /76 and /78
Note:
Each connector
is supplied with
sufficient cable
adapters and crimp
rings to terminate
appropriate cable
for insertion into
contact rear. After
cable is terminated
and adapter
inserted into contact
rear, the rear of
the connector must
be potted to cover
adapters.
802-040
-00
Stainless Steel /
Nickel Plated
Front Panel
Square Flange
Mount
ZL
See Page C-4 for
Contact
Arrangements
Co-Ax
Pin
A
B
C
D
E
F
Co-Ax
Socket
S
-02
Titanium and
Inconel
®
shell
materials are
available.
Consult factory
for ordering
information.
Pos. E
Pos. F
Weld Mount
-03
A° B°
Rear Panel
Jam Nut Mount
-07
A
B
C
D
E
F
150°
75°
95°
140°
75°
95°
A°
210°
210°
230°
275°
275°
210°
B°
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-62
E-Mail: sales@glenair.com

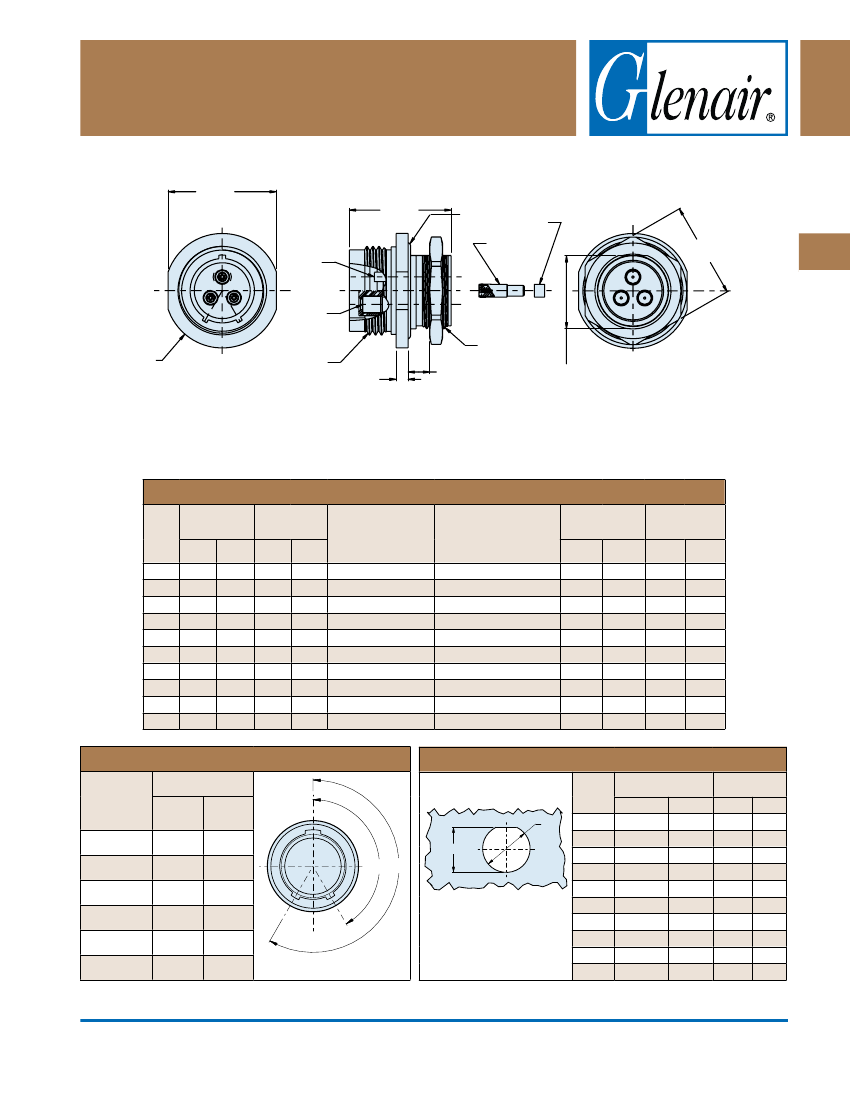

Co-Ax Contacts • Sizes 12 and 16 Only
Front Panel Jam Nut Mount Hermetic Receptacle
M Flat
1.050
(26.7)
Max
1
3
ØL
Co-Ax
Pin
Co-Ax
Socket
A Thread
.118 (3.00)
Flange Crimp
O-Ring Sleeve
Cable
Adapter
P
Hex
2
C Thread
.250/.090 (6.35/2.30)
Panel
N Flat
Front Panel Jam Nut Mount Submersible Hermetic
802-040-00
DIMENSIONS
Shell
Size
5
6
7
8
9
10
12
14
15
21
L Max.
In.
mm.
.720 18.29
.780 19.81
.910 23.11
.960 24.38
M Flat
In.
mm.
.625 15.88
.750 19.05
.812 20.62
.875 22.23
A
Mating Threads
.438-28 UNEF-2A
.562-20 UN-2A
.625-20 UN-2A
.687-20 UN-2A
.750-20 UNEF-2A
.812-20 UNEF-2A
.875-20 UNEF-2A
1.062-20 UN-2A
1.125-20 UN-2A
1.4375-20 UN-2A
C
Threads
.312-28 UN-2A
.438-28 UN-2A
.500-32 UN-2A
.562-28 UN-2A
.625-20 UN-2A
.687-28 UN-2A
.750-28 UN-2A
.938-28 UN-2A
1.000-28 UN-2A
1.312-28 UN-2A
N Flat
In.
.281
.344
.469
.531
.594
.656
.719
.893
.955
1.257
P Hex
In.
.500
.625
.688
.750
.812
.875
.938
1.125
1.188
1.500
mm.
7.14
8.74
11.91
13.49
15.09
16.66
18.26
22.68
24.26
31.93
mm.
12.70
15.88
17.48
19.05
20.62
22.23
23.83
28.58
30.18
38.10
1.030 26.16 .937 23.80
1.090 27.69 1.000 25.40
1.160 29.46 1.062 26.97
1.340 34.04 1.250 31.75
1.410 35.18 1.312 33.32
1.700 43.18 1.562 39.67
SERIES 802 RECEPTACLE KEY POSITIONS
Key Rotation
Key
Position
Normal (A)
B
C
D
E
F
CUTOUT DIMENSIONS
H Flat
ØJ
Shell
Size
In.
mm.
In. mm.
291/.286
7.4/7.3
.322
8.2
5
.417/.412 10.6/10.5
.448 11.4
6
.479/.474 12.2/12.0
.510 13.0
7
.541/.536 13.7/13.6
.572 14.5
8
.604/.599 15.3/15.2
.635 16.1
9
.666/.661 16.9/16.8
.697 17.7
10
.729/.724 18.5/18.4
.760 19.3
12
.903/.898 22.9/22.8
.948 24.1
14
.965/.960 24.5/24.4
1.010 25.7
15
21
1.267/1.263 32.2/32.1
1.322 33.6
Printed in U.S.A.
A°
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
U.S. CAGE Code 06324
H FLAT
øJ
A° B°
RECOMMENDED PANEL CUTOUT
FOR STYLE 00
FRONT MOUNT JAM NUT
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-63
E-Mail: sales@glenair.com
Series 80
Mighty Mouse
802-040-00
Series 802 “Aqua Mouse” Submersible
C

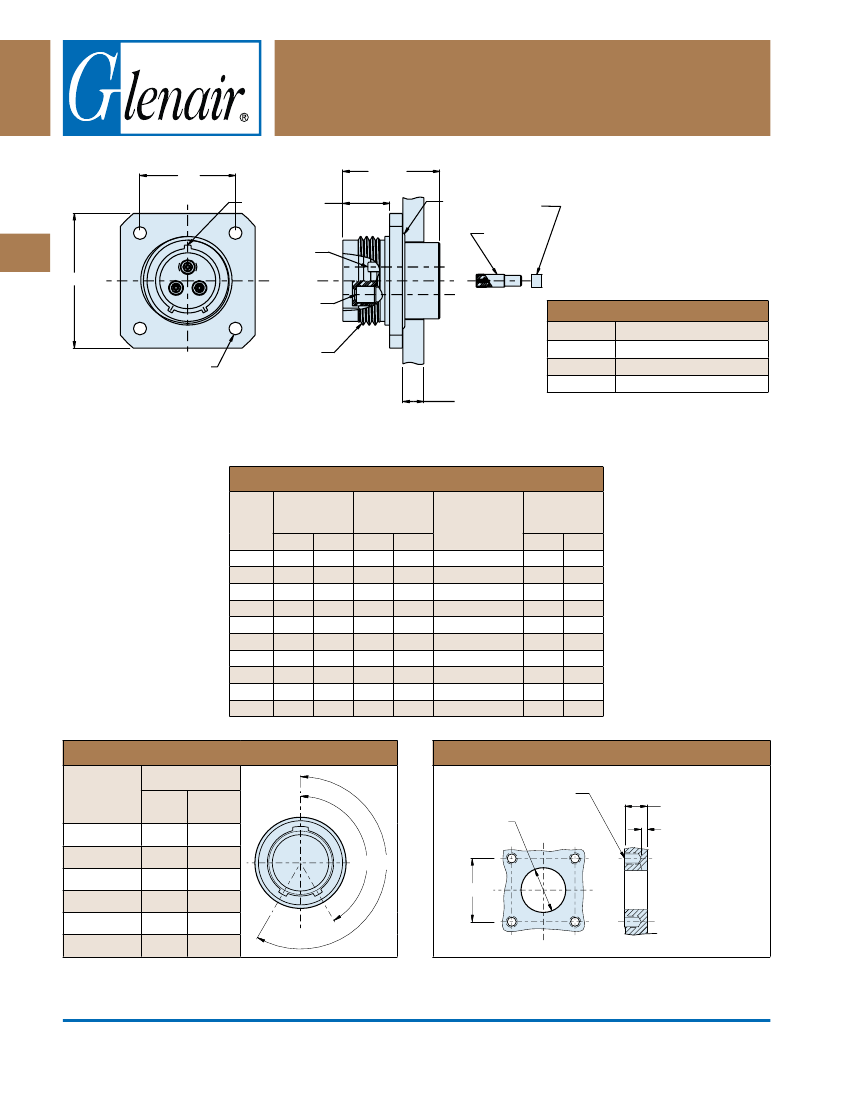

Coax Contacts • Sizes 12 and 16 Only
Front Panel Square Flange Mount Hermetic Receptacle
H
Typ
Master
Keyway
.460
(11.7)
Co-Ax
Pin
Co-Ax
Socket
A Thread
.350/.160
(6.4/4.1) Panel
1.050
(26.7)
Max
802-040-02
Series 802 “Aqua Mouse” Submersible
Series 80
Mighty Mouse
Flange
O-Ring
C
K Sq
Crimp
Sleeve
Cable
Adapter
1
3 2
HERMETIC LEAK RATE MOD CODES
Designator
–585A
–585B
–585C
Required Leak Rate
1 x 10
-10
cc Helium per second
1 x 10
-9
cc Helium per second
1 x 10
-8
cc Helium per second
Ø.125 (3.2)
Thru Typ 4 Pl
Front Panel Square Flange Mount Submersible Hermetic
802-040-02
DIMENSIONS
Shell
Size
5
6
7
8
9
10
12
14
15
21
K Square
In.
mm.
.885
1.010
1.072
1.135
1.195
1.260
1.323
1.510
1.573
1.750
22.48
25.65
27.23
28.83
30.35
H Bsc.
In.
mm.
.500
.625
.688
.750
.812
12.70
15.88
17.48
19.05
20.62
A
Mating
Threads
.438-28 UNEF
.562-20 UN
.625-20 UN
.687-20 UN
.750-20 UNEF
ØE
In.
mm.
.327
.390
.515
.577
.640
.702
.765
.953
1.015
1.312
8.31
9.91
13.08
14.66
16.26
17.83
19.43
24.21
25.78
33.32
32.00
.875
33.60
.938
38.25 1.125
39.95
44.45
1.188
1.375
22.23 .812-20 UNEF
23.83 .875-20 UNEF
28.58 1.062-20 UN
30.18 1.125-20 UN
34.93 1.4375-20 UN
SERIES 802 RECEPTACLE KEY POSITIONS
Key Rotation
Key
Position
Normal (A)
B
C
D
E
F
SERIES 802 SQ. FLANGE PANEL CUTOUT
#4-40 UNC
4-BLIND HOLES
ø
E
.160 (4.06)
MIN - REF
.045 (1.14) MIN
A°
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
A° B°
B
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-64
E-Mail: sales@glenair.com

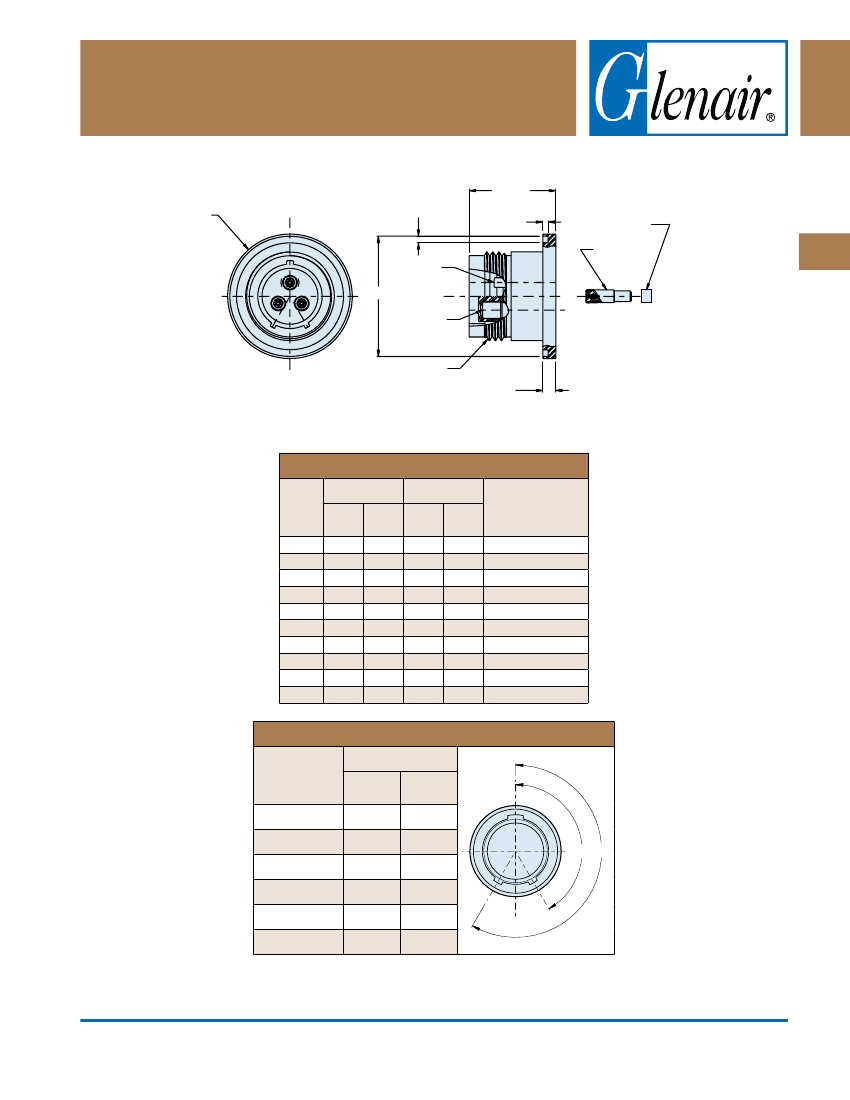

Coax Contacts • Sizes 12 and 16 Only
Weld Mount Hermetic Receptacle
ØG
.071/.059
(1.8/1.5)
1.050
(26.7)
Max
.050 (1.3)
1
3
2
ØF
Co-Ax
Pin
Co-Ax
Socket
A Thread
Crimp
Sleeve
Cable
Adapter
.130/.122
(3.3/3.1)
Weld Mount Submersible Hermetic
802-040-03
DIMENSIONS
ØG
Shell
Size
5
6
7
8
9
10
12
14
15
21
± .006
.788
.912
.975
1.038
1.100
1.162
1.225
1.412
1.475
1.795
ØF
± .006
.745
.869
.933
.995
In.
± 0.15
20.02
23.16
24.77
26.37
mm.
In.
± 0.15
18.92
22.07
23.70
25.27
26.85
28.42
30.02
34.77
36.37
44.38
mm.
A
Mating Threads
.438-28 UNEF
.562-20 UN
.625-20 UN
.687-20 UN
.750-20 UNEF
.812-20 UNEF
.875-20 UNEF
1.062-20 UN
1.125-20 UN
1.4375-20 UN
27.94 1.057
29.53 1.119
31.12 1.182
35.86
37.47
45.59
1.369
1.432
1.747
SERIES 802 RECEPTACLE KEY POSITIONS
Key Rotation
Key
Position
Normal (A)
B
C
D
E
F
A°
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
A° B°
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-65
E-Mail: sales@glenair.com
Series 80
Mighty Mouse
802-040-03
Series 802 “Aqua Mouse” Submersible
C

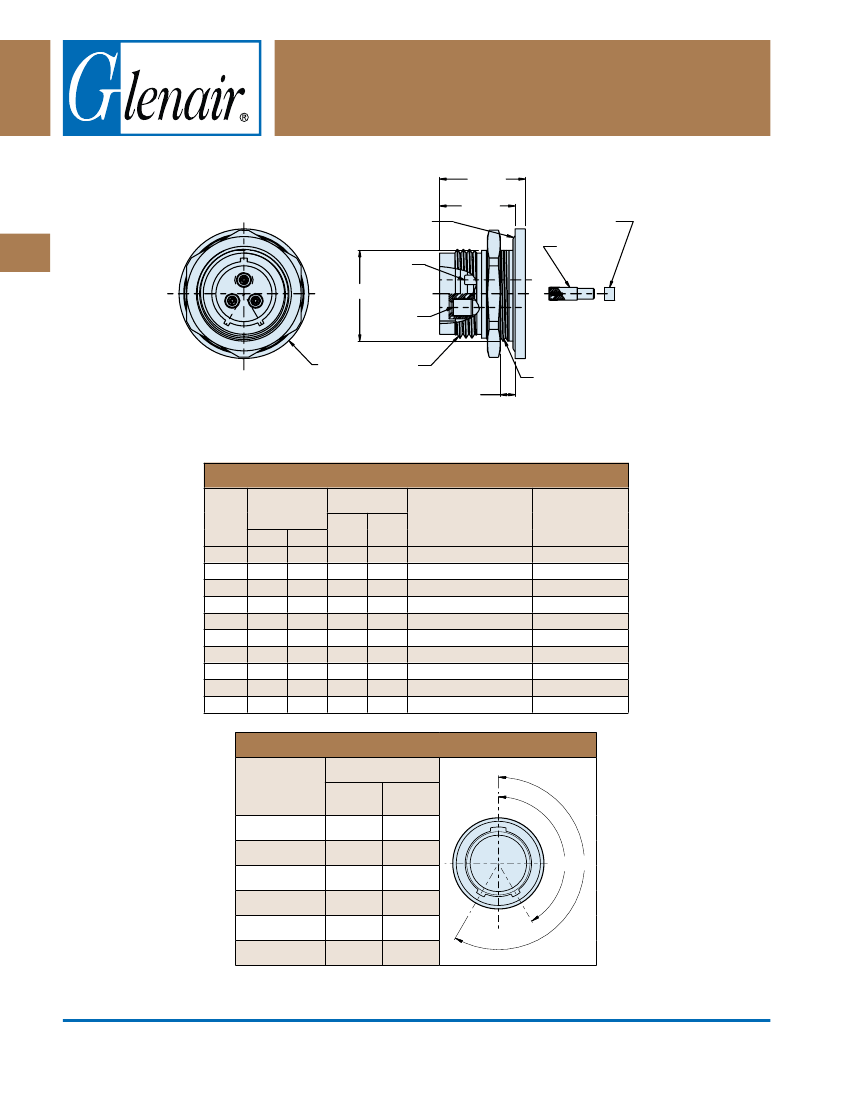

Coax Contacts • Sizes 12 and 16 Only
Rear Panel Jam Nut Mount Hermetic Receptacle
1.050
(26.7)
Max
.940
(23.6)
802-040-07
Series 802 “Aqua Mouse” Submersible
Series 80
Mighty Mouse
C
1
3
ØD
Flange
O-Ring
Co-Ax
Pin
Co-Ax
Socket
A Thread
Crimp
Sleeve
Cable
Adapter
2
E Flat
.250 (6.4)
Max Panel
B Thread
Rear Panel Jam Nut Mount Submersible Hermetic
802-040-07
DIMENSIONS
Shell
Size
5
6
7
8
9
10
12
14
15
21
D Max.
In.
mm.
.885
1.010
1.072
1.135
1.195
1.260
1.322
1.510
1.572
1.940
22.48
25.65
27.23
28.83
30.35
E Flat
± .003
.466
.591
.653
.716
.778
In.
± 0.08
11.84
15.01
16.59
18.19
19.76
21.01
22.61
27.36
28.96
37.19
mm.
A
Mating Threads
.438-28 UNEF
.562-20 UN
.625-20 UN
.687-20 UN
.750-20 UNEF
.812-20 UNEF
.875-20 UNEF
1.062-20 UN
1.125-20 UN
1.4375-20 UN
B
Threads
.500-32 UN-2A
.625-20 UN-2A
.687-28 UN-2A
.750-28 UN-2A
.812-28 UN-2A
.875-28 UN-2A
.938-28 UN-2A
1.125-28 UN-2A
1.188-28 UN-2A
1.500-28 UN-2A
32.00
.827
33.58
.890
38.25 1.077
39.93
49.28
1.140
1.464
SERIES 802 RECEPTACLE KEY POSITIONS
Key Rotation
Key
Position
Normal (A)
B
C
D
E
F
A°
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
A° B°
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-66
E-Mail: sales@glenair.com
