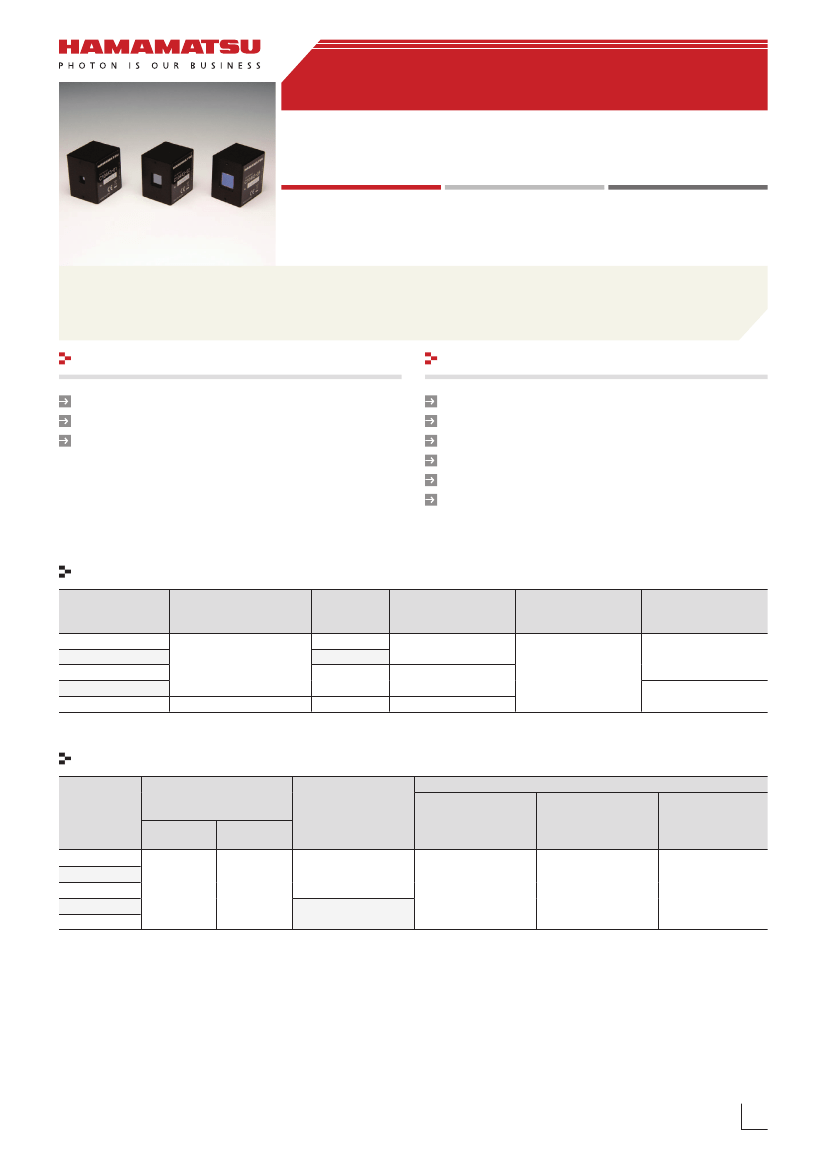

PSD modules
C10443 series
Integrates a PSD for precision photometry or a
4-segment Si photodiode with low-noise amp in a
compact case
PSD modules contain a high-precision two-dimensional PSD (position sensitive detector) or a 4-segment Si photodiode and a
low-noise amplifier, and are able to perform accurate distance measurement. Using a PSD module (excluding the C10443-06)
with a dedicated signal processing unit C10460 allows obtaining distance information easily.
Features
Easy handling
High precision analog voltage output
Only half size of a business card: 34 (W) × 44 (H) × 40 (D) mm
Applications
Optical axis alignment
Distance sensors
Three-dimensional measurement
Length measurement
Liquid level sensors
Distortion measurement
Selection guide
Type no.
C10443-01
C10443-02
C10443-03
C10443-04
C10443-06
Detector type
Photosensitive
area
(mm)
4×4
9×9
12 × 12
4-segment photodiode
10 × 10
Peak sensitivity
wavelength
(nm)
960
920
960
34 × 44 × 40
160 k
Dimensions
(mm)
Frequency bandwidth
-3 dB
(Hz)
16 k
PSD
Recommended conditions/Absolute maximum ratings
Supply voltage
Vcc
(V)
Min.
Max.
Current consumption
Icc
Max.
Dark state
(mA)
Absolute maximum ratings
Operating
Supply voltage
temperature*
1
Vcc max
Topr
(°C)
(V)
Storage
temperature*
1
Tstg
(°C)
Type no.
C10443-01
±2
C10443-02
±5
±12
±13
0 to +50
-10 to +60
C10443-03
C10443-04
±15
C10443-06
*1:
No condensation
Note: Exceeding the absolute maximum ratings even momentarily may cause a drop in product quality. Always be sure to use the
product within the absolute maximum ratings.
www.hamamatsu.com
1
PSD modules
C10443 series

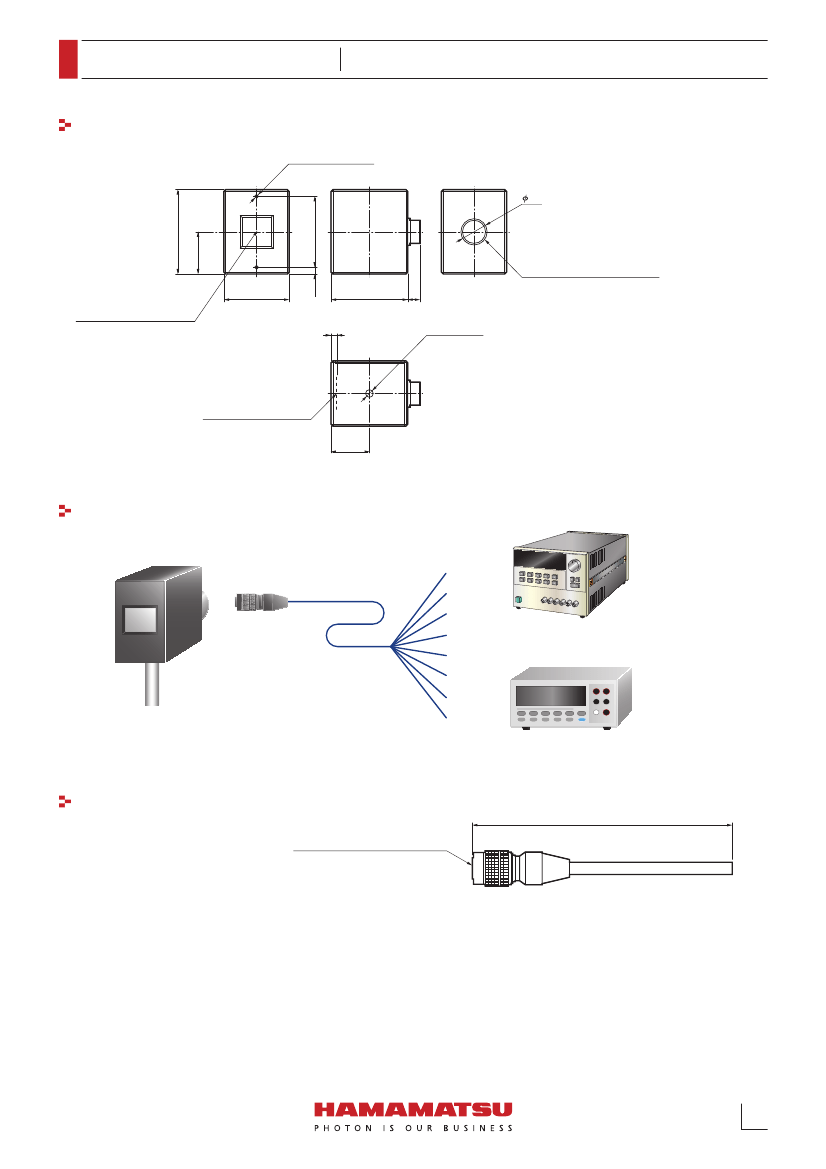

Dimensional outline (unit: mm)
(2 ×) M2 depth 5
14
44
37
22
Center of photosensitive area
Photosensitive area
C10443-01: 4 × 4
C10443-02: 9 × 9
C10443-03/-04: 12 × 12
C10443-06: 10 × 10
34
3.5
40
3
6.3
M4 depth 5
Connector
HR-10A-10R-10PB (71)
Hirose Electric, 10-pin, male
Photosensitive surface
20
Tolerance unless otherwise noted: ±0.2
KACCA0193EB
Connection example
PSD module
Cable (accessory)
+Vcc
GND
-Vcc
V
X1
V
X2
V
Y1
V
Y2
Secure with optical bench rod, etc.
GND
Readout device (voltmeter, etc.)
KACCC0349ED
Power supply (±5 to ±12 V)
Accessories
· Cable (One end of cable is cut off.)
1m
Connector HR10A-10P-10S
(Hirose Electric, 10-pin, female)
KACCA0338EA
4
PSD modules
C10443 series
Options (sold separately)
Signal processing unit for PSD module C10460
This unit converts PSD module output into position signals. The position signals are output as both
analog and digital signals. With the analog signal, simply connect a voltmeter to the connector,
and the readout voltage will display the position information [output voltage (V) = position rela-
tive to the PSD center (mm), excluding C10443-06]. With the digital signal, use a serial connection
(RS-232C) to connect with a PC. Use the supplied sample software to easily retrieve position infor-
mation into a PC. For the specifications, refer to the C10460 datasheet.
Dimensions: 150 × 100 × 30 mm
Related information
www.hamamatsu.com/sp/ssd/doc_en.html
Precautions
· Disclaimer
Information described in this material is current as of August, 2015.
Product specifications are subject to change without prior notice due to improvements or other reasons. This document has been carefully prepared and the
information contained is believed to be accurate. In rare cases, however, there may be inaccuracies such as text errors. Before using these products, always
contact us for the delivery specification sheet to check the latest specifications.
The product warranty is valid for one year after delivery and is limited to product repair or replacement for defects discovered and reported to us within that
one year period. However, even if within the warranty period we accept absolutely no liability for any loss caused by natural disasters or improper product use.
Copying or reprinting the contents described in this material in whole or in part is prohibited without our prior permission.
www.hamamatsu.com
HAMAMATSU PHOTONICS K.K., Solid State Division
1126-1 Ichino-cho, Higashi-ku, Hamamatsu City, 435-8558 Japan, Telephone: (81) 53-434-3311, Fax: (81) 53-434-5184
U.S.A.: Hamamatsu Corporation: 360 Foothill Road, Bridgewater, N.J. 08807, U.S.A., Telephone: (1) 908-231-0960, Fax: (1) 908-231-1218
Germany: Hamamatsu Photonics Deutschland GmbH: Arzbergerstr. 10, D-82211 Herrsching am Ammersee, Germany, Telephone: (49) 8152-375-0, Fax: (49) 8152-265-8
France: Hamamatsu Photonics France S.A.R.L.: 19, Rue du Saule Trapu, Parc du Moulin de Massy, 91882 Massy Cedex, France, Telephone: 33-(1) 69 53 71 00, Fax: 33-(1) 69 53 71 10
United Kingdom: Hamamatsu Photonics UK Limited: 2 Howard Court, 10 Tewin Road, Welwyn Garden City, Hertfordshire AL7 1BW, United Kingdom, Telephone: (44) 1707-294888, Fax: (44) 1707-325777
North Europe: Hamamatsu Photonics Norden AB: Torshamnsgatan 35 16440 Kista, Sweden, Telephone: (46) 8-509-031-00, Fax: (46) 8-509-031-01
Italy: Hamamatsu Photonics Italia S.r.l.: Strada della Moia, 1 int. 6, 20020 Arese (Milano), Italy, Telephone: (39) 02-93581733, Fax: (39) 02-93581741
China: Hamamatsu Photonics (China) Co., Ltd.: B1201, Jiaming Center, No.27 Dongsanhuan Beilu, Chaoyang District, Beijing 100020, China, Telephone: (86) 10-6586-6006, Fax: (86) 10-6586-2866
Cat. No. KPSD1027E06 Aug. 2015 DN
