KM48S2020CT-FL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> KM48S2020CT-FL

KM48S2020CT-FL: DescriptionSynchronous DRAM, 2MX8, 6ns, CMOS, PDSO44, 0.400 X 0.725 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-44; Categorystorage storage; File Size402KB，10 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KM48S2020CT-FL Overview

Synchronous DRAM, 2MX8, 6ns, CMOS, PDSO44, 0.400 X 0.725 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-44

KM48S2020CT-FL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SAMSUNG
Parts packaging code	TSOP2
package instruction	TSOP2, TSOP44,.46,32
Contacts	44
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	DUAL BANK PAGE BURST
Maximum access time	6 ns
Other features	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	100 MHz
I/O type	COMMON
interleaved burst length	1,2,4,8
JESD-30 code	R-PDSO-G44
JESD-609 code	e0
length	18.41 mm
memory density	16777216 bit
Memory IC Type	SYNCHRONOUS DRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	44
word count	2097152 words
character code	2000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Encapsulate equivalent code	TSOP44,.46,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	4096
Maximum seat height	1.2 mm
self refresh	YES
Continuous burst length	1,2,4,8,FP
Maximum standby current	0.001 A
Maximum slew rate	0.095 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.16 mm

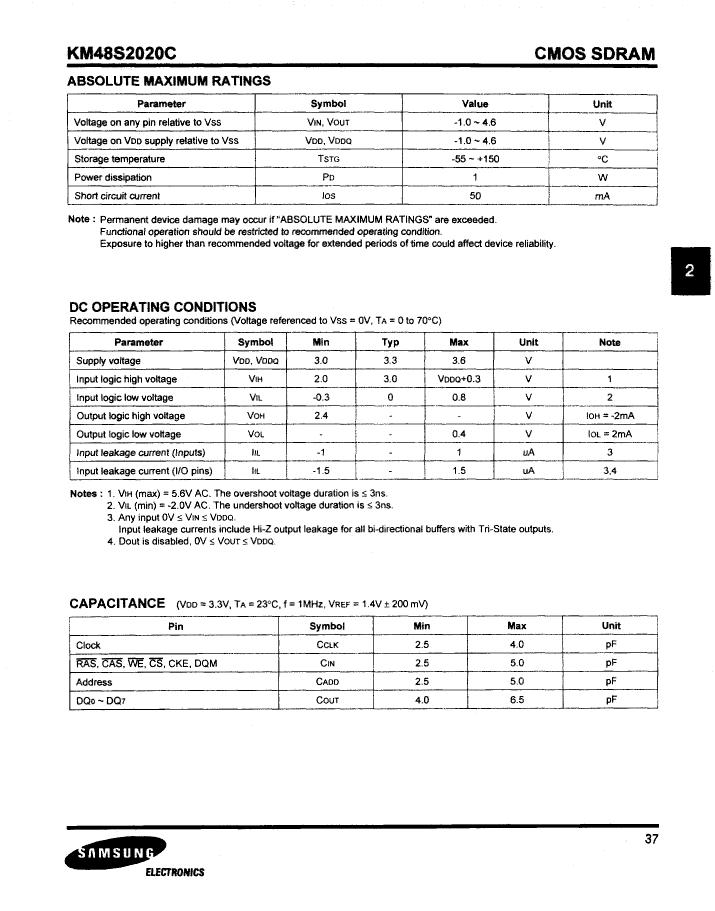

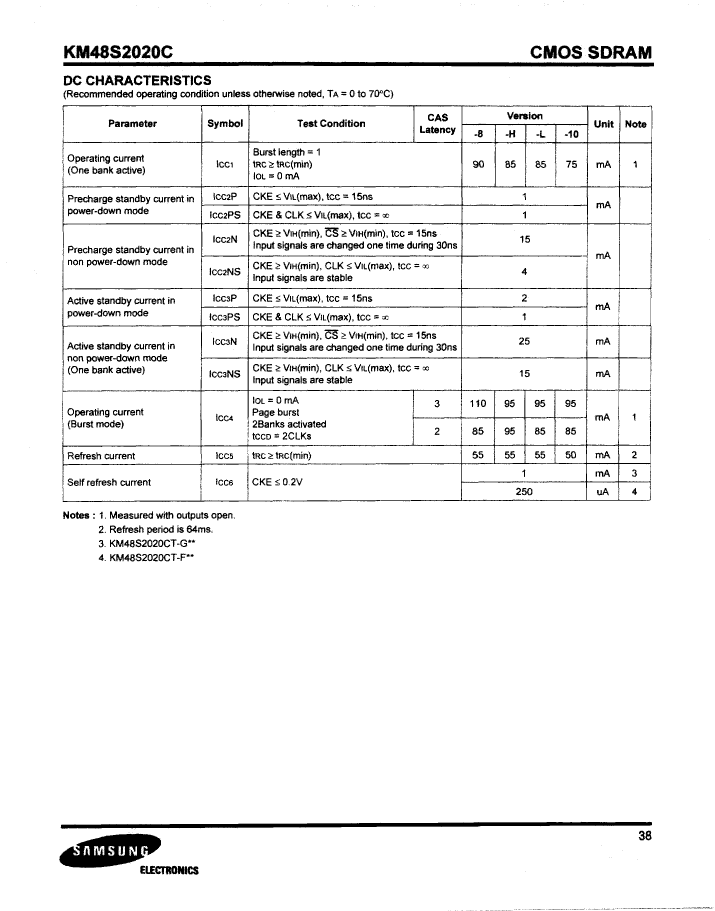

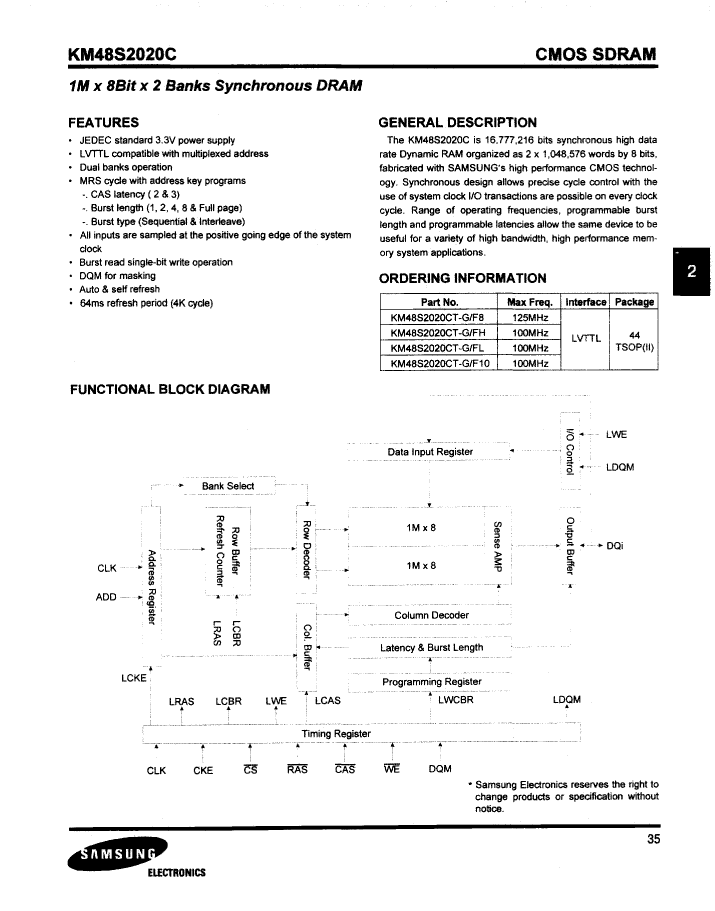

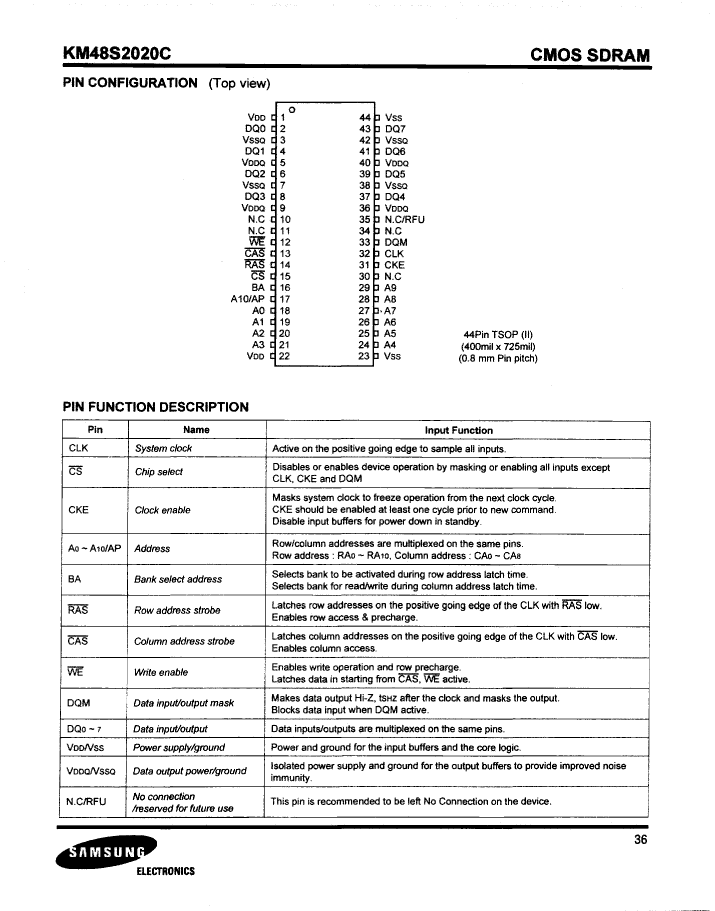

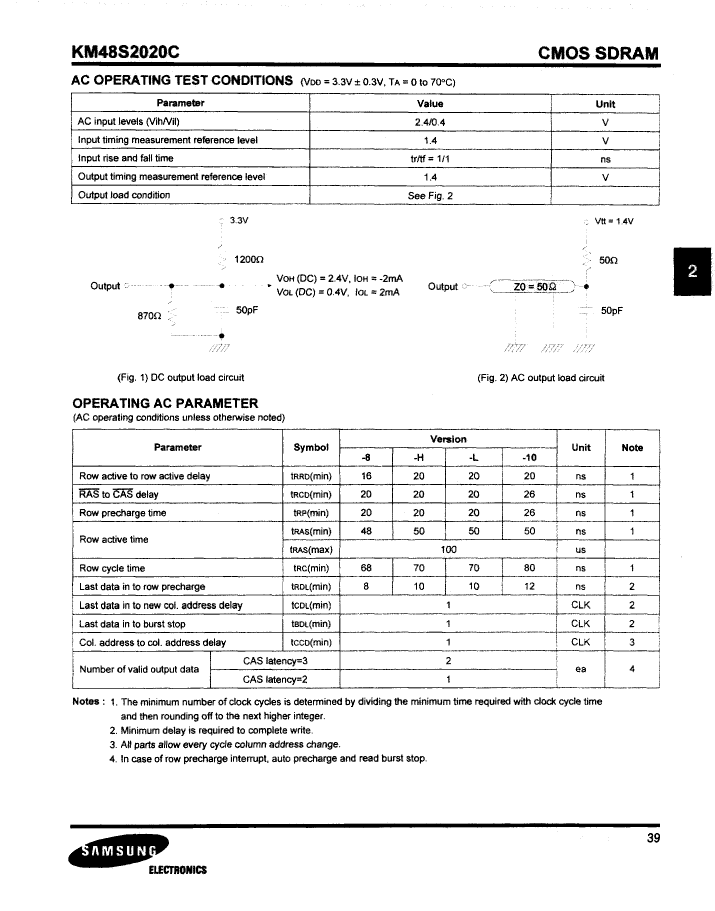

KM48S2020CT-FL Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

KM48S2020CT-FL Related Products

	KM48S2020CT-FL	KM48S2020CT-FH	KM48S2020CT-G10	KM48S2020CT-GH	KM48S2020CT-G8	KM48S2020CT-GL	KM48S2020CT-F10	KM48S2020CT-F8
Description	Synchronous DRAM, 2MX8, 6ns, CMOS, PDSO44, 0.400 X 0.725 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-44	Synchronous DRAM, 2MX8, 6ns, CMOS, PDSO44, 0.400 X 0.725 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-44	Synchronous DRAM, 2MX8, 7ns, CMOS, PDSO44, 0.400 X 0.725 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-44	Synchronous DRAM, 2MX8, 6ns, CMOS, PDSO44, 0.400 X 0.725 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-44	Synchronous DRAM, 2MX8, 6ns, CMOS, PDSO44, 0.400 X 0.725 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-44	Synchronous DRAM, 2MX8, 6ns, CMOS, PDSO44, 0.400 X 0.725 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-44	Synchronous DRAM, 2MX8, 7ns, CMOS, PDSO44, 0.400 X 0.725 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-44	Synchronous DRAM, 2MX8, 6ns, CMOS, PDSO44, 0.400 X 0.725 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
Parts packaging code	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2
package instruction	TSOP2, TSOP44,.46,32	TSOP2, TSOP44,.46,32	TSOP2, TSOP44,.46,32	TSOP2, TSOP44,.46,32	TSOP2, TSOP44,.46,32	TSOP2, TSOP44,.46,32	TSOP2, TSOP44,.46,32	TSOP2, TSOP44,.46,32
Contacts	44	44	44	44	44	44	44	44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST
Maximum access time	6 ns	6 ns	7 ns	6 ns	6 ns	6 ns	7 ns	6 ns
Other features	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	100 MHz	100 MHz	100 MHz	100 MHz	125 MHz	100 MHz	100 MHz	125 MHz
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
interleaved burst length	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8
JESD-30 code	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	18.41 mm	18.41 mm	18.41 mm	18.41 mm	18.41 mm	18.41 mm	18.41 mm	18.41 mm
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM
memory width	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	44	44	44	44	44	44	44	44
word count	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000	2000000	2000000	2000000	2000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	2MX8	2MX8	2MX8	2MX8	2MX8	2MX8	2MX8	2MX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2
Encapsulate equivalent code	TSOP44,.46,32	TSOP44,.46,32	TSOP44,.46,32	TSOP44,.46,32	TSOP44,.46,32	TSOP44,.46,32	TSOP44,.46,32	TSOP44,.46,32
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	4096	4096	4096	4096	4096	4096	4096	4096
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
self refresh	YES	YES	YES	YES	YES	YES	YES	YES
Continuous burst length	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP
Maximum standby current	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A
Maximum slew rate	0.095 mA	0.095 mA	0.095 mA	0.095 mA	0.11 mA	0.095 mA	0.095 mA	0.11 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
