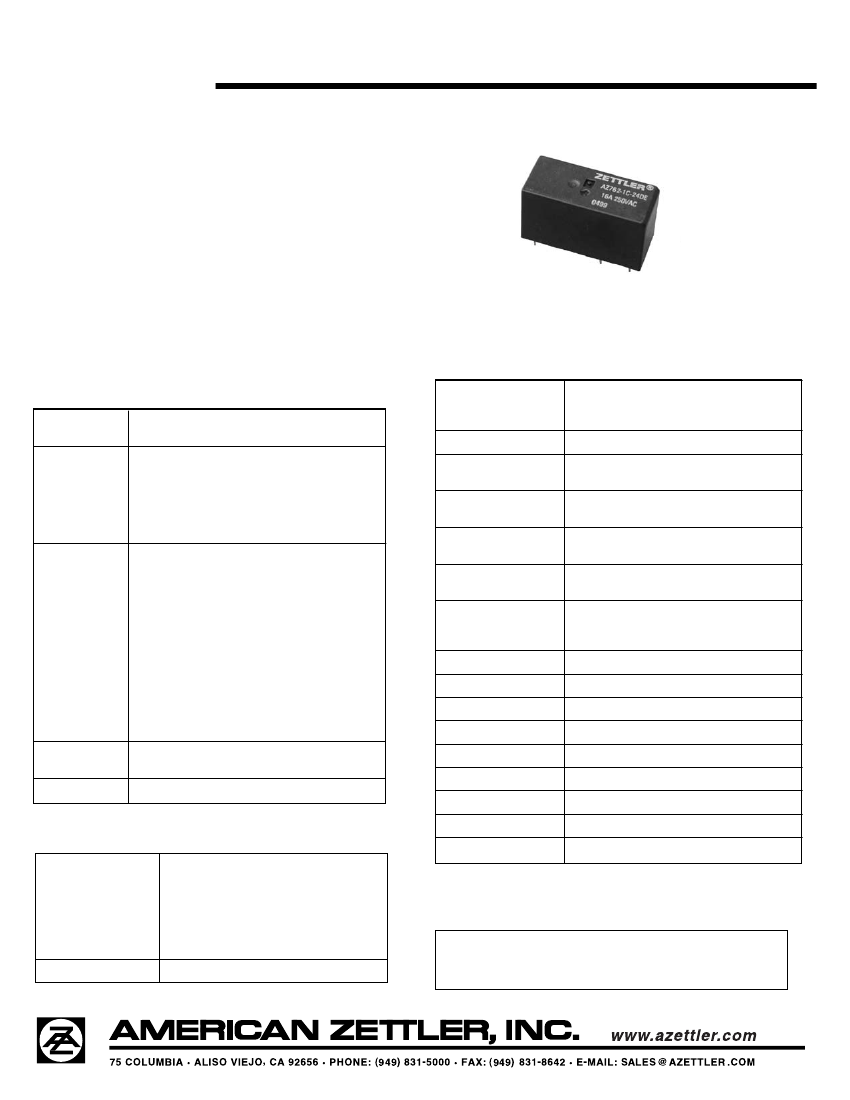

AZ762
AZ
16 A SPDT MINIATURE
POWER RELAY
FEATURES
•
•
•
•
•
•
•
•
•
•
Dielectric strength 5000 Vrms
Low cost
Epoxy sealed versions available
AC and DC coils
16 Amp switching
High inrush version available (80 A)
Class B (130°C) standard
Class F (155°C) versions available
Isolation spacing greater than 10 mm
UL, CUR file E44211, VDE 40006031
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
1 x 10
7
1 x 10
5
at 16 A 240 VAC Res.
7 ms at nominal coil voltage
3 ms at nominal coil voltage
(with no coil suppression)
CONTACTS
Arrangement
Ratings
SPDT (1 Form C)
SPST (1 Form A, 1 Form B)
Resistive load:
Max. switched power: 480 W or 4432 VA
Max. switched current: 16 A
Max. switched voltage: 150* VDC or 440 VAC
*
Note: If switching voltage is greater than 30 VDC, special
precautions must be taken. Please contact the factory.
Dielectric Strength
5000 Vrms coil to contact
(at sea level for 1 min.)
1000 Vrms between open contacts
Insulation
Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
1000 megohms min. at 20°C
500 VDC 50% RH
Greater than 10% of nominal coil voltage (DC)
Greater then 15% of nominal coil voltage (AC)
At nominal coil voltage
-40°C (-40°F) to 100°C (212°F)
-40°C (-40°F) to 130°C (266°F)
0.062" DA at 10–55 Hz
10 g
P.B.T. polyester
Tinned copper alloy, P. C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
14 grams
Rated Load
UL, CUR
16 A at 277 VAC resistive, 50k cycles [1]
16 A at 277 VAC resistive, 100k cycles [3]
1 HP at 250 VAC (1 Form A) [1]
1/2 HP at 125 VAC (1 Form A) [1]
TV-5 at 125 VAC (1 Form A) [1]
16 A at 277 VAC resistive, 75k cycles [2]
B300 Pilot Duty [2]
R300 Pilot Duty [2]
16 A at 250 VAC resistive [1] and [2]
Contact factory for additonal VDE ratings
[1] Silver cadmium oxide, [2] Silver tin oxide
[3] Silver nickel
VDE
Material
Resistance
Silver cadmium oxide or silver tin oxide or silver
nickel. Gold plating available
< 50 milliohms initially (using 6 V 1 A method)
Max. Solvent Temp.
Max. Immersion Time
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Max. Temperature
196 mW (DC)
0.43 VA (AC)
Weight
NOTES
1.7 W at 20°C (68°F) ambient
26°C (47°F) at nominal coil voltage
130°C (266°F)
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
9/25/07W
AZ762
AZ
RELAY ORDERING DATA
COIL SPECIFICATIONS - DC COIL
Nominal Coil
VDC
5
6
12
18
24
48
60
110
Must Operate
VDC
3.5
4.2
8.4
12.6
16.8
33.6
42.0
77.0
Max. Continuous
VDC
10.2
12.3
24.7
37.0
49.4
98.0
112.9
206.9
Coil
Resistance ±10%
62
90
360
810
1,440
5760
7,500
25,200
ORDER NUMBER*
Unsealed
AZ762–1C–5D
AZ762–1C–6D
AZ762–1C–12D
AZ762–1C–18D
AZ762–1C–24D
AZ762–1C–48D
AZ762–1C–60D
AZ762–1C–110D
Sealed
AZ762–1C–5DE
AZ762–1C–6DE
AZ762–1C–12DE
AZ762–1C–18DE
AZ762–1C–24DE
AZ762–1C–48DE
AZ762–1C–60DE
AZ762–1C–110DE
COIL SPECIFICATIONS - AC COIL
Nominal Coil
VAC
24
115
230
Must Operate
VAC
18.0
86.3
172.5
Max. Continuous
VAC
31.2
149.5
299.0
Coil Current (mA)
31.6
6.6
3.2
Coil Resistance
350 ± 10%
8,100 ± 15%
32,500 ± 15%
ORDER NUMBER*
Unsealed
Sealed
AZ762–1C–24AF
AZ762–1C–24AEF
AZ762–1C–115AF AZ762–1C–115AEF
AZ762–1C–230AF AZ762–1C–230AEF
Substitute “1A” or “1B” in place of “1C” for Form A or B respectively. Add suffix “E” to “1A” or “1B” or “1C” for silver tin oxide contacts. Add suffix “B” to “1A” or
“1B” or “1C” for silver nickel contacts. Add suffix “A” for gold plated contacts. Add suffix “F” for Class F version (DC coils only). Add suffix “I” at the end of part
number for high inrush version 80A (contact form 1AE only, DC coils only, no gold plating).
9/25/07W
