FAKRA Jack Right Angle Connector Crimp/Solder
Attachment For PE-C100, RG174, RG316, Beige Color
TECHNICAL DATA SHEET
PE44648I
FAKRA Jack Right Angle Connector Crimp/Solder Attachment For PE-C100, RG174, RG316, Beige Color
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
FAKRA Jack
PE-C100,RG174,RG316
Crimp/Solder
Right Angle
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
0.878 [22.3]
0.37 [9.40]
0.008 [3.63]
Beige
Weight, lbs [g]
Color
Connector
Type
Contact Material and Plating
Outer Conductor Material and Plating
Body Material and Plating
Dielectric Type
FAKRA Jack
Phosphor Bronze, Gold
Brass, Nickel
Plastic
Teflon/Delrin
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
FAKRA Jack Right Angle Connector Crimp/Solder Attachment For PE-C100, RG174, RG316, Beige Color from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain
a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
FAKRA Jack Right Angle Connector Crimp/Solder Attachment For PE-C100, RG174, RG316,
Beige Color PE44648I
URL:
http://www.pasternack.com/fakra-jack-standard-pe-c100-rg174-rg316-connector-pe44648i-p.aspx
PE44648I REV 01
1
PE44648I

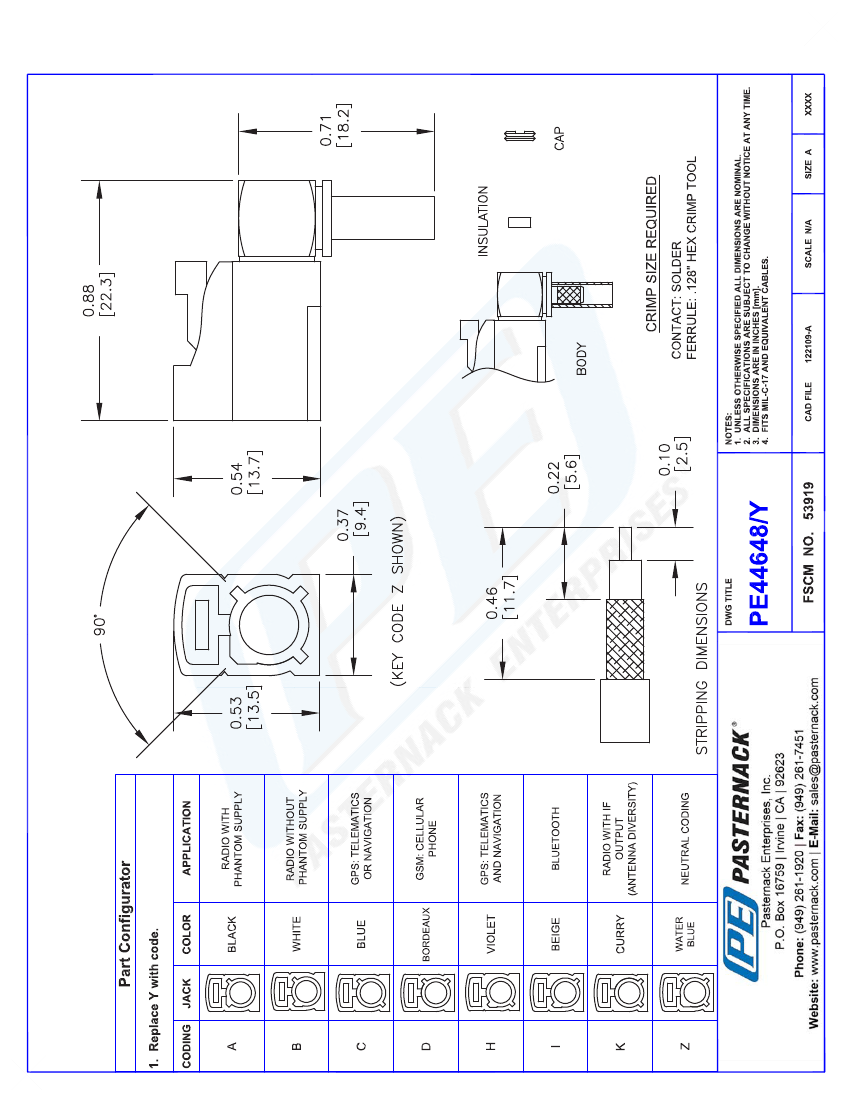

CAD Drawing
FAKRA Jack Right Angle Connector Crimp/Solder Attachment
For PE-C100, RG174, RG316, Beige Color
© 2013 Pasternack Enterprises All Rights Reserved
PE44648I REV 01
