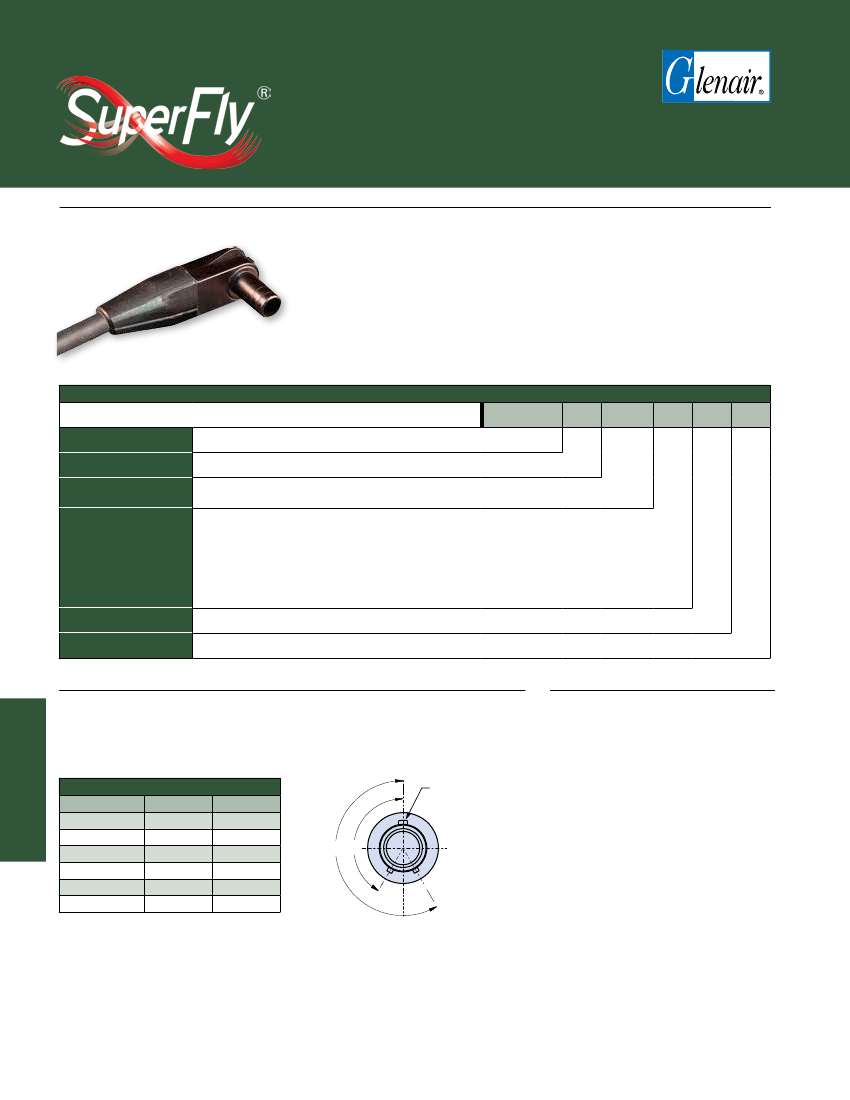

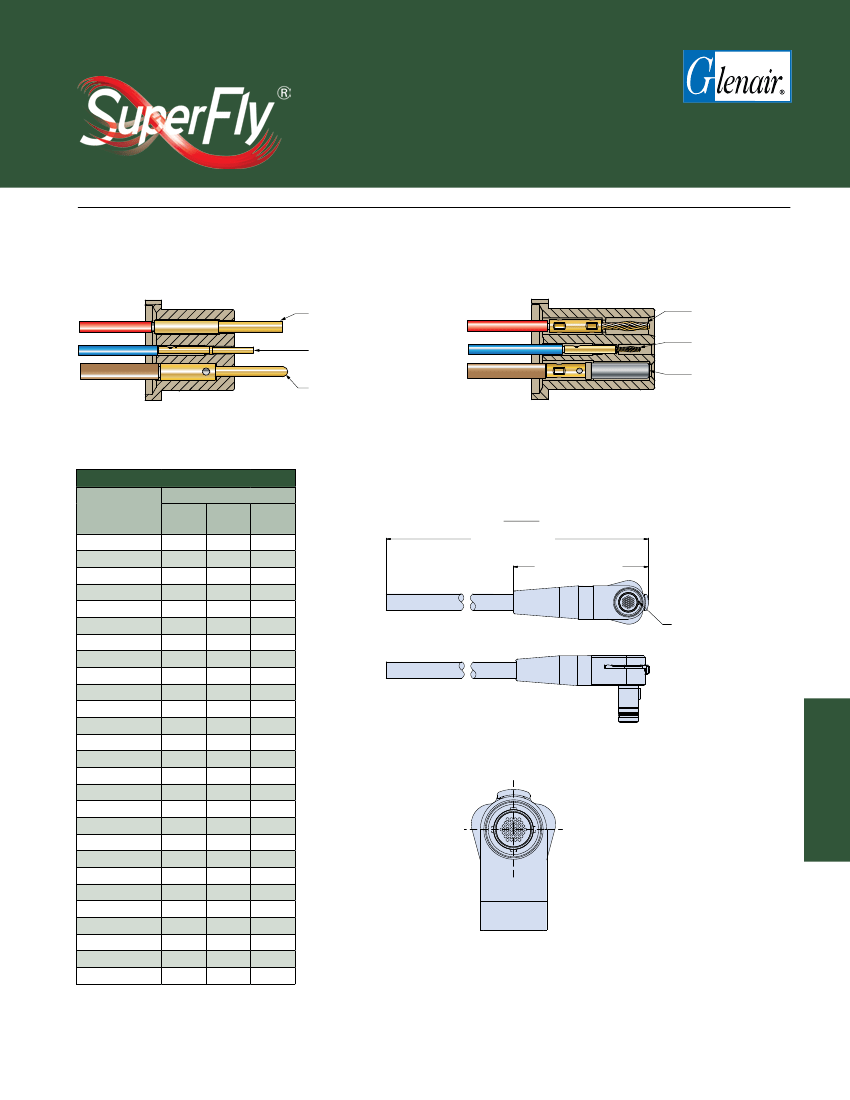

SERIES 886
“Cobra” QDC Cordset
886-025 Single-Ended Overmolded “Cobra”
Cordset with 90° Entry Plug
886-025 QUICK DISCONNECT “COBRA” PLUG WITH POLYURETHANE JACKET AND SHIELDED WIRE
Polyurethane jacketed, Superfly® quick disconnect (QDC) single-ended cordsets
with polyamide overmolded 90° “Cobra” plug. Three contact sizes are available,
5A, 3A and 1A. Aluminum or stainless steel housings, thermoplastic insulator, high-
strength wire with crosslinked ETFE insulation. High performance crimp contacts,
factory terminated to wires. Braided shield with 90% coverage.
How To Order
Sample Part Number
Series
Insert Configuaration
Shell Size and
Insert Arrangement
1
886-025P
Overmolded “Cobra” QDC Cordset with 90° Plug
A
= Unshrouded Contacts
B
= Shrouded Contacts
886-025P
-A
-B7N
-MT
-0
-18
See Shell Size and Insert Arrangement Table
M
= Aluminum/electroless nickel RoHS compliant
ZR
= Aluminum/zinc-nickel, non-reflective with RoHS compliant black chromate
MT
= Aluminum/nickel-PTFE RoHS compliant
NF
= Aluminum/olive drab over cadmium
ZC
= Stainless steel/black zinc cobalt
ZK
= Stainless steel/passivate
ZMT
= Stainless steel/nickel-PTFE RoHS compliant
0°, 90°, 180°, 270°
See figure 2
18
= 18 inches
Shell Material/Finish
2
Key Orientation
Wire Length
D
Standard SuperFly® connectors have a single master key. Versions with three keys
are also available if alternate key positions are required. Add suffix code 686 to the
part number per the following example: 886-025P-A-B7N-MT-0-18-686A
Plug Alternate Key Positions
Suffix Code
686A
686B
686C
686D
686E
686F
A°
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
B° A°
Master
Key
MOD-686 POLARIZING OPTIONS
WIRE GAUGES PER CONTACT
• 1A. contact (Nano) - 30 AWG
• 3A. contact (Micro) - 26 AWG
• 5A. contact (Size 23) - 24 AWG
16
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 88 SuperFly® Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
SERIES 886
“Cobra” QDC Cordset
886-025 Single-Ended Overmolded “Cobra”
Cordset with 90° Entry Plug
ABOUT SHROUDED AND UNSHROUDED SUPERFLY®CONFIGURATIONS
Shrouded contacts are recessed within the insert. Unshrouded contacts extend from the insert face. Shrouded inserts contain
1 amp and 3 amp Twistpin contacts along with 5 amp socket contacts. Unshrouded inserts contain 1 amp and 3 amp sockets
and 5 amp pin.
3 Amp
Micro Socket
1 Amp
Nano Socket
5 Amp
#23 Pin
3 Amp
Micro Twistpin
1 Amp
Nano Twistpin
5 Amp
#23 Socket
Unshrouded
Type A Insert
Shell Size and Insert Arrangements
Insert
Arrangements
B7N
C10N
C2M2N
D3M
D2W2N
E3W
E4M
E19N
E4M4N
F4W
F7M
F22N
F4M8N
F4W4N
G7W
G10M
G31N
G6M10N
G6M12N
H10W
H37N
H6W14N
J44N
J7W19N
K19M
K13M19N
L22M
No. of Contacts
#23
Micro
Nano
5A.
3A.
1A.
—
—
7
—
—
10
—
—
2
3
—
—
—
4
—
—
—
4
7
—
—
—
—
10
—
6
—
7
—
—
—
2
3
—
—
4
—
4
—
7
—
4
—
—
10
—
6
6
—
—
—
—
—
19
13
22
2
—
2
—
—
19
4
—
—
22
8
4
—
—
31
10
12
—
37
14
44
19
—
19
—
Figure 1
Shrouded
Type B Insert
"L" +1.00/-0.00
(Length Per Part Number Development)
2.00 (50.8) Max
P1
Master Key
Location
Figure 2: Master Key Orientation
0°
D
90°
270°
180°
First letter of contact arrrangement represents
connector shell size. As in this example
K13M19N
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 88 SuperFly® Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
17
