891-005
Dual Row Nano Back-to-Back Connector
Glenair Back-To-Back Nano Connectors
feature gold
alloy TwistPin contacts. Contacts are precision-crimped to
insulated, stranded wire. These nanomimiature connectors
offer premium performance and reliability for demanding
applications. Contact spacing is .025 inches. 1 amp current
rating, DWV rating 250 volts AC. Wire gages #30 and #32 AWG.
TwistPin Contact System
assures premium performance in
demanding environments. The gold/platinum alloy contacts will
stand up to years of exposure without corrosion.

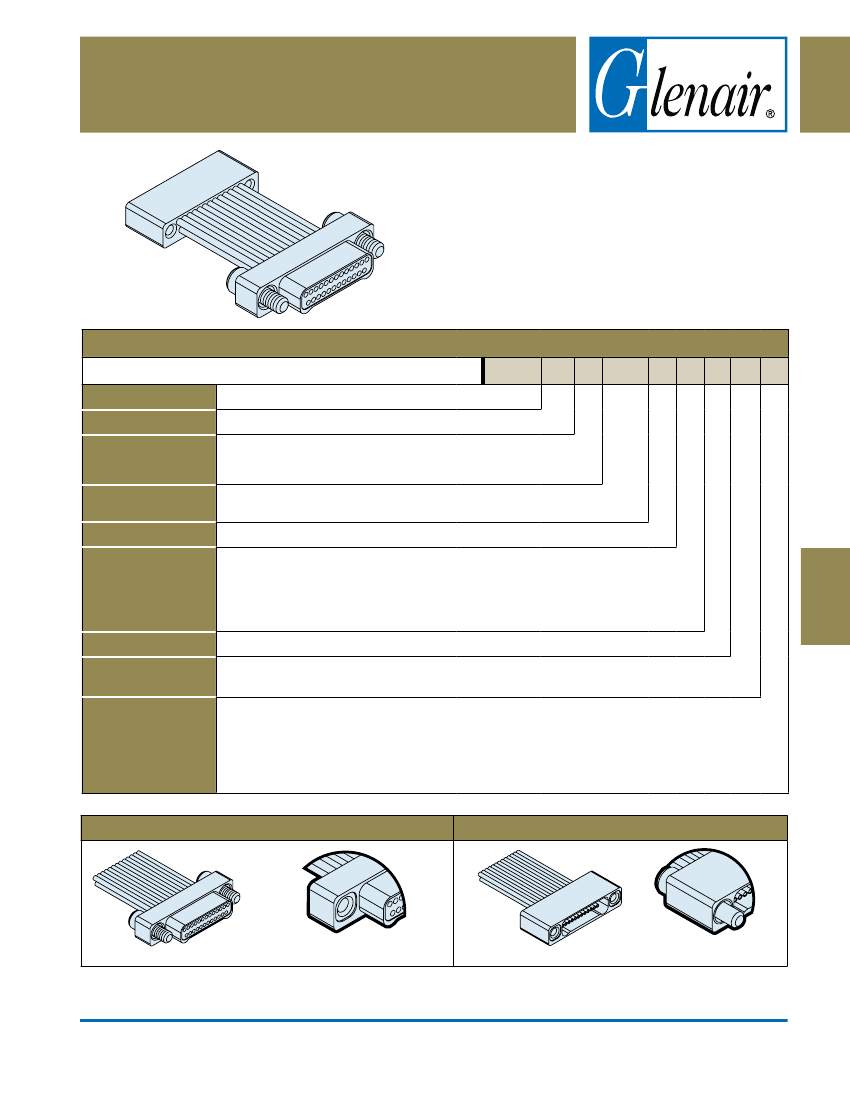

How To Order Dual Row Back to Back Nano Connectors
Sample Part Number
Series
Number of Contacts
Connector Type
Shell Material
and Finish
Wire Gage
891-005
891-005
Back-To-Back Cables, Dual Row, Nanominiature
9, 15, 21, 25, 31, 37, 51, 65, 69, 85
GP
- Plug (Pin) Connector on Both Ends
GS
- Receptacle (Socket) Connector on Both Ends
CS
- Plug (Pin) On One End, Receptacle On The Other End
A1
- Aluminum Shell, Cadmium Plating
T
- Titanium Shell, Unplated
A2
- Aluminum Shell, Electroless Nickel Plating
S
- Stainless Steel Shell, Passivated
0
- #30 AWG
2
- #32 AWG
A
- Ultralightweight XLETFE Insulation, Silver-Coated Ultrahigh-Strength Copper
(Not available for #32 AWG)
-9
GP
A1
-0
A
1
-12
JJ
Wire Type
B
- Extruded PTFE Insulation, NEMA HP3-ETX (MIL-W-16878/6)
C
- Cross-Linked Modified ETFE Insulation, MIL-W-22759/33
(Not available for #32 AWG)
1
- White
2
- Yellow
7
- 10 Color Repeating (wire type
A
is striped, types
B
and
C
are solid colors)
Wire Color Code
Length Inches
Overall Length
In Inches Including Connectors
Example: “12” specifies 12 inches OAL
JJ
- Jackscrews on both ends (GP, GS, CS)
JT
- Jackscrews on plug, threaded holes on
receptacle (CS)
JP
- Jackscrews on plug, threaded holes on
plug (GP)(*See Note Below)
TJ
- Jackscrews on receptacle, threaded
holes on plug (CS)(*See Note Below)
JR
- Jackscrews on receptacle, threaded
holes on receptacle (GS)
TT
- Threaded holes both ends
(GP, GS, CS)(*See Note Below)
* Specify titanium or
stainless steel shells
when ordering plugs
with female threads.

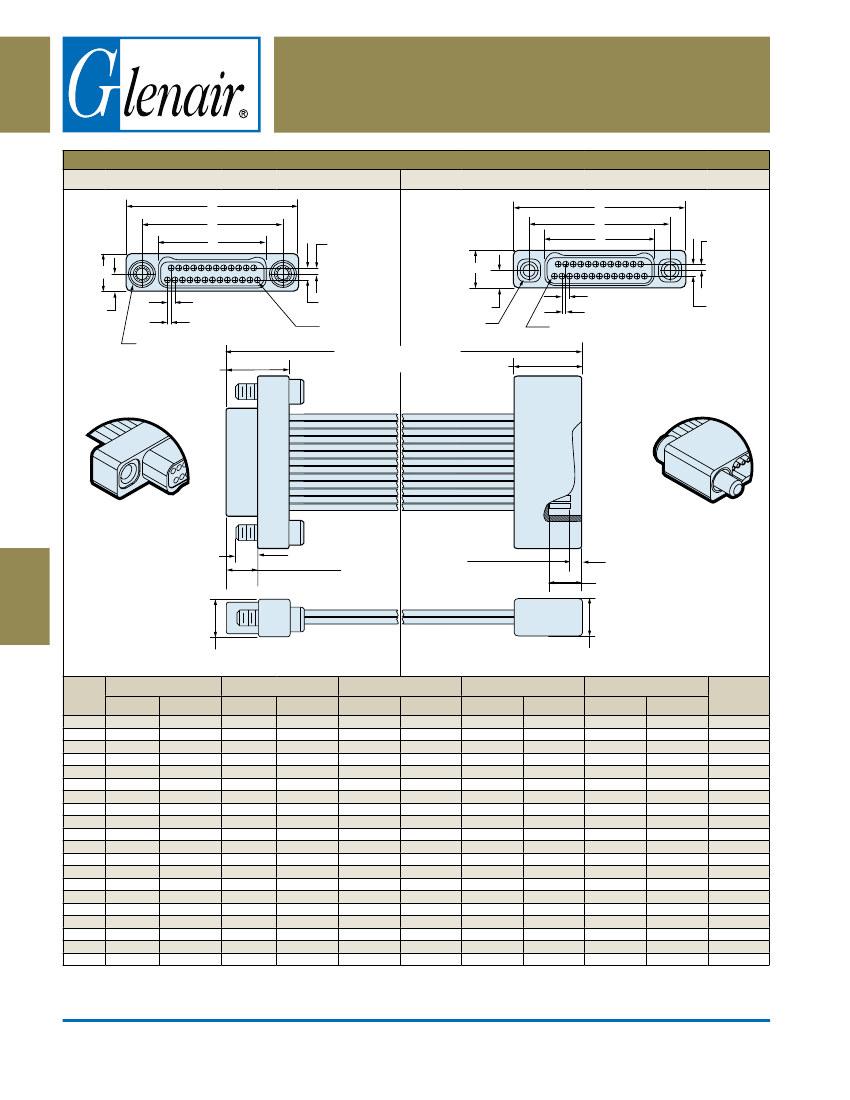

Hardware
Plug (Pin) Connector
Receptacle (Socket) Connector
“J” Jackscrew Option
“T” Female Thread Option
Titanium or Stainless Steel Shells Only
“T” Female Thread Option
“J” Jackscrew Option
Dimensions in inches (millimeters) and are subject to change without notice.
© 2013 Glenair, Inc.
Series 89 Nano Catalog
U.S. CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-7
E-Mail: sales@glenair.com
Dual Row
Connectors
D
