AR-28-HGL-TT: DescriptionDIP SOCKET,28 CONTACTS,0.1 TERM PITCH,0.6 ROW SPACING,PC TAIL TERMINAL; CategoryThe connector socket; File Size92KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/

Download Datasheet Parametric View All

AR-28-HGL-TT Overview

DIP SOCKET,28 CONTACTS,0.1 TERM PITCH,0.6 ROW SPACING,PC TAIL TERMINAL

AR-28-HGL-TT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ASSMANN
Reach Compliance Code	compliant
Other features	16PC PER TUBE PACKING
body width	0.7 inch
subject depth	0.178 inch
body length	1.4 inch
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact material	BRASS
Contact style	MACHINE SCREW
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	DIP28
Shell material	POLYAMIDE
Insulation resistance	1000000000 Ω
Manufacturer's serial number	AR
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.6 mm
Terminal pitch	2.54 mm
Termination type	SOLDER

Preview

Download Datasheet

View All

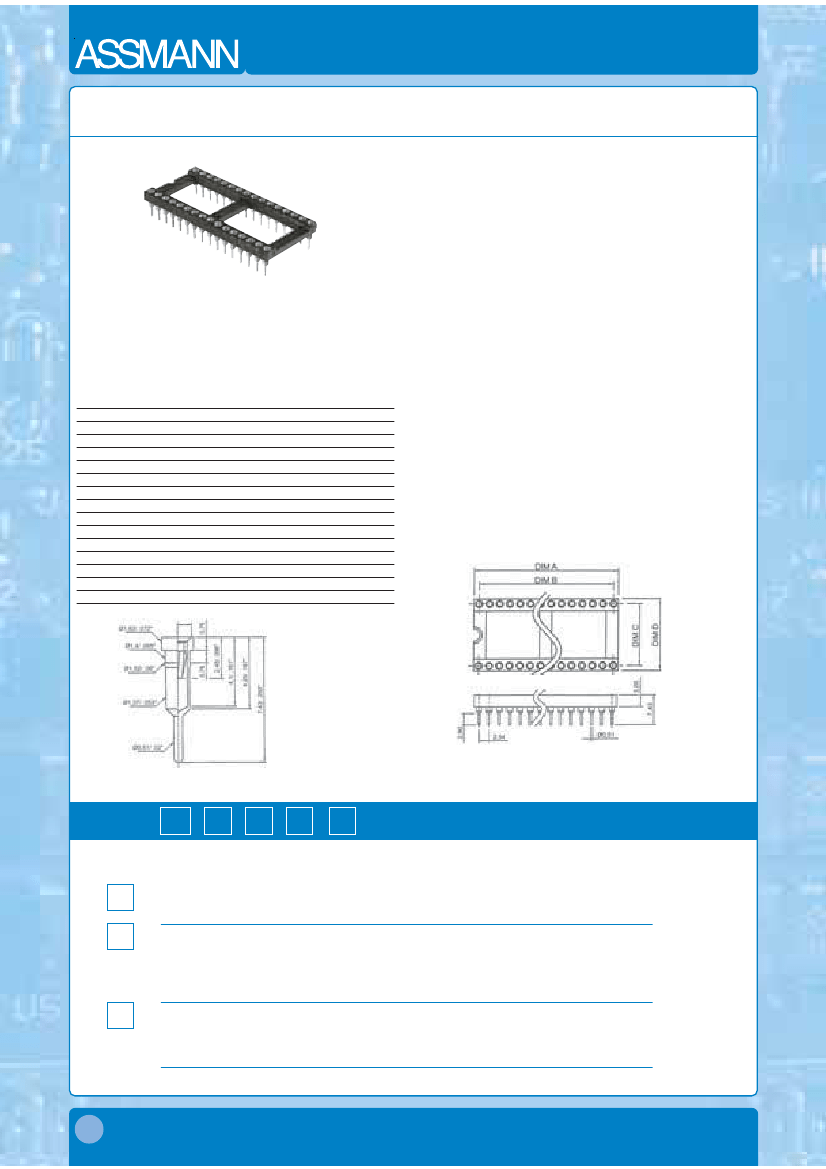

IC-SOCKETS

Präzisions IC-Fassungen,

gedrehte Kontakte, Raster 2,54mm, Pinlänge 7,43mm

Precision IC-sockets,

machined contacts, pitch 2,54mm, pin lenght 7,43mm

Messing, gedreht

Clip

4 Finger Kontakt

Vergütung

HZL = Pin - Zinn /

Clip - Gold flash

HGL = Pin - Gold flash /

Clip - Gold flash

Isolierkörper

Polyamid UL94V-0

Nennstrom

3A

Kontaktwiderstand

<4mΩ / Kontakt

Dimension

A

B

C

7,62

5,08

7,62

10,16

7,62

12,70 10,16

7,62

17,78 15,24

7,62

20,32 17,78

7,62

22,86 20,32

7,62

25,40 22,86

7,62

30,48 27,94 15,24

30,48 27,94

7,62

35,56 33,02 15,24

35,56 33,02

7,62

40,64 38,10 15,24

50,80 48,26 15,24

Isolationswiderstand

>1000MΩ bei 100V

Betriebstemperatur

HZL = -40°C bis +105°C

HGL = -55°C bis +125°C

Brass, machined

Clip

4 finger contact

Plating

HZL = pin - tin /

Clip - gold flash

HGL = pin - gold flash /

Clip - gold flash

Insulator

Polyamide UL94V-0

Current rating

3A

Contact resiatance

<4mΩ / contact

Insulation resistance

>1000MΩ at 100V

Operating temperature

HZL = -40°C to +105°C

HGL = -55°C to +125°C

No. of Contacts

06

08

10

14

16

18

20

24

24*

28

28*

32

40

Qty per tube

80

58

45

33

29

26

23

19

16

14

11

D

10,16

17,78

10,16

17,78

10,16

17,78

Bestellcode:

Ordercode :

AR - x - x - x - TT

1.

2.

3.

Bitte „x“ durch die unten geeignete Option ersetzen

Please replace „x“ with appropriate option listed below

1.

2.

Polzahl

06, 08, 10, 14, 16, 18, 20, 24, 28, 32, 40

Oberfläche Lötpin

HGL

-Gold*

HZL

-Zinn*

HZL/07 -Zinn/ Clip 30µ’’ Gold

HZL/01 -Zinn/ Clip 10µ’’ Gold

Ausführung

-

-Standard

7

-nur bei 24+28-polig

(DIM C: 7.62)

No. of contacts

06, 08, 10, 14, 16, 18, 20, 24, 28, 32, 40

Plating

HGL

HZL

HZL/07

HZL/01

solder pin

-Gold*

-Tin*

-Tin/ Clip 30µ’’ Gold

-Tin/ Clip 10µ’’ Gold

3.

Versions

-

-Standard

7

-only for 24+28-poles

(DIM C: 7.62)

Andere Ausführungen auf Anfrage

Other versions on request

* Standard
