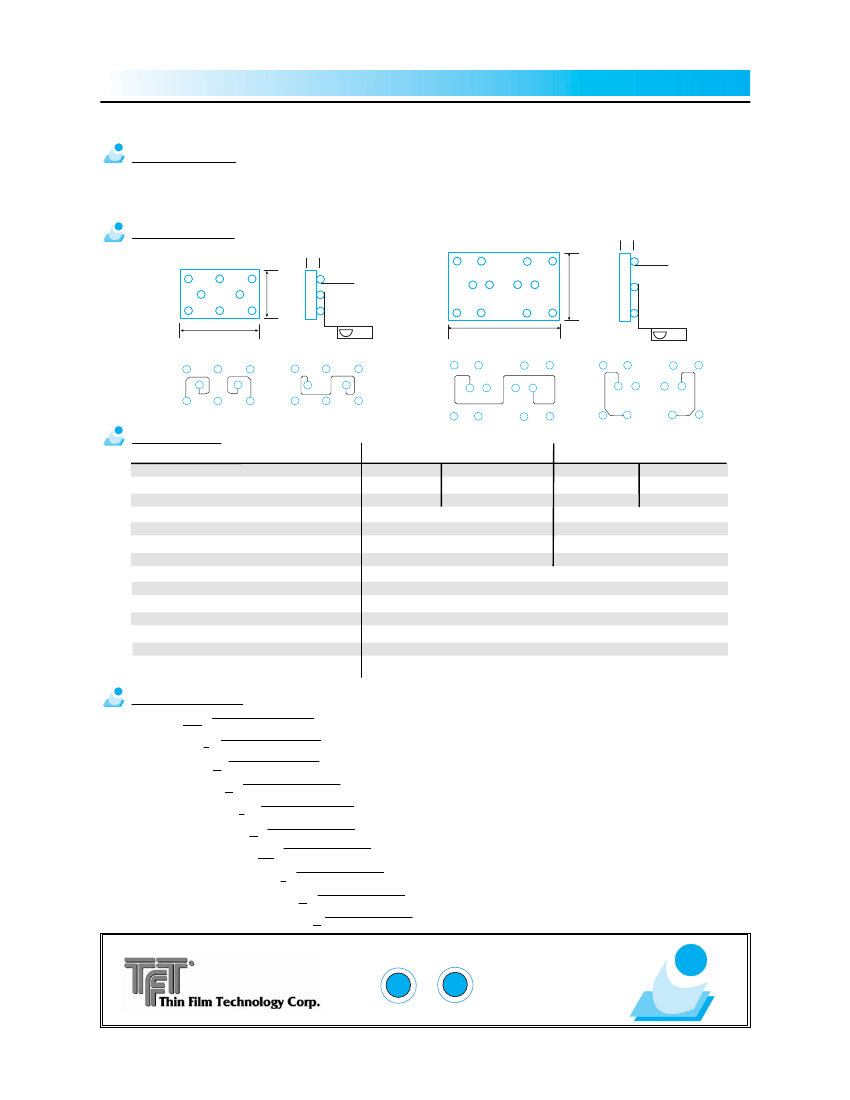

High Efficiency Delay Lines

HE*L5*T***U & S Series

1.0 Description

These delay lines come in solder ball configuration that takes up less board space than the GL series. As

with all of TFT’s delay lines, these feature microstrip transmission lines on ceramic for high speed, high sta-

bility performance.

2.0 Mechanical

-

Please refer to page 43 for land pattern

1

2 3 4

5 6 7

8

1.1 Max

Ball Dia = 28 mil

6.35

±0.20

A size

1

a

b

c

2

3

4

5

1.1 Max

Ball Dia = 28 mil

3.81

±0.20

B size

a

b

c

0.00

6.35 ±0.20

1

a

b

c

un coupled

2

3

4

5

a

b

c

single

1

2

3

4

0.075

5

1

a

2 3 4

10.16

±0.20

5 6 7

8

a

1

2 3 4

0.075

5 6 7

8

b

dimension mm

c

single

c

un coupled

3.0 Electrical

Application Type

S (Single-ended)

U (Uncoupled - Pair)

Size Designator

A

B

A

B

Delay Range

0.1 to 1.2 ns 0.1 & 0.5 to 3.5 ns 0.1 to 0.6 ns 0.1 to 1.6 ns

Standard Delay Increment

0.1 ns

0.5 ns

0.1 ns

Delay Tolerance (provisional)

± (15 ps + 2% of nominal)

Delay Difference Tolerance (provisional)

NA

< (10 ps + 0.5%)

Individual Impedance

50 ohm ± 10%

Differential Impedance

NA

100 ohm ± 10%

DC Resistance

The greater of 1 ohm or < 2 ohm/ns

Rated Current

100 mA

Temperature Coeff. of Time Delay

< 150 ppm/C

Insulation Resistance

> 100 Mohm (100 Vdc)

Isolation Resistance

> 100 Mohm (100 Vdc)

Operating Temperature

-40°C to +85°C

Storage Temperature

-55°C to +125°C

4.0 Part Number

HE

*

L

5

*

T

***

*

T

Product family

Number of signal lines

Product type

Impedance (5 = 50 ohm)

Size designator

Termination type

Delay ‘ns’ x 100 (0.5 ns = 050)

Application Type

Tape & Reel Designator

5

Tape & Reel Quantity (5 = 500 pcs per reel)

R

EG

I

S

TERE

EG

I

S

TERE

D

ISO9001 ISO14001

A4

303

Manufacturer(s) of the products described on this page are indicated by their respective logos.

D

A8

561

5
