HTSS-108-04-L-D-RA datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> HTSS-108-04-L-D-RA

Preview

HTSS-108-04-L-D-RA: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Natural Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size743KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

HTSS-108-04-L-D-RA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HTSS-108-04-L-D-RA	-	-	View	Buy Now

HTSS-108-04-L-D-RA Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Natural Insulator, ROHS COMPLIANT

HTSS-108-04-L-D-RA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	3 weeks
body width	0.365 inch
body length	1.1 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	POLYCYCLOHEXYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

F-213-1

ZSS–113–03–L–D–0735

HTSS–125–01–L–DV

(2,54 mm) .100"

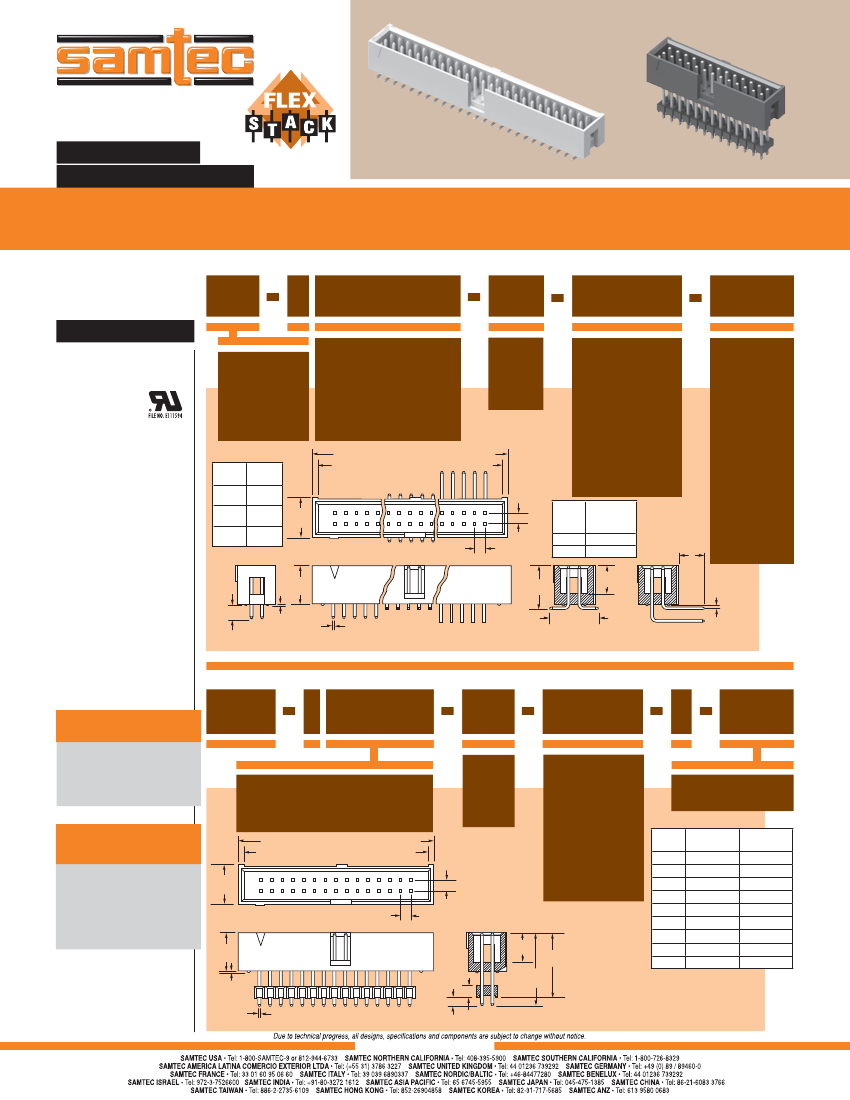

TSS, HTSS, ZSS SERIES

SHROUDED .025" SQ POST HEADERS

Mates with:

SSW, SSQ, ESW, ESQ,

SSM, BCS

TYPE

STRIP

1

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart.

PLATING

OPTION

ROW

OPTION

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?TSS,

www.samtec.com?HTSS or

www.samtec.com?ZSS

Insulator Material:

Black Glass

Filled Polyester

(TSS, ZSS)

Natural PCT (HTSS)

Insulation Resistance:

5000 MΩ min

Terminal Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Current Rating:

3A per contact

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

Flammability Rating:

UL 94V-O

Withstanding Voltage:

1000 VRMS

RoHS Compliant:

Yes

TSS

= Connector Strip

03

(TSS only)

–F

= Gold ﬂash on post,

Matte Tin on tail

(Not available on -DV)

–D

= Double Row

Through-hole

(lead style –01,

–02 & –03 only)

HTSS

= High Temp

Connector Strip

05, 07, 08, 10,

12, 13, 15, 17,

20, 25, 32, 36

(Call Samtec for other sizes.)

(2,54) .100 x No. of Positions + (3,81) .150

(2,54) .100 x No. of Positions + (1,27) .050

–L

= 10µ" (0,25 µm)

Gold on post,

Matte Tin on tail

–DV

= Double Row

Surface Mount

(lead style

–01 only)

(HTSS only)

LEAD

STYLE

–01

–02

–03

T/H

(A)

(2,92)

.115

(4,19)

.165

(14,35)

.565

–T

(2,54)

.100

= Matte Tin

LEAD RIGHT

STYLE ANGLE

(B)

–04

(3,30) .130

–05

(5,84) .230

02

(9,27)

.365

01

–D–RA

B

= Double Row

Right Angle

(lead style –04

& –05 only)

(2,54)

.100

(8,89)

.350

(10,16)

.400

(6,35)

.250

(5,08)

.020

A

–D

Processing:

(0,38)

.015

(11,18) .440

(0,64) .025 SQ TYP

Lead–Free Solderable:

Yes (HTSS)

Wave Only (TSS, ZSS)

SMT Lead Coplanarity:

(0,15 mm) .006"

–DV

(HTSS ONLY)

–D–RA

ALSO

AVAILABLE

Shrouded IDC headers

and stackers to mate

with IDSD, SMSD Series.

See TST, HTST and

ZST Series.

ZSS

1

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart.

PLATING

OPTION

D

BODY

HEIGHT

–F

= Gold ﬂash on post,

Matte Tin on tail

03, 05, 07, 08, 10, 12,

13, 15, 17, 20, 25, 32, 36

(Call Samtec for other sizes.)

(2,54) .100 x No. of Positions + (3,81) .150

(2,54) .100 x No. of Positions + (1,27) .050

02

–“XXXX”

= Body Height

LEAD

STYLE

–01

–02

–03

–04

–05

–06

–07

–08

–09

C

(OAL)

(16,00) .630

(18,54) .730

(21,08) .830

(23,62) .930

–L

= 10µ" (0,25 µm)

Gold on post,

Matte Tin on tail

MAX BODY

HEIGHT

(13,72) .540

(16,26) .640

(18,80) .740

(21,34) .840

APPLICATION

SPECIFIC OPTION

• Alignment Pins

• Single Row

• Locking Leads

• Polarized

Call Samtec.

Note:

Other Gold plating

options available.

Contact Samtec.

Note:

Some lengths, styles

and options are non-standard,

non-returnable. ZSS is

non-standard, non-returnable.

(9,27)

.365

(2,54)

.100

–T

= Matte Tin

01

(2,54)

.100

(6,35)

.250

(2,29)

.090

MIN

(0,64) .025 SQ TYP

(26,16) 1.030 (23,88) .940

(28,70) 1.130 (26,42) 1.040

(31,24) 1.230 (28,96) 1.140

(33,78) 1.330 (31,50) 1.240

(36,32) 1.430 (34,04) 1.340

(8,89)

.350

(0,38)

.015

BODY

HEIGHT

C

(OAL)

(2,54)

.100

Note:

For added mechanical stability, Samtec

recommends mechanical board spacers be

used in applications with gold or selective

gold plated connectors. Contact ipg@

samtec.com for more information.
