BAT54SWTP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAT54SWTP

BAT54SWTP: DescriptionDIODE 0.2 A, 2 ELEMENT, SILICON, SIGNAL DIODE, PLASTIC PACKAGE-3, Signal Diode; CategoryDiscrete semiconductor diode; File Size375KB，3 Pages; ManufacturerMicro Commercial Components (MCC); Environmental Compliance

Download Datasheet Parametric Compare View All

BAT54SWTP Overview

DIODE 0.2 A, 2 ELEMENT, SILICON, SIGNAL DIODE, PLASTIC PACKAGE-3, Signal Diode

BAT54SWTP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Micro Commercial Components (MCC)
package instruction	PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	unknown

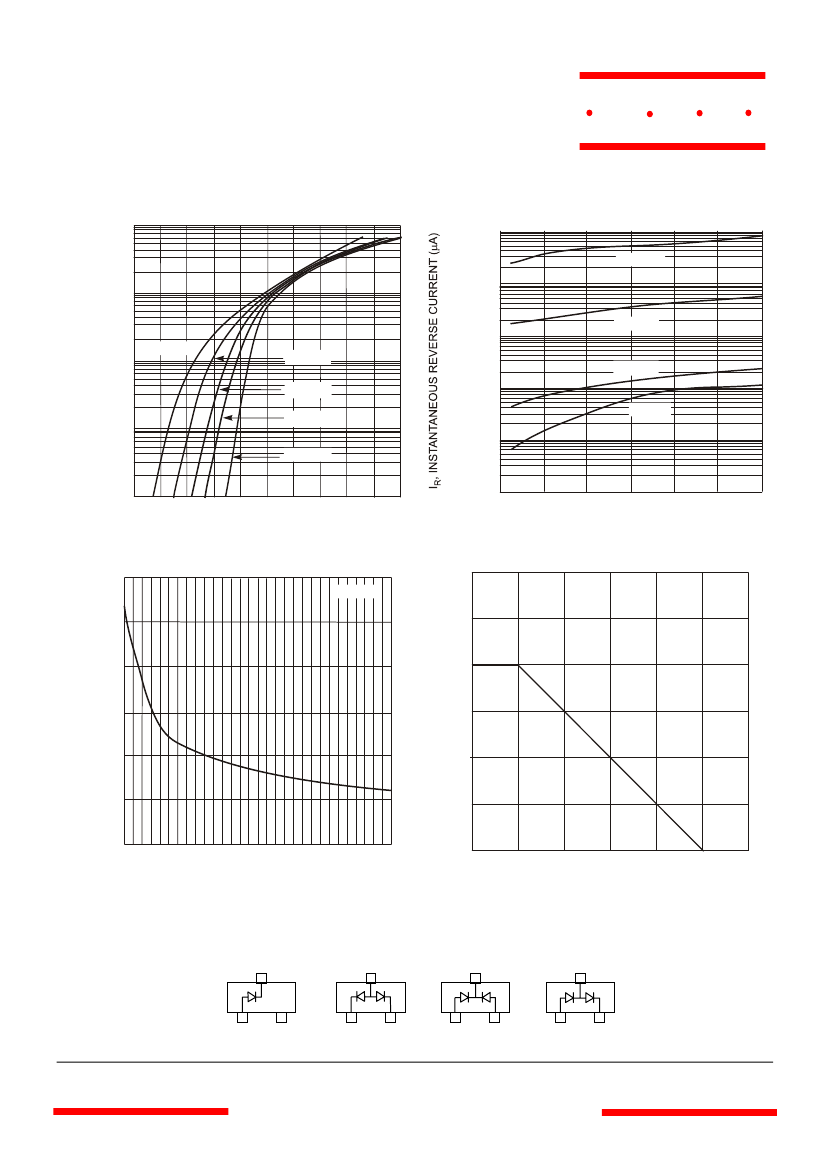

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla

Street Chatsworth

!"#

$ % !"#

BAT54WT

thru

BAT54SWT

200mWatt, 30Volt

Schottky Barrier Diode

SOT-323

Features

•

Low Forward Voltage

Surface Mount SOT-323 Package

Capable of 200mWatts of Power Dissipation

Case Material: Molded Plastic.

Classification Rating 94V-0

Part

Number

BAT54WT

BAT54AWT

BAT54CWT

BAT54SWT

Device

Marking

KL5

KL6

KL7

KL8

UL Flammability

Type

Single

Dual

Configuration

Figure 1

Figure 2

Figure 3

Figure 4

Maximum Ratings

Continuous Reverse Voltage

Forward Current

Repetitive Peak Forward Current

Non-Repetitive Peak Forward Current t<1s

Total Power Dissipation @ T

= 25°C

Storage Temperature Range

Junction Temperature

FRM

FSM

stg

30V

200mA

300mA

600mA

200mW

-55°C to 150°C

150°C

DIMENSIONS

INCHES

MIN

MAX

.071

.087

.045

.053

.079

.087

.026 Nominal

.047

.055

.012

.016

.000

.004

.035

.039

.004

.010

.012

.016

MIN

MAX

1.80

2.20

1.15

1.35

2.00

2.20

0.65Nominal

1.20

1.40

.30

.40

.000

.100

.90

1.00

.100

.250

.30

.40

Electrical Characteristics @ 25

°C

Unless Otherwise Specified

Ratings

Forward Voltage at

= 0.1mA

= 1mA

= 10mA

= 30mA

= 100mA

Reverse Current

Reverse Breakdown

Voltage

Capacitance

Reverse Recovery

Time

Thermal Resistance,

Junction to Ambient

Symbol

Max.

240mV

320mV

400mV

500mV

1000mV

2 uA

>30V

10pF

5nS

500K/W

Notes

DIM

NOTE

Suggested Solder

Pad Layout

0.70

(BR)

θJA

= 25V

0.90

Measured at

1.0MHz, V

=1.0V

=10mA;

(REC)

= 1mA

0.65

1.90

www.mccsemi.com

Revision: 3

1 of 3

2006/05/13

BAT54SWTP Related Products

	BAT54SWTP	BAT54AWT	BAT54AWTP	BAT54CWT	PTN0805K2640JBBS	BAT54SWT	BAT54CWTP
Description	DIODE 0.2 A, 2 ELEMENT, SILICON, SIGNAL DIODE, PLASTIC PACKAGE-3, Signal Diode	Rectifier Diode, Schottky, 2 Element, 0.2A, Silicon, PLASTIC PACKAGE-3	DIODE 0.2 A, 2 ELEMENT, SILICON, SIGNAL DIODE, PLASTIC PACKAGE-3, Signal Diode	Rectifier Diode, Schottky, 2 Element, 0.2A, Silicon, PLASTIC PACKAGE-3	Fixed Resistor, Thin Film, 0.2W, 264ohm, 100V, 5% +/-Tol, -100,100ppm/Cel, 0805,	Rectifier Diode, Schottky, 2 Element, 0.2A, Silicon, PLASTIC PACKAGE-3	DIODE 0.2 A, 2 ELEMENT, SILICON, SIGNAL DIODE, PLASTIC PACKAGE-3, Signal Diode
Is it Rohs certified?	conform to	incompatible	conform to	incompatible	incompatible	incompatible	conform to
Reach Compliance Code	unknown	compliant	unknown	compliant	not_compliant	compliant	unknown
Is it lead-free?	Lead free	Contains lead	Lead free	Contains lead	-	Contains lead	Lead free
package instruction	PLASTIC PACKAGE-3	R-PDSO-G3	PLASTIC PACKAGE-3	R-PDSO-G3	-	R-PDSO-G3	PLASTIC PACKAGE-3
Contacts	3	3	3	3	-	3	3
ECCN code	-	EAR99	-	EAR99	EAR99	EAR99	-
JESD-609 code	-	e0	-	e0	e0	e0	-
Number of terminals	-	3	-	3	2	3	-
Package form	-	SMALL OUTLINE	-	SMALL OUTLINE	SMT	SMALL OUTLINE	-
technology	-	SCHOTTKY	-	SCHOTTKY	THIN FILM	SCHOTTKY	-
Terminal surface	-	TIN LEAD	-	TIN LEAD	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	TIN LEAD	-
Base Number Matches	-	1	1	1	-	1	-
