Product Specifications
884025858/16 | CS67ZC WHT C7A 4/22 S/FTP RL 500M
Product Classification
Portfolio
Product Type
Regional Availability
NETCONNECT®
Twisted pair cable
EMEA
CS67ZC Category 7A S/FTP Cable, low smoke zero halogen, white jacket, 4 pair count, 1640 ft (500 m) length, reel
Standards And Qualifications
EN50575 CPR Cable EuroClass
Cca
|
s1
|
d1
|
a1

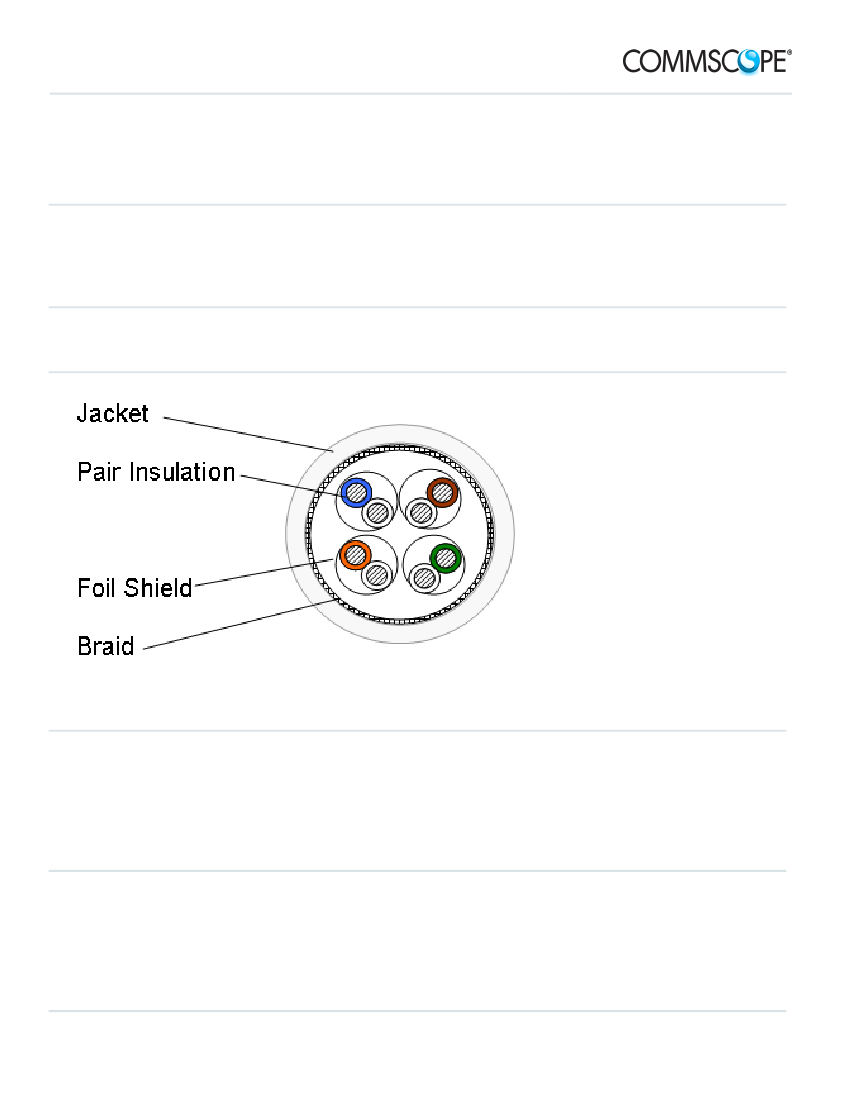

Cross Section Drawing
Construction Materials
Jacket Material
Conductor Material
Insulation Material
Shield (Braid) Material
Shield (Tape) Material
Low Smoke Zero Halogen (LSZH)
Bare copper
Polyolefin
Tinned copper
Polyester/Aluminum shield
Dimensions
Cable Length
Cable Length Tolerance
Cable Weight
Diameter Over Jacket
Jacket Thickness
500 m
±5%
43.88 lb/kft
7.493 mm
0.635 mm
|
|
0.295 in
0.025 in
|
1640 ft
Electrical Performance
©2018 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: September 7, 2017
page 1 of 3
January 11, 2018
Product Specifications
884025858/16 | CS67ZC WHT C7A 4/22 S/FTP RL 500M

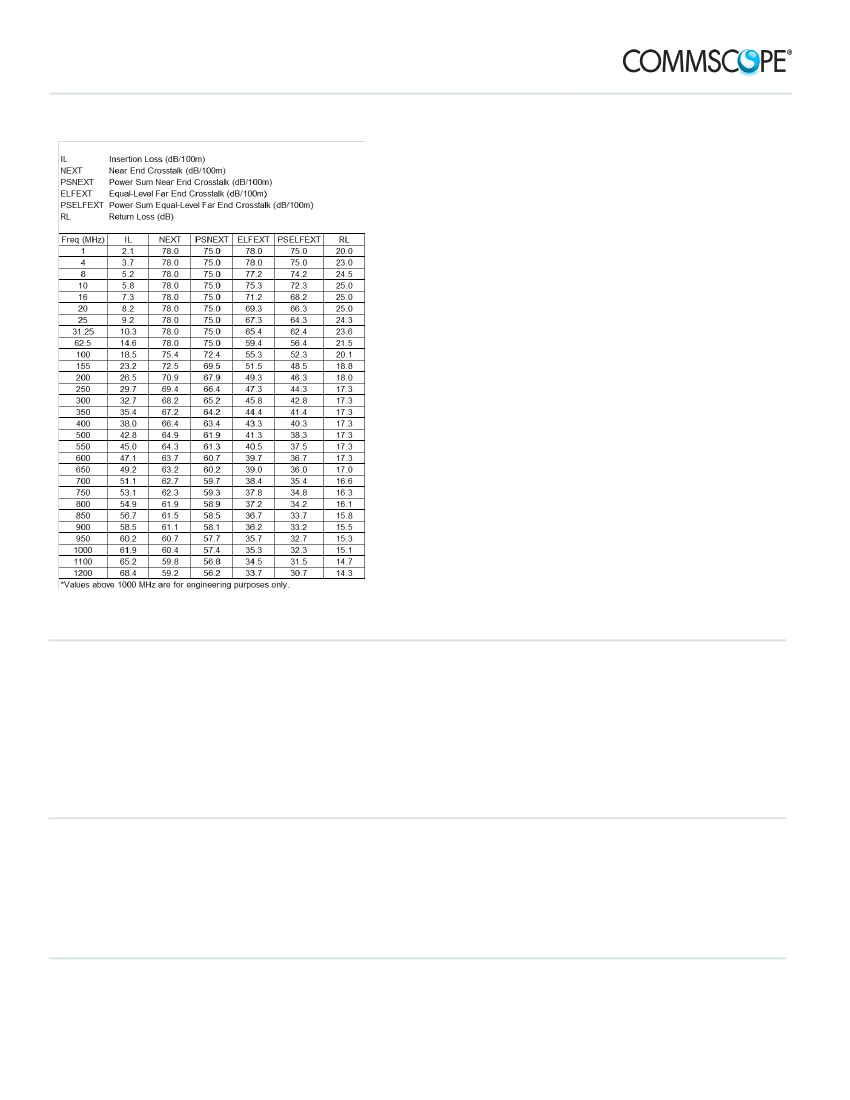

Electrical Specifications
ANSI/TIA Category
dc Resistance Unbalance, maximum
dc Resistance, maximum
Mutual Capacitance
Operating Frequency, maximum
Transmission Standards
7A
2%
7.61 ohms/100 m
4.1 nF/100 m @ 1 kHz
1000 MHz
ISO/IEC 11801 Class FA
Nominal Velocity of Propagation (NVP) 80 %
Environmental Specifications
Environmental Space
Smoke Test Method
Acid Gas Test Method
Installation Temperature
Operating Temperature
Low Smoke Zero Halogen (LSZH)
IEC 61034-2
EN 50267-2-3
0 °C to +50 °C (+32 °F to +122 °F)
-20 °C to +60 °C (-4 °F to +140 °F)
General Specifications
Cable Type
Packaging Type
Pairs, quantity
S/FTP (shielded)
Reel
4
©2018 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: September 7, 2017
page 2 of 3
January 11, 2018
Product Specifications
884025858/16 | CS67ZC WHT C7A 4/22 S/FTP RL 500M
Cable Component Type
Jacket Color
Product Number
Brand
Conductor Gauge, singles
Conductor Type, singles
Conductors, quantity
Horizontal
White
CS67ZC
NETCONNECT®
22 AWG
Solid
8
Mechanical Specifications
Pulling Tension, maximum
11 kg
|
25 lb
Regulatory Compliance/Certifications
Agency
RoHS 2011/65/EU
ISO 9001:2008
CENELEC
Classification
Compliant
Designed, manufactured and/or distributed under this quality management system
EN 50575 compliant, Declaration of Performance (DoP) available
©2018 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: September 7, 2017
page 3 of 3
January 11, 2018
