SMD WATCH CRYSTAL 32.768 kHz
SERIES M2012 STANDARD (2 pad housing 2.0x1.2mm)
FEATURES
+
+
+
+
Smallest available low cost watch crystal
Ultra low profile
Standard operating temperature range of -40/+85°C
Excellent clock generator for CPU's, Wireless, Mobile Comm., etc.
GENERAL DATA
PARAMETERS
SMD-CRYSTAL SERIES
NUMBER OF SOLDER PADS
FREQUENCY RANGE
FREQUENCY TOLERANCES AT 25°C
LOAD CAPACITANCE (C
L
)
WORKING TEMPERATURE RANGE
RESONANCE RESISTANCE
SHUNT CAPACITANCE (C
o
)
TURNOVER TEMPERATURE
PARABOLIC COEFFICIENT
DRIVE LEVEL
AGING
INSULATION RESISTANCE
STORAGE TEMPERATURE
DELIVERY FORM
PB FREE / ROHS-2 2011/65/EU COMPLIANT
PRODUCT FEATURES AND CONDITIONS
M2012
2
32.768 kHz
±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option)
12.5 pF (standard)
6,7,9 and 10pF available on request
-40/+85°C
90 kΩ max.
1.0 pF typ.
+25°C ±5°C
-0.04 ppm/°C²
0.2 µW typical (0.5 μW max.)
±3 ppm max. per year
>500 MΩ DC/100V ±10%
-40°/+85°C
Tape and Reel (1.000 ~ 3.000 pcs per reel)
OTHER PARAMETERS ARE AVAILABLE ON REQUEST / CREATE HERE YOUR SPECIFICATION

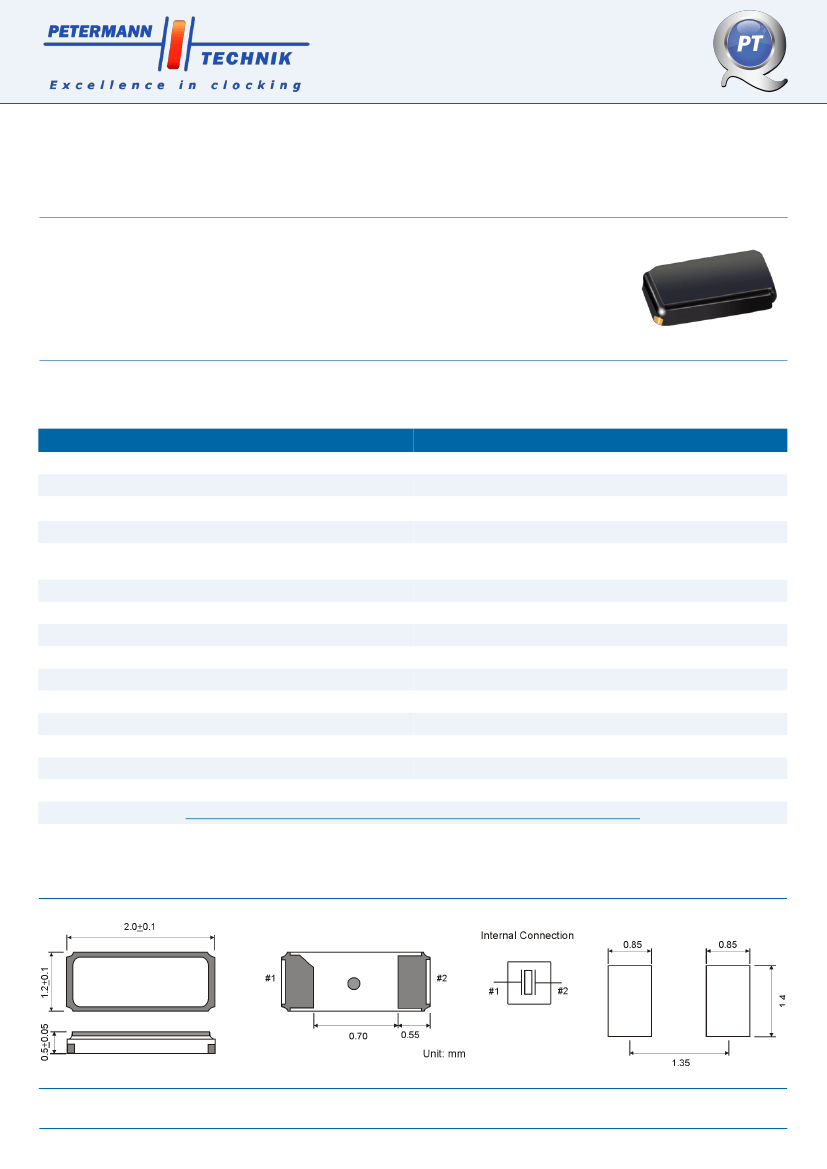

DIMENSIONS
CRYSTALS ∙ OSCILLATORS ∙ CERAMIC RESONATORS ∙ CERAMIC FILTERS ∙ SAW COMPONENTS
PAGE 1 OF 3
I
SPEC 01
I
REV.00
I
MAY 2015
PETERMANN-TECHNIK GmbH
Lechwiesenstr. 13 ∙ D-86899 ∙ Landsberg am Lech
Tel: +49/8191/305395 ∙ Fax: +49/8191/305397
info@petermann-technik.com ∙ www.petermann-technik.com

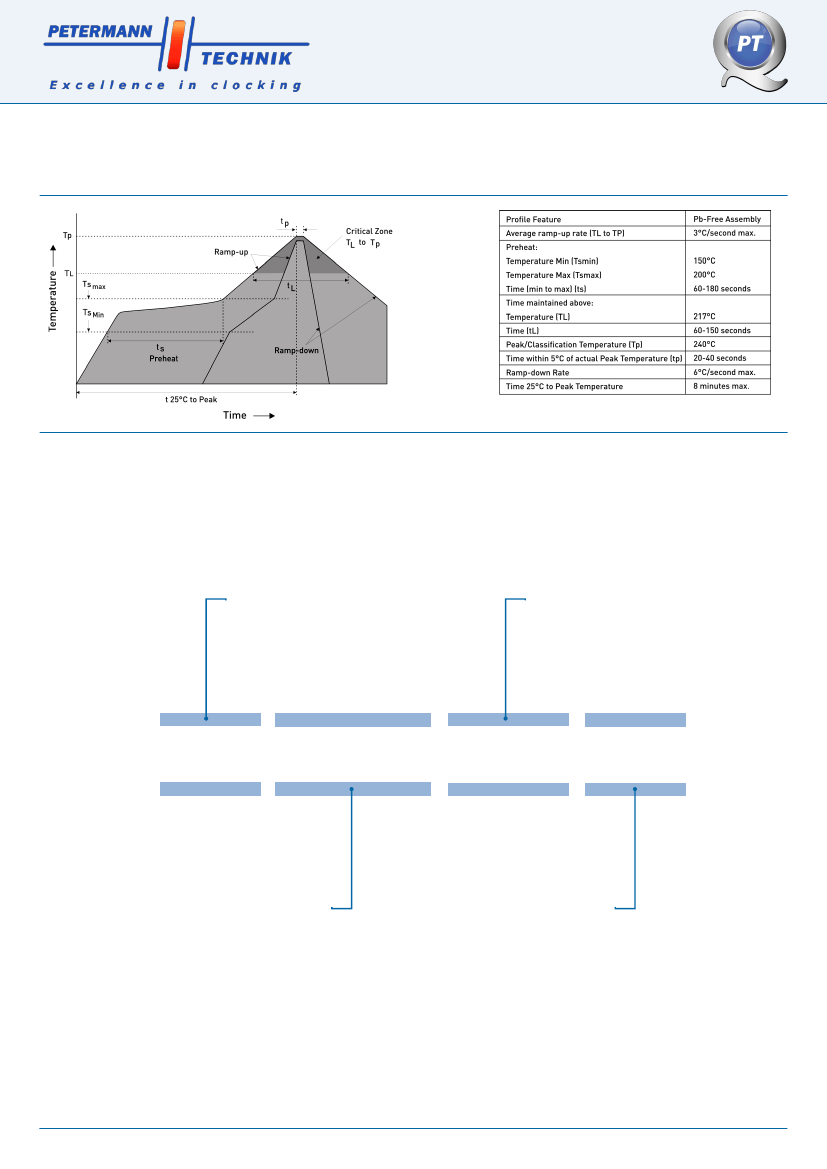

REFLOW SOLDER PROFILE
ORDERING INFORMATION
SERIES
FREQUENCY STABILITY AT 25°C
M2012-32.768kHz-±20ppm-12.5pF
FREQUENCY
LOAD CAPACITANCE
EXAMPLE: M2012-32.768kHz-±20ppm-12.5pF
PLEASE INDICATE YOUR REQUIRED PARAMETERS
CRYSTALS ∙ OSCILLATORS ∙ CERAMIC RESONATORS ∙ CERAMIC FILTERS ∙ SAW COMPONENTS
PAGE 2 OF 3
I
SPEC 01
I
REV.00
I
MAY 2015
PETERMANN-TECHNIK GmbH
Lechwiesenstr. 13 ∙ D-86899 ∙ Landsberg am Lech
Tel: +49/8191/305395 ∙ Fax: +49/8191/305397
info@petermann-technik.com ∙ www.petermann-technik.com
PREMIUM QUALITY BY
PETERMANN-TECHNIK
OUR COMPANY IS CERTIFIED ACCORDING TO ISO 9001:2008 IN OC-
TOBER 2013 BY THE DMSZ CERTIFIKATION GMBH.
THIS IS FOR YOU TO ENSURE THAT THE PRINCIPLES OF QUALITY
MANAGEMENT ARE FULLY IMPLEMENTED IN OUR QUALITY MA-
NAGEMENT SYSTEM AND QUALITY CONTROL METHODS ALSO DO-
MINATE OUR QUALITY STANDARDS.
