M3H18TAG67.000 datasheet, PDF - EEWORLD Datasheet

M3H18TAG67.000: DescriptionXO, Clock, 1.5MHz Min, 67MHz Max, 67MHz Nom; CategoryPassive components oscillator; File Size77KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

M3H18TAG67.000 Overview

XO, Clock, 1.5MHz Min, 67MHz Max, 67MHz Nom

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	MtronPTI
package instruction	GWDIP4/8,.6
Reach Compliance Code	unknown
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	67 MHz
Minimum operating frequency	1.5 MHz
Nominal operating frequency	67 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	GWDIP4/8,.6
power supply	3.3 V
Certification status	Not Qualified
Maximum slew rate	35 mA
Nominal supply voltage	3.3 V
surface mount	YES

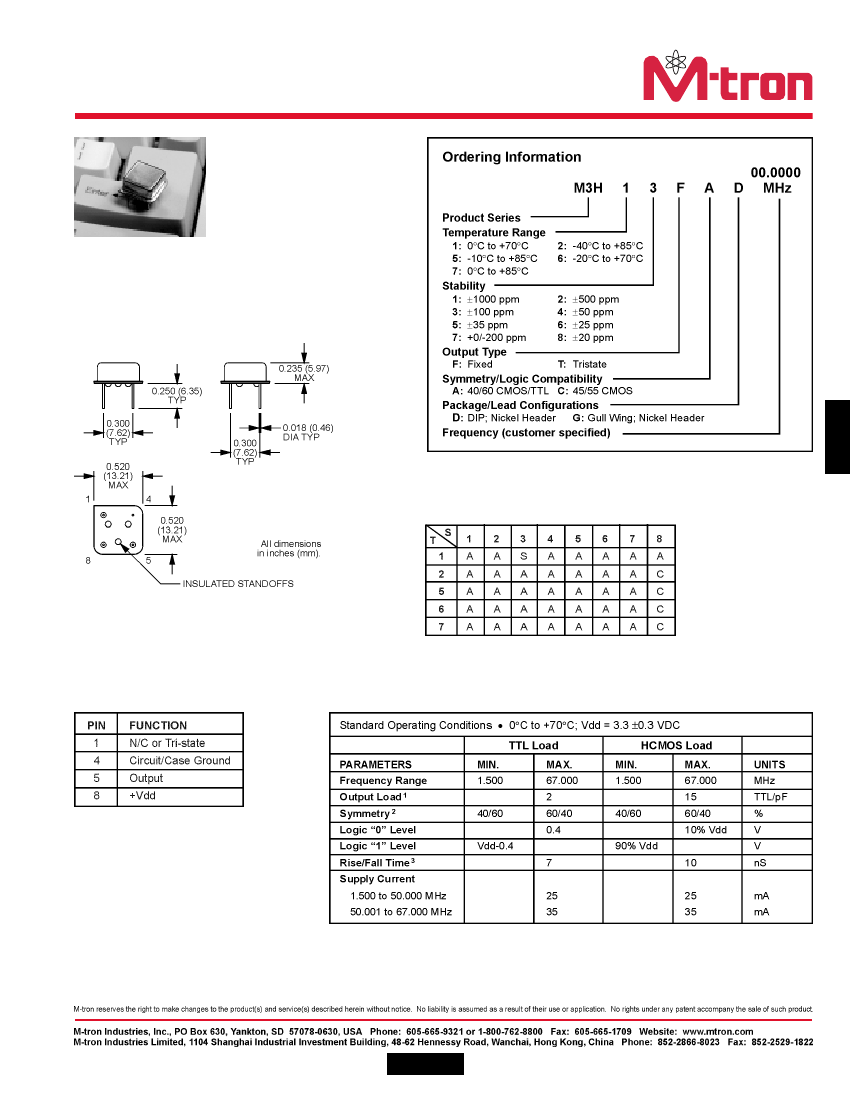

M3H Series Half-Size 3.3 Volt

HCMOS/TTL Compatible Oscillators

M3H Half-Size 3.3 Volt HCMOS/TTL

Compatible Oscillators

Available Stabilities vs. Temperature

See page 135 for gull wing configuration.

A = Available

S = Standard

C = Consult Factory

Pin Connections

Electrical Specifications

Tri-state Control Logic

Pin 1 high or floating: clock signal output

Pin 1 low: output disables to high impedance

TTL load - See load circuit diagram #1 on page 137. HCMOS load - See load circuit diagram #2 on page 137.

Symmetry is measured at 1.4 V with TTL load, and at 50% Vdd with HCMOS load.

Rise/Fall times are measured between 0.4 V and 2.4 V with TTL load, and between 10% Vdd and 90% Vdd with

HCMOS load.

See page 136 for suggested soldering conditions.
