TC3W02F(TE85L) datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> TC3W02F(TE85L)

TC3W02F(TE85L): DescriptionIC HC/UH SERIES, DECIMAL DECODER/DRIVER, INVERTED OUTPUT, PDSO8, PLASTIC, SOP-8, Decoder/Driver; Categorylogic logic; File Size89KB，4 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC3W02F(TE85L) Overview

IC HC/UH SERIES, DECIMAL DECODER/DRIVER, INVERTED OUTPUT, PDSO8, PLASTIC, SOP-8, Decoder/Driver

TC3W02F(TE85L) Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
series	HC/UH
Input adjustment	STANDARD
JESD-30 code	R-PDSO-G8
length	5 mm
Load capacitance (CL)	50 pF
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	33 ns
Certification status	Not Qualified
Maximum seat height	1.8 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.1 mm

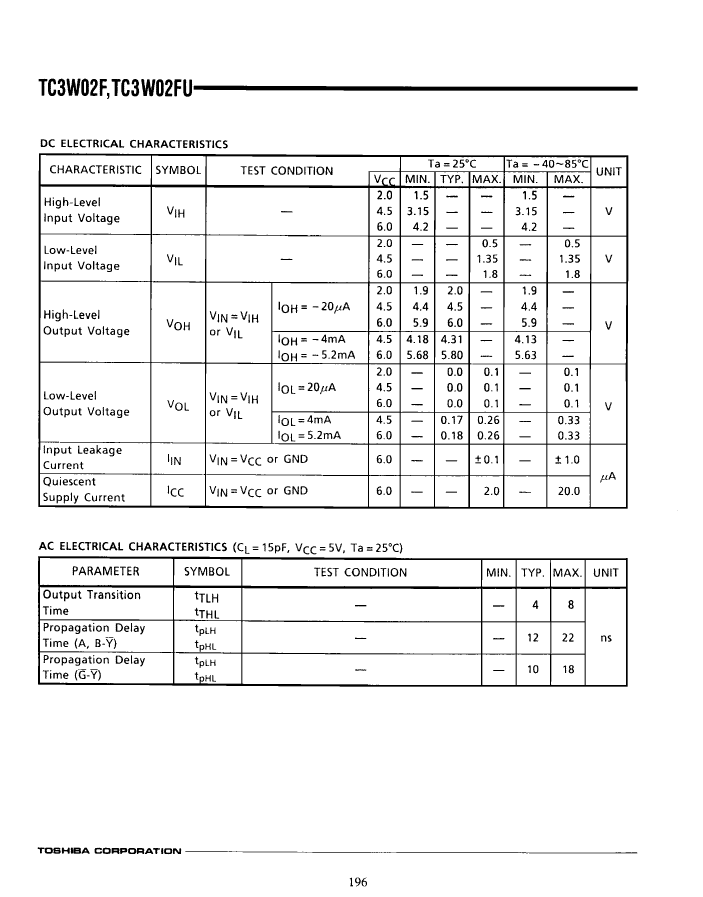

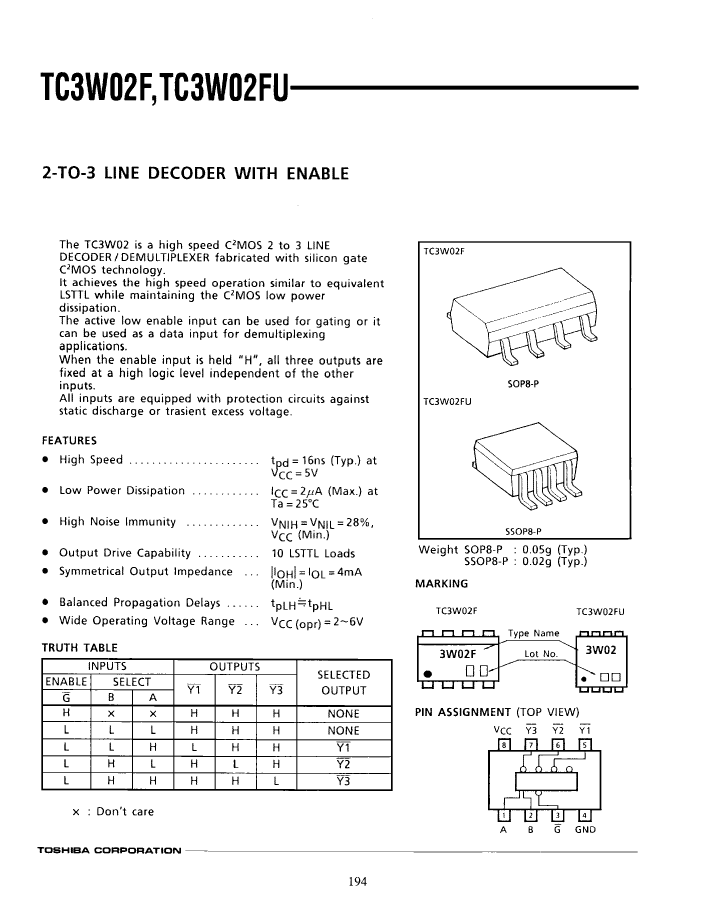

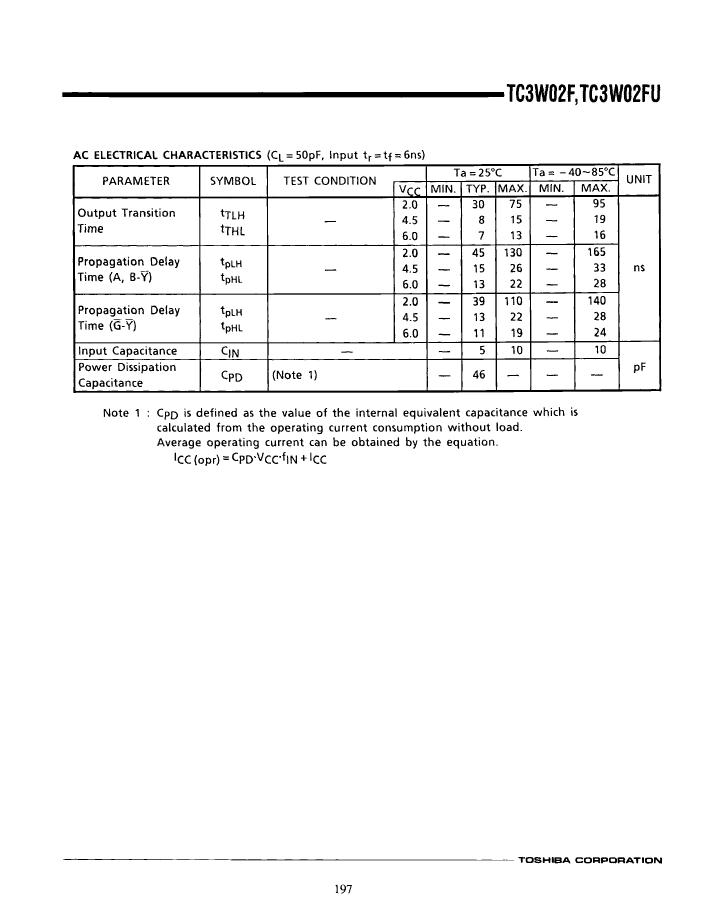

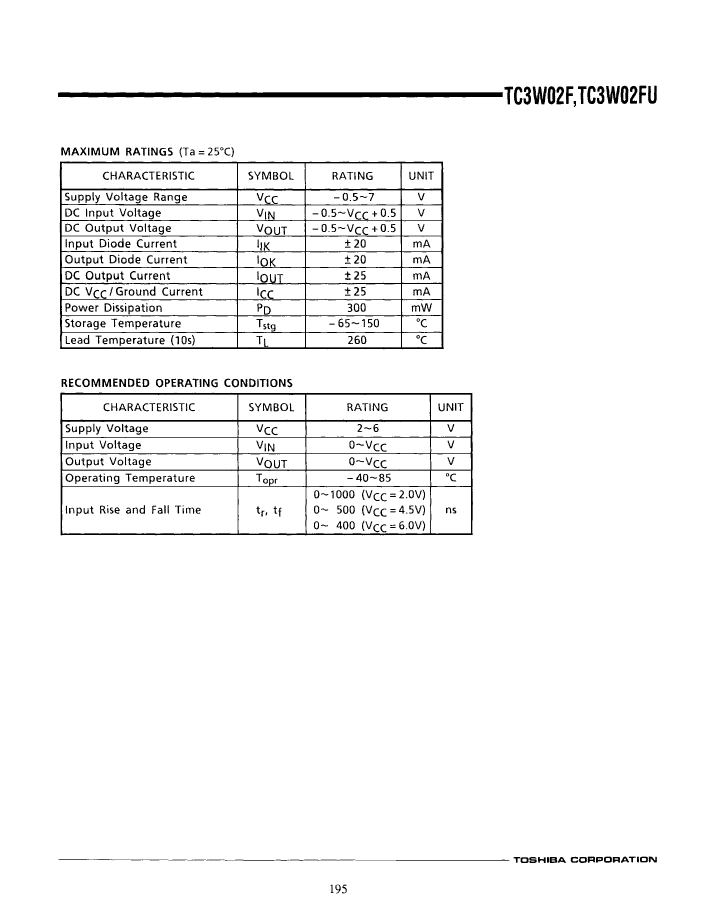

TC3W02F(TE85L) Preview
