WR-22 Instrumentation Grade Waveguide H-Bend with
UG-383/U Flange Operating from 33 GHz to 50 GHz
TECHNICAL DATA SHEET
PE-W22B002
Pasternack’s instrumentation grade waveguide bends are constructed of a high quality oxygen free hard copper with high
precision mechanical tolerances as tight as ±0.001” that ensures repeatable and consistent RF performance. Our commercial
and instrumentation grade waveguide bends range in size from WR-12 to WR-137 and include grooved and non-grooved
flanged designs. Pasternack waveguide bends are offered in E-Bend and H-Bend configuarations, and each waveguide bend
is labeled for easy identification. Our commercial grade waveguide bends are painted blue and our instrumentation grade ver-
sions are hard gold plated over a copper flash.
WR-12 to WR-137 Waveguide Bends
Grooved and Non-Grooved Flange Designs
Available for frequency ranges between 5.8 GHz to 90 GHz
Comprehensive waveguide offering also includes Waveguide Sections, Waveguide to Coax Adapters, Filters, Termi-
nations, and more.
•
High Precision Tolerance as Tight as ±0.001”
•
•
•
•
Electrical Specifications
Description
Frequency Range
VSWR
Insertion Loss
.
0.16
Minimum
33
Typical
Maximum
50
1.1:1
Units
GHz
dB
Mechanical Specifications
Waveguide Size
Waveguide Design
Description
Interface
Material
Plating
...
WR-22
Instrumentation Grade
Flange 1
UG-383/U
Oxygen Free Hard Copper
Waveguide
WR-22
Oxygen Free Hard Copper
Flange 2
UG-383/U
Oxygen Free Hard Copper
Hard Gold over Copper Flash Hard Gold over Copper Flash Hard Gold over Copper Flash
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Notes:
•
Values at +25 °C, sea level
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: WR-22 Instrumentation Grade Waveguide H-Bend with UG-383/U Flange Operating from
33 GHz to 50 GHz PE-W22B002
PE-W22B002 REV 0.1
1
WR-22 Instrumentation Grade Waveguide H-Bend with
UG-383/U Flange Operating from 33 GHz to 50 GHz
TECHNICAL DATA SHEET
Power Data
PE-W22B002

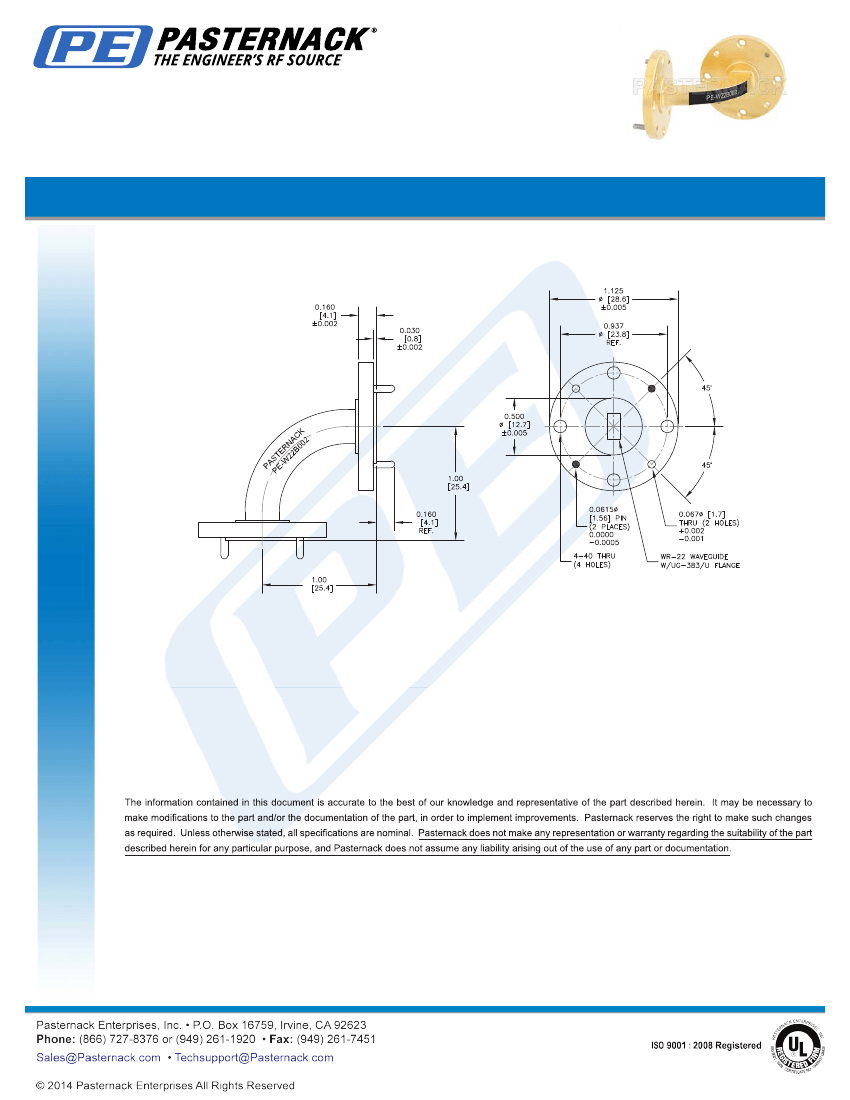

Outline Drawing
WR-22 Instrumentation Grade Waveguide H-Bend with UG-383/U Flange Operating from 33 GHz to 50 GHz from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
WR-22 Instrumentation Grade Waveguide H-Bend with UG-383/U Flange Operating from 33
GHz to 50 GHz PE-W22B002
URL:
http://www.pasternack.com/wr-22-waveguide-h-bend-ug-383-flange-33-50-ghz-pe-w22b002-p.aspx
PE-W22B002 REV 0.1
2
