8 Bit Programmable Phase Shifter, 6 GHz to 18 GHz,
360 Deg Phase Shift, 256 Steps and SMA
TECHNICAL DATA SHEET
PE82P5002
The PE82P5002 is an 8 Bit Digital Controlled Phase Shifter with 360 Deg Phase Range with a switching speed of 500 ns Max
over the Operating Frequency Range from 6 GHz to 18 GHz. The Module is offered in a slim line housing measuring only
0.5” Height.
Features
•
•
•
•
8 Bit Digital Controlled Phase Shifter
6 GHz to 18 GHz Frequency Range
+/-15 Deg Max Accuracy
360 Deg Phase Shift in 256 Steps
• 500 ns Max Switching Speed
• +20 dBm Max InputPower
• Insertion Loss 10 dB Typ
Applications
• Electronic Warfare
• Test & Measurement
• Military & Space
• Radar
• Military Communications Systems
Electrical Specifications
(Values at +25°C, sea level)
Description
Frequency Range
Insertion Loss
Input VSWR
PM / AM
Translation Rate
Carrier Suppression
Side Band Suppression
Phase Shift
Range
Control Input
Error
Switching Speed @50% TTL to within
(10% of Final Phase Value)
Harmonics
.
Minimum
6
Typical
10
Maximum
18
12
2:1
±2.5
Units
GHz
dB
dB
kHz
dB
dB
0
18
15
360° in 256 Steps
8 Bit TTL
500
±15°
500
-25
ns
dBc
Power Handling Capability
Without Degradation
Survival Power
.
0.1
20
Watts
dBm
DC Power Supply
@5 Volts
@-15 Volts
..
115
20
mA
mA
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
8 Bit Programmable Phase Shifter, 6 GHz to 18 GHz, 360 Deg Phase Shift, 256 Steps and
SMA PE82P5002
PE82P5002 REV 1.0
1
8 Bit Programmable Phase Shifter, 6 GHz to 18 GHz,
360 Deg Phase Shift, 256 Steps and SMA
TECHNICAL DATA SHEET
Mechanical Specifications
Size
Length
Width
Height
.
PE82P5002
1.6 in [40.64 mm]
1.75 in [44.45 mm]
0.5 in [12.7 mm]
Environmental Specifications
Temperature
Operating Range
Storage Range
Humidity
Shock
Vibration
Altitude
Temperature Cycle
-55 to +85 deg C
-65 to +125 deg C
MIL-STD-202G, METHOD 103B COND. B
MIL-STD-202G, METHOD 213B COND. B
MIL-STD-202G, METHOD 204D COND. B
MIL-STD-202G, METHOD 105C COND. B
MIL-STD-202G, METHOD 107D COND. A
Compliance Certifications
(visit www.Pasternack.com for current document)
Not RoHS Compliant
Plotted and Other Data
Notes:
• Values at +25 °C, sea level
• ESD Sensitive Material, Transport material in Approved ESD bags. Handle only in approved ESD Workstation.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
8 Bit Programmable Phase Shifter, 6 GHz to 18 GHz, 360 Deg Phase Shift, 256 Steps and
SMA PE82P5002
PE82P5002 REV 1.0
2
8 Bit Programmable Phase Shifter, 6 GHz to 18 GHz,
360 Deg Phase Shift, 256 Steps and SMA
TECHNICAL DATA SHEET

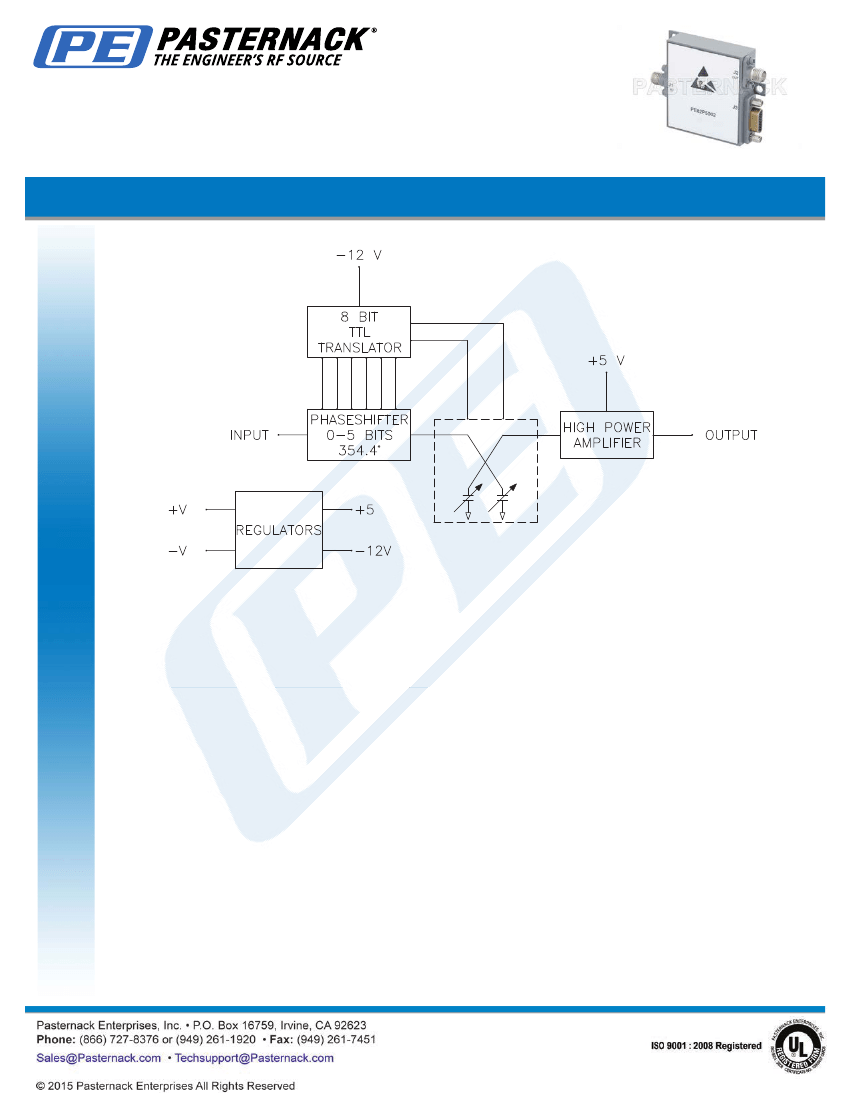

Block Diagram
PE82P5002
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
8 Bit Programmable Phase Shifter, 6 GHz to 18 GHz, 360 Deg Phase Shift, 256 Steps and
SMA PE82P5002
PE82P5002 REV 1.0
3
8 Bit Programmable Phase Shifter, 6 GHz to 18 GHz,
360 Deg Phase Shift, 256 Steps and SMA
TECHNICAL DATA SHEET
Performance Data
PE82P5002
0
45
90
PHASE SHIFT (degree)
135
180
225
270
315
360
6
8
PHASE VS FREQUENCY
10
12
FREQUENCY (GHz)
14
16
18
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
8 Bit Programmable Phase Shifter, 6 GHz to 18 GHz, 360 Deg Phase Shift, 256 Steps and
SMA PE82P5002
PE82P5002 REV 1.0
4
8 Bit Programmable Phase Shifter, 6 GHz to 18 GHz,
360 Deg Phase Shift, 256 Steps and SMA
TECHNICAL DATA SHEET

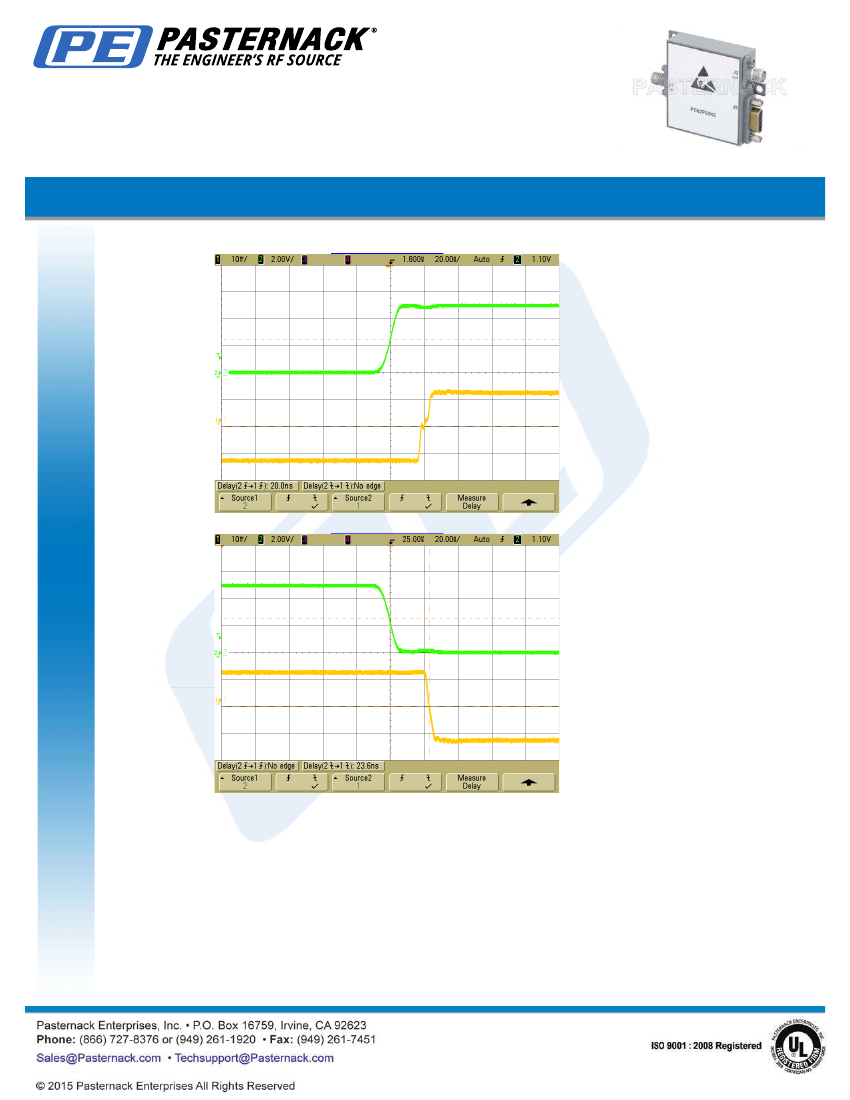

Switching Speed On
PE82P5002
Switching Speed Off
Green Trace: Waveform Generator TTL Levels
Yellow Trace: RF Output through mixer IF Port
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
8 Bit Programmable Phase Shifter, 6 GHz to 18 GHz, 360 Deg Phase Shift, 256 Steps and
SMA PE82P5002
PE82P5002 REV 1.0
5
