AZ164-2CT-12D1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> AZ164-2CT-12D1

AZ164-2CT-12D1: DescriptionPower/Signal Relay, 2 Form C, DPDT, 13.2VDC (Coil), 10A (Contact), 30VDC (Contact), DC Input, Random, AC/DC Output; CategoryMechanical and electronic products relay; File Size4MB，3 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/; Environmental Compliance

Download Datasheet Parametric View All

AZ164-2CT-12D1 Overview

Power/Signal Relay, 2 Form C, DPDT, 13.2VDC (Coil), 10A (Contact), 30VDC (Contact), DC Input, Random, AC/DC Output

AZ164-2CT-12D1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AZETTLER
Reach Compliance Code	compliant
body width	21.5 mm
body height	35 mm
Body length or diameter	28 mm
Coil operating voltage (DC)	9.6 V
Coil resistance	160 Ω
Maximum coil voltage (DC)	13.2 V
Nominal coil voltage	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	2500VA@250VAC
Contact (AC) maximum rated R load	10A@250VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated power R load	300W@30VDC
Contact (DC) maximum rated R load	10A@30VDC
Contact resistance	50 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1500 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Cerium
Input switching control type	Random
Insulation resistance	100000000 Ω
Number of terminals	8
operating hours	25 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-55 °C
PCB hole count	8
physical size	28mm x 21.5mm x 35mm
Guideline	UL; TUV
Relay style	2 FORM C
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	25 ms
Terminal length	0.004 inch
Termination type	SOLDER
weight	37 g

Preview

Download Datasheet

View All

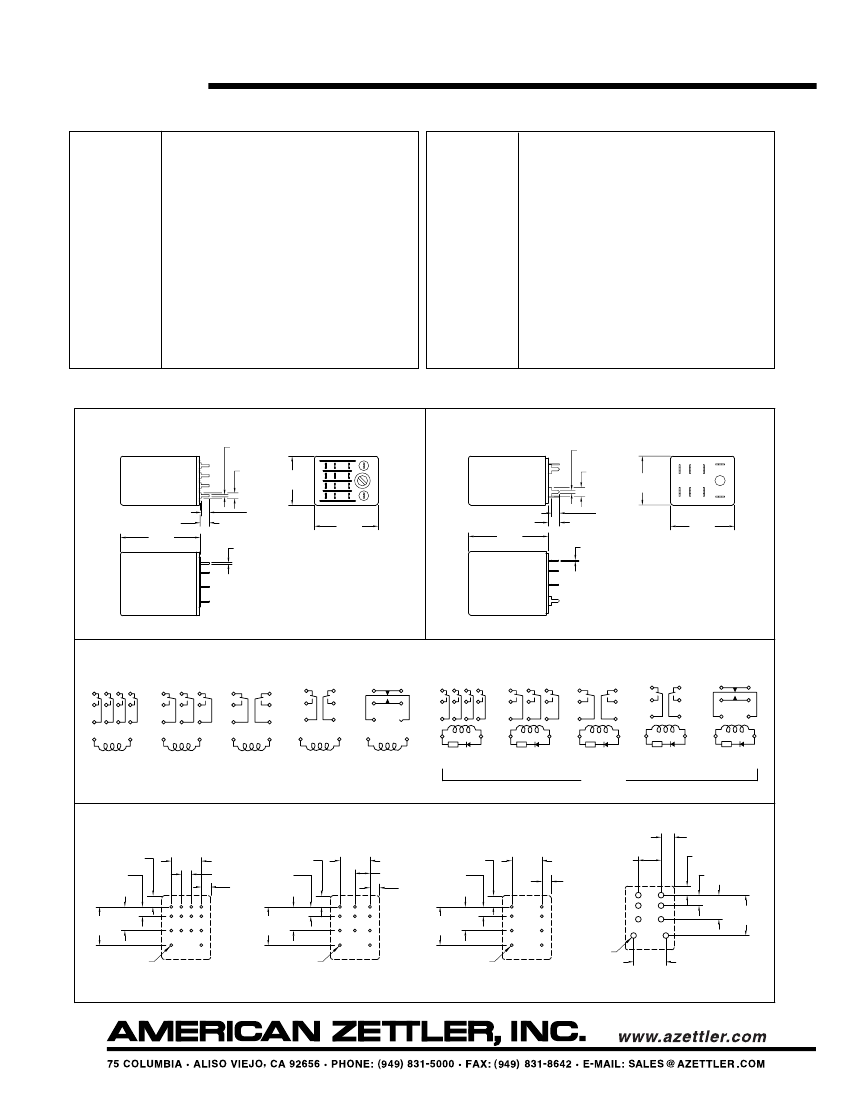

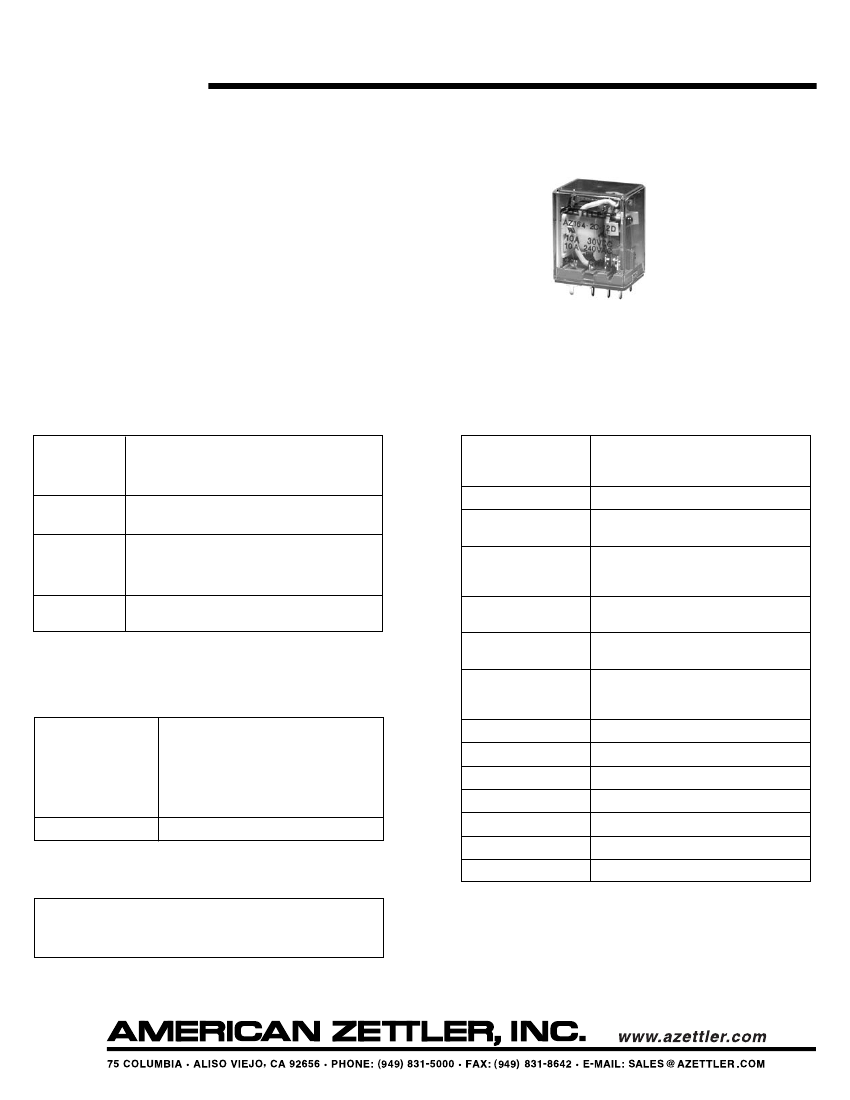

AZ164

MINIATURE

POWER RELAY

FEATURES

•

PC Terminals

SPDT through 4PDT arrangement

High switching capacity

AC and DC coils

Push To Test lever available on some models

CE marked

UL, CUR file E43203

TÜV pending

CONTACTS

Arrangement

SPDT (1 Form C)

DPDT (2 Form C)

3PDT (3 Form C)

4PDT (4 Form C)

See chart on page 2

-1CT contact

-2C and 2CT contact

-3C contact

-4C contact

Silver

cadmium oxide

cerium

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time

Release Time

Minimum operations

2 x 10

operations

See UL/CUR ratings on page 2

25 msec max. at nominal coil voltage

25 msec at nominal coil voltage

(without suppression)

Ratings

UL, CUR

Material

1500 Vrms coil to contact

Dielectric Strength

(at sea level for 1 min.)

1000 Vrms contact to contact

1000 Vrms between contact sets

Insulation

Resistance

Dropout

Ambient Temperature

Operating

Storage

Vibration

100 megohms min. at 500VDC,

20°C, 50% RH

DC: > 10% of nominal coil voltage

AC: > 30% of nominal coil voltage

-55°C (-67°F) to 70°C (158°F)

-55°C (-67°F) to 105°C (221°F)

0.062" DA at 10–55 Hz

20g

Polycarbonate

250°C (482°F)

5 seconds

37 grams

Resistance

< 50 milliohms initially

(24V, 1A voltage drop method)

COIL

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature

DC: 576mW, 6 to 48VDC

704mW, 110VDC

AC:

0.768VA

DC: 1.2W (110V : 1.5W) at 20°C (68°F)

AC: 1.7VA at 20°C (68°F)

105°C (221°F)

Shock

Enclosure

Terminals

Max. Solder Temp.

Max. Solder Time

Weight

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.

11/18/13
