240-801-18: DescriptionSeries 801 Mighty Mouse Filter Connector; File Size157KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

240-801-18 Overview

Series 801 Mighty Mouse Filter Connector

Preview

Download Datasheet

View All

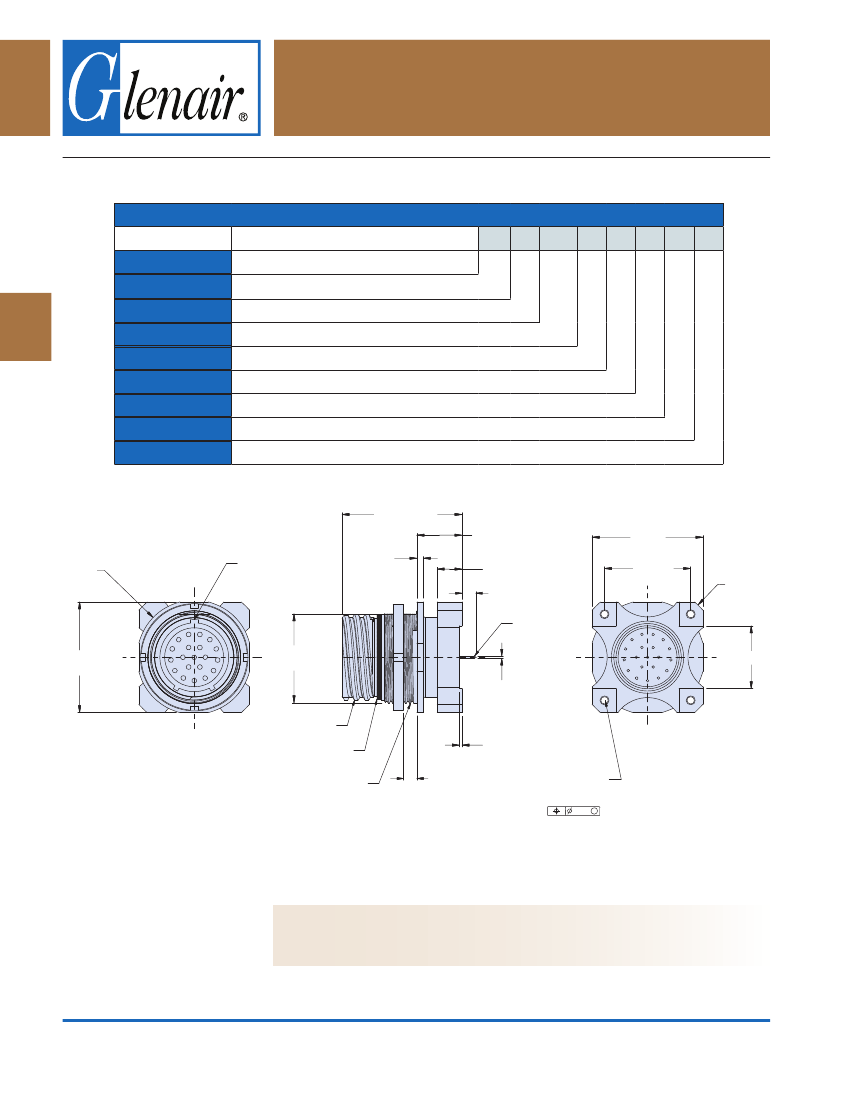

240-801-18

Series 801 Mighty Mouse Filter Connector

High Density, Quick Coupling Threads

C

Mighty Mouse

Sample Part Number

Filter Connector

Shell Style

Shell Material/Finish

Insert Arrangement

Contact Gender

Termination Type

Filter Type

Capacitance

Alternate Key Position

See Table I

See pages C-3 – C-7

P

= Pin

S

= Socket

P

= PC Tail

P

= Pi Circuit

See Table II

MIGHTY MOUSE FILTER CONNECTOR, DUAL-FLANGE JAM NUT RECEPTACLE

How To Order

240-801-

Series 801 Mighty Mouse

18

= Jam Nut receptacle with PCB contacts

18

M

6-7

P

A

C

= C Circuit (See Note 1)

A, B, C, D, E, F, U A

= Normal,

U

= Universal (See page C-2)

1.200 Max.

.430 Max.

ØG

Master

Keyway

.060

.235

.130±.025

1

13

12

P Sq.

Typ.

N Bsc.

Typ.

ØB

PC Tail

2

3

4

H Flat

Typ.

11

5

10

6

8

7

J

Flat

ØU

See Table V

A Thread

Red Full-mate

Indicator Band

K Thread

.025

.126 Max

Panel

4x Heli-coil

#2-56 X .086

.162/.152 Deep

.005

R Typ.

9

M

Notes

1. Other filter styles (C-L, L-C, Unbalanced Pi, Multi-Stage, Multi-Value) are available, please

consult the factory.

Dimensions in inches (millimeters) and are subject to change without notice.

EMI/EMP Filter Connectors

U.S. CAGE Code 06324

Rev. 06.02.15

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

C-14

E-Mail: sales@glenair.com
