240-838W
Glenair MIL-DTL-83723 Series III Type
Wall Mount Receptacle, Bayonet Coupling

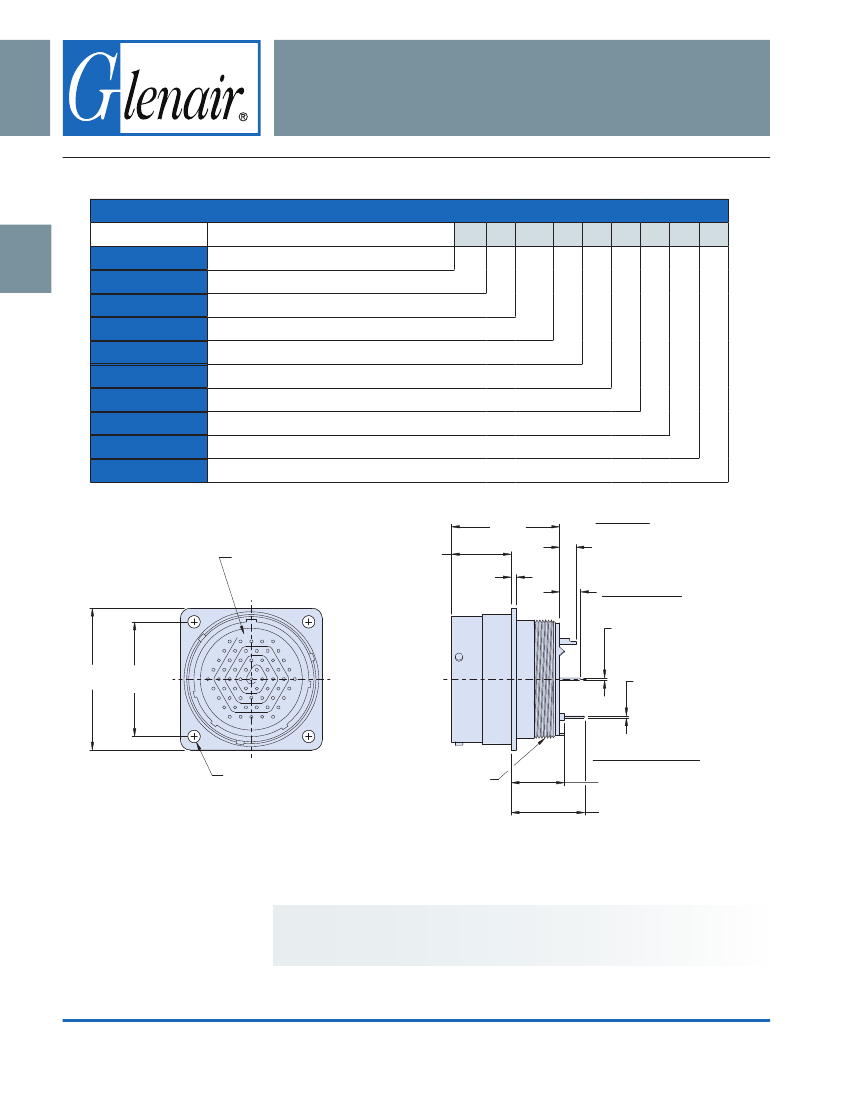

MIL-DTL-83723 SERIES III WALL MOUNT RECEPTACLE, BAYONET COUPLING
How To Order
MIL-DTL-83723
Type
B
Sample Part Number
Filter Connector
Shell Style
Connector Class
Insert Arrangement
Contact Gender
Termination
Filter Type
Capacitance
Flange Mounting Style
Alternate Insert Position
240-838
MIL-DTL-83723 Series III Type, Bayonet Coupling
W
= Wall Mount
See Table I
IAW MIL-STD-1554. (See pages B-72 – B-73)
P
= Pin IAW D83723/72
S
= Socket IAW D83723/71
W
ME 24-61
P
S
P
A
H
N
S
= Solder Cup
P
= PC Tail, Straight
T
= PC Tail, with Shoulder
P
= Pi Circuit
C
= C Circuit (See Note 1)
See Table II
H
= Round Holes
C
= Clinch Nuts (4-40 UNC)
M
= Metric Clinch Nuts (M3)
IAW MIL-DTL-83723 and MIL-STD-1554
1, 2, 3, 4, 5, 6, 7, 8, 9, Y, N
= Normal (See page B-73)
1.300 (31.5)
Max
24-61 Pin Mating Face
Shown As Reference Only
.728 (18.5)
.708 (18.0)
.072 (1.8)
.052 (1.3)
Solder Cup
.224/.164 (5.7/4.2)
Contact Sizes 12 & 16
.194/.134 (4.9/3.4)
Contact Size 20
PC Tail - Straight
.200 (5.1) Min
#20 = Ø.026/.024 (.66/.61)
#16 = Ø.042/.038 (1.07/.97)
#12 = Ø.096/.092 (2.44/2.34)
61
A Or A1
Sq.
B
Typ
1
#20 = Ø.031/.029 (.79/.74)
#16 = Ø.042/.038 (1.07/.97)
#12 = Ø.096/.092 (2.44/2.34)
PC Tail - With Shoulder
ØC
D Thread
.671/.606
(17.0/15.4)
.910/.856
(23.1/21.7)
Notes
1. Other filter styles (C-L, L-C, Unbalanced Pi, Multi-Stage, Multi-Value) are available, please
consult the factory.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
© 2013 Glenair, Inc.
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-84
E-Mail: sales@glenair.com
Wall Mount Receptacle, Bayonet Coupling
Table I: Connector Class
Sym
Material
Finish Description
ME
Electroless Nickel
MT
Aluminum
Ni-PTFE
1000 Hour Grey™
Nickel Fluorocarbon Polymer
NF
Cadmium O.D. Over Electroless Nickel
ZL
Stainless Steel Electro-Deposited Nickel
ZN
Aluminum
Zinc-Nickel, Olive Drab
ZR
Aluminum
Zinc Nickel, Black - RoHS
H2*
Stainless Steel Electro-Deposited Nickel
*Some dimensions do not apply. See drawing 240-837WH2
Table II: Capacitor Array Code Capacitance Range
Class
Pi - Circuit (pF)
C - Circuit (pF)
X*
160,000 - 240,000
80,000 - 120,000
Y*
80,000 - 120,000
40,000 - 60,000
Z*
60,000 - 90,000
30,000 - 45,000
A
38,000 - 56,000
19,000 - 28,000
B
32,000 - 45,000
16,000 - 22,500
C
18,000 - 33,000
9,000 - 16,500
D
8,000 - 12,000
4,000 - 6,000
E
3,300 - 5,000
1,650 - 2,500
F
800 - 1,300
400 - 650
G
400 - 600
200 - 300
J
70-120
35-60
* Filter Classes X, Y and Z are 250 VDC.
All others are 500 VDC
Table III: Dimensions
Thru Hole
Clinch Nut
Flange
Flange
B
Typ
A Sq.
A1 Sq.
ØC
Typ
±.020 (.51)
.125 (3.2)
.895
.594
.812 (20.6)
.116 (2.9)
(22.7)
(15.1)
.937 (23.8)
1.031 (26.2)
1.125 (28.6)
1.250 (31.8)
1.343 (34.1)
1.437 (36.5)
1.562 (39.7)
1.703 (43.3)
.125 (3.2)
.116 (2.9)
.125 (3.2)
.116 (2.9)
.125 (3.2)
.116 (2.9)
.125 (3.2)
.116 (2.9)
.125 (3.2)
.116 (2.9)
.125 (3.2)
.116 (2.9)
.125 (3.2)
.116 (2.9)
.154 (3.9)
.145 (3.7)
1.019
(25.9)
1.112
(28.2)
1.206
(30.6)
1.269
(32.2)
1.362
(34.6)
1.456
(37.0)
1.562
(39.7)
1.719
(43.7)
.719
(18.3)
.812
(20.6)
.906
(23.0)
.969
(24.6)
1.062
(27.0)
1.156
(29.4)
1.250
(31.8)
1.375
(34.9)
Shell
Size
8
10
12
14
16
18
20
22
24
D Thread
.5000-20 UNF-2A
.6250-24 UNEF-2A
.7500-20 UNEF-2A
.8750-20 UNEF-2A
1.0000-20 UNEF-2A
1.0625-18 UNEF-2A
1.1875-18 UNEF-2A
1.3125-18 UNEF-2A
1.4375-18 UNEF-2A
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-85
E-Mail: sales@glenair.com
MIL-DTL-83723
Type
240-838W
Glenair MIL-DTL-83723 Series III Type
B
