B10B-ZR-SM4-TF(LF)(SN)(P) datasheet, PDF

Datasheet> All Categories > The connector> The connector> B10B-ZR-SM4-TF(LF)(SN)(P)

B10B-ZR-SM4-TF(LF)(SN)(P): DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size102KB，3 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

B10B-ZR-SM4-TF(LF)(SN)(P) Overview

Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

B10B-ZR-SM4-TF(LF)(SN)(P) Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	JST
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TOP ENTRY, LOW PROFILE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

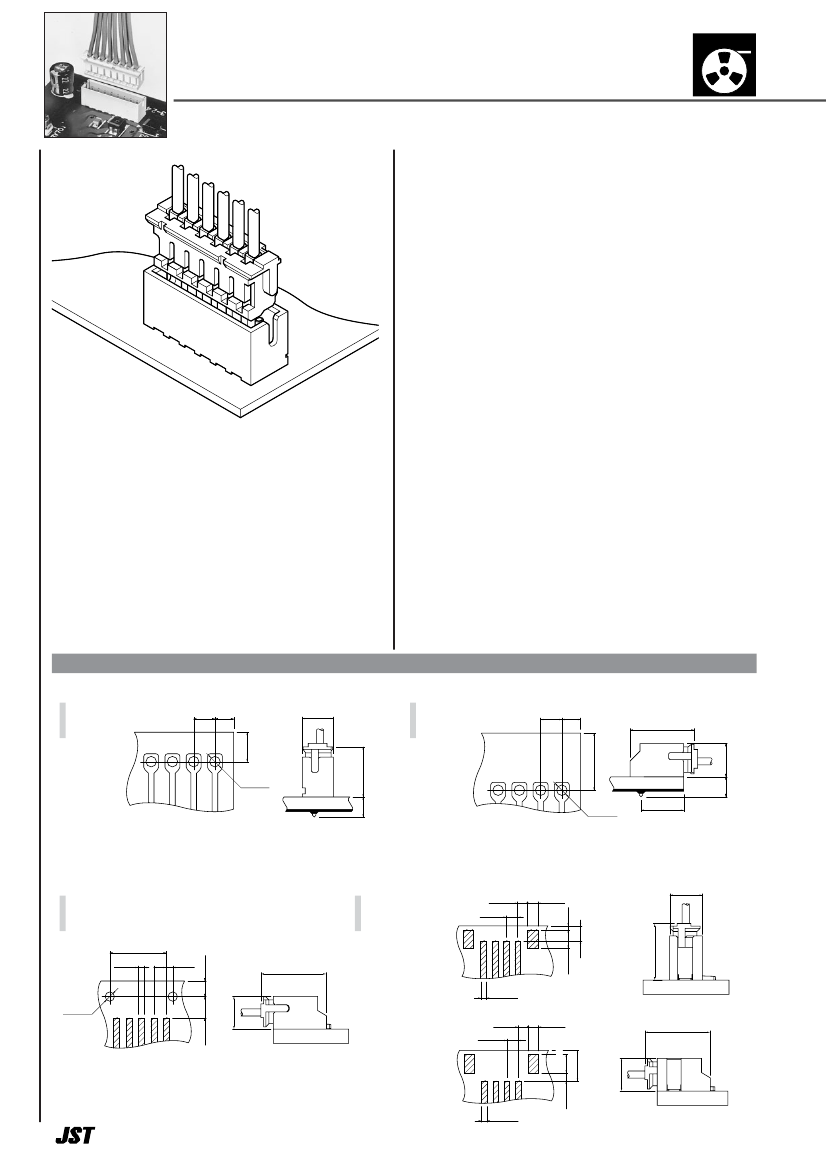

CONNECTOR

Emboss Tape

1.5mm pitch/Disconnectable Crimp style connectors

Specifications –––––––––––––––––––

• Current rating: 1.0A AC, DC (AWG #26)

• Voltage rating: 50V AC, DC

• Temperature range:

25˚C to

85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/20m

Ω

max.

After environmental testing/30m

Ω

max.

• Insulation resistance:

500M

Ω

min.

• Withstanding voltage: 500V AC/minute

• Applicable wire: AWG #32 to #26

• Applicable PC board thickness: 0.6 to 1.2mm,1.6mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

The ZH connector is very small with a

mounting height of 5.6mm and a thickness

of only 3.5mm. Contact retention lances on

the housing make insertion easier, while

the dimple at the center of the contact

ensures reliable contact with the post.

• Compact, low profile design

• Housing lances

• Reliable contact construction

• Distortion resistant construction

• Compatible with the ZR insulation

displacement connectors

Standards ––––––––––––––––––––––

Certified LR20812

3.5

Recognized E60389

PC board layout and Assembly layout

〈

Through-hole type (viewed from soldering side)

〉

Top entry type

1.5

0.05

1.5min

2.2min

Side entry type

1.5

±0.05

1.5min

7.1

4.6min

5.6

φ0.7

0.03

2.7

（3.4）

4.6

φ0.7

±0.03

Note: 1. Tolerances are non-cumulative:

0.05mm for all centers.

2. Hole dimension differ according to the kind of PC board and piercing method. If PC boards made of hard material are used, the hole dimensions should

be larger. The dimensions above should serve as a guideline. Contact JST for details.

〈

SMT type (viewed from component side)

〉

SM2 type

Side entry type

1.5 × (N-1)＋ 0.9

± 0.05

0.7min 1.5

0.9

±0.05

SM4 type

Top entry type

1.3

±0.1

1.5

±0.05

1.5

±0.1

0.6

3.7

2.0min

（7.4）

0.7

min

3.7

φ1.1

＋ 0.1

2.5max

Side entry type

1.5

1.4

±0.05

±0.1

1.1

±0.1

2.3

±0.1

（6.4）

2.0

（7.4）

1.9

±0.1

4.3

Note: 1. N...Number of circuits

2. Tolerances are non-cumulative:

0.05mm for all centers.

3. The dimensions above should serve as a guideline. Contact JST for details.

0.7

min

1.4

±0.1

3.7

2.7

（3.4）

3.7

B10B-ZR-SM4-TF(LF)(SN)(P) Related Products

	B10B-ZR-SM4-TF(LF)(SN)(P)	B6B-ZR-SM4-TF(LF)(SN)(P)	B8B-ZR-SM4-TF(LF)(SN)(P)
Description	Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT	CONN HEADER ZH TOP 6POS 1.5MM	Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT
Maker	JST	JST	JST
Reach Compliance Code	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.5 mm	1.5 mm	1.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	10	6	8
UL Flammability Code	94V-0	94V-0	94V-0
Is it Rohs certified?	conform to	-	conform to
package instruction	ROHS COMPLIANT	-	ROHS COMPLIANT
ECCN code	EAR99	-	EAR99
Other features	TOP ENTRY, LOW PROFILE	-	LOW PROFILE, TOP ENTRY
Contact to complete cooperation	TIN	-	TIN OVER COPPER
Contact completed and terminated	Tin (Sn)	-	TIN OVER COPPER
Contact material	BRASS	-	BRASS
JESD-609 code	e3	-	e3
Is Samacsys	-	N	N
Base Number Matches	-	1	1
