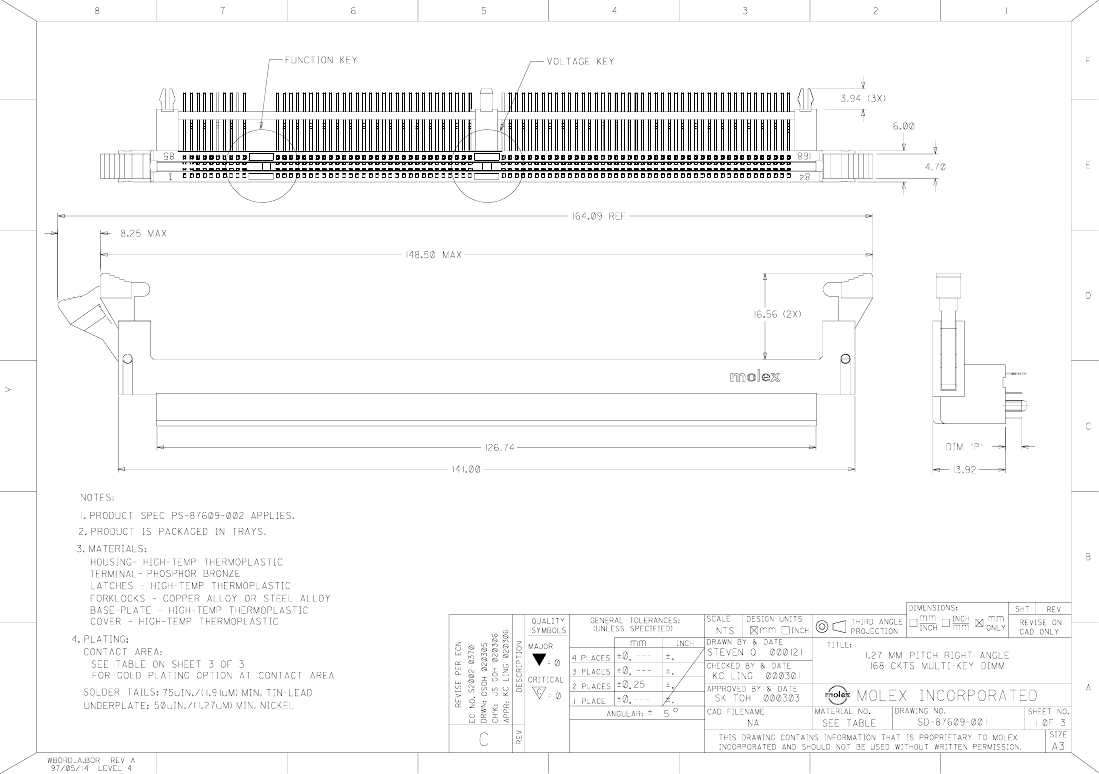

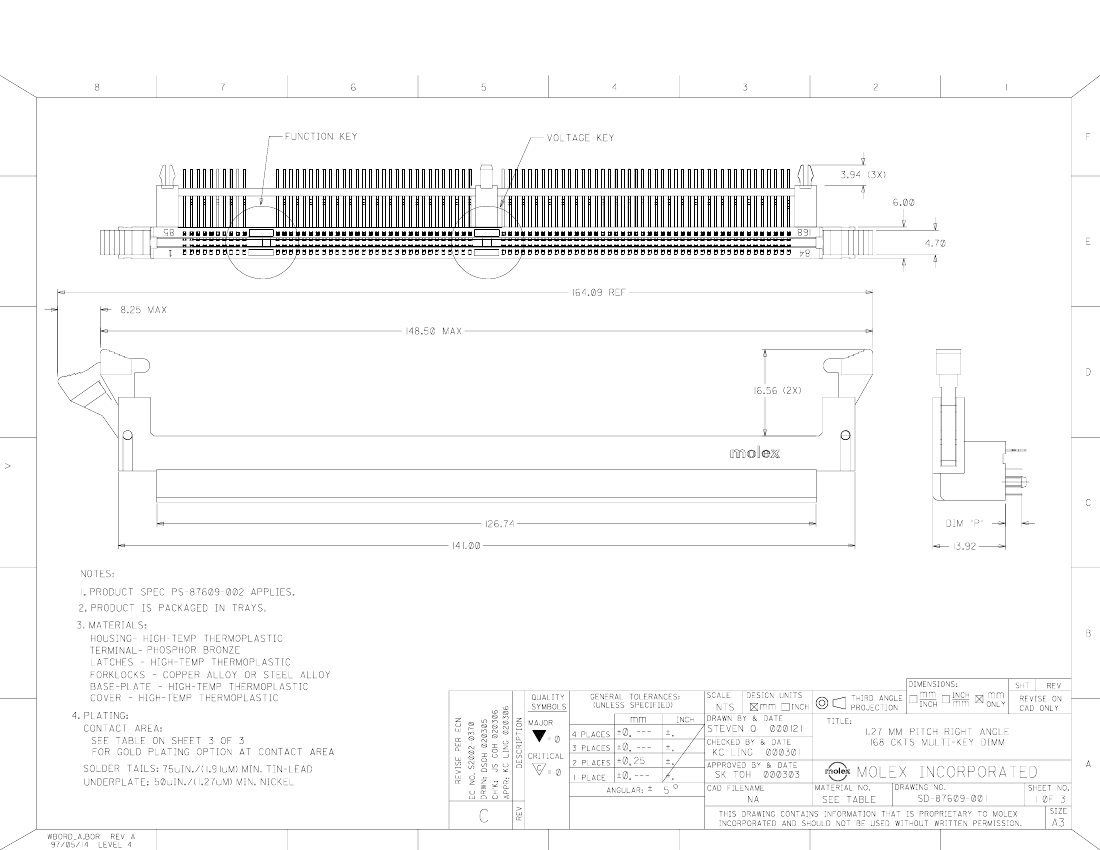

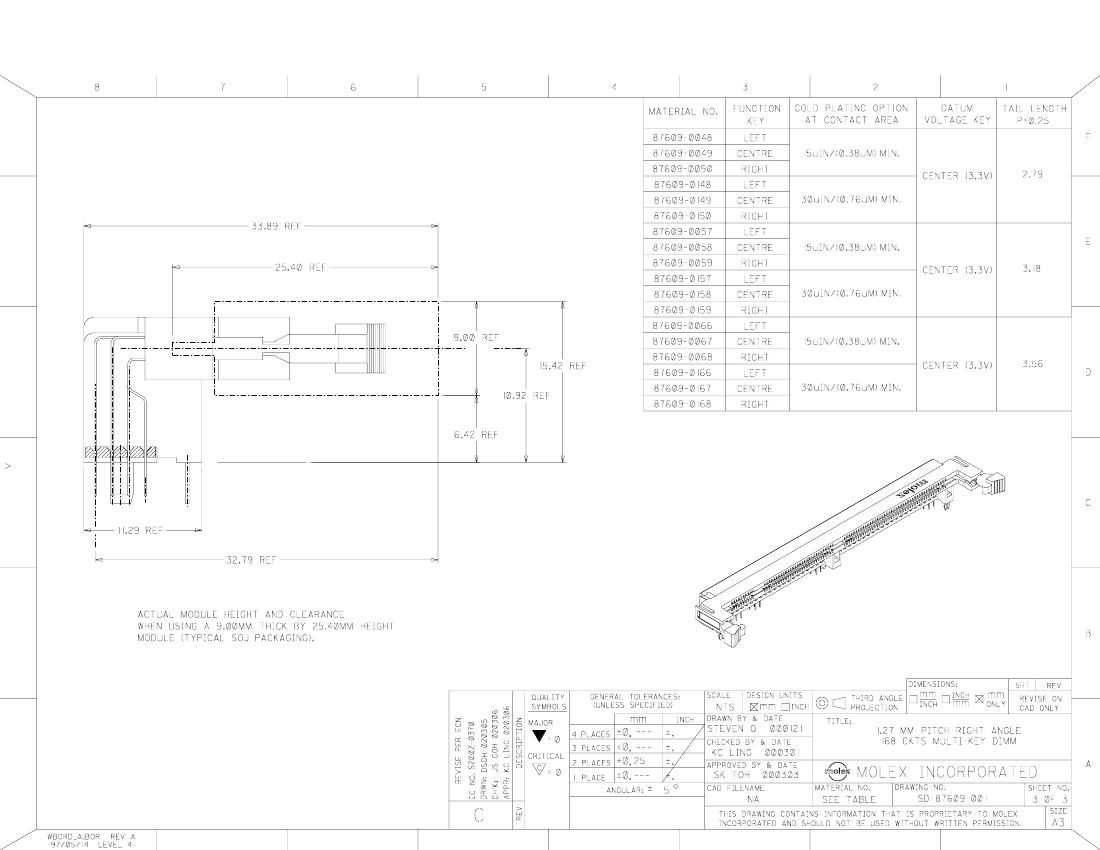

Card Edge Connector, 168 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Latch, Receptacle
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | STAGGERED CONFIGURATION |
| Board mount options | SPLIT BOARD LOCK |
| body width | 0.548 inch |
| body length | 5.551 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| Contact resistance | 40 mΩ |
| Contact style | BELLOWED TYPE |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VAC V |
| Durability | 25 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| insulator material | THERMOPLASTIC |
| MIL compliance | NO |
| Manufacturer's serial number | 87609 |
| Plug contact pitch | 0.05 inch |
| Mixed contacts | NO |
| Installation option 1 | LATCH |
| Installation option 2 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -10 °C |
| Options | GENERAL PURPOSE |

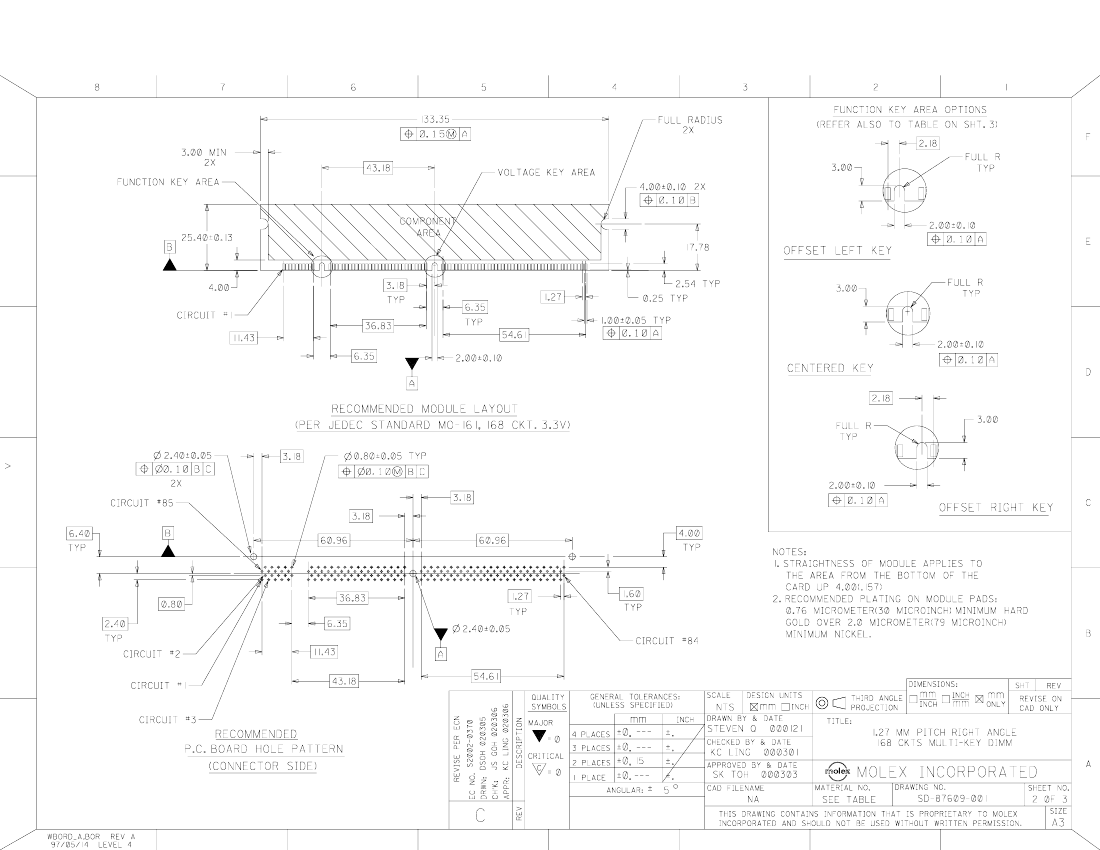

| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 0.063 mm |
| Plating thickness | 15u inch |
| polarization key | RIGHT |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.14 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 168 |
