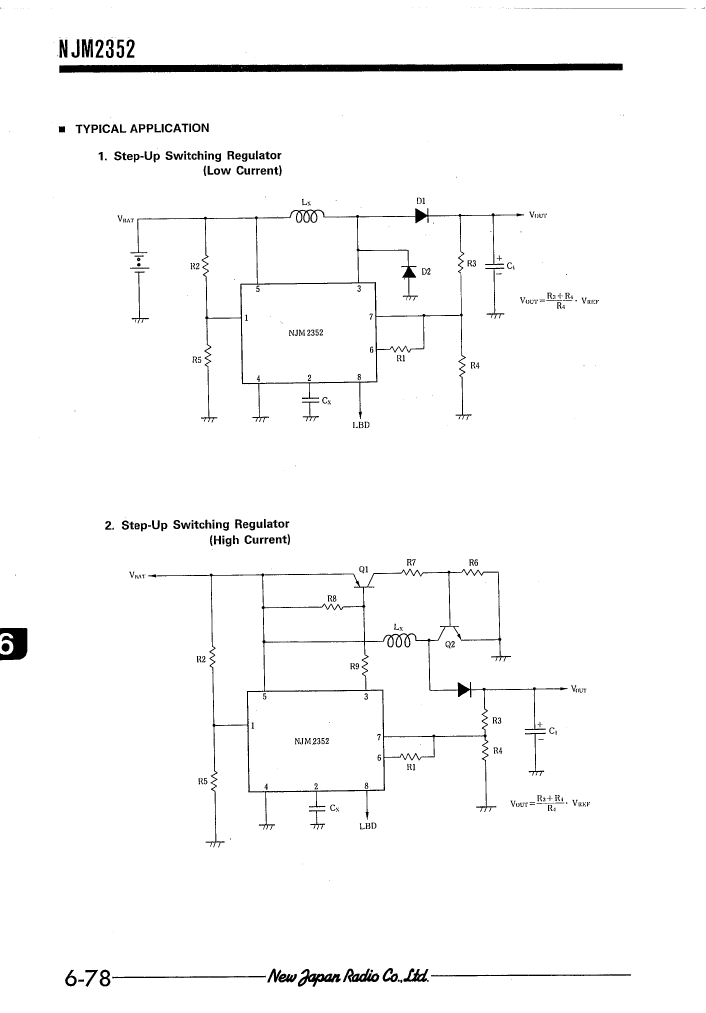

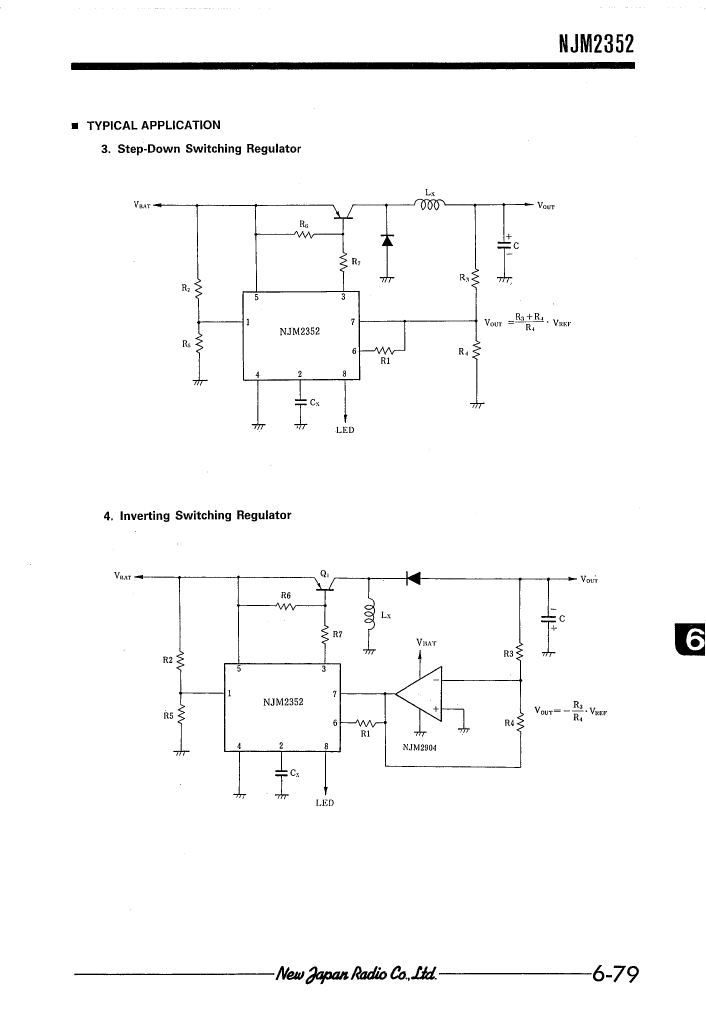

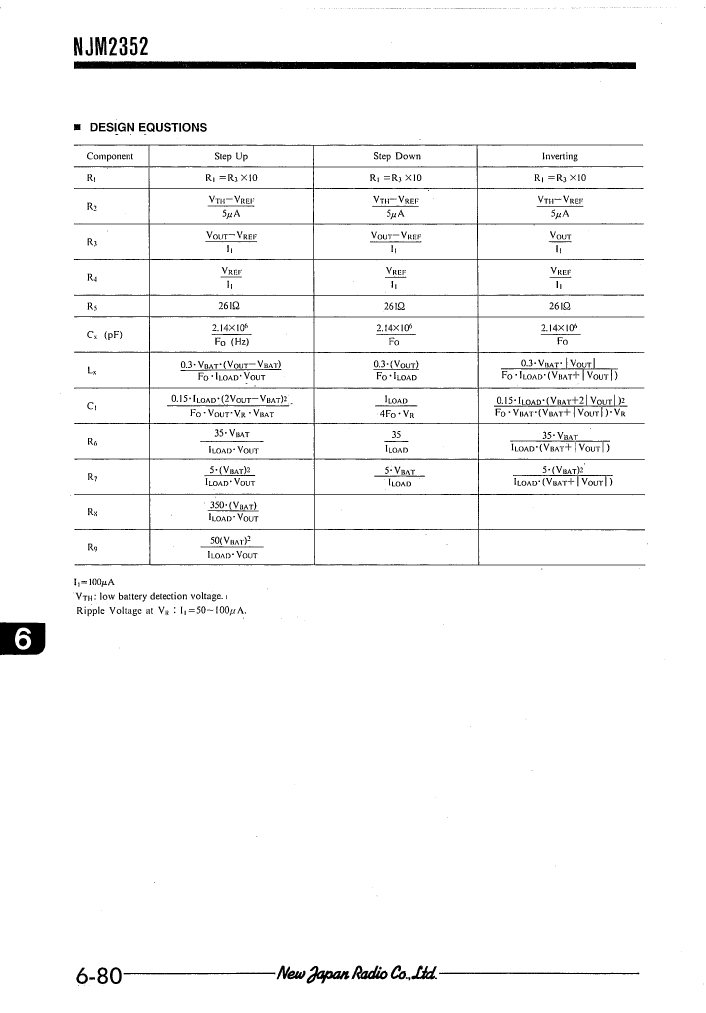

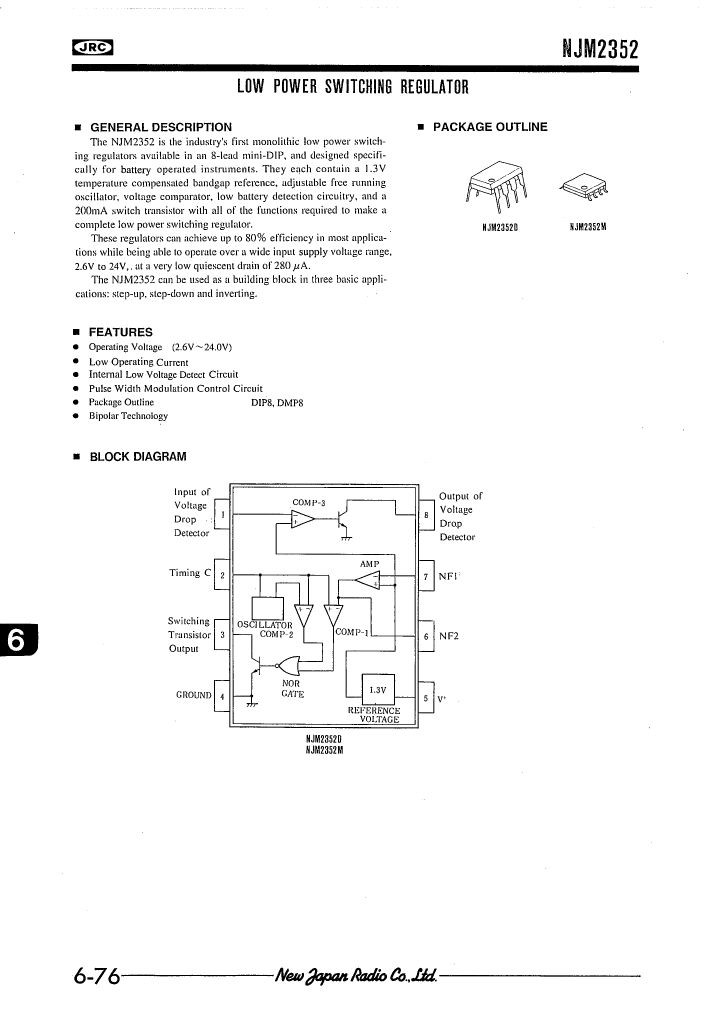

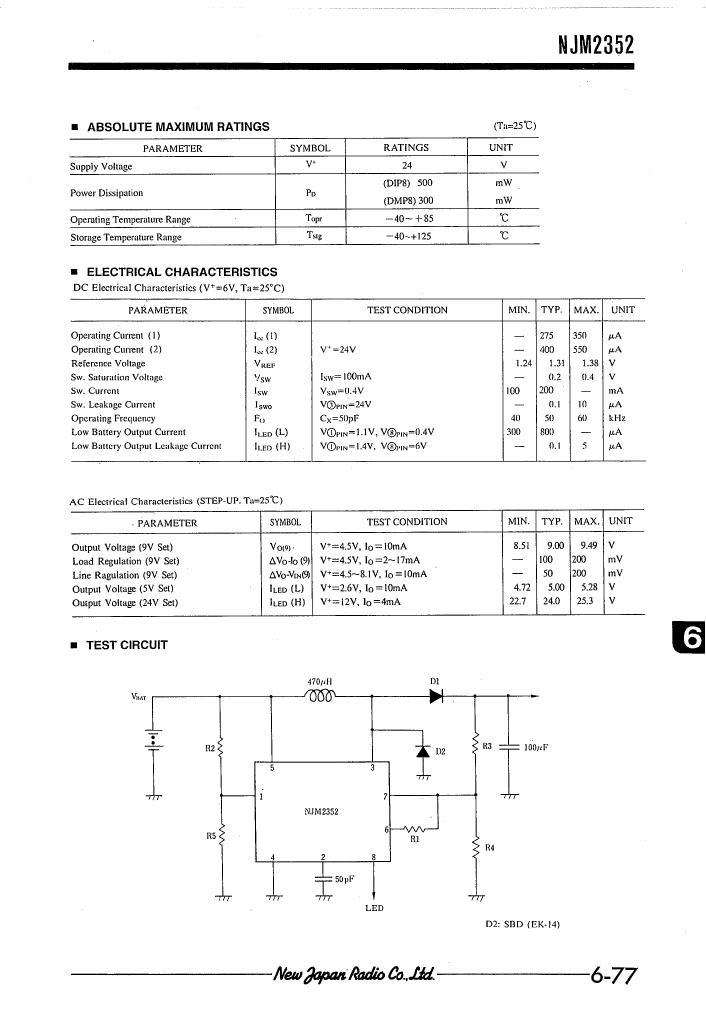

Switching Regulator, Voltage-mode, 0.2A, 60kHz Switching Freq-Max, BIPolar, PDSO8, DMP-8
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | New Japan Radio Co., Ltd.. |
| Parts packaging code | SOIC |
| package instruction | DMP-8 |
| Contacts | 8 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Analog Integrated Circuits - Other Types | SWITCHING REGULATOR |
| control mode | VOLTAGE-MODE |
| Control Technology | PULSE WIDTH MODULATION |
| Maximum input voltage | 24 V |
| Minimum input voltage | 2.6 V |
| Nominal input voltage | 6 V |
| JESD-30 code | S-PDSO-G8 |
| JESD-609 code | e6 |
| length | 5 mm |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Maximum output current | 0.2 A |
| Nominal output voltage | 1.3 V |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | SQUARE |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 260 |
| Certification status | Not Qualified |
| Maximum seat height | 2 mm |
| Maximum supply current (Isup) | 0.55 mA |
| surface mount | YES |
| Switch configuration | BOOST |
| Maximum switching frequency | 60 kHz |
| technology | BIPOLAR |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Bismuth (Sn/Bi) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 5 mm |
| NJM2352M-(TE4) | NJM2352M-(TE1) | NJM2352M-(T2) | NJM2352M-(TE3) | NJM2352M-(T1) | NJM2352M-(TE2) | |
|---|---|---|---|---|---|---|
| Description | Switching Regulator, Voltage-mode, 0.2A, 60kHz Switching Freq-Max, BIPolar, PDSO8, DMP-8 | Switching Regulator, Voltage-mode, 0.2A, 60kHz Switching Freq-Max, BIPolar, PDSO8, DMP-8 | Switching Regulator, Voltage-mode, 0.2A, 60kHz Switching Freq-Max, BIPolar, PDSO8, DMP-8 | Switching Regulator, Voltage-mode, 0.2A, 60kHz Switching Freq-Max, BIPolar, PDSO8, DMP-8 | Switching Regulator, Voltage-mode, 0.2A, 60kHz Switching Freq-Max, BIPolar, PDSO8, DMP-8 | Switching Regulator, Voltage-mode, 0.2A, 60kHz Switching Freq-Max, BIPolar, PDSO8, DMP-8 |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to |
| Maker | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. |
| Parts packaging code | SOIC | SOIC | SOIC | SOIC | SOIC | SOIC |
| package instruction | DMP-8 | SOP, SOP8,.25 | DMP-8 | SOP, SOP8,.25 | DMP-8 | SOP, SOP8,.25 |
| Contacts | 8 | 8 | 8 | 8 | 8 | 8 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Analog Integrated Circuits - Other Types | SWITCHING REGULATOR | SWITCHING REGULATOR | SWITCHING REGULATOR | SWITCHING REGULATOR | SWITCHING REGULATOR | SWITCHING REGULATOR |
| control mode | VOLTAGE-MODE | VOLTAGE-MODE | VOLTAGE-MODE | VOLTAGE-MODE | VOLTAGE-MODE | VOLTAGE-MODE |
| Control Technology | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION |
| Maximum input voltage | 24 V | 24 V | 24 V | 24 V | 24 V | 24 V |
| Minimum input voltage | 2.6 V | 2.6 V | 2.6 V | 2.6 V | 2.6 V | 2.6 V |
| Nominal input voltage | 6 V | 6 V | 6 V | 6 V | 6 V | 6 V |
| JESD-30 code | S-PDSO-G8 | S-PDSO-G8 | S-PDSO-G8 | S-PDSO-G8 | S-PDSO-G8 | S-PDSO-G8 |
| JESD-609 code | e6 | e6 | e6 | e6 | e6 | e6 |
| length | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Maximum output current | 0.2 A | 0.2 A | 0.2 A | 0.2 A | 0.2 A | 0.2 A |
| Nominal output voltage | 1.3 V | 1.3 V | 1.3 V | 1.3 V | 1.3 V | 1.3 V |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | SOP | SOP | SOP | SOP |
| Package shape | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 260 | 260 | 260 | 260 | 260 | 260 |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm |
| Maximum supply current (Isup) | 0.55 mA | 0.55 mA | 0.55 mA | 0.55 mA | 0.55 mA | 0.55 mA |
| surface mount | YES | YES | YES | YES | YES | YES |
| Switch configuration | BOOST | BOOST | BOOST | BOOST | BOOST | BOOST |
| Maximum switching frequency | 60 kHz | 60 kHz | 60 kHz | 60 kHz | 60 kHz | 60 kHz |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal surface | Tin/Bismuth (Sn/Bi) | Tin/Bismuth (Sn/Bi) | Tin/Bismuth (Sn/Bi) | Tin/Bismuth (Sn/Bi) | Tin/Bismuth (Sn/Bi) | Tin/Bismuth (Sn/Bi) |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm |
