87606-8002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87606-8002

87606-8002: DescriptionBoard Connector, 26 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size194KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

87606-8002 Overview

Board Connector, 26 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Black Insulator, Receptacle

87606-8002 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED, SHROUDED
Board mount options	HOLE .138-.163
body width	0.574 inch
subject depth	0.93 inch
body length	1.925 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S24P2
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2500VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	87606
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	4 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	26
UL Flammability Code	94V-0
Evacuation force-minimum value	.0973 N

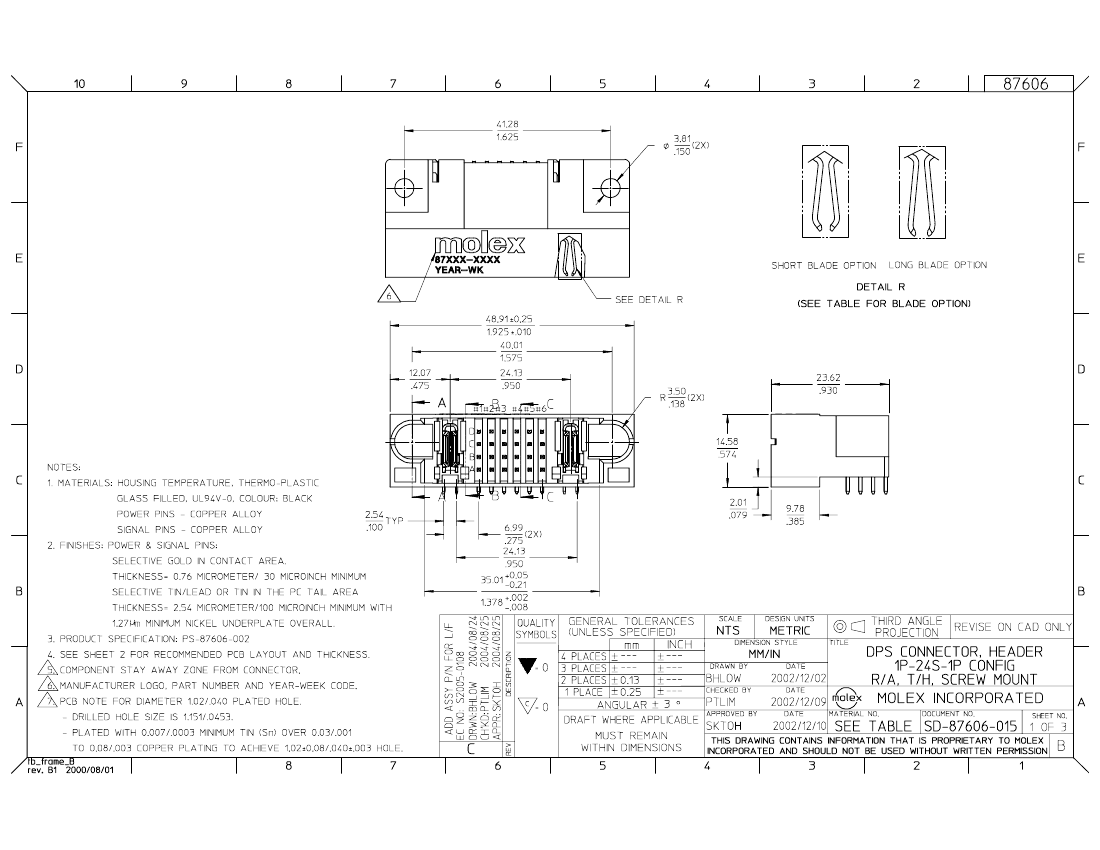

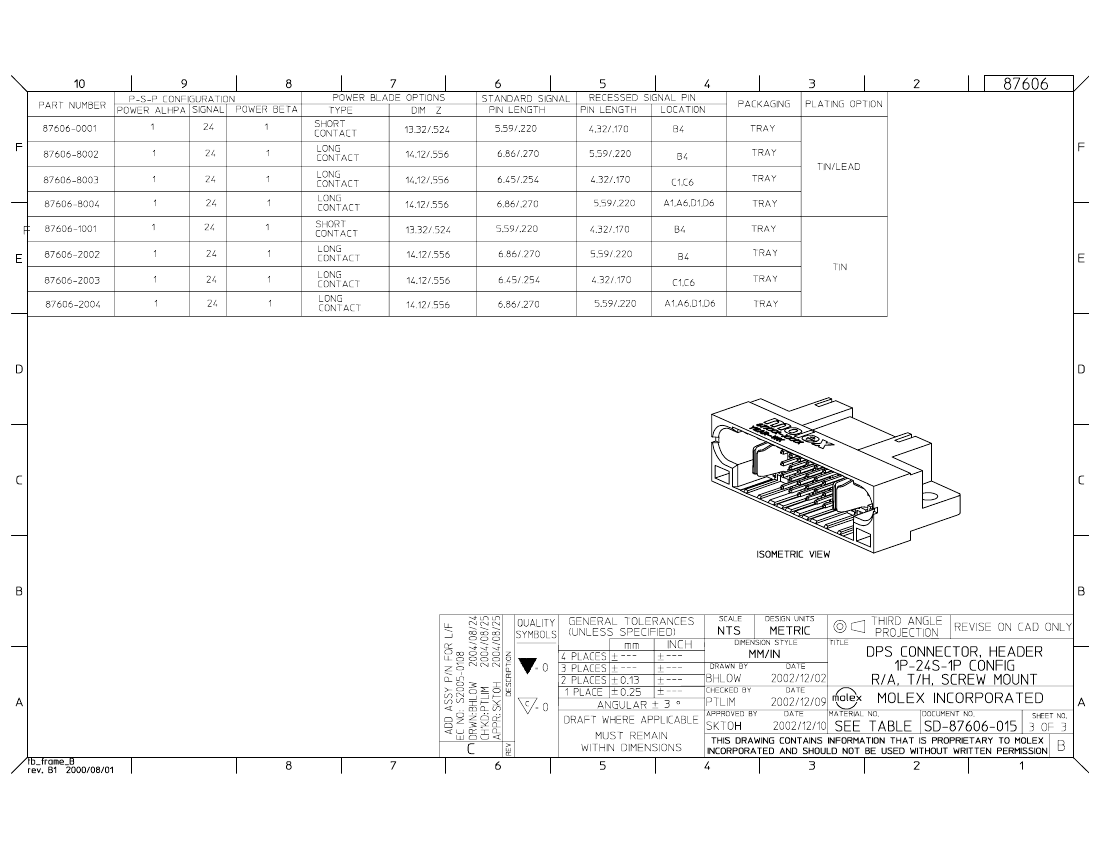

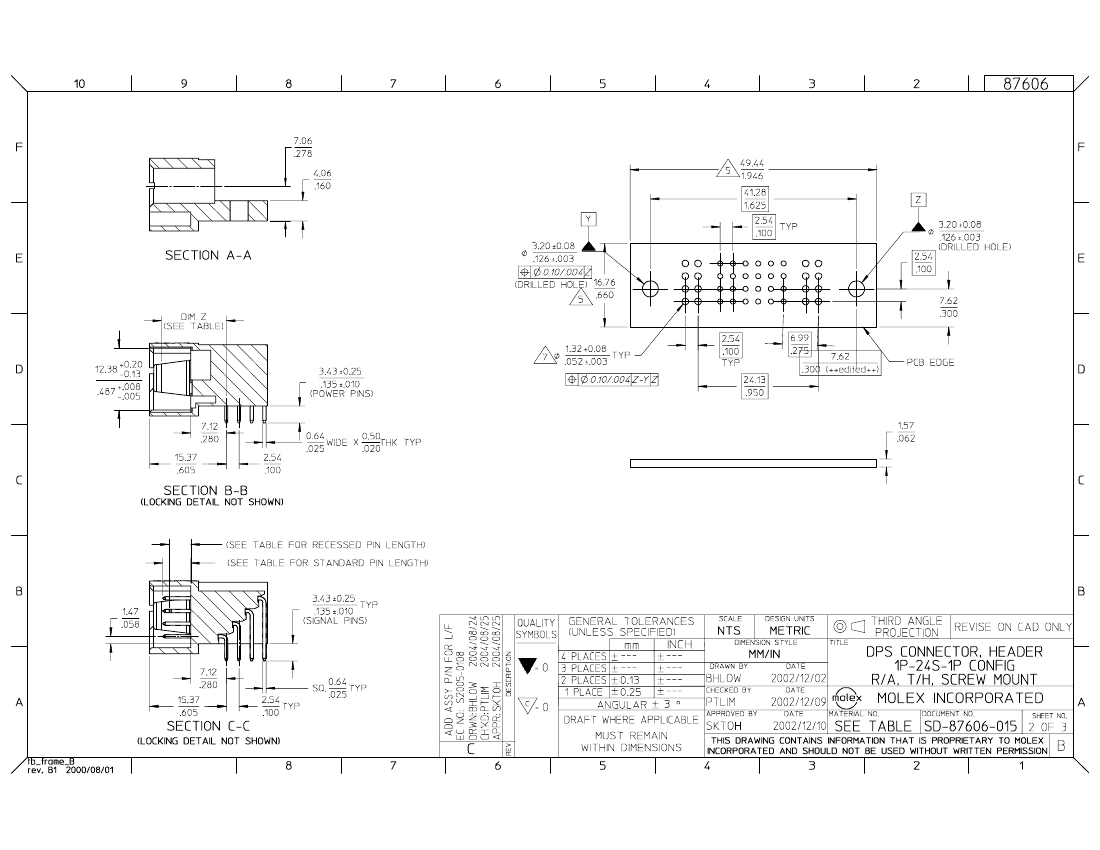

87606-8002 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

87606-8002 Related Products

	87606-8002	87606-0001	87606-8003	87606-8004
Description	Board Connector, 26 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Black Insulator, Receptacle	Board Connector, 26 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Black Insulator, Receptacle	Board Connector, 26 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Black Insulator, Receptacle	Board Connector, 26 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Black Insulator, Receptacle
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	POLARIZED, SHROUDED	POLARIZED, SHROUDED	POLARIZED, SHROUDED	POLARIZED, SHROUDED
Board mount options	HOLE .138-.163	HOLE .138-.163	HOLE .138-.163	HOLE .138-.163
body width	0.574 inch	0.574 inch	0.574 inch	0.574 inch
subject depth	0.93 inch	0.93 inch	0.93 inch	0.93 inch
body length	1.925 inch	1.925 inch	1.925 inch	1.925 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S24P2	S24P2	S24P2	S24P2
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	TIN LEAD
Contact point gender	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	2500VAC V	2500VAC V	2500VAC V	2500VAC V
Durability	100 Cycles	100 Cycles	100 Cycles	100 Cycles
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
maximum insertion force	.973 N	.973 N	.973 N	.973 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	87606	87606	87606	87606
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
Number of rows loaded	4	4	4	4
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	4 A	4 A	4 A	4 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.135 inch	0.135 inch	0.135 inch	0.135 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	26	26	26	26
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.0973 N	.0973 N	.0973 N	.0973 N
