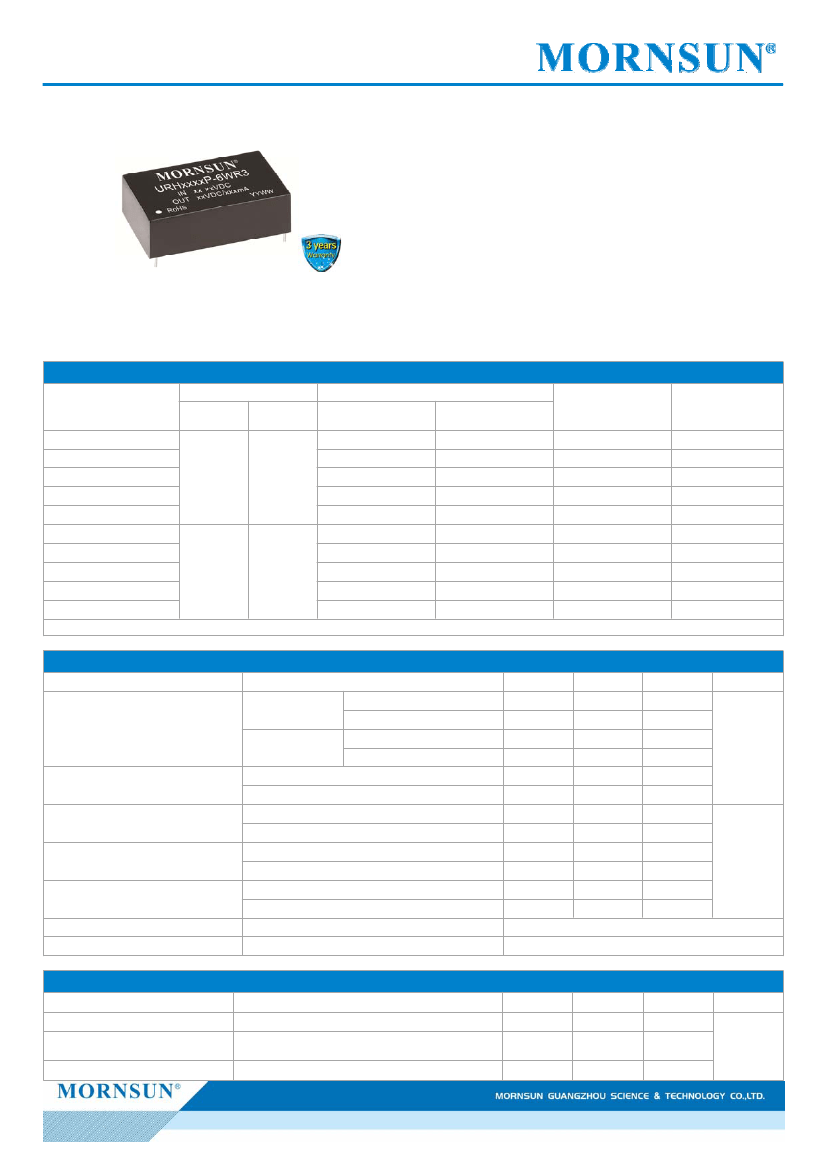

URH_P-6WR3 series products are of 6W output power, extremely ultra wide range of voltage input of 9-36VDC, 18-75VDC, isolation voltage
of 6000VDC, output over-voltage protection and output short circuit protection, Meets EN60601-1/UL60601-1 certification; these products
are dedicated to medical field. Low no-load power consumption widely used in energy storage system.
Selection Guide
Part No.
URH2405P-6WR3
URH2409P-6WR3
URH2412P-6WR3
URH2415P-6WR3
URH2424P-6WR3
URH4805P-6WR3
URH4809P-6WR3
URH4812P-6WR3
URH4815P-6WR3
URH4824P-6WR3
48
(18-75)
80
24
(9-36)
40
Input Voltage (VDC)
Nominal
Max.
*
(Range)
Output
Output Voltage
Output Current (mA)
(Max./Min.)
(VDC)
5
9
12
15
24
5
9
12
15
24
1200/60
667/33
500/25
400/20
250/13
1200/60
667/33
500/25
400/20
250/13
Efficiency (%,Typ.)
@ Full Load
79/81
81/83
82/84
83/85
82/84
79/81
81/83
82/84
83/85
82/84
Max. Capacitive
Load(μF)
2700
1800
1000
680
470
2700
1800
1000
680
470
Note:*Absolute maximum rating without damage on the converter, but it isn't recommended.
Input Specifications
Item
Operating Conditions
24VDC input
Input Current (full load / no-load)
48VDC input
Reflected Ripple Current
Input impulse Voltage (1sec. max.)
Starting Voltage
Input Under-voltage Protection
Input Filter
Hot Plug
24VDC input
48VDC input
24VDC input
48VDC input
24VDC input
48VDC input
24VDC input
48VDC input
5V output
Other output
5V output
Other output
Min.
--
--
--
--
--
--
-0.7
-0.7
--
--
5.5
14
Typ.
308/5
298/5
154/4
149/4
20
20
--
--
--
--
6.5
15.5
Pi filter
Max.
316/8
305/8
158/7
152/7
--
--
50
100
9
18
--
--
Unit
mA
VDC
Unavailable
Output Specifications
Item
Output Voltage Accuracy
Line Voltage Regulation
Load Regulation
Full load, the input voltage is from low voltage to
high voltage
5%-100% load
Operating Conditions
Min.
--
--
--
Typ.
±1
±0.2
±0.5
Max.
±3
±0.5
±1
Unit
%
2015.04.16-A/2
Page 1 of 4
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
DC/DC Power Supply Module
URH_P-6WR3 Series
Transient Recovery Time
Transient Response Deviation
Temperature Drift Coefficient
Ripple& Noise*
Over-current Protection
Over-voltage Protection
Short circuit Protection
Input voltage range
25% load step change
Full load
20MHz bandwidth
--
--
--
--
110
110
300
±3
--
100
150
--
500
±5
±0.03
180
260
160
μs
%
%/℃
mVp-p
%Io
%Vo
Continuous, self-recovery
Note: * Ripple and noise tested with “parallel cable” method, oscilloscope using the 1X probe, please see
DC-DC Converter Application Notes
for specific
operation methods.
General Specifications
Item
Insulation Voltage
Insulation Resistance
Isolation Capacitance
Operating Conditions
Input-output, with the test time of 1 minute and the
leak current lower than 1mA
Input-output, insulation voltage 500VDC
Input-output, 100KHz/0.1V
Transformer creepage
Enhanced isolation
Transformer clearance
PCB creepage & clearance
Optocoupler creepage
Operating Temperature
Storage Humidity
Storage Temperature
Lead Temperature
Vibration
Switching Frequency*
MTBF
PWM mode(nominal, full load)
MIL-HDBK-217F@25℃
--
1000
Welding spot is 1.5mm away from the casing, 10
seconds
Derating if the temperature is
≥71℃
(see Fig. 1)
Without condensation
Min.
6000
10000
--
5.0
2.4
6.0
6.0
-40
5
-55
--
Typ.
--
--
13
--
--
--
--
--
--
--
--
Max.
--
--
20
--
--
--
--
85
95
125
300
℃
℃
%RH
mm
Unit
VDC
MΩ
pF
10-55Hz, 10G, 30 Min. along X, Y and Z
300
--
--
--
KHz
K hours
Note:* This series of products using reduced frequency technology, the switching frequency is test value for full load, When the load is reduced to below 50%, the
switching frequency decreases with decreasing load.
Physical Specifications
Casing Material
Package Dimensions
Weight
Cooling method
Black flame-retardant and heat-resistant plastic (UL94-V0)
31.60*20.30*10.20 mm
13g(Typ.)
Free air convection
EMC Specifications
EMI
CE
ESD
EFT
EMS
Surge
CS
Immunities of voltage dip,
drop and short interruption
CISPR22/EN55022
IEC/EN61000-4-2
IEC/EN61000-4-4
IEC/EN61000-4-5
IEC/EN61000-4-6
IEC/EN61000-4-29
CLASS A (Bare component)
Contact ±6KV
±2KV (see Fig.3-① for recommended circuit)
±2KV (see Fig.3-①for recommended circuit)
3 Vr.m.s
0-70%
perf. Criteria B
perf. Criteria B
perf. Criteria B
perf. Criteria A
perf. Criteria B
2015.04.16-A/2
Page 2 of 4
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
DC/DC Power Supply Module
URH_P-6WR3 Series

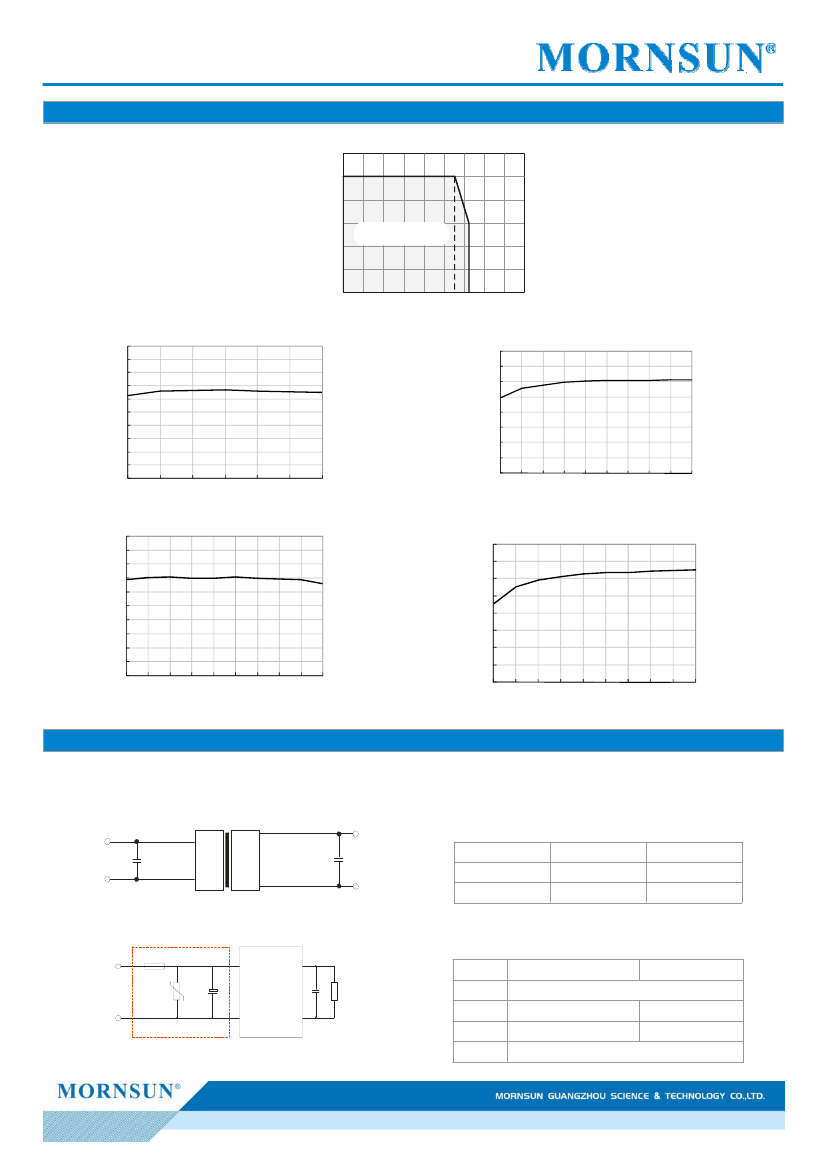

Product Characteristic Curve
O u tp u t P o w e r P e rc e n t (% )
Temperature Derating Curve
120
100
80
60
40
20
0
-40
0
40
Fig. 1
Safe Operating Area
71 85
120
Efficiency Vs Output Load(Vin=Vin-nominal)
100
90
URH2405P-
6WR3
100
95
90
Efficiency Vs Input (Full Load)
Efficiency(%)
Efficiency(%)
85
80
75
70
65
60
55
50
9
14
19
24
29
34
36
URH2405P-
6WR3
80
70
60
50
40
30
20
10
20
30
40
50
60
70
80
90
100
Input Voltage (V)
Output Current Percentage (%)
Efficiency Vs Input Voltage (Full Load)
100
95
90
Efficiency Vs Output Load(Vin=Vin-nominal)
100
90
URH4815P-
6WR3
Efficiency(%)
85
80
75
70
65
60
55
50
18
24
30
36
42
48
54
60
66
75
Efficiency(%)
URH4815P-
6WR3
80
70
60
50
40
30
20
10
20
30
40
50
60
70
80
90
100
Input Voltage(V)
Output Current Percentage(%)
Design Reference
1. Typical application
All the DC/DC converters of this series are tested according to the recommended circuit (see Fig. 2) before delivery.
If it is required to further reduce input and output ripple, properly increase the input & output of additional capacitors Cin and Cout or
select capacitors of low equivalent impedance provided that the capacitance is no larger than the max. capacitive load of the product.
Vin
+Vo
Cin
GND
DC
DC
Cout
0V
Vin
24VDC
48VDC
Cin
100uF
10μF -47μF
Cout
10μF
10μF
Fig. 2
2. EMC solution-recommended circuit
Parameter description
V in
FUSE
+
Vin
C0
+Vo
LOAD
Model
C1
Vin:24V
S14K35
330μF/50V
Vin:48V
S14K60
330μF/100V
MOV
GND
DC/DC
GND
-Vo
(0V)
FUSE
MOV
C0
C1
Choose according to actual input current
①
Fig. 3
Notes: Part
①
in the Fig. 3 is used for EMS test.
Refer to the Cout in Fig.2
2015.04.16-A/2
Page 3 of 4
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
DC/DC Power Supply Module
URH_P-6WR3 Series

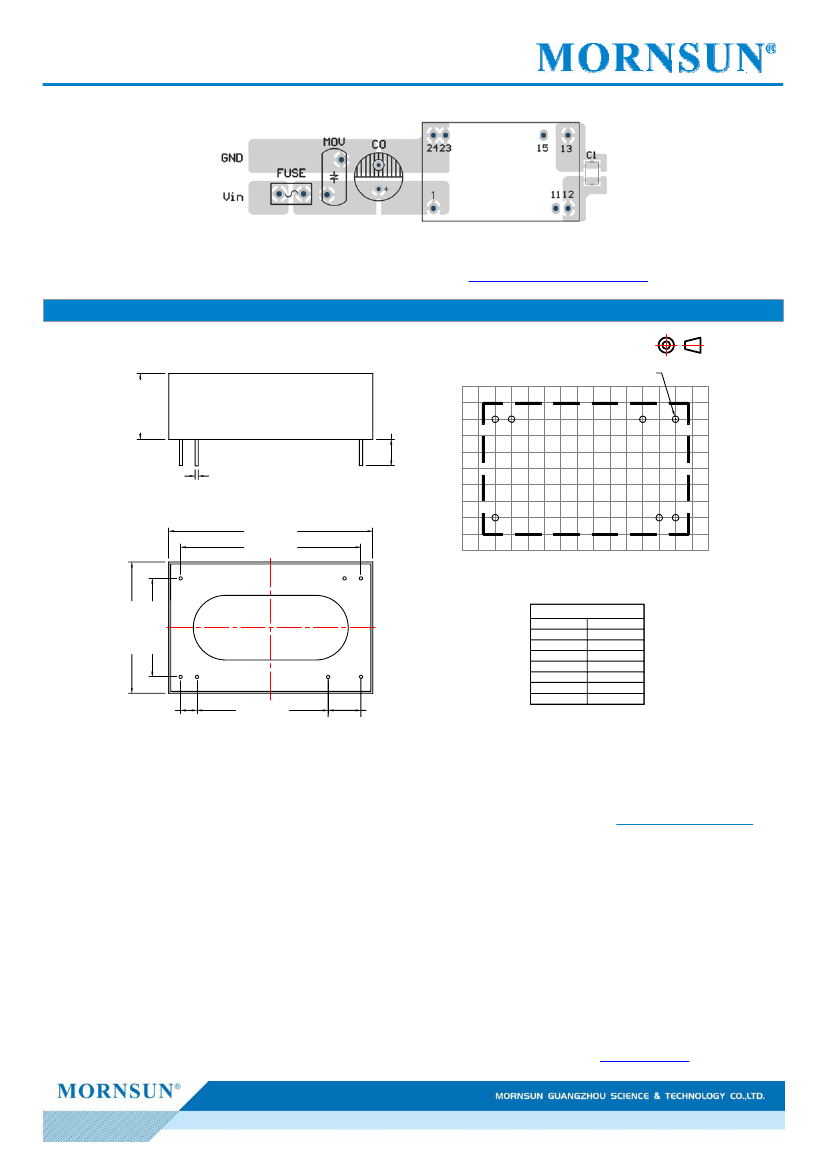

EMC solution-recommended circuit PCB layout
3. The product does not support output in parallel with power per liter
4. For more information please find the application note on
www.mornsun-power.com
Fig. 4
Dimensions and Recommended Layout
THIRDANGLEPROJECTION
∅
1.00[
∅
0.039]
10.20[0.402]
FrontView
4.10[0.161]
24 23
15
13
∅
0.50[0.020]
1
31.60[1.244]
27.94[1.100]
11
12
Note:Grid2.54*2.54mm
1
20.30[0.799]
15.24[0.600]
11 12
Pin-Out
BottomView
24 23
15
13
2.54[0.100]
20.32[0.800]
5.08[0.200]
Pin
1
11
12
13
15
23
24
Function
Vin
NoPin
0V
+Vo
NoPin
GND
GND
NC:NoConnection
Note:
Unit:mm[inch]
Pindiametertolerances:±0.10[±0.004]
Generaltolerances:±0.50[±0.020]
1104003403-A0
Note:
1. Packing information please refer to Product Packing Information which can be downloaded from
www.mornsun-power.com.
The
Packing bag number of Horizontal package: 58210008;
2. Recommended used in more than 5% load, if the load is lower than 5%, then the ripple index of the product may exceed the
specification, but does not affect the reliability of the product;
3. The max. capacitive load should be tested within the input voltage range and under full load conditions;
4. Unless otherwise specified, data in this datasheet should be tested under the conditions of Ta=25℃, humidity<75% when inputting
nominal voltage and outputting rated load;
5. All index testing methods in this datasheet are based on our Company’s corporate standards;
6. The performance indexes of the product models listed in this datasheet are as above, but some indexes of non-standard model
products will exceed the above-mentioned requirements, and please directly contact our technicians for specific information;
7. We can provide product customization service;
8. Specifications of this product are subject to changes without prior notice.
Mornsun Guangzhou Science & Technology Co., Ltd.
Address: No. 5, Kehui St. 1, Kehui Development Center, Science Ave., Guangzhou Science City, Luogang District, Guangzhou, P. R. China
Tel: 86-20-38601850-8801
Fax: 86-20-38601272
E-mail:
info@mornsun.cn
2015.04.16-A/2
Page 4 of 4
