5N90G-TQ2-T

Description
N-CHANNEL POWER MOSFET
File Size288KB,7 Pages
ManufacturerUNISONIC TECHNOLOGIES CO.,LTD
Websitehttp://www.unisonic.com.tw/
Download Datasheet View All

5N90G-TQ2-T Overview

N-CHANNEL POWER MOSFET

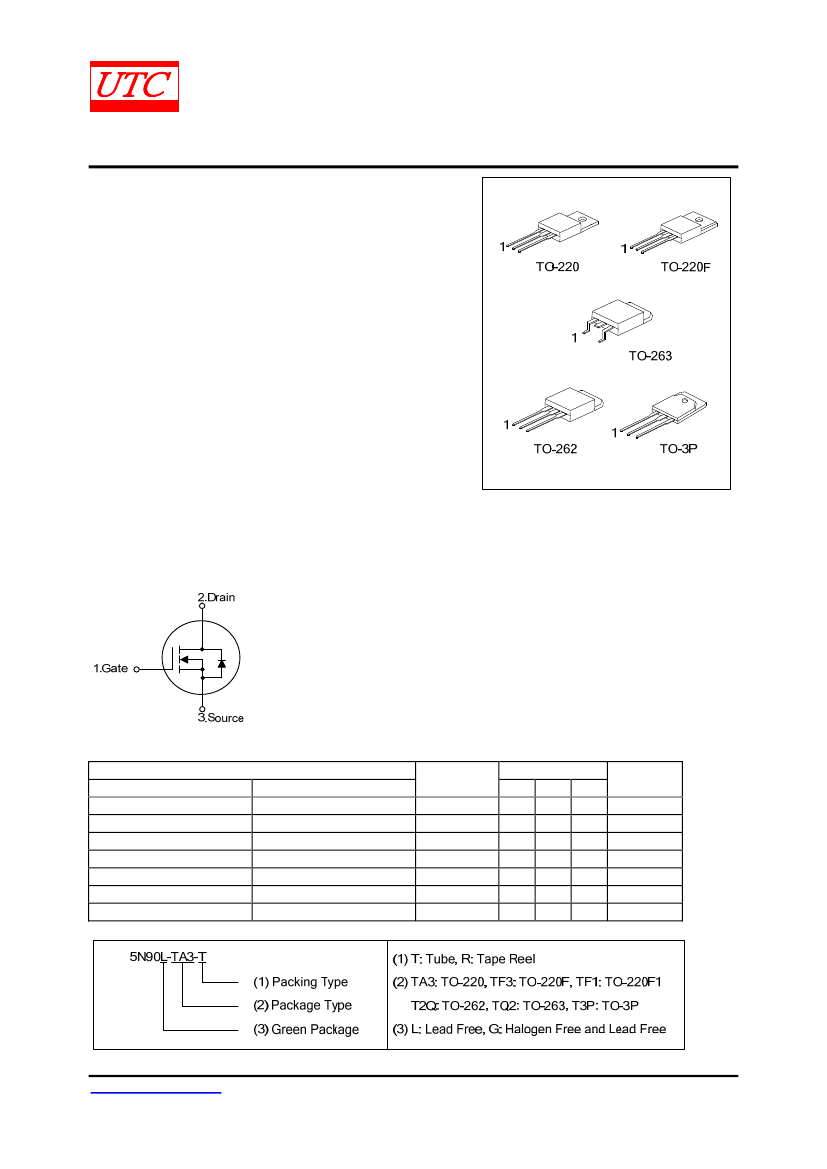

UNISONIC TECHNOLOGIES CO., LTD
5N90
5A, 900V N-CHANNEL
POWER MOSFET
DESCRIPTION
Power MOSFET
The UTC
5N90
is a N-channel mode power MOSFET using
UTC’s advanced technology to provide customers with planar
stripe and DMOS technology. This technology specialized in
allowing a minimum on-state resistance and superior switching
performance. It also can withstand high energy pulse in the
avalanche and commutation mode.
The UTC
5N90
is universally applied in high efficiency
switch mode power supply.
FEATURES
* R
DS(ON)
< 2.8Ω @ V
GS
=10V, I
D
=2.5A
* High switching speed
* Improved dv/dt capability
* 100% avalanche tested
SYMBOL
ORDERING INFORMATION
Package
TO-220
TO-220F
TO-220F1
TO-262
TO-263
TO-263
TO-3P
Pin Assignment
1
2
3
G
D
S
G
D
S
G
D
S
G
D
S
G
D
S
G
D
S
G
D
S
Packing
Tube
Tube
Tube
Tube
Tube
Tape Reel
Tube
Ordering Number
Lead Free
Halogen Free
5N90L-TA3-T
5N90G-TA3-T
5N90L-TF3-T
5N90G-TF3-T
5N90L-TF1T
5N90G-TF1T
5N90L-T2Q-T
5N90G-T2Q-T
5N90L-TQ2-T
5N90G-TQ2-T
5N90L-TQ2-R
5N90G-TQ2-R
5N90L-T3P-T
5N90G-T3P-T
Note: Pin Assignment: G: Gate D: Drain
S: Source
www.unisonic.com.tw
Copyright © 2015 Unisonic Technologies Co., Ltd
1 of 6
QW-R502-499.H
