ECM High Power Axial Inductors
VC1019 Series
§
§
§
§
UL Sleeved
Wide Inductance Range
High Saturation Ferrite Core
Typical Pack Size 3000pcs
The VC1019 range of axial inductors offers the user excellent reliability, over a wide inductance range,
along with high current handling.
These components have been especially developed for use in SCR and Triac controls, as well as
inclusion in other switching circuit applications. All components in the range feature UL approved
sleeving material suitable for temperatures up to 105
o
C, and low permeability ferrite core.

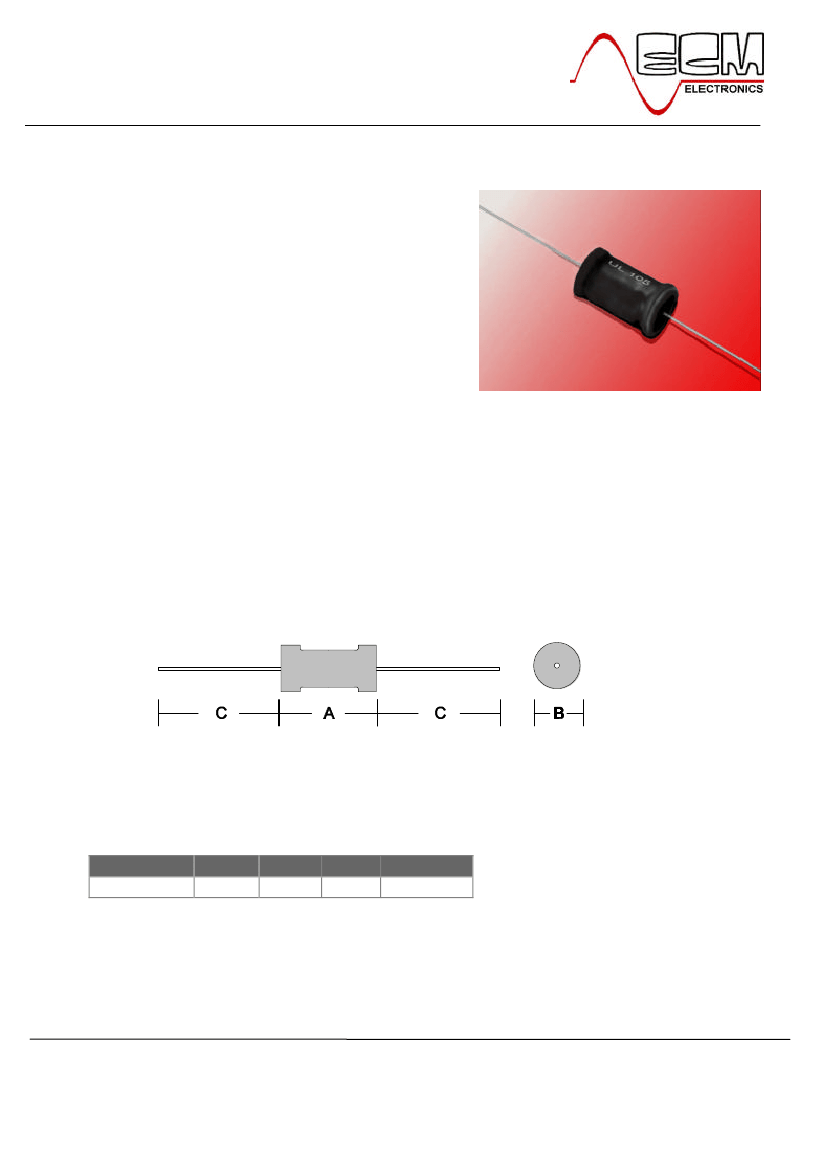

COMPONENT OUTLINE
DIMENSIONS (mm)
ECM Type
VC1019
A
22.8
B
11.5
C
38.0
Lead dia.
0.8
ECM Electronics Limited, Penmaen House, Ashington, West Sussex, RH20 3JR, UK
Tel: +44(0)1903 892810: Fax: +44(0)1903 892738. Email: ecm@ecmelectronics.co.uk
Although we have attempted to accurately reflect the products we market. ECM reserve the right without prior notice to
discontinue any product or make design changes we believe necessary.
Issue 1
ECM High Power Axial Inductors
ECM
Part
VC1019-3R9
VC1019-4R7
VC1019-5R6
VC1019-6R8
VC1019-8R2
VC1019-100
VC1019-120
VC1019-150
VC1019-180
VC1019-220
VC1019-270
VC1019-330
VC1019-390
VC1019-470
VC1019-560
VC1019-680
VC1019-820
VC1019-101
VC1019-121
VC1019-151
VC1019-181
VC1019-221
VC1019-271
VC1019-331
VC1019-391
VC1019-471
VC1019-561
VC1019-681
VC1019-821
VC1019-102
VC1019-122
VC1019-152
VC1019-182
VC1019-222
VC1019-272
VC1019-332
VC1019-392
VC1019-472
VC1019-562
VC1019-682
VC1019-822
TOLERANCE: K=10%.
L
(µH)
µ
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
Tol
%
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
R
DC
MAX
(Ω)
Ω
0.007
0.008
0.011
0.011
0.013
0.017
0.019
0.022
0.023
0.026
0.027
0.032
0.033
0.035
0.037
0.047
0.060
0.090
0.113
0.129
0.150
0.162
0.208
0.212
0.281
0.380
0.420
0.548
0.655
0.844
1.040
1.180
1.560
2.000
2.060
2.530
2.750
3.190
3.920
5.690
6.320
I
DC
I
SAT
(A)
15.50
13.90
12.60
11.60
9.89
8.70
8.21
7.34
6.64
6.07
5.36
4.82
4.36
3.98
3.66
3.31
3.10
2.79
2.54
2.22
1.98
1.89
1.63
1.51
1.39
1.24
1.17
1.05
0.97
0.87
0.79
0.70
0.64
0.58
0.53
0.47
0.43
0.39
0.359
0.322
0.293
I
DC
I
N
(A)
4.00
4.00
4.00
4.00
4.00
4.00
4.00
4.00
4.00
4.00
4.00
4.00
4.00
4.00
3.20
2.50
2.00
1.60
1.60
1.60
1.60
1.60
1.60
1.60
1.60
1.20
1.00
1.00
0.80
0.80
0.60
0.60
0.60
0.50
0.40
0.40
0.40
0.40
0.32
0.25
0.25
ECM Electronics Limited, Penmaen House, Ashington, West Sussex, RH20 3JR, UK
Tel: +44(0)1903 892810: Fax: +44(0)1903 892738. Email: ecm@ecmelectronics.co.uk
Although we have attempted to accurately reflect the products we market. ECM reserve the right without prior notice to
discontinue any product or make design changes we believe necessary.
Issue 1
ECM High Power Axial Inductors
ECM
Part
VC1019-103
VC1019-123
VC1019-153
VC1019-183
VC1019-223
VC1019-273
VC1019-333
VC1019-393
VC1019-473
VC1019-563
VC1019-683
VC1019-823
VC1019-104
TOLERANCE: K=10%.
L
(µH)
µ
10000
12000
15000
18000
22000
27000
33000
39000
47000
56000
68000
82000
100000
Tol
%
K
K
K
K
K
K
K
K
K
K
K
K
K
R
DC
MAX
(Ω)
Ω
7.300
9.210
10.50
14.80
21.80
22.70
25.70
31.80
36.10
40.90
57.30
79.30
89.70
I
DC
I
SAT
(A)
0.266
0.241
0.214
0.198
0.180
0.162
0.146
0.135
0.122
0.112
0.101
0.090
0.081
I
DC
I
N
(A)
0.25
0.20
0.20
0.16
0.13
0.13
0.13
0.10
0.10
0.10
0.08
0.07
0.07
ECM Electronics Limited, Penmaen House, Ashington, West Sussex, RH20 3JR, UK
Tel: +44(0)1903 892810: Fax: +44(0)1903 892738. Email: ecm@ecmelectronics.co.uk
Although we have attempted to accurately reflect the products we market. ECM reserve the right without prior notice to
discontinue any product or make design changes we believe necessary.
Issue 1
