SCDS74271

Description
General Purpose Inductor, 270uH, 20%, 1 Element, Ferrite-Core, SMD,
CategoryPassive components    inductor
File Size49KB,2 Pages
ManufacturerYAGEO
Websitehttp://www.yageo.com/
Download Datasheet Parametric View All

SCDS74271 Overview

General Purpose Inductor, 270uH, 20%, 1 Element, Ferrite-Core, SMD,

SCDS74271 Parametric

Parameter NameAttribute value
MakerYAGEO
Reach Compliance Codecompliant
ECCN codeEAR99
core materialFERRITE
DC Resistance1.64 Ω
Nominal inductance(L)270 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberSCDS
Number of functions1
Number of terminals2
Maximum rated current0.34 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldYES
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.001 MHz
Tolerance20%

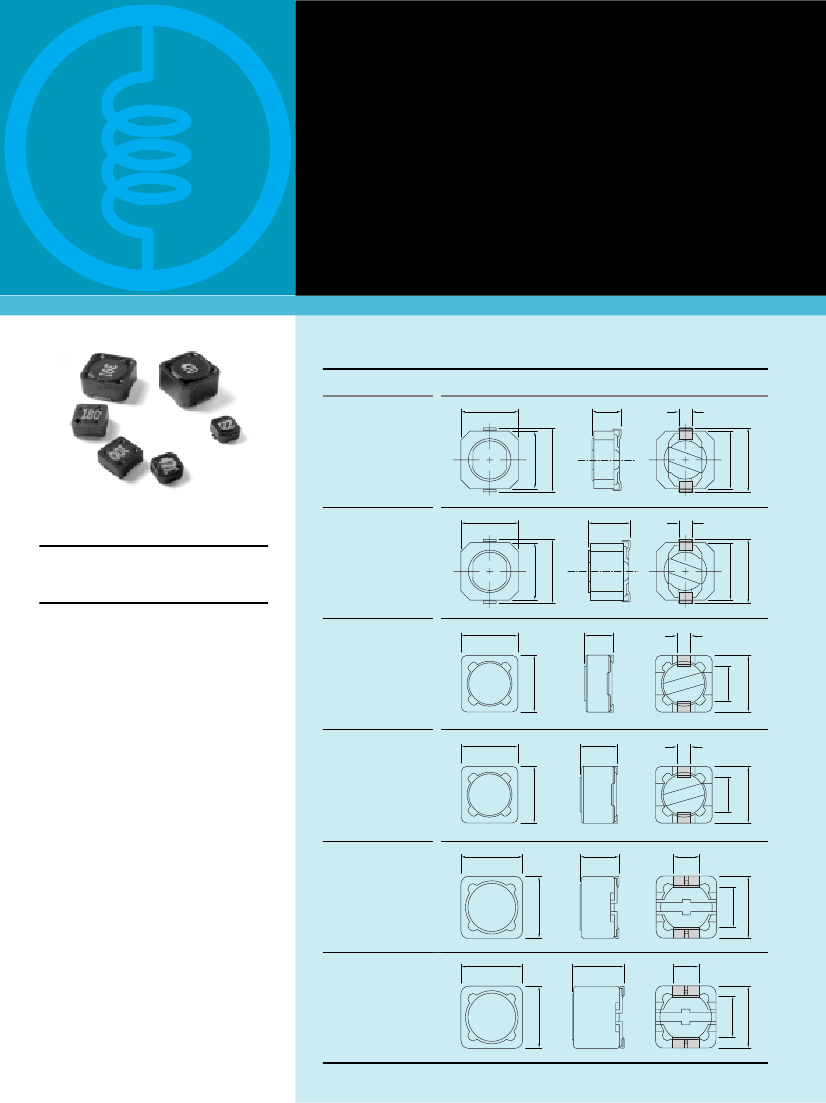

YAGEO CORPORATION
SMD INDUCTOR / BEADS
SMT Power Inductors
SCDS Series
CONFIGURATION AND DIMENSIONS
Dimensions : mm
TYPE
SCDS62B
(3.3µH ~ 330µH)
SHAPES AND DIMENSION
6.2±0.3
3.0Max
1.5
5.9±0.3
6.6±0.3
4.6
4.5Max
1.5
OUTLINE
SMT power inductor formed by directly
connected ferrite electrode with magnetic
shielding.
SCDS64B
(10µH ~ 1000µH)
6.2
5.9±0.3
6.6±0.3
4.6
SCDS73
(10µH ~ 1.0mH)
7.3±0.2
3.4Max
1.8
7.3±0.2
5.0
SCDS74
(10µH ~ 10mH)
7.3±0.2
4.5Max
1.8
7.3±0.2
5.0
6.0Max
5.0
8.0Max
5.0
SCDS125
(10µH ~ 1.0mH)
12.0±0.3
12.0±0.3
SCDS127
(10µH ~ 47mH)
12.0±0.3
12.0±0.3
12.0±0.3
7.6
11.8
7.6
7.3
7.3
6.6
6.6
