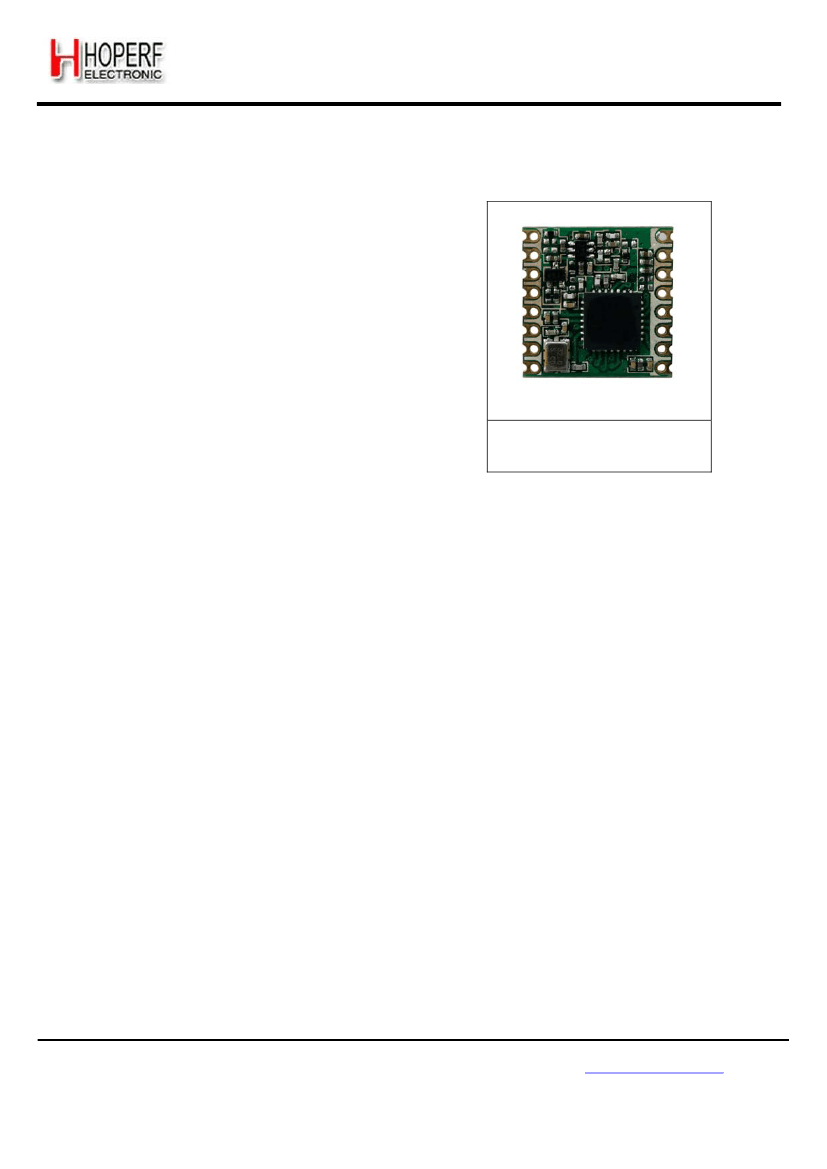

RFM95/96/97/98（W）

RFM95/96/97/98(W) - Low Power Long Range Transceiver Module

GENERAL DESCRIPTION

The

RFM95/96/97/98(W) transceivers

feature

the

long range modem that provides ultra-long range

LoRa

spread spectrum communication and high interference

immunity whilst minimising current consumption.

Using Hope RF’s patented

LoRa

modulation technique

RFM95/96/97/98(W) can achieve a sensitivity of over -

148dBm using a low cost crystal and bill of materials. The

high sensitivity combined with the integrated +20 dBm

power amplifier yields industry leading link budget

making it optimal for any application requiring range or

robustness.

LoRa

also provides significant advantages in

both blocking and selectivity over conventional modulation

techniques, solving the traditional design compromise

between range, interference immunity and energy

consumption.

These devices also support high performance (G)FSK

modes for systems including WMBus, IEEE802.15.4g. The

RFM95/96/97/98(W) deliver exceptional phase noise,

selectivity, receiver linearity and IIP3 for significantly

lower current consumption than competing devices.

V1.0

RFM95/96/97/98(W)

APPLICATIONS

Automated Meter Reading.

Home and Building Automation.

Wireless Alarm and Security Systems.

Industrial Monitoring and Control

Long range Irrigation Systems

KEY PRODUCT FEATURES

LoRa

Modem.

168 dB maximum link budget.

+20 dBm - 100 mW constant RF output vs. V supply.

+14 dBm high efficiency PA.

Programmable bit rate up to 300 kbps.

High sensitivity: down to -148 dBm.

Bullet-proof front end: IIP3 = -12.5 dBm.

Excellent blocking immunity.

Low RX current of 10.3 mA, 200 nA register retention.

Fully integrated synthesizer with a resolution of 61 Hz.

FSK, GFSK, MSK, GMSK,

LoRa

and OOK modulation.

Built-in bit synchronizer for clock recovery.

Preamble detection.

127 dB Dynamic Range RSSI.

Automatic RF Sense and CAD with ultra-fast AFC.

Packet engine up to 256 bytes with CRC.

Built-in temperature sensor and low battery indicator.

Modue Size：16*16mm

Tel: +86-755-82973805 Fax: +86-755-82973550 E-mail: sales@hoperf.com http:/ / www.hoperf.com

Page 1

RFM95/96/97/98（W）

Section

Page

General Description ................................................................................................................................................. 9

1.1.

1.2.

1.3.

1.4.

Simplified Block Diagram ................................................................................................................................. 9

Product Versions .........................................................................................................................................10

Pin Diagram ................................................................................................................................................... 10

Pin Description ............................................................................................................................................... 11

Electrical Characteristics ....................................................................................................................................... 12

2.1. ESD Notice .................................................................................................................................................... 12

2.2. Absolute Maximum Ratings ........................................................................................................................... 12

2.3. Operating Range............................................................................................................................................ 12

2.4.

Chip Specification .......................................................................................................................................13

2.4.1. Power Consumption .................................................................................................................................. 13

2.4.2. Frequency Synthesis ................................................................................................................................. 13

2.4.3. FSK/OOK Mode Receiver ......................................................................................................................... 14

2.4.4. FSK/OOK Mode Transmitter ..................................................................................................................... 15

2.4.5. Electrical specification for LoraTM modulation .......................................................................................... 16

2.4.6. Digital Specification ................................................................................................................................... 19

RFM95/96/97/98(W) Features ................................................................................................................................ 20

3.1. LoRaTM Modem ............................................................................................................................................. 21

3.2. FSK/OOK Modem ........................................................................................................................................... 21

RFM95/96/97/98(W) Digital Electronics ................................................................................................................. 22

4.1. The LoRaTM Modem ..................................................................................................................................... 22

4.1.1. Link Design Using the LoRaTM Modem .................................................................................................23

4.1.2. LoRaTM Digital Interface ........................................................................................................................29

4.1.3. Operation of the LoRaTM Modem ............................................................................................................. 31

4.1.4. Frequency Settings ................................................................................................................................32

4.1.5. LoRaTM Modem State Machine Sequences ...........................................................................................33

4.2. FSK/OOK Modem .......................................................................................................................................... 41

4.2.1. Bit Rate Setting ......................................................................................................................................... 41

4.2.2. FSK/OOK Transmission ............................................................................................................................ 42

4.2.3. FSK/OOK Reception ................................................................................................................................. 43

4.2.4. Operating Modes in FSK/OOK Mode ........................................................................................................ 50

4.2.5. Startup Times ............................................................................................................................................ 50

4.2.6. Receiver Startup Options .......................................................................................................................... 53

4.2.7. Receiver Restart Methods ......................................................................................................................... 54

4.2.8. Top Level Sequencer ................................................................................................................................ 55

4.2.9. Data Processing in FSK/OOK Mode ......................................................................................................... 60

4.2.10. FIFO .....................................................................................................................................................61

4.2.11. Digital IO Pins Mapping ........................................................................................................................... 64

4.2.12. Continuous Mode .................................................................................................................................... 65
