BTC50010-1TAA & BTC30010-1TAA
Smart High-Side Power Connector
2x Single Channel, 2x 1mΩ
Data Sheet
1.3, 2015-02-06
Automotive Power
BTC50010-1TAA & BTC30010-1TAA
Table of Contents
Table of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1
2
3
3.1
3.2
3.3
4
4.1
4.2
4.3
5
5.1
5.1.1
5.1.2
5.2
5.3
5.4
5.5
5.6
5.7
5.8
6
6.1
6.2
6.3
7
8
Overview
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Block Diagram
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Pin Configuration
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pin Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pin Definitions and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voltage and Current Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
6
6
8
General Product Characteristics
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Functional Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Thermal Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Functional Description
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output ON-State Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching an Inductive Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gate Driver Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Undervoltage Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overvoltage Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Protection during Loss of Load or Loss of
V
S
Condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BTC50010-1TAA Inverse Current Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reverse Polarity Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Application Information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Information for Application Combining PWM Mode with Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Information for Driving Capability of Charge Pump Pin after Switch ON . . . . . . . . . . . . . . . . . . . . . .
Further Application Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
15
15
15
17
18
19
19
20
21
22
29
31
32
32
Package Outlines
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Revision History
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Data Sheet
Connect FET & Companion
2
1.3, 2015-02-06
High-Side Power Connector
BTC50010-1TAA &
BTC30010-1TAA

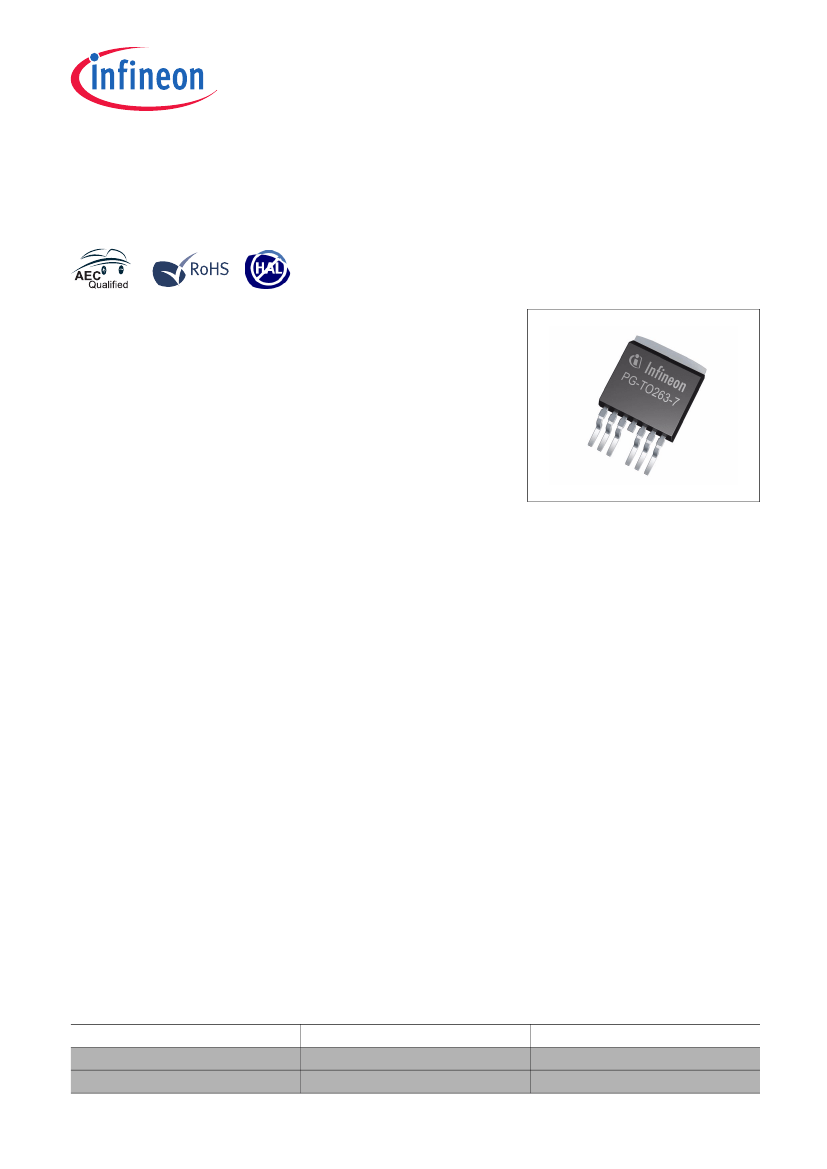

1
Overview
Applications
•
•
•
•
Switching resistive, capacitive and inductive loads in conjunction with
an effective peripheral free wheeling circuit
Replaces electromechanical relay
Most suitable for high current applications, such as Start-Stop, power
distribution, main switch, heating systems
PWM application with low frequencies
PG-TO-263-7-8
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Load or Supply Line switching up to 60 A DC
Operating temperature up to 150°C
Current controlled Input pin
Low Stand-by current
Two times one channel device, easily be combined for reverse blocking or to halve the
R
DS(ON)
Electrostatic discharge protected (ESD)
Optimized Electromagnetic Compatibility (EMC)
Very low power consumption in ON state
Compatible to cranking pulse requirement (test pulse 4 in ISO7637 and cold start pulse in LV124)
Infineon
®
Reversave™: Reverse battery protection by self turn ON of the power MOSFET
Inverse operation robustness capability
Infineon
®
SMART CLAMPING
Green Product (RoHS compliant, halogen free package)
AEC Qualified
Dustproof
Description
The BTC50010-1TAA & BTC30010-1TAA are one High-Side Power Connector (BTC50010-1TAA) combined with
a perfect fitting n-channel MOSFET (BTC30010-1TAA) to replace electromechanical relay. These easy to use twin
devices can provide higher current-driven capability or additional reverse polarity protection feature. They offer
switching without audible noise, weight reduction and increased switching cycle capability to comply with
upcoming requirements on power distribution applications (e.g. battery disconnect switch). In addition, they
Type
BTC50010-1TAA
BTC30010-1TAA
Data Sheet
Connect FET & Companion
Package
PG-TO-263-7-8
PG-TO-263-7-8
3
Marking
C50010A
C30010A
1.3, 2015-02-06
BTC50010-1TAA & BTC30010-1TAA
Overview
significantly reduce power/current consumption of the device while ON to increase energy efficiency. The device
can withstand harshest cranking pulse such as test pulse 4 in ISO7637 and cold start pulse in LV124.
Table 1
Parameter
BTC50010-1TAA
Weight (approx.)
Nominal operating voltage
Extended operating voltage contain dynamic undervoltage capability
Nominal load current
Typical ON-state resistance at
T
J
= 25 °C (CP pin open)
Typical input current in ON state
Typical stand-by current at
T
J
= 25 °C
BTC30010-1TAA
Weight (approx.)
Nominal load current
Typical ON-state resistance at
T
J
= 25 °C
BTC50010-1TAA & BTC30010-1TAA
Operating voltage
Extended operating voltage contain dynamic undervoltage capability
Nominal load current of parallel connected BTC50010-1TAA &
BTC30010-1TAA
Product Summary
Symbol
Values
1.5 g
8 V … 18 V
3.2 V … 28 V
30 A
0.9 mΩ
2 mA
3 µA
1.5 g
30 A
0.9 mΩ
8 V … 18 V
3.2 V … 28 V
G1
V
S(OP)
V
S(DYN)
I
L(NOM)
R
DS(ON)
I
IN(ON)
I
S(OFF)
G2
I
L(NOM)_C
R
DS(ON)
V
S(OP)
V
S(DYN)
I
L(NOM)
+
I
L(NOM)_C
60 A
Data Sheet
Connect FET & Companion
4
1.3, 2015-02-06
BTC50010-1TAA & BTC30010-1TAA
Block Diagram
2
Block Diagram
Internal
Power
Supply
Pu ll-up
Curren t
Source
Z
(AZ )I N
R
VS
V
S
ON Mode
Control
Smart
Clamp
IN1
IN2
ESD
Protection
Driver
Logic
Gate Control
&
Charge
Pump
OUT
V
Z
= 6V
CP
Figure 1
Block Diagram BTC50010-1TAA
Drain
Smart
Clamp
Gate
ESD
Protection
Source
Figure 2
Block Diagram BTC30010-1TAA
Data Sheet
Connect FET & Companion
5
1.3, 2015-02-06
