PHS-9901-MF-TNC-79 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PHS-9901-MF-TNC-79

PHS-9901-MF-TNC-79: DescriptionRF/Microwave Phase Shifter, 1200 MHz - 1400 MHz, 55 deg RF/MICROWAVE COAXIAL MECHANICAL PH SHIFTER; CategoryWireless rf/communication Radio frequency and microwave; File Size72KB，1 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

PHS-9901-MF-TNC-79 Overview

RF/Microwave Phase Shifter, 1200 MHz - 1400 MHz, 55 deg RF/MICROWAVE COAXIAL MECHANICAL PH SHIFTER

PHS-9901-MF-TNC-79 Parametric

Parameter Name	Attribute value
Maker	Artysen Embedded Technologies
Reach Compliance Code	unknown
Other features	TNC-F; TNC-M, I/P POWER-MAX(PEAK)=33DBM
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33 dBm
Maximum insertion loss	0.2 dB
Maximum operating frequency	1400 MHz
Minimum operating frequency	1200 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
maximum phase shift	55 deg
RF/Microwave Device Types	DIGITALLY CONTROLLED PHASE SHIFTER
Maximum voltage standing wave ratio	1.15

PHS-9901-MF-TNC-79 Preview

2D=IA 5DEBJAHI

2D=IA5DEBJAHI

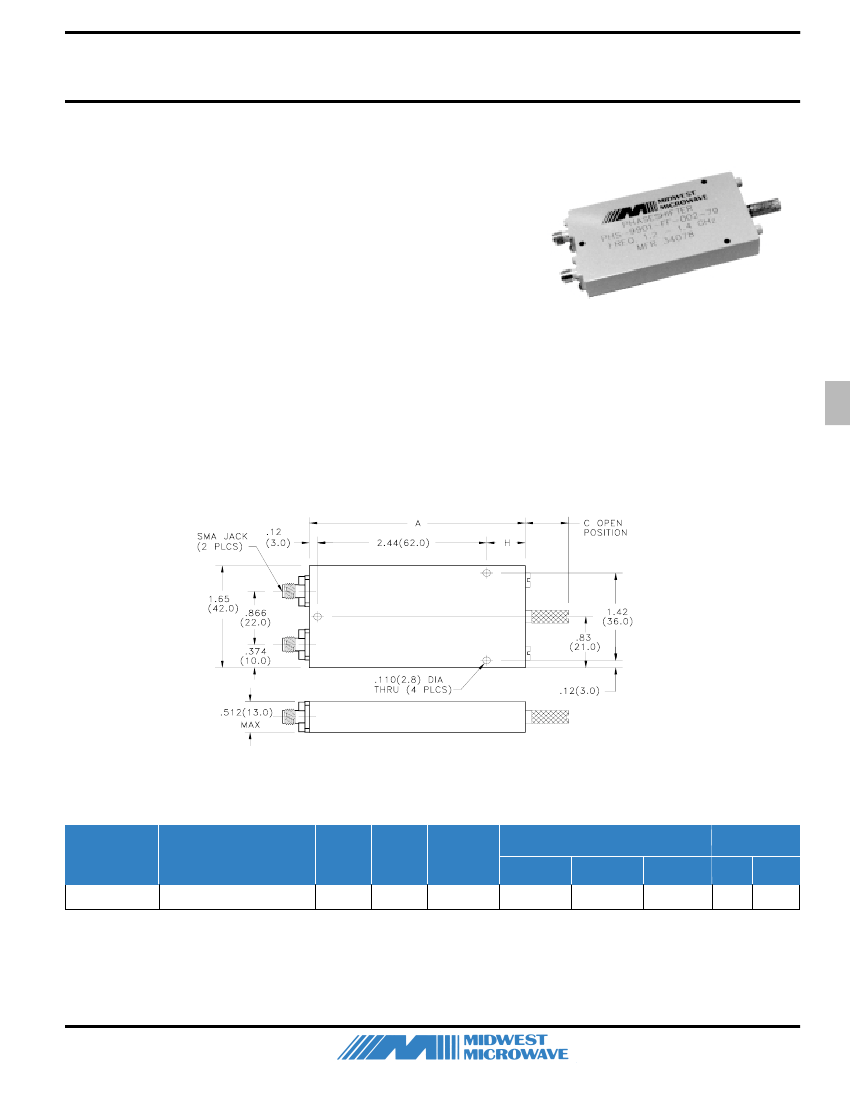

Field Adjustable Phase Shift

Frequency Range - 1.20 - 1.40 GHz

Maximum Insertion Loss - 0.2 dB

Maximum VSWR - 1.15:1

Rugged Construction

Line Stretcher Type

This low frequency, narrow band Line Stretcher type Phase Shifter was

designed to provide maximum performance while providing very low

VSWR and insertion loss. It is a small, lightweight, ruggedly constructed

unit that consistently performs its phase adjustment function through the

use of a smooth, continuous, drive mechanism that internally translates

a trombone type telescoping line extender that allows precise field phase

adjustment and also provides a firm locking arrangement.

SPECIFICATIONS

Frequency Range:

1.20 - 1.40 GHz

Impedance:

50 Ohms

VSWR:

1.15:1 max

Insertion Loss:

0.2 dB max

Power:

2 Watts average, 2 Watts Peak

Operating Temperature:

-55

C - +125

Connectors:

Passivated Stainless Steel SMA Female*

Frequency

(GHz)

1.2-1.4

Model Number

PHS-9901-FF-SMA-79

Phase

Shift VSWR

(deg)

1.15

Insertion

Loss

0.2

Dimensions - in (mm)

3.12 (79.3)

.663 (16.8)

.556 (14.1)

Weight

2.5

71.4

Note: SMA male , TNC, or Type N output connectors, either male or female, are also available by substituting TNC or NNN for SMA in the Model Number.

If an interface gender change is desired, substitute MM or MF for FF in the Model Number. Please note that the housing thickness will increase

accordingly when larger connectors are selected.

119

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
