ACS161K/SAMPLE-02 datasheet, PDF

Datasheet> All Categories > logic> logic> ACS161K/SAMPLE-02

ACS161K/SAMPLE-02: DescriptionAC SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDFP16; Categorylogic logic; File Size92KB，3 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

ACS161K/SAMPLE-02 Overview

AC SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDFP16

ACS161K/SAMPLE-02 Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DFP
package instruction	DFP,
Contacts	16
Reach Compliance Code	unknown
Other features	TCO OUTPUT
Counting direction	UP
series	AC
JESD-30 code	R-CDFP-F16
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	21 ns
Certification status	Not Qualified
Maximum seat height	2.92 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	6.73 mm

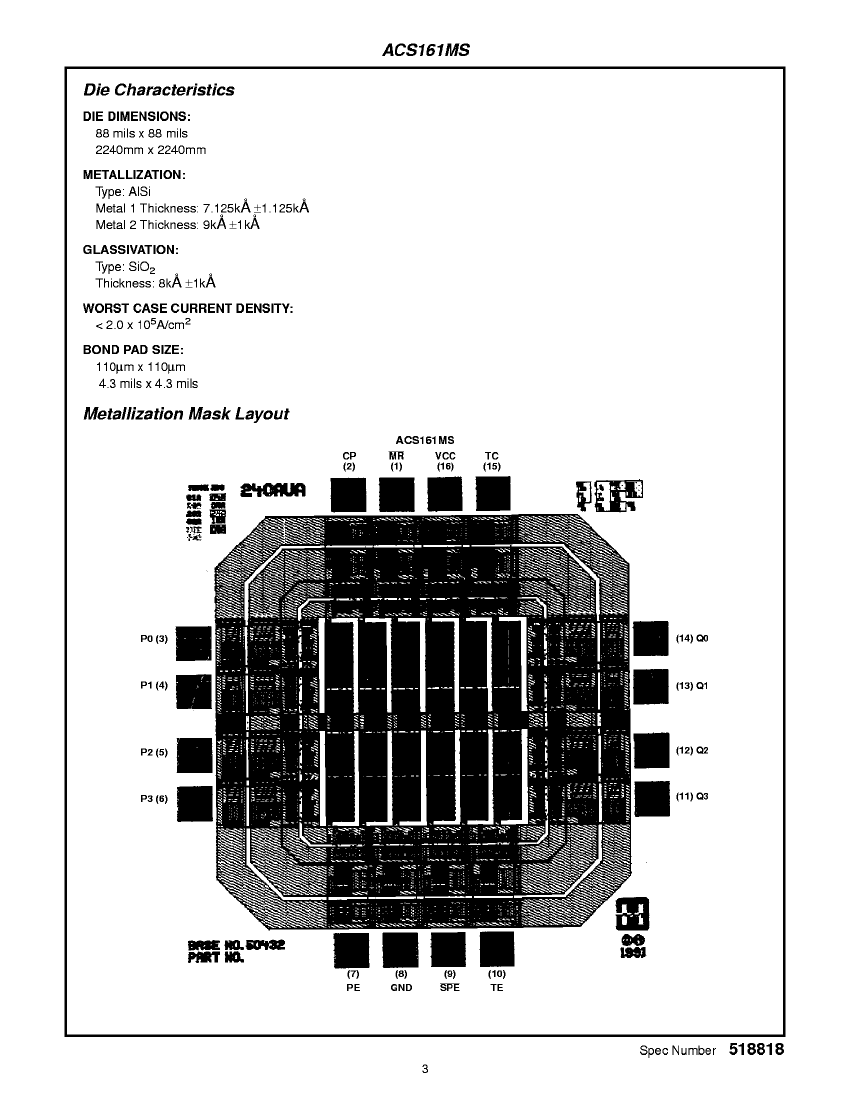

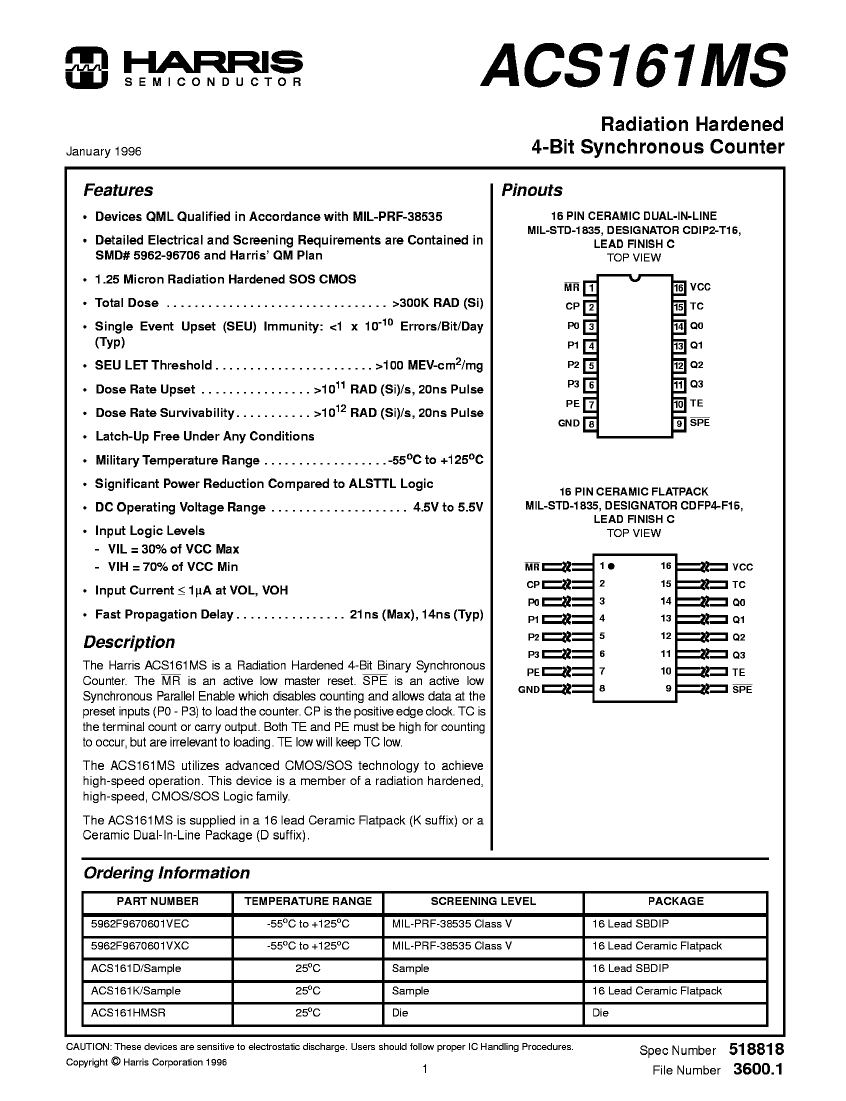

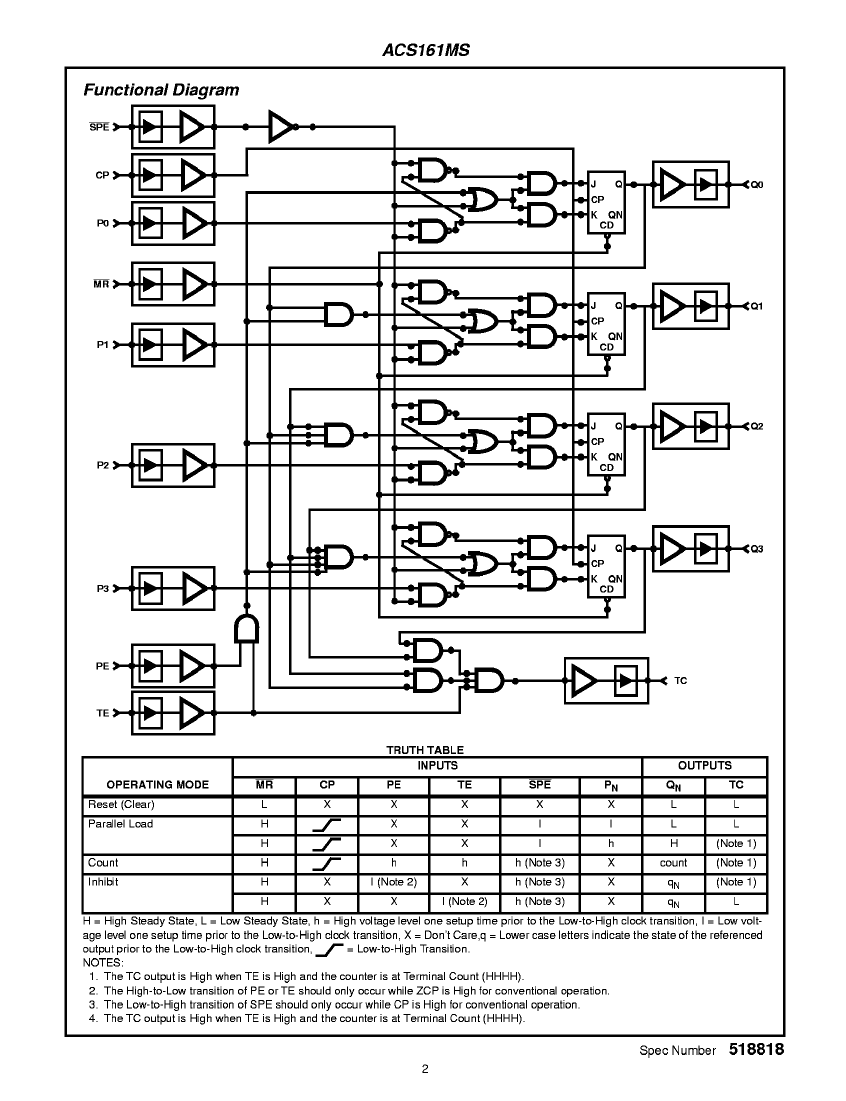

Preview

Download Datasheet

View All

ACS161K/SAMPLE-02 Related Products

	ACS161K/SAMPLE-02	ACS161D/SAMPLE-02	ACS161HMSR-02
Description	AC SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDFP16	AC SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDIP16	AC SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, UUC16
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	DFP	DIP	DIE
package instruction	DFP,	DIP,	DIE,
Contacts	16	16	16
Reach Compliance Code	unknown	unknown	unknown
Counting direction	UP	UP	UP
series	AC	AC	AC
JESD-30 code	R-CDFP-F16	R-CDIP-T16	S-XUUC-N16
Load/preset input	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4	4
Number of functions	1	1	1
Number of terminals	16	16	16
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED
encapsulated code	DFP	DIP	DIE
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	CMOS	CMOS	CMOS
Terminal form	FLAT	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	DUAL	UPPER
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Other features	TCO OUTPUT	TCO OUTPUT	-
Maximum operating temperature	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-
propagation delay (tpd)	21 ns	21 ns	-
Maximum seat height	2.92 mm	5.08 mm	-
Temperature level	MILITARY	MILITARY	-
Terminal pitch	1.27 mm	2.54 mm	-
width	6.73 mm	7.62 mm	-
