REVISION C
DESIGNED & DIMENSIONED

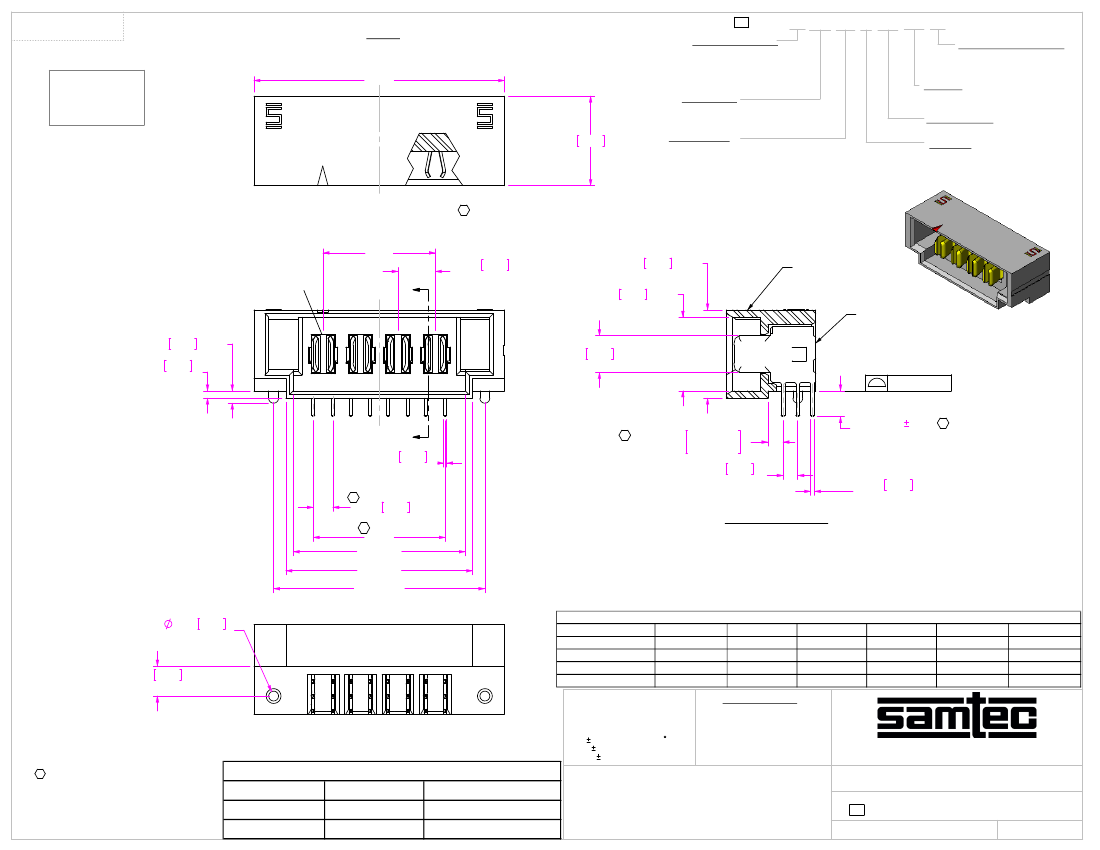

FIG.1
IN MILLIMETERS[INCHES]
(UPT-04-01-X-RA-X SHOWN)
"A"
C
UPT-XX-01-XX-X-RA-XX-XX
PACKAGING OPTION
-TR: TAPE AND REEL
OPTION
-LC: LOCKING CLIP
RIGHT ANGLE
PLATING
-L: (SEE TABLE 3)
-T: (SEE TABLE 3)
DO NOT
SCALE FROM
THIS PRINT
No OF POSITIONS
-02: 2 POSITIONS
-04: 4 POSITIONS
-06: 6 POSITIONS
-08: 8 POSITIONS
LEAD STYLE
-01
9.12 .359 REF
TAIL LENGTH
-01: FOR 1.57[.062] THICK PCB
(USE SUB-T-1M70-01-X) (SEE FIG. 1)
-02: FOR 2.36[.093] THICK PCB
(USE SUB-T-1M70-02-X) (SEE FIG. 2)
C
L
C
"B"
3.81 .150
REF (TYP)
01
C
L
"A"
9.00 .354 REF
7.50 .295 REF
SUB-T-1M70-XX-X
1.25 .049 REF
3.75 .148 REF
0.75 .030
REF
SEE NOTE 4
UPT-XX-RA-XX
"A"
0.30 .012
REF (TYP)
C
C
+0.13
+.005
1.54
.061
- 0.38
- .015
1.50 .059
REF (TYP)
"G"±0.25[ .010]
(SEE TABLE 2)
C
2.00 .079 (TYP)
C
0.40 .016
REF
SECTION "A"-"A"
"D"
"E" REF
"F" REF
"C" REF
1.00 .039
REF
TABLE 1
"C"
13.88 [.546]
21.50 [.846]
29.12 [1.146]
36.74 [1.446]
3.04 .120
REF
PART NUMBER
UPT-02-XX-X-RA-XX
UPT-04-XX-X-RA-XX
UPT-06-XX-X-RA-XX
UPT-08-XX-X-RA-XX
"A"
17.88 [.704]
25.50 [1.004]
33.12 [1.304]
40.74 [1.604]
"B"
3.81 [.150]
11.43 [.450]
19.05 [.750]
26.67 [1.050]
PROPRIETARY NOTE
"D"
5.82 [.229]
13.44 [.529]
21.06 [.829]
28.68 [1.129]
"E"
9.88 [.389]
17.50 [.689]
25.12 [.989]
32.74 [1.289]
"F"
11.38 [.448]
19.00 [.748]
26.62 [1.048]
34.24 [1.348]
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS
TOLERANCES ARE:
DECIMALS
ANGLES
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: 0.038[.0015]MAX.
3. MINIMUM PUSHOUT FORCE: 4.5N[1.0 LB].
4. MAXIMUM ALLOWABLE BOW: .15[.006].
5. MINIMUM -LC PULL OUT FORCE: 2.23 N [0.5LB]
X.X: 0.3 [.01]
2
X.XX: 0.13 [.005]
X.XXX: 0.051 [.0020]
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Ma il: info @SAMTEC.c o m
c o d e: 55322
DESCRIPTION:
TABLE 2
TAIL LENGTH
"G"
SUB-T-1M70-XX-X
-01
2.82 [0.111] SUB-T-1M70-01-X
-02
3.58 [0.141] SUB-T-1M70-02-X
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.4
INSULATOR: LCP, COLOR: BLACK
TERMINAL: BeCu
LOCKING CLIP: PHOS BRONZE
UPT-RA, ASSEMBLY
DWG. NO.
C
F:\ d w g \ MISC\ Mktg \ UPT-XX-01-XX-X-RA-XX-XX-MKT.SLDDRW
UPT-XX-01-XX-X-RA-XX-XX
10/01/2008
SHEET
1
OF
2
BY:
B RAY
REVISION C

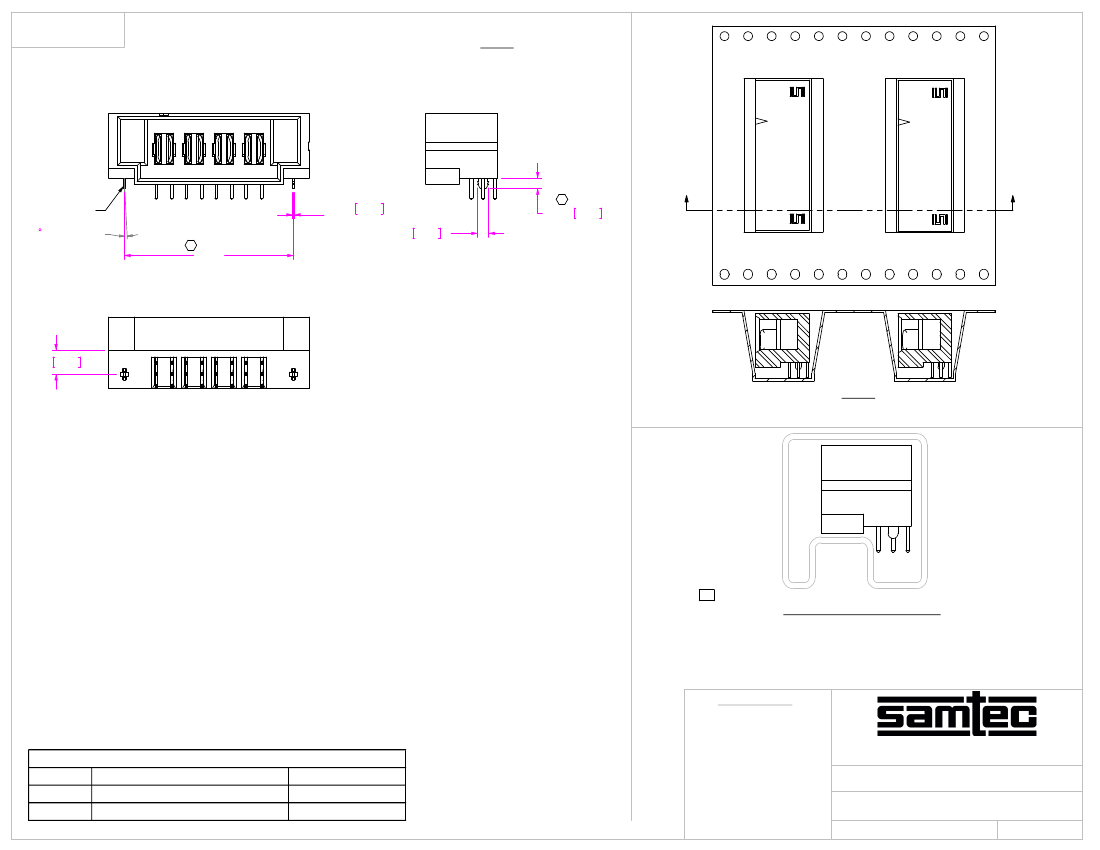

FIG.2
(UPT-04-01-X-RA-X-LC SHOWN)
(SAME AS FIG. 1, DIFFERENT AS SHOWN)
"B"
C
"B"
LC-06-TM
0.25 .010
REF
1.42 .056
C
1.29 .051
2 MAX SWAY
(TYP)
"C"
3.04 .120
FIG.3
-TR: PACKAGING VIEW
TAPE AND REEL
C
PACKAGING TUBE VIEW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
TABLE 3
PLATING POWER PIN CONTACT AREA POWER PIN TAIL
-L
LIGHT GOLD
MATTE TIN
-T
MATTE TIN
MATTE TIN
F:\ d w g \ MISC\ Mktg \ UPT-XX-01-XX-X-RA-XX-XX-MKT.SLDDRW
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Ma il: info @SAMTEC.c o m
c o d e: 55322
DESCRIPTION:
DO NOT SCALE DRAWING
UPT-RA, ASSEMBLY
SHEET SCALE: 1:0.333333
DWG. NO.
UPT-XX-01-XX-X-RA-XX-XX
10/01/2008
SHEET
2
OF
2
BY:
B RAY
