LAA126L

Description
Transistor Output SSR, 2-Channel, 3750V Isolation, DIP-8
CategoryLED optoelectronic/LED    photoelectric
File Size111KB,5 Pages
ManufacturerIXYS
Environmental Compliance
Download Datasheet Parametric View All

LAA126L Online Shopping

Suppliers Part Number Price MOQ In stock
LAA126L - - View Buy Now

LAA126L Overview

Transistor Output SSR, 2-Channel, 3750V Isolation, DIP-8

LAA126L Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerIXYS
package instructionDIP-8
Reach Compliance Codecompliant
Other featuresUL RECOGNIZED, CMOS COMPATIBLE, HIGH RELIABILITY
ConfigurationSEPARATE, 2 ELEMENTS
Maximum forward current0.05 A
Maximum insulation voltage3750 V
JESD-609 codee3
Number of components2
Maximum on-state current0.17 A
Maximum on-state resistance20 Ω
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Optoelectronic device typesTRANSISTOR OUTPUT SSR
Terminal surfaceMatte Tin (Sn)

LAA126L Preview

LAA126L
I
NTEGRATED
C
IRCUITS
D
IVISION
Parameter
Blocking Voltage
Load Current
On-Resistance (max)
Ratings
250
170
20
Units
V
P
mA
rms
/ mA
DC
Dual Single-Pole, Normally Open
OptoMOS
®
Relays
Description
LAA126L is a dual single-pole, normally open
(1-Form-A) current-limited Solid State Relay. The
combination of super efficient MOSFET switches and
photovoltaic die provides 3750V
rms
of input to output
isolation.
The optically coupled outputs, which use the
patented OptoMOS architecture, are controlled by a
highly efficient GaAIAs infrared LED.
Dual single-pole OptoMOS relays provide a more
compact design solution than two discrete single-pole
relays in a variety of applications, and save board
space by incorporating both switches in a single 8-pin
package.
Approvals
UL Recognized Component: File E76270
CSA Certified Component: Certificate 1175739
EN/IEC 60950-1 Certified Component:
TUV Certificate B 09 07 49410 004
Ordering Information
Part #
LAA126L
LAA126LS
LAA126LSTR
Description
8 Pin DIP (50/Tube)
8 Pin Surface Mount (50/Tube)
8 Pin Surface Mount (1,000/Reel)
Features
Current Limiting Device
3750V
rms
Input/Output Isolation
Low Drive Power Requirements (TTL/CMOS
Compatible)
No Moving Parts
High Reliability
Arc-Free With No Snubbing Circuits
No EMI/RFI Generation
Small 8-Pin Package
Machine Insertable, Wave Solderable
Surface Mount and Tape & Reel Versions Available
Applications
Telecommunications
Telecom Switching
Tip/Ring Circuits
Modem Switching (Laptop, Notebook, Pocket
Size)
Hook Switch
Dial Pulsing
Ground Start
Ringing Injection
Instrumentation
Multiplexers
Data Acquisition
Electronic Switching
I/O Subsystems
Meters (Watt-Hour, Water, Gas)
Medical Equipment-Patient/Equipment Isolation
Security
Aerospace
Industrial Controls
Pin Configuration
+ Control - Switch #1
– Control - Switch #1
+ Control - Switch #2
– Control - Switch #2
1
2
3
4
8
7
6
5
Load - Switch #1
Load - Switch #1
Load - Switch #2
Load - Switch #2
Switching Characteristics of
Normally Open (Form A) Devices
Form-A
I
F
90%
I
LOAD
t
on
10%
t
off
Pb
DS-LAA126L-R04
e
3
www.ixysic.com
1
I
NTEGRATED
C
IRCUITS
D
IVISION
Absolute Maximum Ratings @25ºC
Parameter
Blocking Voltage
Reverse Input Voltage
Input Control Current
Peak (10ms)
Input Power Dissipation
1
Total Power Dissipation
2
Isolation Voltage, Input to Output
Operational Temperature
Storage Temperature
1
2
LAA126L
Ratings
250
5
50
1
150
800
3750
-40 to +85
-40 to +125
Units
V
P
V
mA
A
mW
mW
V
rms
°C
°C
Absolute Maximum Ratings are stress ratings. Stresses in
excess of these ratings can cause permanent damage to
the device. Functional operation of the device at conditions
beyond those indicated in the operational sections of this
data sheet is not implied.
Derate linearly 1.33 mW / °C
Derate linearly 6.67 mW / °C
Electrical Characteristics @25ºC (Unless Otherwise Noted)
Parameter
Output Characteristics
Load Current
Continuous
Peak
On-Resistance
Off-State Leakage Current
Switching Speeds
Turn-On
Turn-Off
Output Capacitance
Load Current Limiting
Input Characteristics
Input Control Current to Activate
Input Control Current to Deactivate
Input Voltage Drop
Reverse Input Current
Common Characteristics
Input to Output Capacitance
Conditions
Symbol
Min
Typ
Max
Units
-
t =10ms
I
L
=170mA
V
L
=250V
P
I
F
=5mA, V
L
=10V
V
L
=50V, f=1MHz
-
I
L
=170mA
-
I
F
=5mA
V
R
=5V
-
I
L
I
LPK
R
ON
I
LEAK
t
on
t
off
C
OUT
I
CL
I
F
-
V
F
I
R
C
I/O
-
-
-
-
-
-
-
170
-
0.4
0.9
-
-
-
-
-
-
-
-
50
235
-
0.7
1.2
-
3
170
±400
20
1
5
5
-
280
5
-
1.4
10
-
mA
rms
/ mA
DC
mA
P
A
ms
pF
mA
mA
mA
V
A
pF
2
www.ixysic.com
R04
I
NTEGRATED
C
IRCUITS
D
IVISION
Manufacturing Information
Moisture Sensitivity
LAA126L
All plastic encapsulated semiconductor packages are susceptible to moisture ingression. IXYS Integrated
Circuits Division classified all of its plastic encapsulated devices for moisture sensitivity according to
the latest version of the joint industry standard,
IPC/JEDEC J-STD-020,
in force at the time of product
evaluation. We test all of our products to the maximum conditions set forth in the standard, and guarantee proper
operation of our devices when handled according to the limitations and information in that standard as well as to any
limitations set forth in the information or standards referenced below.
Failure to adhere to the warnings or limitations as established by the listed specifications could result in reduced
product performance, reduction of operable life, and/or reduction of overall reliability.
This product carries a
Moisture Sensitivity Level (MSL) rating
as shown below, and should be handled according
to the requirements of the latest version of the joint industry standard
IPC/JEDEC J-STD-033.
Device
LAA126L / LAA126LS
Moisture Sensitivity Level (MSL) Rating
MSL 1
ESD Sensitivity
This product is
ESD Sensitive,
and should be handled according to the industry standard
JESD-625.
Reflow Profile
This product has a maximum body temperature and time rating as shown below. All other guidelines of
J-STD-020
must be observed.
Device
LAA126L / LAA126LS
Maximum Temperature x Time
250ºC for 30 seconds
Board Wash
IXYS Integrated Circuits Division recommends the use of no-clean flux formulations. However, board washing to
remove flux residue is acceptable. Since IXYS Integrated Circuits Division employs the use of silicone coating as
an optical waveguide in many of its optically isolated products, the use of a short drying bake could be necessary
if a wash is used after solder reflow processes. Chlorine- or Fluorine-based solvents or fluxes should not be used.
Cleaning methods that employ ultrasonic energy should not be used.
Pb
e
3
R04
www.ixysic.com
3
I
NTEGRATED
C
IRCUITS
D
IVISION

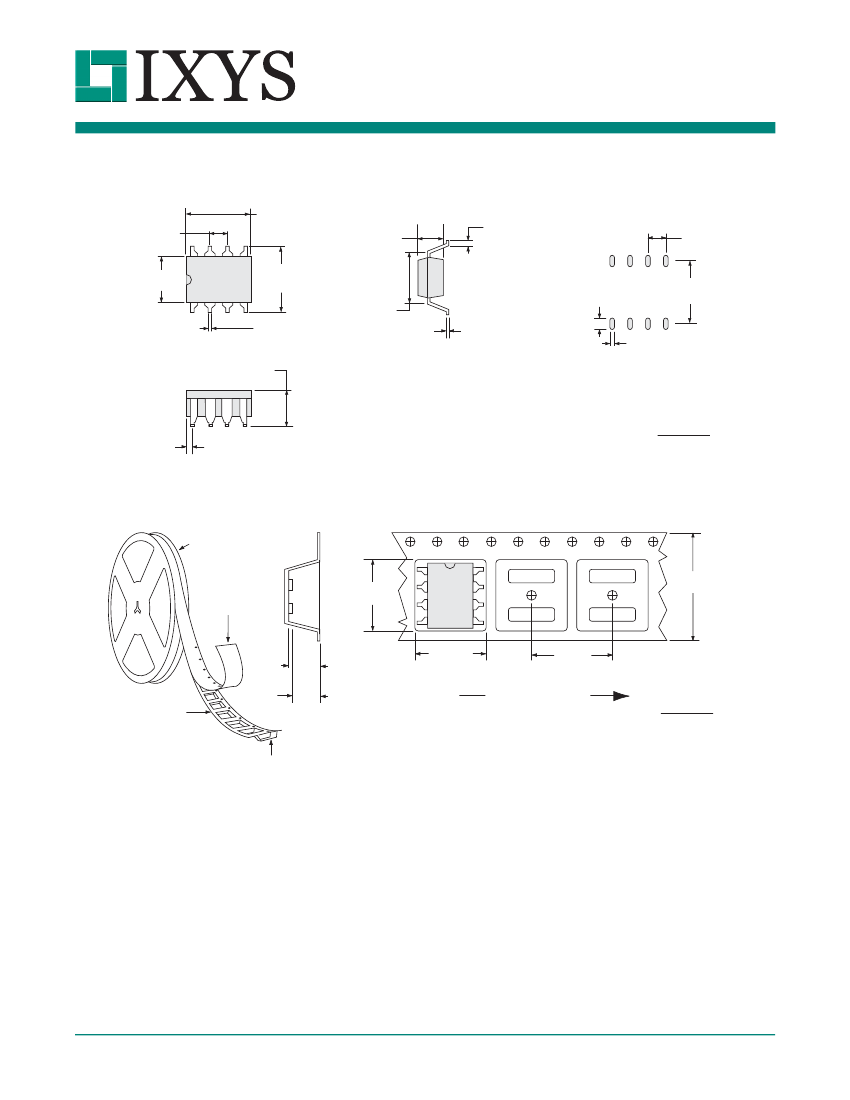

MECHANICAL DIMENSIONS
LAA126LS
9.652 ± 0.381
(0.380 ± 0.015)
2.540 ± 0.127
(0.100 ± 0.005)
9.525 ± 0.254
(0.375 ± 0.010)
7.620 ± 0.254
(0.300 ± 0.010)
0.254 ± 0.0127
(0.010 ± 0.0005)
3.302 ± 0.051
(0.130 ± 0.002)
0.635 ± 0.127
(0.025 ± 0.005)
LAA126L
PCB Land Pattern
2.54
(0.10)
6.350 ± 0.127
(0.250 ± 0.005)
Pin 1
1.65
(0.0649)
8.90
(0.3503)
0.457 ± 0.076
(0.018 ± 0.003)
4.445 ± 0.127
(0.175 ± 0.005)
0.65
(0.0255)
0.813 ± 0.102
(0.032 ± 0.004)
Dimensions
mm
(inches)
LAA126LSTR Tape & Reel
330.2 DIA.
(13.00 DIA.)
Top Cover
Tape Thickness
0.102 MAX.
(0.004 MAX.)
W=16.00
(0.63)
Bo=10.30
(0.406)
K
0
=4.90
(0.193)
K
1
=4.20
(0.165)
Ao=10.30
(0.406)
P=12.00
(0.472)
User Direction of Feed
Dimensions
mm
(inches)
Embossed Carrier
Embossment
NOTES:
1. Dimensions carry tolerances of EIA Standard 481-2
2. Tape complies with all “Notes” for constant dimensions listed on page 5 of EIA-481-2
4
www.ixysic.com
R04
I
NTEGRATED
C
IRCUITS
D
IVISION
MECHANICAL DIMENSIONS
LAA126L
2.540 ± 0.127
(0.100 ± 0.005)
6.350 ± 0.127
(0.250 ± 0.005)
Pin 1
3.302 ± 0.051
(0.130 ± 0.002)
7.239 TYP.
(0.285)
0.254 ± 0.0127
(0.010 ± 0.0005)
9.652 ± 0.381
(0.380 ± 0.015)
7.620 ± 0.254
(0.300 ± 0.010)
LAA126L
PCB Hole Pattern
8-0.800 DIA.
(8-0.031 DIA.)
9.144 ± 0.508
(0.360 ± 0.020)
6.350 ± 0.127
(0.250 ± 0.005)
2.540 ± 0.127
(0.100 ± 0.005)
0.457 ± 0.076
(0.018 ± 0.003)
4.064 TYP
(0.160)
7.620 ± 0.127
(0.300 ± 0.005)
7.620 ± 0.127
(0.300 ± 0.005)
0.813 ± 0.102
(0.032 ± 0.004)
Dimensions
mm
(inches)
For additional information please visit our website at: www.ixysic.com
IXYS Integrated Circuits Division makes no representations or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make
changes to specifications and product descriptions at any time without notice. Neither circuit patent licenses nor indemnity are expressed or implied. Except as set forth in IXYS Integrated
Circuits Division’s Standard Terms and Conditions of Sale, IXYS Integrated Circuits Division assumes no liability whatsoever, and disclaims any express or implied warranty, relating to
its products including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.
The products described in this document are not designed, intended, authorized or warranted for use as components in systems intended for surgical implant into the body, or in other
applications intended to support or sustain life, or where malfunction of IXYS Integrated Circuits Division’s product may result in direct physical harm, injury, or death to a person or severe
property or environmental damage. IXYS Integrated Circuits Division reserves the right to discontinue or make changes to its products at any time without notice.
Specification: DS-LAA126L-R04
©Copyright 2012, IXYS Integrated Circuits Division
OptoMOS
®
is a registered trademark of IXYS Integrated Circuits Division
All rights reserved. Printed in USA.
12/19/2012
