PRODUCT SPECIFICATION
Part Number
PL03L-WDW24
Details
3mm Round Through-Hole LED
Emitting Color: White
InGaN/Sapphire dice used
Features
RoHS Compliant
Low Power Consumption
Rugged and Durable

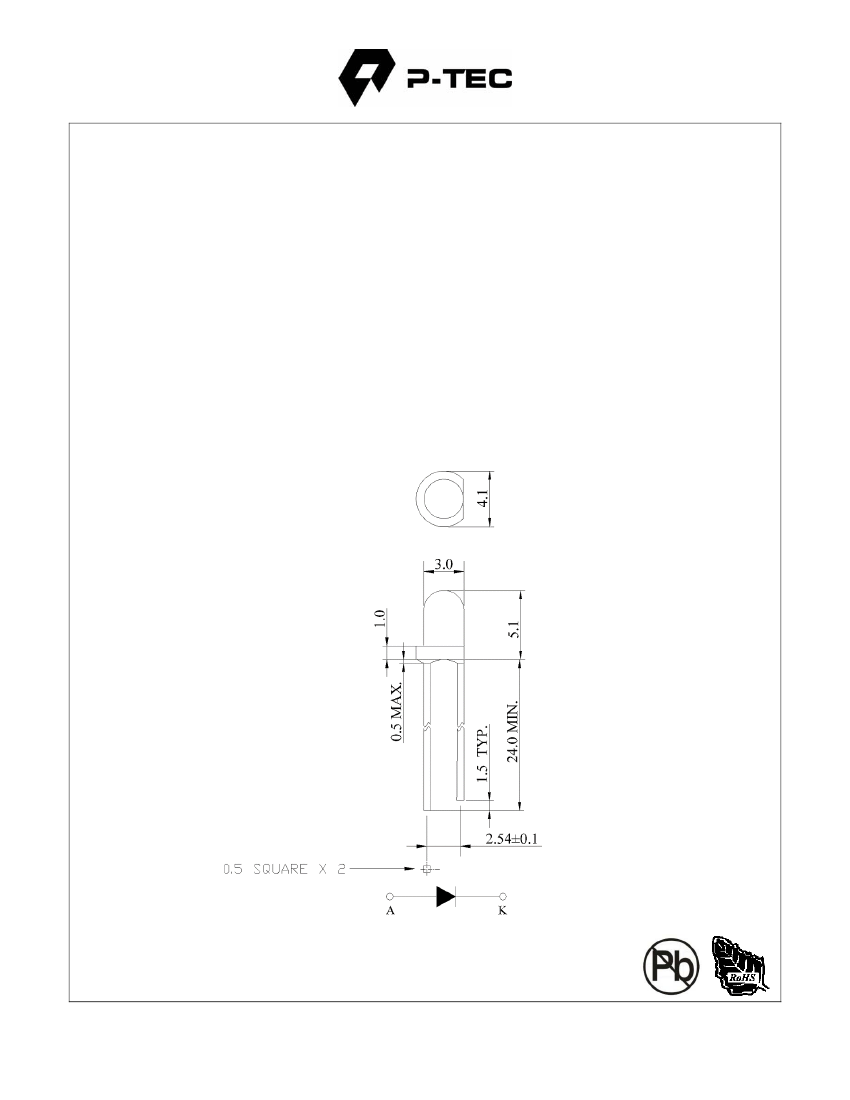

Mechanical Dimensions
Notes:
1. All dimensions are in millimeters unless otherwise noted
2. Tolerance is±0.25mm unless otherwise noted
3. Specifications subject to change without notice
www.p-tec.net
010515 Rev0 MS
Page
1
of
7
Device Selection Guide
Part Number
PL03L-WDW24
Chip
Material
InGaN/Sapphire
Emitting Color
White
Lens
White Diffused
Absolute Maximum Ratings at Ta=25
Parameter
Power Dissipation
Reverse Voltage
DC Forward Current
Reverse (Leakage) Current
Peak Current (duty cycle 1/10, 1KHz)
Operating Temperature
Storage Temperature
Soldering Temperature (1.6mm from body)
Electrostatic Discharge
Symbol
P
D
VR
IF
IR
I
PF
Topr
Tstg
Tsol.
ESD
Rating
120
5
30
50
100
-25~+85
-40~+100
6000
Unit
mW
V
mA
μA
mA
Dip Soldering : 260 for 5 sec.
Hand Soldering : 350 for 3 sec.
V
Electrical and Optical Characteristics at Ta=25
Parameter
Forward Voltage
Luminous Intensity
CIE Chromaticity
Dominant Wavelength
Reverse (Leakage) Current
Viewing Angle
Notes: 1. IS tester used
2. Customer special requirements are welcomed.
3. Specifications subject to change without notice
Symbol
VF
Iv
X
Y
Ir
2θ1/2
Min.
--
500
--
--
--
--
Typ.
3.2
1200
0.31
0.30
--
60
Max.
4.0
--
--
--
50
--
Unit
V
mcd
--
--
μA
--
Condition
IF=20mA
IF=20mA
IF=20mA
IF=20mA
Vr=5V
deg
www.p-tec.net
010515 Rev0 MS
Page
2
of
7

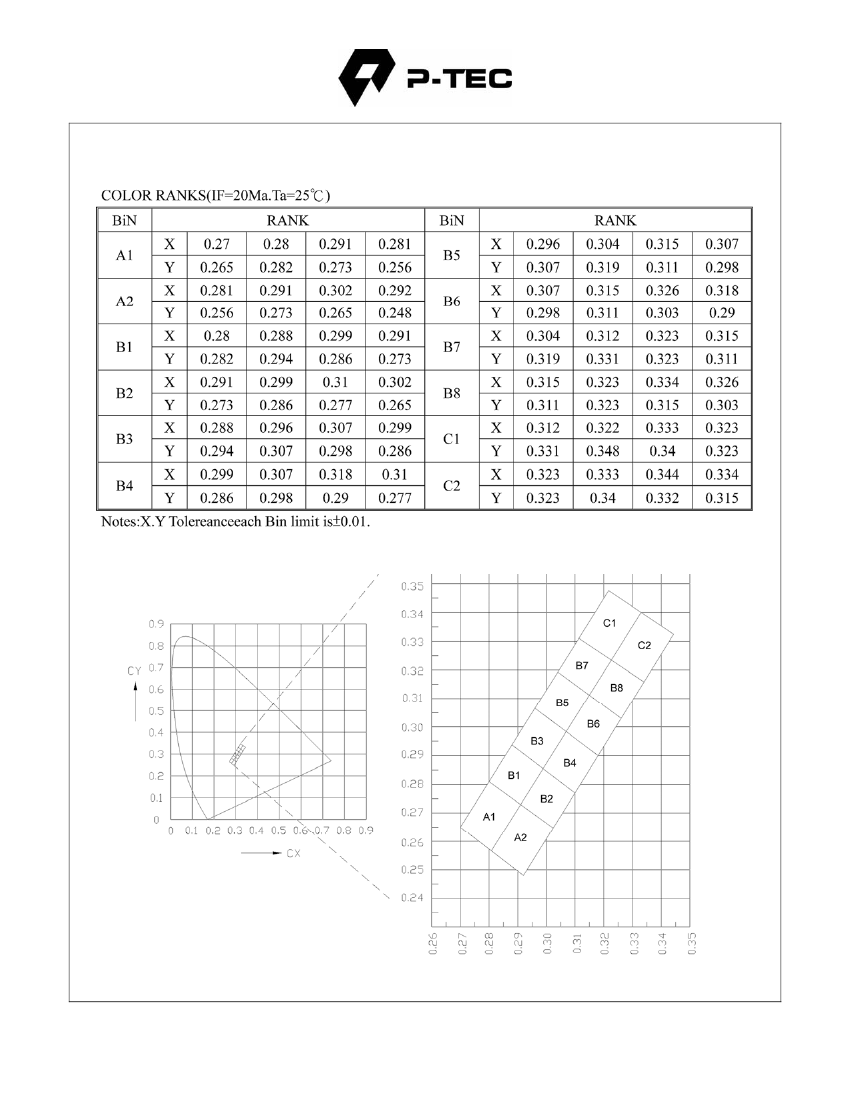

Chromaticity Coordinates Specifications for Bin Grading
Chromaticity Coordinates & Bin Grading Diagram
www.p-tec.net
010515 Rev0 MS
Page
3
of
7
