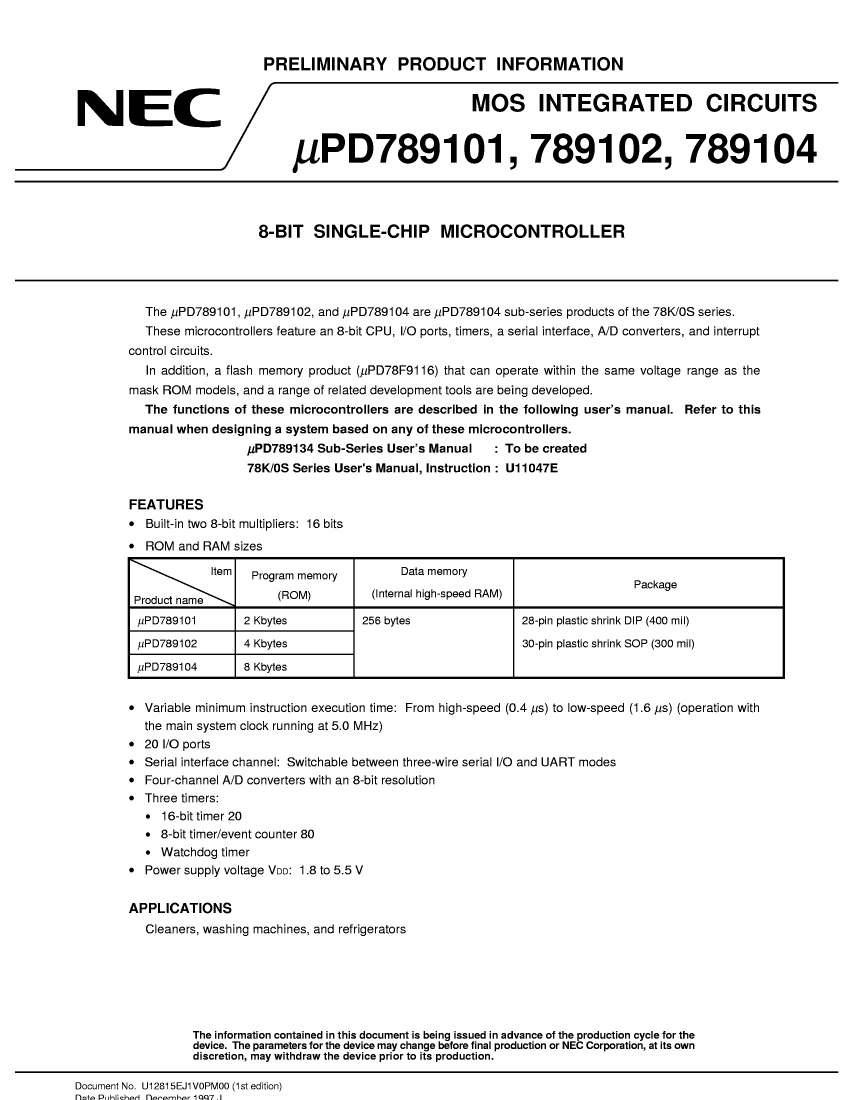

Microcontroller, 8-Bit, MROM, MOS, PDSO30, 0.300 INCH, SHRINK, PLASTIC, SOP-30

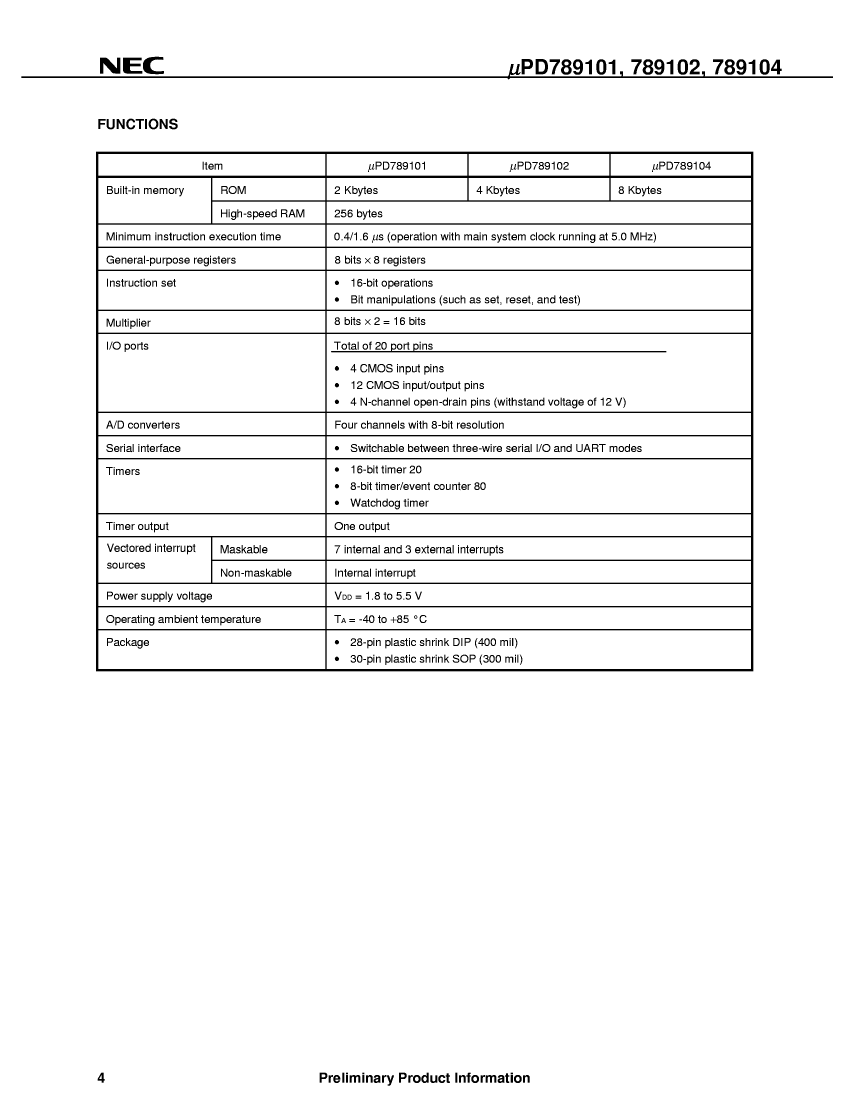

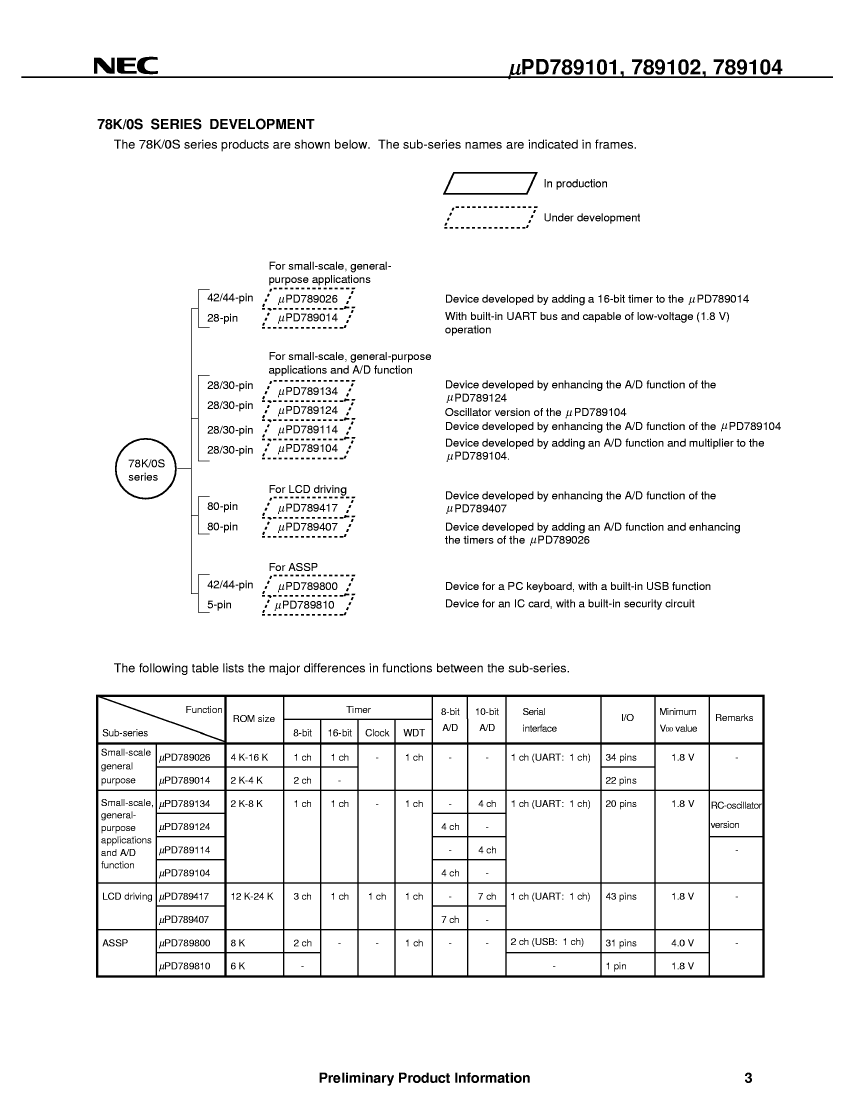

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | NEC Electronics |
| Parts packaging code | SOIC |
| package instruction | 0.300 INCH, SHRINK, PLASTIC, SOP-30 |
| Contacts | 30 |
| Reach Compliance Code | compliant |
| Has ADC | YES |
| Address bus width | |
| bit size | 8 |
| maximum clock frequency | 5 MHz |
| DAC channel | NO |
| DMA channel | NO |
| External data bus width | |
| JESD-30 code | R-PDSO-G30 |
| JESD-609 code | e0 |
| length | 9.85 mm |
| Number of I/O lines | 20 |
| Number of terminals | 30 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| PWM channel | YES |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SSOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE, SHRINK PITCH |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| ROM programmability | MROM |
| Maximum seat height | 2 mm |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 1.8 V |
| surface mount | YES |
| technology | MOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | TIN LEAD |
| Terminal form | GULL WING |
| Terminal pitch | 0.65 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 6.1 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER |
| UPD789104GS-XXX | UPD789101CT-XXX | UPD789102GS-XXX | UPD789104CT-XXX | UPD789102CT-XXX | |
|---|---|---|---|---|---|
| Description | Microcontroller, 8-Bit, MROM, MOS, PDSO30, 0.300 INCH, SHRINK, PLASTIC, SOP-30 | Microcontroller, 8-Bit, MROM, MOS, PDIP28, 0.400 INCH, SHRINK, PLASTIC, DIP-28 | Microcontroller, 8-Bit, MROM, MOS, PDSO30, 0.300 INCH, SHRINK, PLASTIC, SOP-30 | Microcontroller, 8-Bit, MROM, MOS, PDIP28, 0.400 INCH, SHRINK, PLASTIC, DIP-28 | Microcontroller, 8-Bit, MROM, MOS, PDIP28, 0.400 INCH, SHRINK, PLASTIC, DIP-28 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | SOIC | DIP | SOIC | DIP | DIP |
| package instruction | 0.300 INCH, SHRINK, PLASTIC, SOP-30 | SDIP, | SSOP, | SDIP, | SDIP, |
| Contacts | 30 | 28 | 30 | 28 | 28 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant |
| Has ADC | YES | YES | YES | YES | YES |
| bit size | 8 | 8 | 8 | 8 | 8 |
| maximum clock frequency | 5 MHz | 5 MHz | 5 MHz | 5 MHz | 5 MHz |
| DAC channel | NO | NO | NO | NO | NO |
| DMA channel | NO | NO | NO | NO | NO |
| JESD-30 code | R-PDSO-G30 | R-PDIP-T28 | R-PDSO-G30 | R-PDIP-T28 | R-PDIP-T28 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| length | 9.85 mm | 25.4 mm | 9.85 mm | 25.4 mm | 25.4 mm |
| Number of I/O lines | 20 | 20 | 20 | 20 | 20 |
| Number of terminals | 30 | 28 | 30 | 28 | 28 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| PWM channel | YES | YES | YES | YES | YES |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SSOP | SDIP | SSOP | SDIP | SDIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE, SHRINK PITCH | IN-LINE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH | IN-LINE, SHRINK PITCH | IN-LINE, SHRINK PITCH |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| ROM programmability | MROM | MROM | MROM | MROM | MROM |
| Maximum seat height | 2 mm | 5.08 mm | 2 mm | 5.08 mm | 5.08 mm |
| Maximum supply voltage | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage | 1.8 V | 1.8 V | 1.8 V | 1.8 V | 1.8 V |
| surface mount | YES | NO | YES | NO | NO |
| technology | MOS | MOS | MOS | MOS | MOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal surface | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD |
| Terminal form | GULL WING | THROUGH-HOLE | GULL WING | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 0.65 mm | 1.778 mm | 0.65 mm | 1.778 mm | 1.778 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 6.1 mm | 10.16 mm | 6.1 mm | 10.16 mm | 10.16 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER |
| Base Number Matches | - | 1 | 1 | 1 | 1 |
