B82725-J2402-N1 datasheet, PDF

B82725-J2402-N1: Description2 ELEMENT, 6800uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR; CategoryPassive components inductor; File Size122KB，4 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

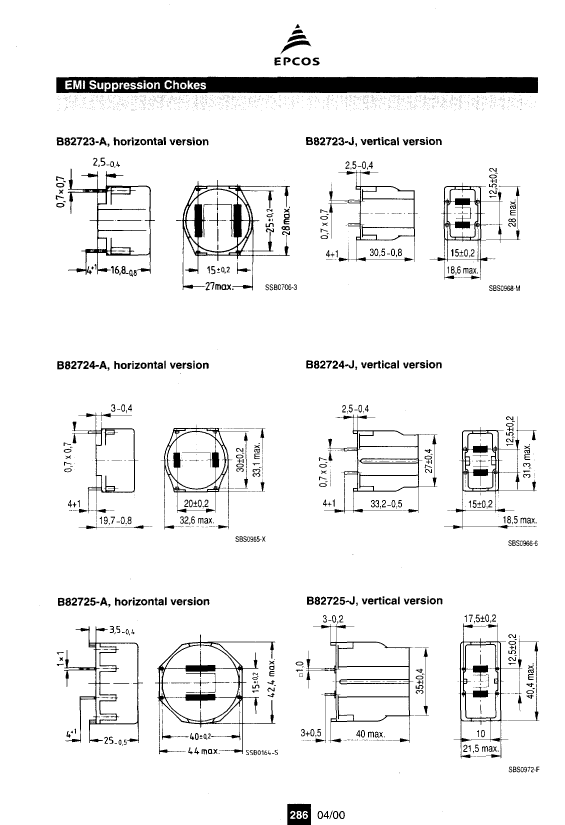

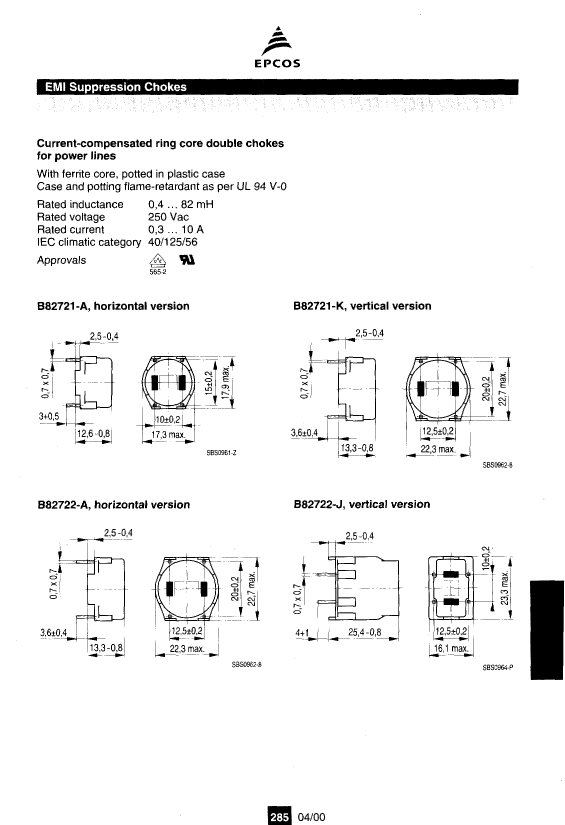

B82725-J2402-N1 Overview

2 ELEMENT, 6800uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EPCOS (TDK)
Reach Compliance Code	compliant
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.087 Ω
Nominal inductance(L)	6800 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	B82725
Number of functions	2
Number of terminals	4
Maximum rated current	4 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	NO
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL IN-LINE
Terminal shape	PRINTED WIRING PIN

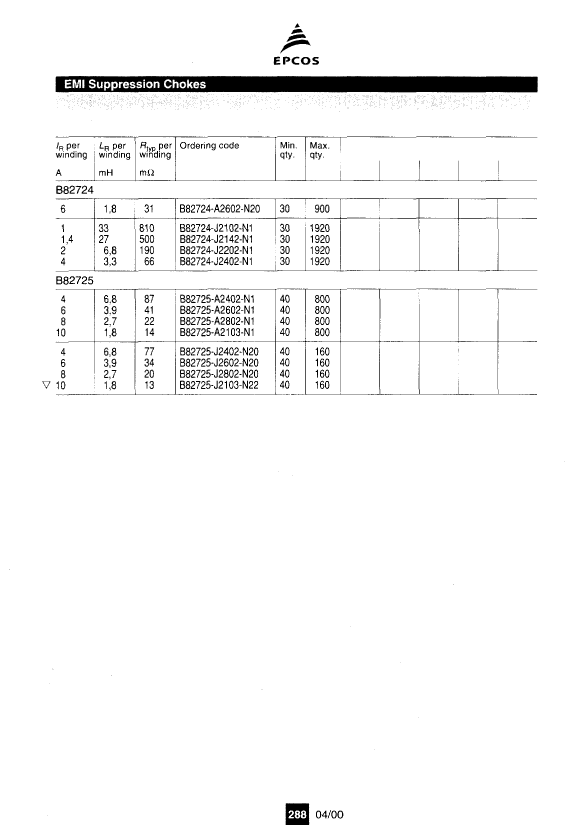

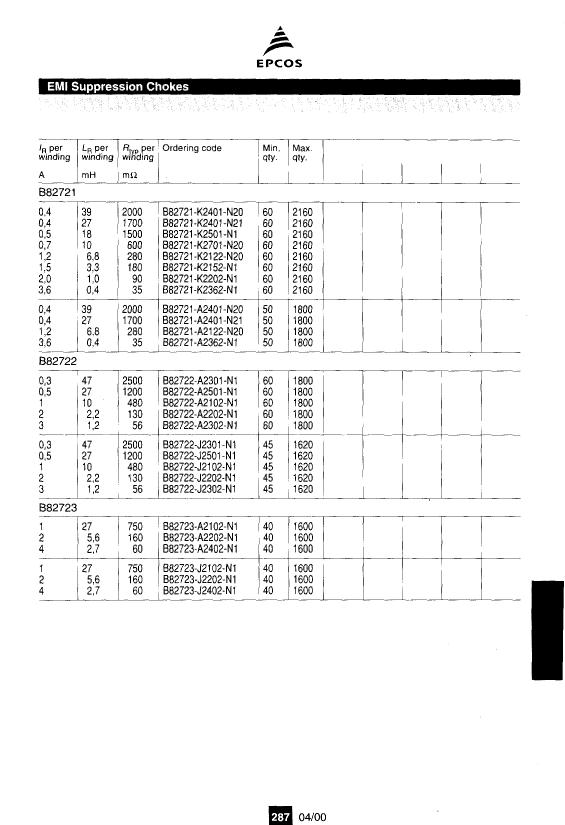

	B82725-J2402-N1	B82725-J2103-N1	B82725-J2802-N1	B82725-J2602-N1
Description	2 ELEMENT, 6800uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR	2 ELEMENT, 1800uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR	2 ELEMENT, 2700uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR	2 ELEMENT, 3900uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
core material	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	0.087 Ω	0.014 Ω	0.022 Ω	0.041 Ω
Nominal inductance(L)	6800 µH	1800 µH	2700 µH	3900 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	e3	e3	e3
Manufacturer's serial number	B82725	B82725	B82725	B82725
Number of functions	2	2	2	2
Number of terminals	4	4	4	4
Maximum rated current	4 A	10 A	8 A	6 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO
surface mount	NO	NO	NO	NO
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE
Terminal shape	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN
Maker	EPCOS (TDK)	-	EPCOS (TDK)	EPCOS (TDK)
