9801-0-57-01-23-27-10-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 9801-0-57-01-23-27-10-0

9801-0-57-01-23-27-10-0: DescriptionPCB Terminal,; CategoryThe connector terminals; File Size114KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

9801-0-57-01-23-27-10-0 Overview

PCB Terminal,

9801-0-57-01-23-27-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

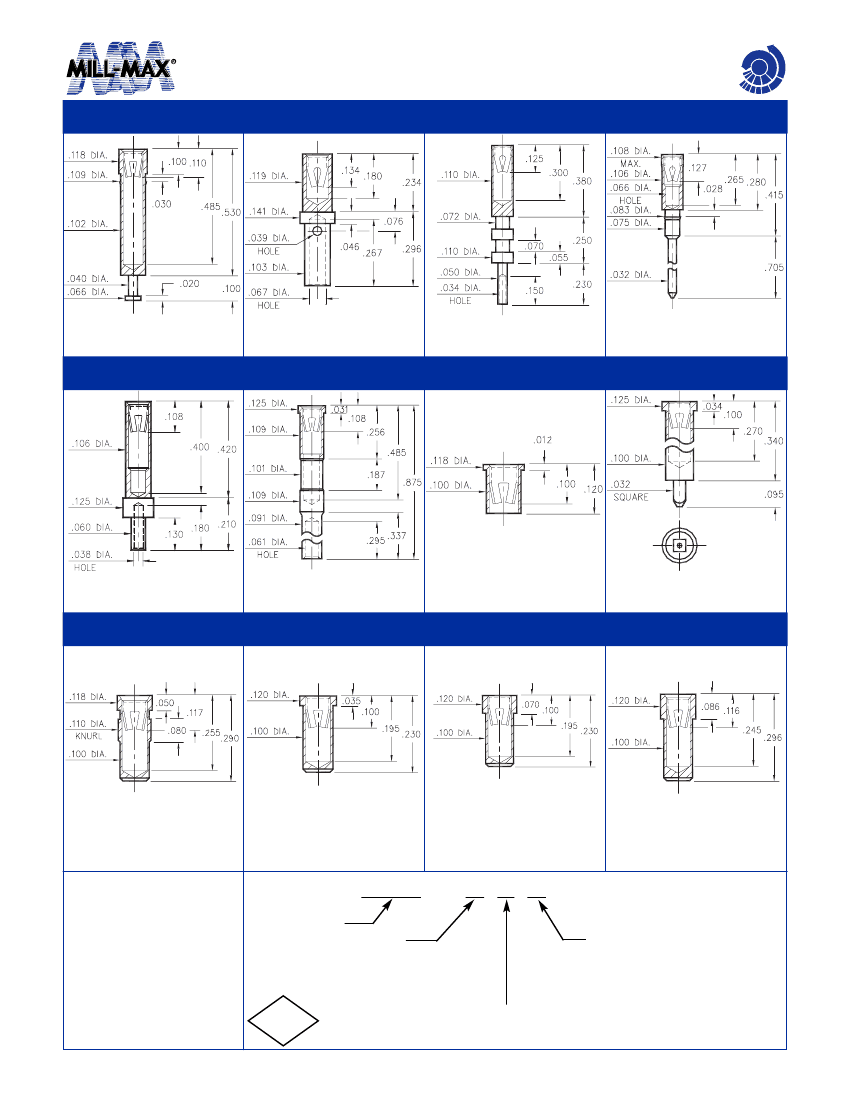

PIN RECEPTACLES

for .048” - .064” diameter pins (#13 contact)

and .045” - .065” diameter pins (#23 contact)

CHI

PINS

0496

0368

8067

1105

0496-0-15-XX-23-XX-10-0

Press-fit in .106 mounting hole

0368-0-33-XX-13-XX-10-0

#16A Crimp Barrel

8067-0-19-XX-13-XX-10-0

Wire Termination

1105-0-15-XX-13-XX-04-0

Press-fit in .080 mounting hole

8730

3667

9372

4582

8730-0-19-XX-23-XX-10-0

Wire Termination

3667-0-19-XX-23-XX-10-0

Wire Termination

9372-0-15-XX-23-XX-10-0

Solder mount in .102 min.

mounting hole

4582-0-15-XX-23-XX-10-0

Square press-fit in .040

plated thru hole

5834

9401

9801

8829

9401-0-15-XX-23-XX-10-0

5834-0-15-XX-23-XX-10-0

Press-fit in .107 mounting hole

9801-0-15-XX-23-XX-10-0

8829-0-15-XX-23-XX-10-0

Solder mount in .102 min.

mounting hole

Solder mount in .102 min. mounting hole Solder mount in .102 min. mounting hole

Also available on 16mm wide carrier

Also available on 24mm wide carrier

tape: 1,200 parts per 13” reel.

tape: 1,100 parts per 13” reel.

Order as: 9801-0-57-XX-23-XX-10-0

Order as: 9401-0-57-XX-23-XX-10-0

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - XX - XX - X3 - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200μ” TIN/LEAD OVER NICKEL

200μ” TIN OVER NICKEL

10μ” GOLD OVER NICKEL

RoHS

SPECIFY CONTACT FINISH:

200μ” TIN/LEAD OVER NICKEL

200μ” TIN OVER NICKEL

30μ” GOLD OVER NICKEL

2002/95/EC

SELECT CONTACT

#13 or #23

CONTACT (DATA ON PAGES 224 & 225)

w w w. m i l l - m a x . c o m

159

516-922-6000
