SSTA14 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> SSTA14

SSTA14: DescriptionSmall Signal Bipolar Transistor, 0.5A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon,; CategoryDiscrete semiconductor The transistor; File Size120KB，3 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SSTA14 Overview

Small Signal Bipolar Transistor, 0.5A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon,

SSTA14 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum collector current (IC)	0.5 A
Collector-based maximum capacity	10 pF
Collector-emitter maximum voltage	30 V
Configuration	DARLINGTON
Minimum DC current gain (hFE)	20000
JESD-30 code	R-PDSO-G3
JESD-609 code	e1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	125 MHz
VCEsat-Max	1.5 V

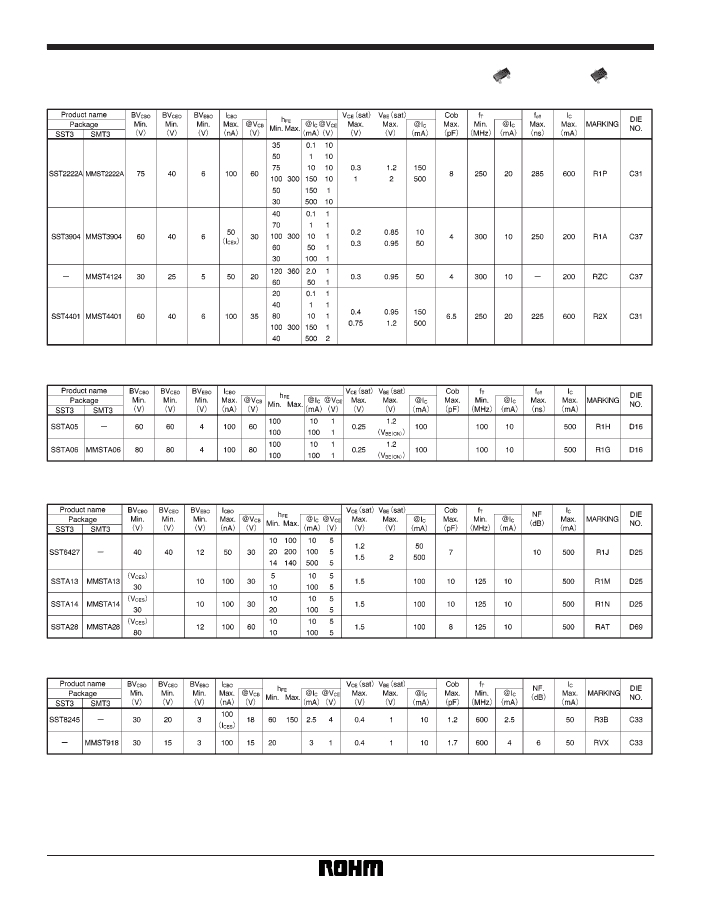

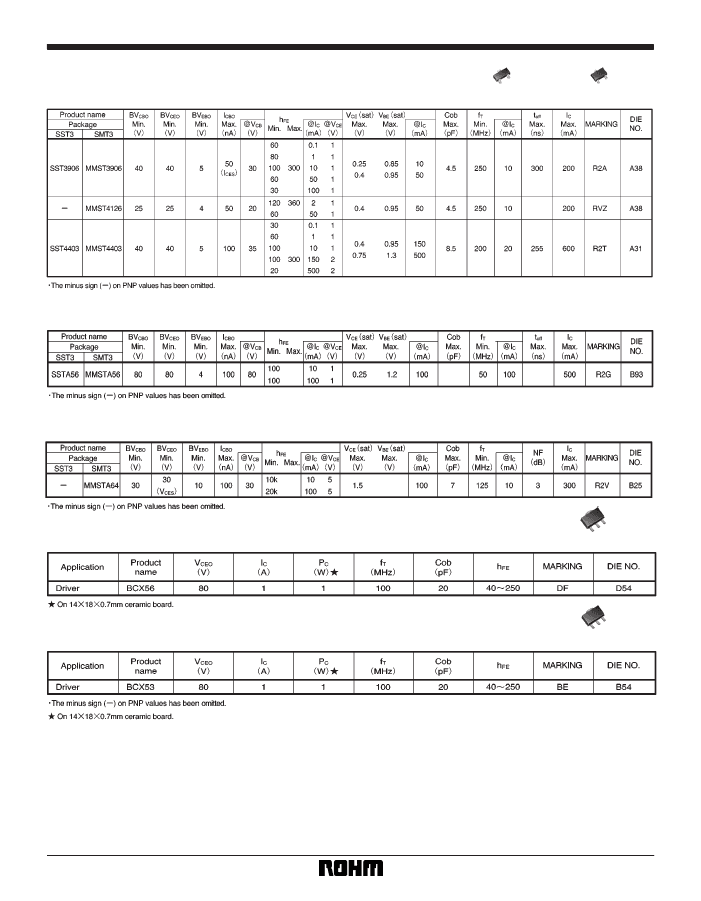

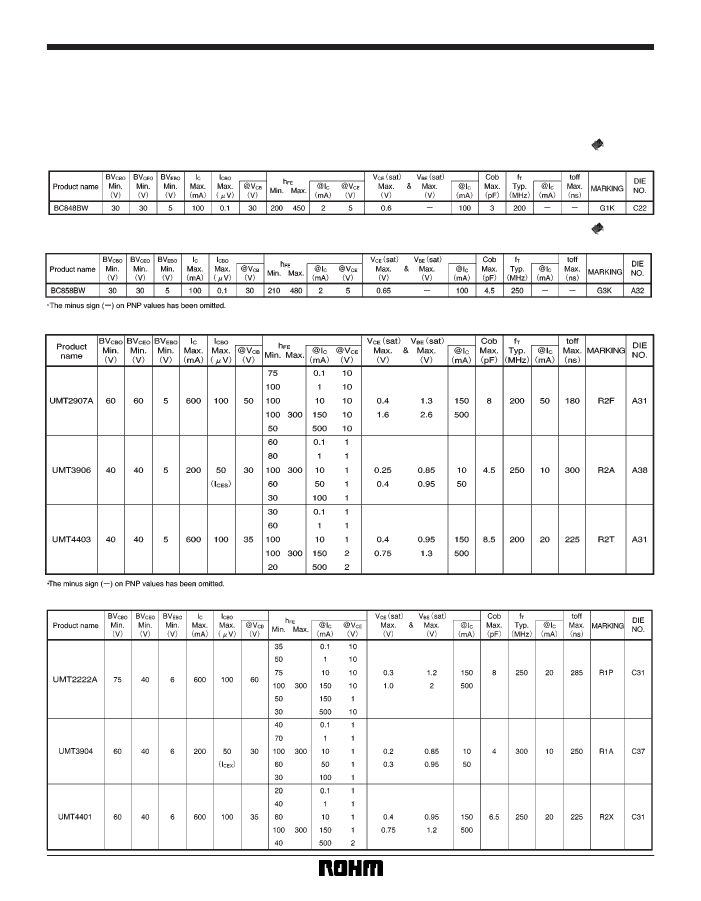

SSTA14 Preview

Transistors

USA / European specification models types

[Surface mounting type]

FUMT3

/ NPN type

General purpose small signal amplifiers

UMT3 package

FUMT3

/ PNP type

General purpose small signal amplifiers

UMT3 package

General purpose amplification and switching

Transistors

FSST3

SMT3 / PNP type (cont.)

General purpose amplification and switching

USA / European specification models types

SST3 package

SMT3 package

Medium power amplification

Darlington pair type

High frequency applications

Transistors

FSST3

SMT3 / PNP type

General purpose amplification and switching (cont.)

USA / European specification models types

SST3 package

SMT3 package

Medium power amplification

Darlington pair type

FMPT3

/ NPN type

MPT3 package

FMPT3

/ PNP type

MPT3 package

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

SSTA14 Related Products

	SSTA14	SST6427	MMSTA64	MMSTA20
Description	Small Signal Bipolar Transistor, 0.5A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon,	Small Signal Bipolar Transistor, 0.5A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon,	Small Signal Bipolar Transistor, 0.3A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon,	Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon,
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	compliant	compliant	compliant	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.5 A	0.5 A	0.3 A	0.2 A
Collector-emitter maximum voltage	30 V	40 V	30 V	40 V
Configuration	DARLINGTON	DARLINGTON	DARLINGTON	SINGLE
Minimum DC current gain (hFE)	20000	14000	20000	120
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	NOT SPECIFIED
Polarity/channel type	NPN	NPN	PNP	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	10	10	NOT SPECIFIED
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	125 MHz	250 MHz	125 MHz	125 MHz
Is it lead-free?	Lead free	Lead free	Lead free	-
JESD-609 code	e1	e1	e1	-
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	TIN SILVER COPPER	-
