TD3061
Zero Volt Switching
600V
Triac Driver
Description
The TD3061 consists of a single input LED optically
coupled to a zero-volt crossing triac driver. The TD3061
provides high input-to-output isolation and is designed to
drive high-powered triacs. Typical uses include interfacing
logic level control signals to equipment powered from
110V
AC
to 240V
AC
lines.
The TD3061 comes standard in a miniature 6 pin DIP
package making it ideal for high-density board applications.
Features
Zero-Volt Switching
600V Blocking Voltage
Trigger Current (15mA MAX)
High Isolation Voltage (5000V
RMS
)
High dV/dt (1kV/S MIN, 2kV/S TYP)
Long Life / High Reliability
RoHS / Pb-Free / REACH Compliant
Agency Approvals
Applications
Home Appliances
Motor / Drive Controls
Solid State Relays
Solenoid / Valve Control
Temperature Control
UL/C-UL:
VDE:
File # E201932
File # 40035191 (EN 60747-5-2)
Absolute Maximum Ratings
The values indicated are absolute stress ratings. Functional
operation of the device is not implied at these or any
conditions in excess of those defined in electrical
characteristics section of this document. Exposure to
absolute Maximum Ratings may cause permanent damage
to the device and may adversely affect reliability.
Storage Temperature …………………………..-55 to +125°C
Operating Temperature …….………...………-40 to +100°C
Continuous Input Current ………………………………..50mA
Transient Input Current ………………….……………..400mA
Reverse Input Control Voltage …………..…………………5V
Input Power Dissipation …………………………………40mW
Output Power Dissipation ……………………………..330mW
Solder Temperature – Wave (10sec)……………….….260°C
Solder Temperature – IR Reflow (10sec)….…………..260°C

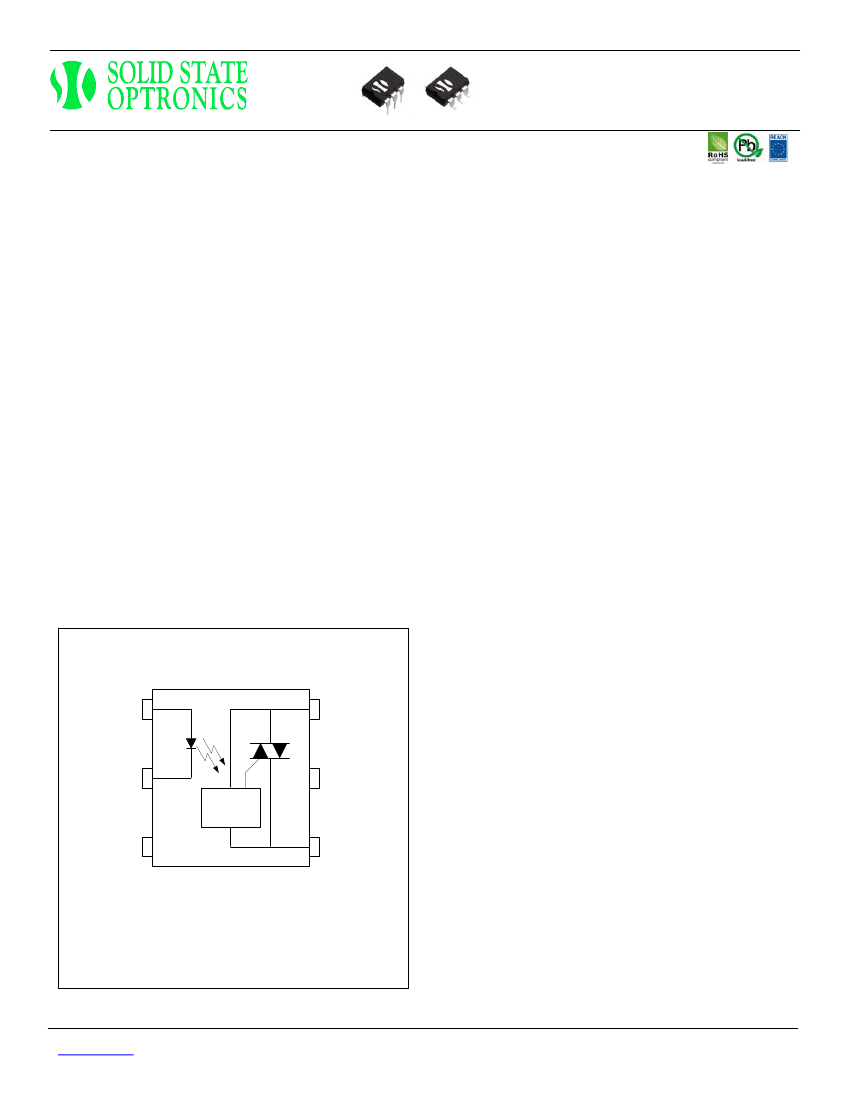

Schematic Diagram
(+) Input
1
6
+/- Load
(-) Input
2
Zero Volt
Crossing
Circuit
5
Do Not Connect
(Triac Substrate)
Ordering Information
4
-/+ Load
Do Not Connect
3
Part Number
TD3061
TD3061-H
TD3061-S
TD3061-STR
Description

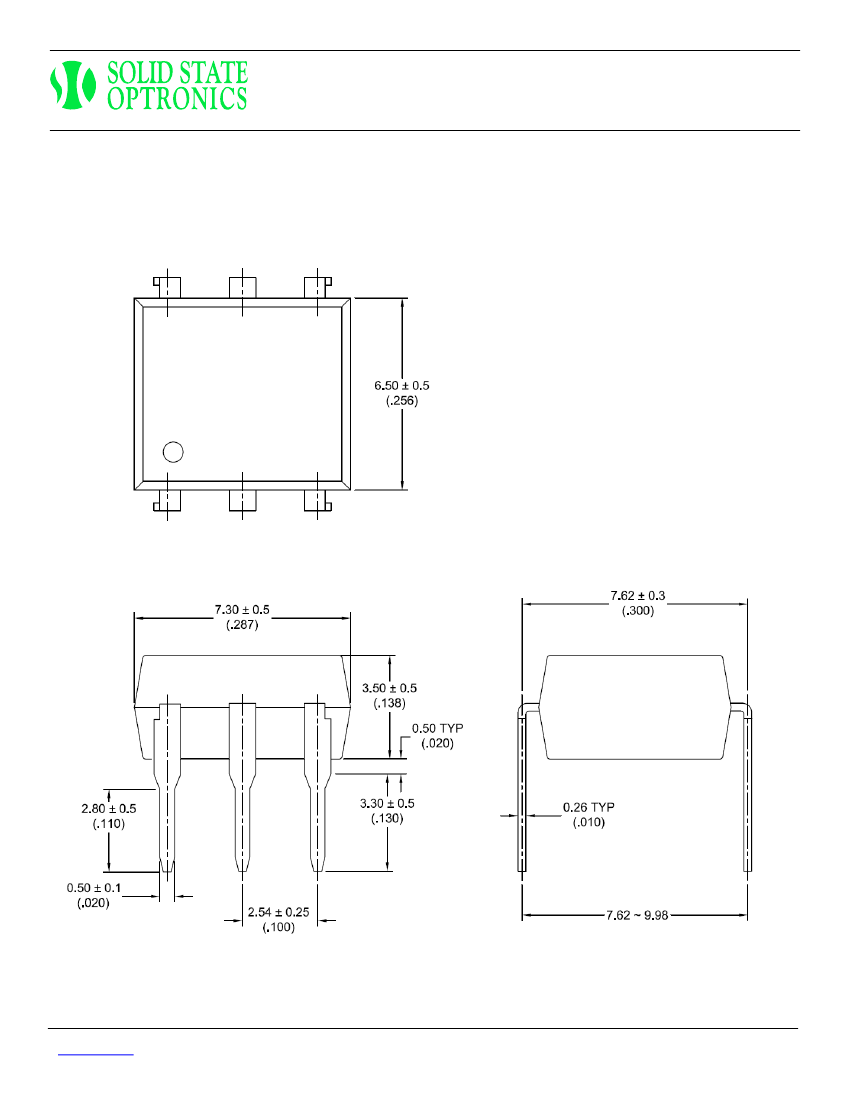

6 pin DIP, (60/Tube)
0.40”
(10.16mm)
Lead Spacing
(VDE0884)
6 pin SMD, (60/Tube)
6 pin SMD, Tape and Reel (1000/Reel)
TD3061
NOTE: Suffixes listed above are not included in marking on
device for part number identification
© 2013 Solid State Optronics
•
San José, CA
www.ssousa.com
•
+1.408.293.4600
Page 1 of 9
TD3061 /H/S/TR
Rev 2.00 (11/12/2013)
001677
TD3061
Zero Volt Switching
600V
Triac Driver
Electrical Characteristics,
T
A
= 25°C (unless otherwise specified)
Parameter
Input Specifications
LED Forward Voltage
LED Reverse Voltage
Reverse Leakage Current
Trigger Current
1
Symbol
V
F
BV
R
I
InRleak
I
FT
Min.
-
5
-
-
Typ.
1.4
-
-
-
Max.
1.8
-
10
15
Units
V
V
A
mA
Test Conditions
I
F
= 10mA
I
R
= 10μA
V
R
= 6μA
Main Terminal Voltage = 3V
Output Specifications
Blocking Voltage
Peak Blocking Current
On-State Voltage
Leakage Current
Holding Current
Inhibit Voltage
Critical Rate of Rise
2
V
DRM
I
DRM1
V
ON
I
DRM2
I
HOLD
V
INH
dV/dt
600
-
-
-
-
-
1000
-
60
1.8
0.2
100
5
2000
-
500
3
1
-
20
-
V
nA
V
A
A
V
V/S
I
O
= 1A
V
DRM
= 600V
I
F
= 15mA, I
TM
= 100mA
I
F
=0mA, V
DRM
= 600V
-
I
F
= 15mA
-
Isolation Specifications
Isolation Voltage
Input-Output Resistance
Note 1:
Note 2:
V
ISO
R
I-O
5,000
-
-
10
12
-
-
V
RMS
RH
≤
50%, t=1min
V
I-O
= 500V
DC
Resistive load. For inductive loads, higher drive current is recommended
This is for static dV/dt. Test Circuit Below

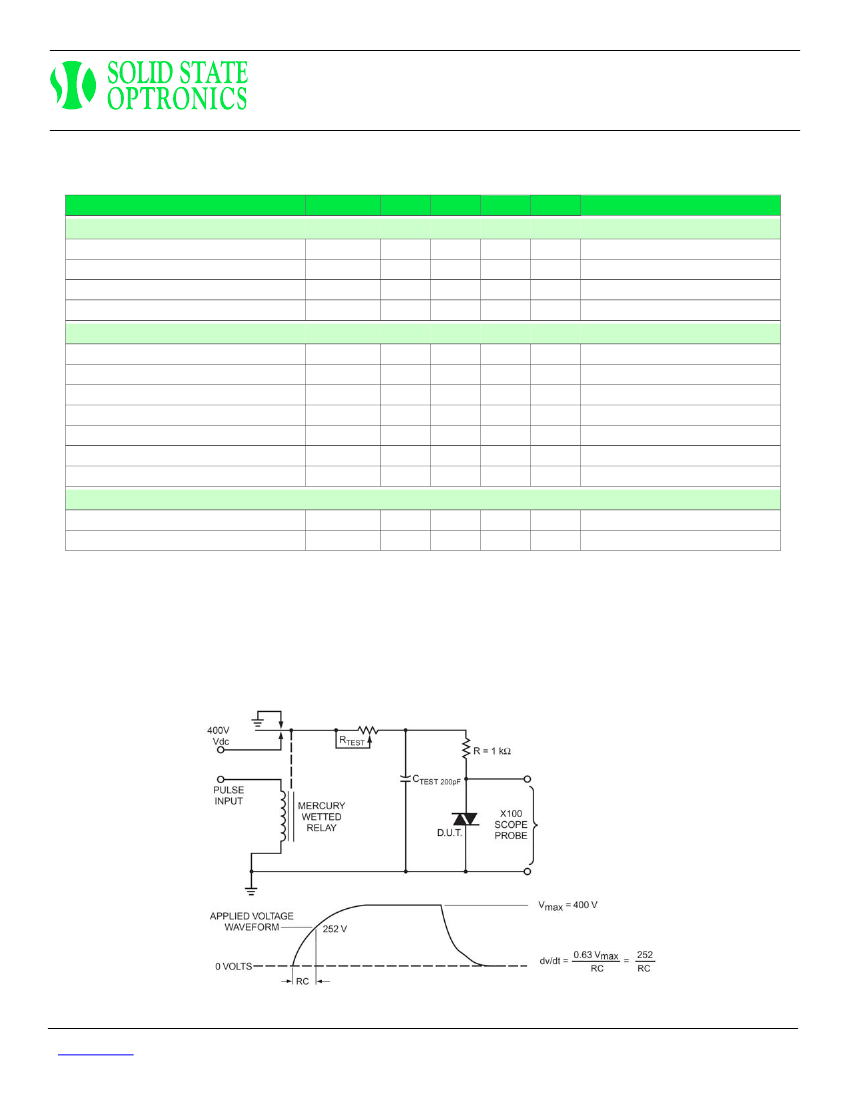

TD3061 Static dV/dt Test Circuit:
© 2013 Solid State Optronics
•
San José, CA
www.ssousa.com
•
+1.408.293.4600
Page 2 of 9
TD3061 /H/S/TR
Rev 2.00 (11/12/2013)
001677

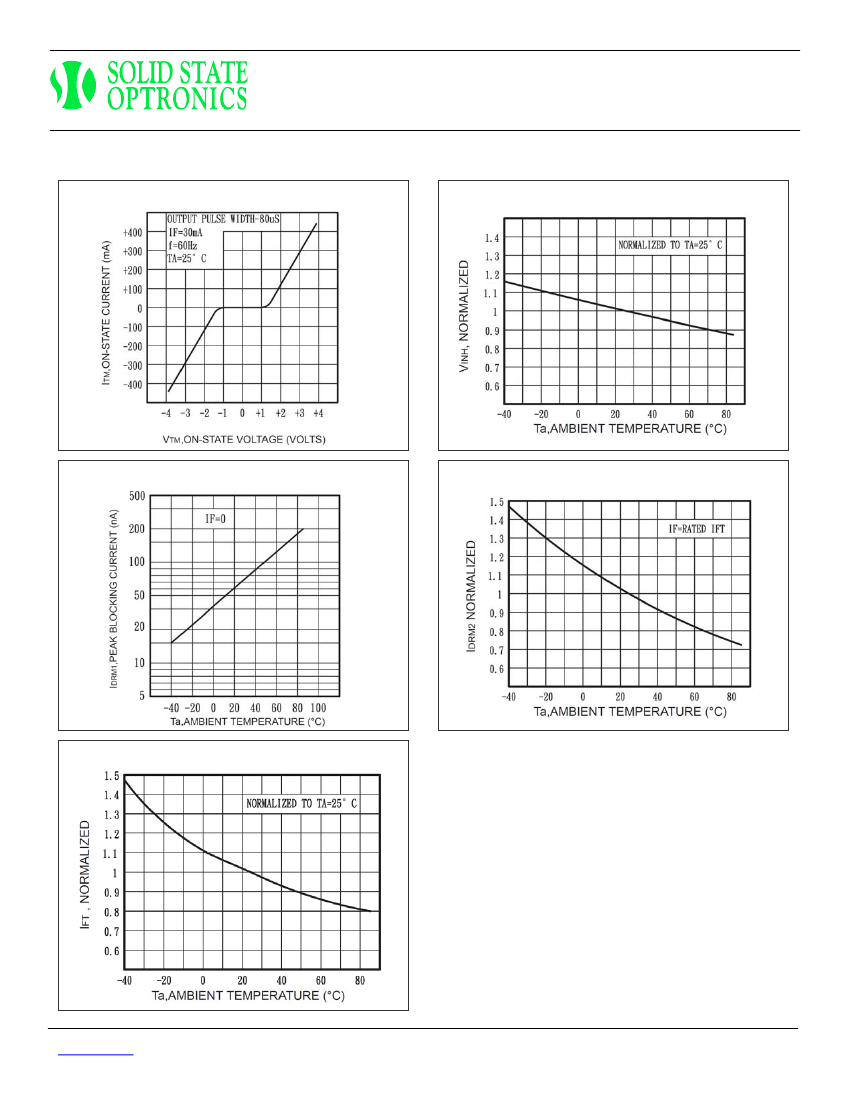

TD3061
Zero Volt Switching
600V
Triac Driver
TD3061 Solder Temperature Profile Recommendations
(1)
Infrared Reflow:
Refer to the following figure as an example of an optimal temperature profile for single occurrence infrared reflow.
Soldering process should not exceed temperature or time limits expressed herein. Surface temperature of device
package should not exceed 250ºC:
G
F
D
E
H
B
A
C
Figure 1
Process
Step
A
B
C
D
E
F
G
H
Description
Preheat Start Temperature (ºC)
Preheat Finish Temperature (ºC)
Preheat Time (s)
Melting Temperature (ºC)
Time above Melting Temperature (s)
Peak Temperature, at Terminal (ºC)
Dwell Time at Peak Temperature (s)
Cool-down (ºC/s)
150ºC
180ºC
90 - 120s
230ºC
30s
260ºC
10s
<6ºC/s
Parameter
(2)
Wave Solder:
Maximum Temperature:
Maximum Time:
Pre-heating:
Single Occurrence
260ºC (at terminal)
10s
100 - 150ºC (30 - 90s)
(3)
Hand Solder:
Maximum Temperature:
Maximum Time:
Single Occurrence
350ºC
3s
(at tip of soldering iron)
© 2013 Solid State Optronics
•
San José, CA
www.ssousa.com
•
+1.408.293.4600
Page 4 of 9
TD3061 /H/S/TR
Rev 2.00 (11/12/2013)
001677
