SERIES 23
MIL-DTL-38999
Backshells and accessories

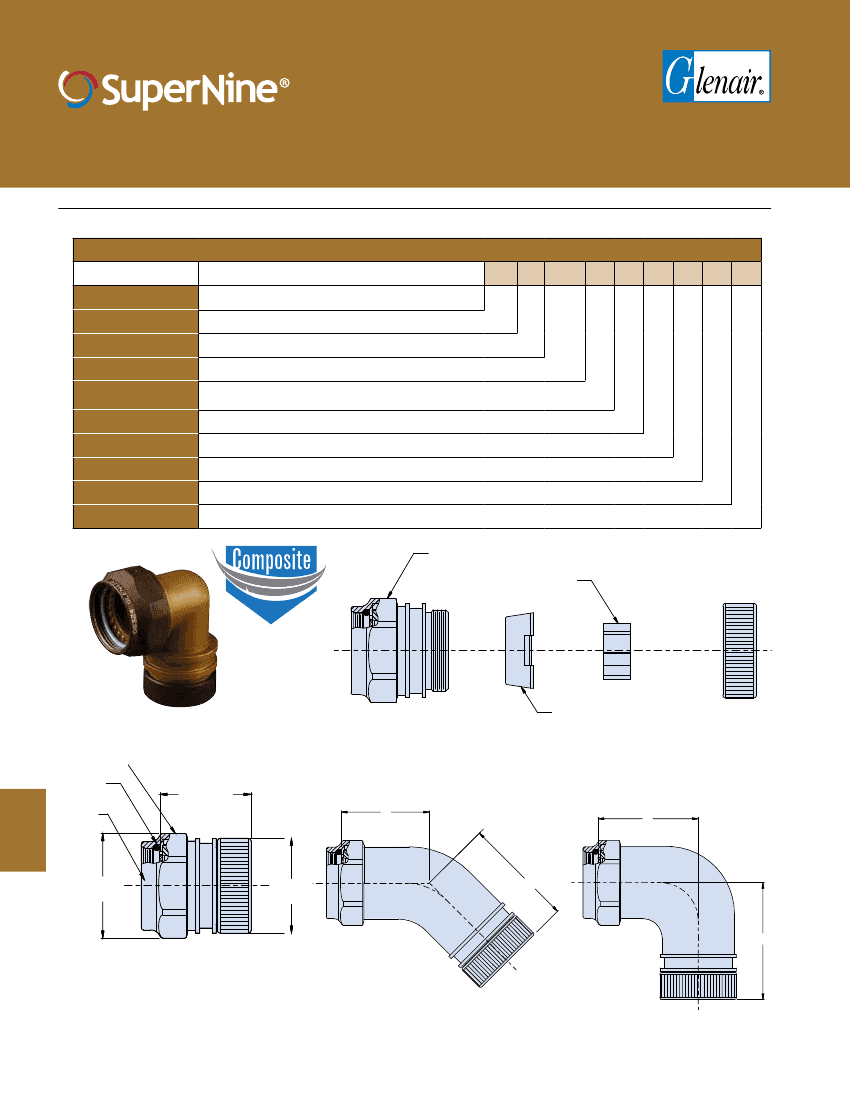

470-017 StarShield™ EMI/RFI composite backshell
EMI/RFI SHIELD TERMINATION BACKSHELL WITH SELF LOCKING COUPLING
How To Order 470-017
Sample Part Number
Product Series
Connector Designator
Angle
Basic Number
Finish
Order Number
Ferrule Quantity Code
Rear End Option
Drilled Star
Shrink Boot
470
StarShield™ zero-termination-length backshell
H
= MIL-DTL-38999 Series III
S
= Straight
T
= 45°
W
= 90°
017
= StarShield™ composite backshellt
XB
= No plating, black
XM
= Electroless Nickel
XD
= No Plating, Desert Tan
XMT
= Nickel-PTFE
1000 Hour Gray
XW
= Cadmium O/D over Electroless Nickel
See Dimensions Table
See Dimensions Table
G
= Gland Nut
M
= Micro Band Nut with Band
DS
= Drilled Star, omit if not required.
T
= Shrink Boot, omit for none; See Shrink Boot Table
Adapter Assembly
Star
SYMBOL G
Gland Nut
H
S
017
XM
17
6
G
DS
-T
N
= Micro Band Nut without Band
Compression Ring Assembly
Anti-Decoupling Device
O-Ring
Typ
1.08 (27.4)
Max
H
A Thread
Typ
D
F
B Max
Typ
C Max
Typ
E
G
SYMBOL S
Straight
SYMBOL T
45°
SYMBOL W
90°
H-10
© 2014 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 23® SuperNine Catalog
SERIES 23
MIL-DTL-38999
Backshells and accessories
470-017 StarShield™ EMI/RFI composite backshell
Dimensions
Order
Number
09
11
13
15
17
19
21
23
25
Shell Size Shell Size
Code
Reference
A
B
C
D
E
F
G
H
J
9
11
13
15
17
19
21
23
25
A Thread
ISO Metric
M12 X 1 - 6H
M15 X 1 - 6H
M18 X 1 - 6H
M22 X 1 - 6H
M25 X 1 - 6H
M28 X 1 - 6H
M31 X 1 - 6H
M34 X 1 - 6H
M37 X 1 - 6H
Ferrule
Quantity*
Std.
.83 (21.1)
.96 (24.4)
1.09 (27.7)
1.22 (31.0)
1.35 (34.3)
1.48 (37.6)
1.62 (41.1)
1.75 (44.5)
1.89 (48.0)
.681 (17.30)
.885 (22.48)
.917 (23.29)
1.055 (26.80)
1.173 (29.79)
1.291 (32.79)
1.409 (37.79)
1.527 (38.79)
1.665 (42.29)
0.75 (19.05)
0.78 (19.81)
0.78 (19.81)
0.78 (19.81)
0.81 (20.57)
0.82 (20.82)
0.85 (21.59)
0.89 (22.67)
0.92 (23.37)
1.09 (27.69)
1.12 (28.45)
1.14 (28.96)
1.17 (29.702)
1.20 (30.48)
1.21 (30.73)
1.23 (31.24)
1.27 (32.26)
1.30 (33.02)
0.72 (18.29)
0.78 (19.81)
0.85 (21.59)
0.91 (23.11)
0.97 (24.64)
1.03 (26.16)
1.10 (27.94)
1.16 (29.46)
1.22 (30.99)
1.20 (30.48)
1.26 (30.04)
1.32 (33.53)
1.39 (35.31)
1.45 (36.83)
1.51 (38.35)
1.57 (39.88)
1.64 (41.66)
1.70 (43.18)
1
2
3
5
6
7
9
10
12
Opt.
-
-
-
-
7
-
11
13
17
B Dia Max
C Dia Max
D Max
E Max
F Max
G Max
* See Note 4
Shrink Boot
Shrink Boot Ref. Part No.
770-001S1 04
770-001S1 06
770-001S1 06
770-001S1 07
770-001S1 07
770-001S1 08
770-001S1 08
770-001S1 08
770-001S1 09
Material/Finish:
Backshell, compression
High grade engineering thermoplastic/
ring and star
see Table III
High grade engineering thermoplastic/
Nuts
color black
O-ring
Silicone/n.a.
Shell Size
09
11
13
15
17
19
21
23
25
NOTES
• Assembly identified with manufacturer’s name and P/N, space permitting.
• Glenair 600 series backshell assembly tools are recommended for assembly and
installation.
• Ferrule kit sold separately.
687-764 ferrule and HST device kit
687-809 ferrule and sealing device kit
687-748 solder ferrule
687-841-01 HST flex device
• Star not supplied with order number 09. Drilled star is available on order numbers 15-25
only. If optional ferrule qty per Table 1 is selected, one split and one solid star will be
supplied
H
H-11
© 2014 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 23® SuperNine Catalog
