SM4206
Optically Coupled
MOSFET Driver
w/Discharge Circuit
Description
The SM4206 consists of an input drive LED optically
coupled to a photodiode array output designed to drive
highly capacitive loads, including the gate of a power
MOSFET. The active discharge circuit of the PDA assures
quick discharge of MOSFETs, providing fast turn-off times.
This device can be used in a wide variety of applications for
which high levels of input are required for a MOSFET
output.

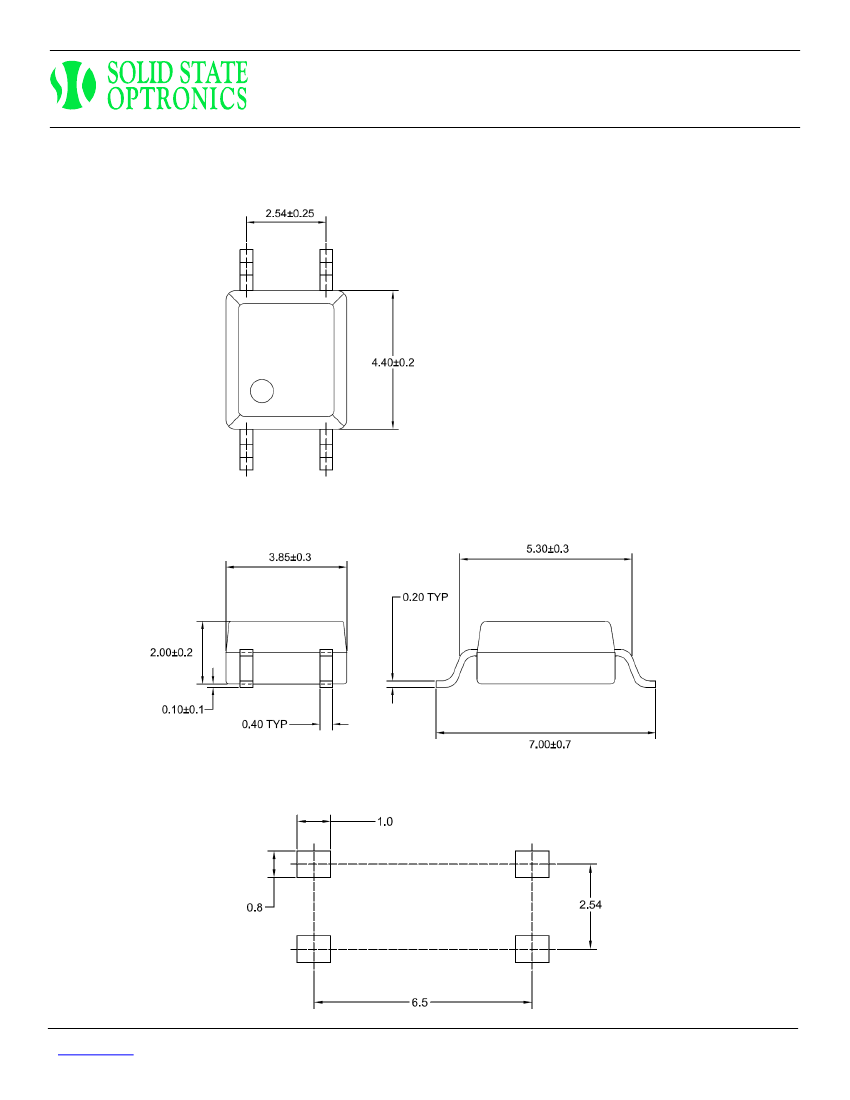

The SM4206 comes standard in a miniature 4 pin SOP
package.
Features
Miniature 4 pin SOP package
Built in active discharge circuit for fast turn-off
Fast Turn-On
11V Gate Drive Voltage
High Input-to-Output Isolation (1.5kV
RMS
)
Long Life / High Reliability
RoHS / Pb-Free / REACH Compliant
Agency Approvals
UL / C-UL:
VDE:
File # E201932
File # 40035191 (EN 60747-5-2)
Applications
Isolated means to drive discrete power MOSFETs
Lighting Controls
Process Control Modules
Solid State Relays
Solenoid Controls
Absolute Maximum Ratings
The values indicated are absolute stress ratings. Functional
operation of the device is not implied at these or any
conditions in excess of those defined in electrical
characteristics section of this document. Exposure to
absolute Maximum Ratings may cause permanent damage
to the device and may adversely affect reliability.
Storage Temperature …………………………..-55 to +125°C
Operating Temperature …….…..……...………-40 to +85°C
Continuous Input Current ………………………………..50mA
Transient Input Current ………………….……………..500mA
Reverse Input Control Voltage …………..…………………5V
Input Power Dissipation …………………………………70mW
Total Power Dissipation ……………………………..170mW
Solder Temperature – Wave (10sec)……………….….260°C
Solder Temperature – IR Reflow (10sec)….…………..260°C
Schematic Diagram
Ordering Information
Part Number
SM4206
SM4206
SM4206-TR
Description
4 pin SOP, (100/Tube)

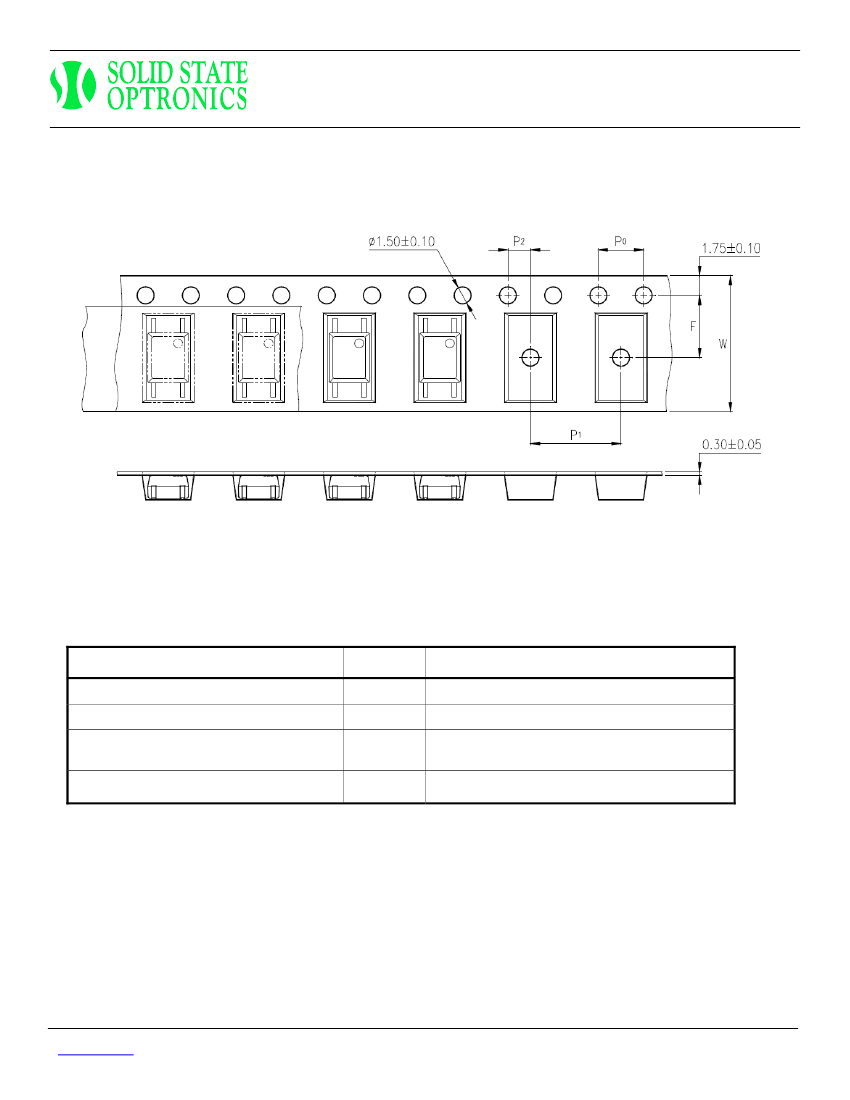

4 pin SOP, Tape and Reel (2000/Reel)
NOTES: Suffixes listed above are not included in marking on
device for part number identification
© 2013 Solid State Optronics
•
San José, CA
www.ssousa.com
•
+1.408.293.4600
Page 1 of 7
SM4206 /TR
Rev 2.00 (11/12/2013)
001706
SM4206
Optically Coupled
MOSFET Driver
w/Discharge Circuit
SM4206 Solder Reflow Temperature Profile Recommendations
(1)
Infrared Reflow:
Refer to the following figure as an example of an optimal temperature profile for single occurrence infrared reflow.
Soldering process should not exceed temperature or time limits expressed herein. Surface temperature of device
package should not exceed 250ºC:
G
F
D
E
H
B
A
C
Process
Step
A
B
C
D
E
F
G
H
Description
Preheat Start Temperature (ºC)
Preheat Finish Temperature (ºC)
Preheat Time (s)
Melting Temperature (ºC)
Time above Melting Temperature (s)
Peak Temperature, at Terminal (ºC)
Dwell Time at Peak Temperature (s)
Cool-down (ºC/s)
150ºC
180ºC
90 - 120s
230ºC
30s
260ºC
10s
<6ºC/s
Parameter
(2)
Wave Solder:
Maximum Temperature:
Maximum Time:
Pre-heating:
Single Occurrence
260ºC (at terminal)
10s
100 - 150ºC (30 - 90s)
(3)
Hand Solder:
Maximum Temperature:
Maximum Time:
Single Occurrence
350ºC
3s
(at tip of soldering iron)
© 2013 Solid State Optronics
•
San José, CA
www.ssousa.com
•
+1.408.293.4600
Page 3 of 7
SM4206 /TR
Rev 2.00 (11/12/2013)
001706
