DW9822D datasheet, PDF - EEWORLD Datasheet

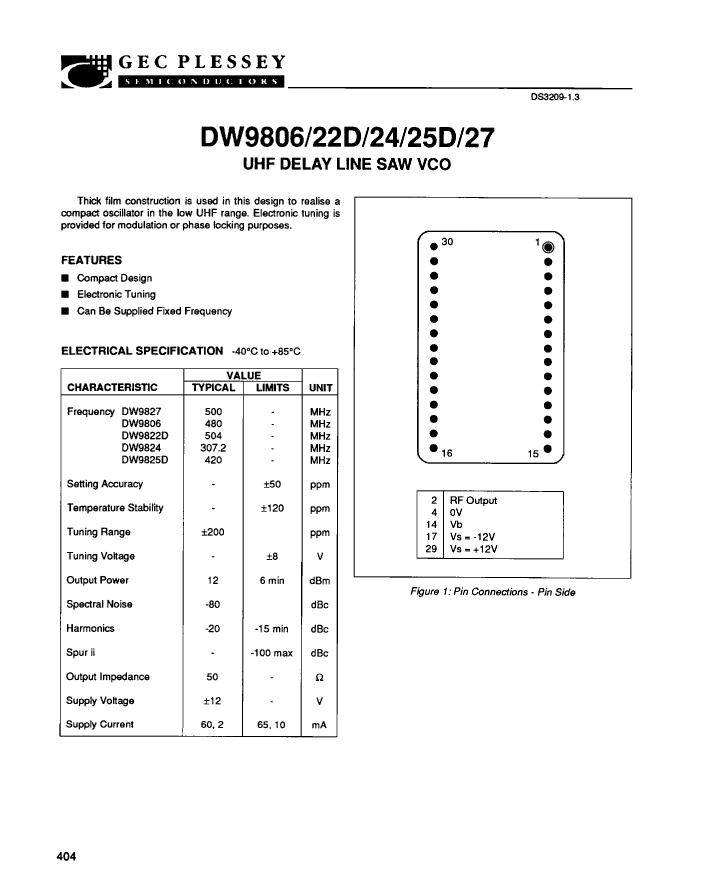

DW9822D: DescriptionSAW Oscillator, 493.92MHz Min, 514.08MHz Max; CategoryPassive components oscillator; File Size26KB，2 Pages; ManufacturerDynex; Websitehttp://www.dynexsemi.com/

Download Datasheet Parametric Compare View All

DW9822D Overview

SAW Oscillator, 493.92MHz Min, 514.08MHz Max

Parameter Name	Attribute value
Maker	Dynex
Reach Compliance Code	unknown
Other features	-12V REQUIRED
Maximum control voltage	8 V
Minimum control voltage	-8 V
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	514.08 MHz
Minimum operating frequency	493.92 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	SAW OSCILLATOR
Output Power	12 dBm
physical size	41mm x 30mm x 5mm
Maximum slew rate	65.1 mA
Nominal supply voltage	12 V
surface mount	NO

	DW9822D	DW9824	DW9827	DW9825D	DW9806
Description	SAW Oscillator, 493.92MHz Min, 514.08MHz Max	SAW Oscillator, 301.056MHz Min, 313.344MHz Max	SAW Oscillator, 490MHz Min, 510MHz Max	SAW Oscillator, 411.6MHz Min, 428.4MHz Max	SAW Oscillator, 470.4MHz Min, 489.6MHz Max
Maker	Dynex	Dynex	Dynex	Dynex	Dynex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	-12V REQUIRED	-12V REQUIRED	-12V REQUIRED	-12V REQUIRED	-12V REQUIRED
Maximum control voltage	8 V	8 V	8 V	8 V	8 V
Minimum control voltage	-8 V	-8 V	-8 V	-8 V	-8 V
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating frequency	514.08 MHz	313.344 MHz	510 MHz	428.4 MHz	489.6 MHz
Minimum operating frequency	493.92 MHz	301.056 MHz	490 MHz	411.6 MHz	470.4 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Oscillator type	SAW OSCILLATOR	SAW OSCILLATOR	SAW OSCILLATOR	SAW OSCILLATOR	SAW OSCILLATOR
Output Power	12 dBm	12 dBm	12 dBm	12 dBm	12 dBm
physical size	41mm x 30mm x 5mm	41mm x 30mm x 5mm	41mm x 30mm x 5mm	41mm x 30mm x 5mm	41mm x 30mm x 5mm
Maximum slew rate	65.1 mA	65.1 mA	65.1 mA	65.1 mA	65.1 mA
Nominal supply voltage	12 V	12 V	12 V	12 V	12 V
surface mount	NO	NO	NO	NO	NO
