Part Number

Search

D6120C2

Description
VCO, 12000MHz - 18000MHz
CategoryPassive components    oscillator
File Size397KB,2 Pages
ManufacturerKratos Defense & Security Solutions Inc
Download Datasheet Parametric Compare View All

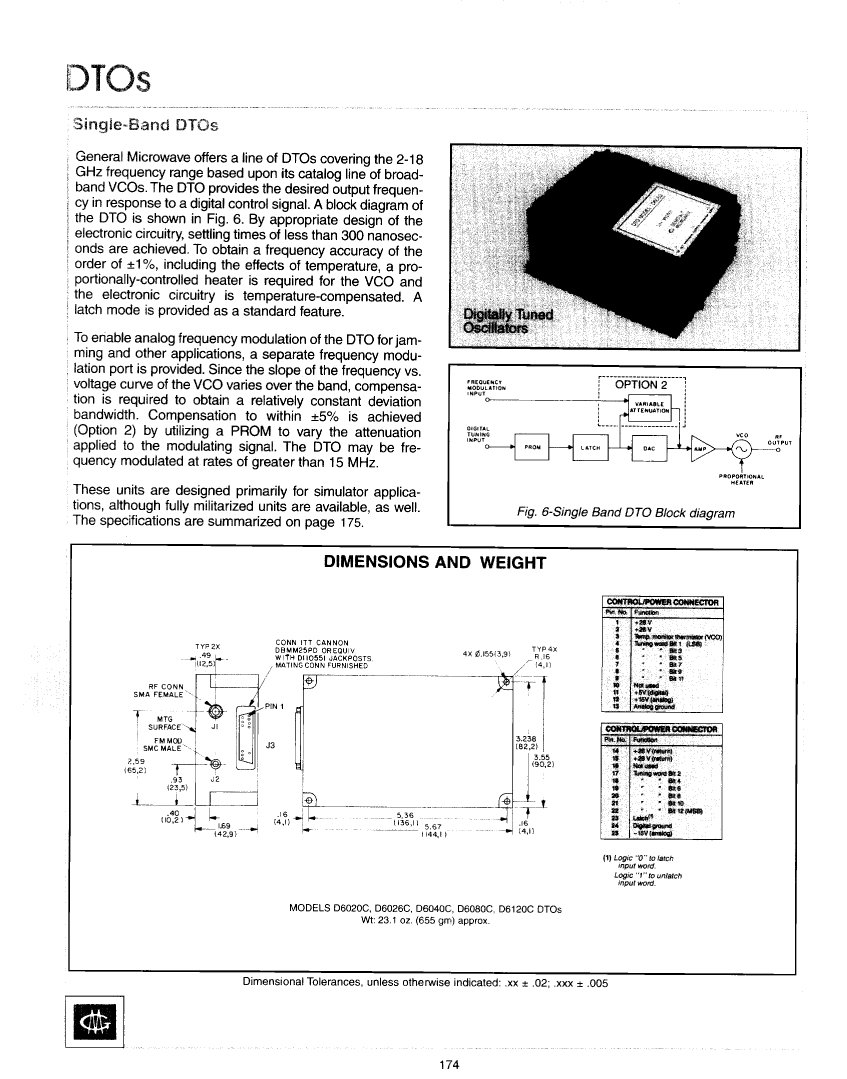

D6120C2 Overview

VCO, 12000MHz - 18000MHz

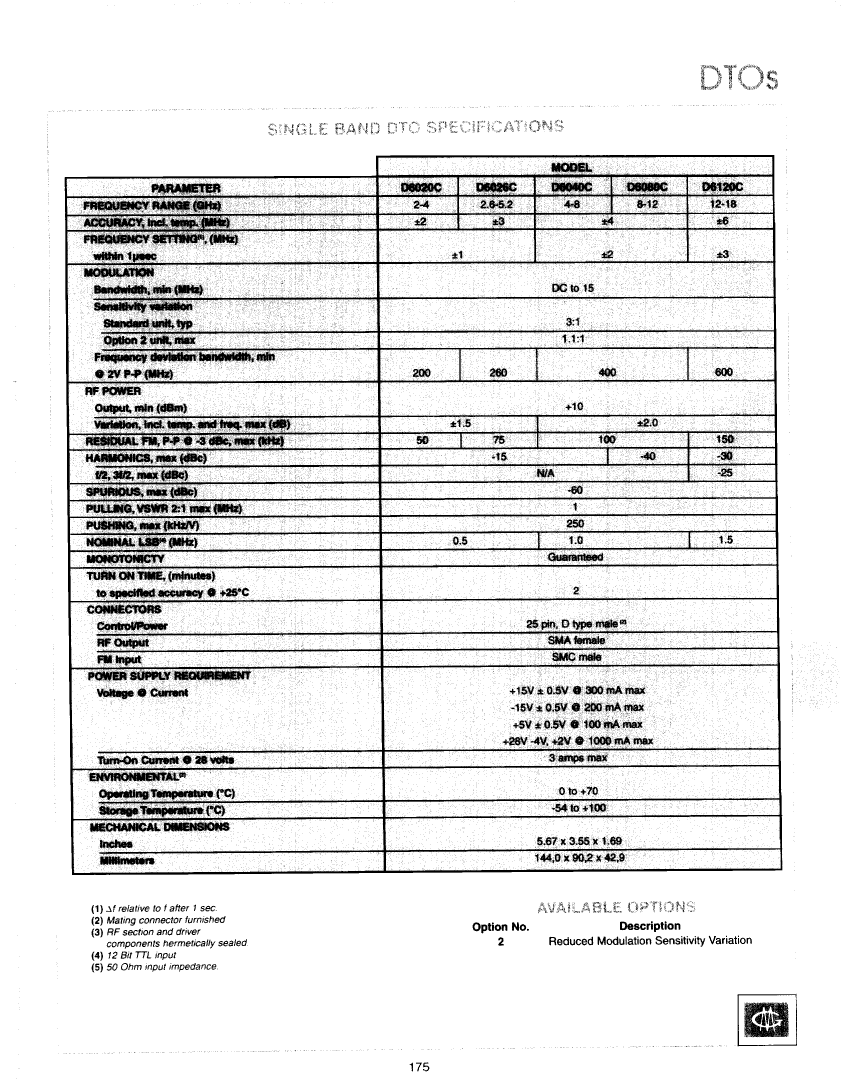

D6120C2 Parametric

Parameter NameAttribute value
MakerKratos Defense & Security Solutions Inc
Reach Compliance Codeunknown
Other featuresOTHER SUPPLY VOLTAGES REQUIRED ARE -15V, +5V, +28V
Installation featuresCHASSIS MOUNT
Maximum operating frequency18000 MHz
Minimum operating frequency12000 MHz
Maximum operating temperature70 °C
Minimum operating temperature
Oscillator typeVOLTAGE CONTROLLED OSCILLATOR
Output Power10 dBm
physical size144.1mm x 90.2mm x 42.9mm
power change2 dB
Maximum slew rate300 mA
Nominal supply voltage15 V
surface mountNO

D6120C2 Related Products

D6120C2 D6020C2 D6040C2 D6080C2
Description VCO, 12000MHz - 18000MHz VCO, 2000MHz - 4000MHz VCO, 4000MHz - 8000MHz VCO, 8000MHz - 12000MHz
Reach Compliance Code unknown unknown unknown unknown
Other features OTHER SUPPLY VOLTAGES REQUIRED ARE -15V, +5V, +28V OTHER SUPPLY VOLTAGES REQUIRED ARE -15V, +5V, +28V OTHER SUPPLY VOLTAGES REQUIRED ARE -15V, +5V, +28V OTHER SUPPLY VOLTAGES REQUIRED ARE -15V, +5V, +28V
Installation features CHASSIS MOUNT CHASSIS MOUNT CHASSIS MOUNT CHASSIS MOUNT
Maximum operating frequency 18000 MHz 4000 MHz 8000 MHz 12000 MHz
Minimum operating frequency 12000 MHz 2000 MHz 4000 MHz 8000 MHz
Maximum operating temperature 70 °C 70 °C 70 °C 70 °C
Oscillator type VOLTAGE CONTROLLED OSCILLATOR VOLTAGE CONTROLLED OSCILLATOR VOLTAGE CONTROLLED OSCILLATOR VOLTAGE CONTROLLED OSCILLATOR
Output Power 10 dBm 10 dBm 10 dBm 10 dBm
physical size 144.1mm x 90.2mm x 42.9mm 144.1mm x 90.2mm x 42.9mm 144.1mm x 90.2mm x 42.9mm 144.1mm x 90.2mm x 42.9mm
power change 2 dB 1.5 dB 2 dB 2 dB
Maximum slew rate 300 mA 300 mA 300 mA 300 mA
Nominal supply voltage 15 V 15 V 15 V 15 V
surface mount NO NO NO NO
Maker Kratos Defense & Security Solutions Inc - Kratos Defense & Security Solutions Inc Kratos Defense & Security Solutions Inc
