DS0753HJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> DS0753HJ

DS0753HJ: DescriptionLVDS Output Clock Oscillator, 140MHz Min, 230MHz Max, ROHS COMPLIANT PACKAGE-6; CategoryPassive components oscillator; File Size168KB，1 Pages; ManufacturerDaishinku Corp.; Websitehttp://www.kds.info/; Environmental Compliance

Download Datasheet Parametric Compare View All

DS0753HJ Overview

LVDS Output Clock Oscillator, 140MHz Min, 230MHz Max, ROHS COMPLIANT PACKAGE-6

DS0753HJ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Daishinku Corp.
Reach Compliance Code	unknown
Other features	REEL; TRI-STATE ENABLE/DISABLE FUNCTION
maximum descent time	1 ns
Frequency Adjustment - Mechanical	NO
JESD-609 code	e4
Manufacturer's serial number	DS0753H
Installation features	SURFACE MOUNT
Maximum operating frequency	230 MHz
Minimum operating frequency	140 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	LVDS
Output load	100 OHM
physical size	7.0mm x 5.0mm x 2.0mm
longest rise time	1 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

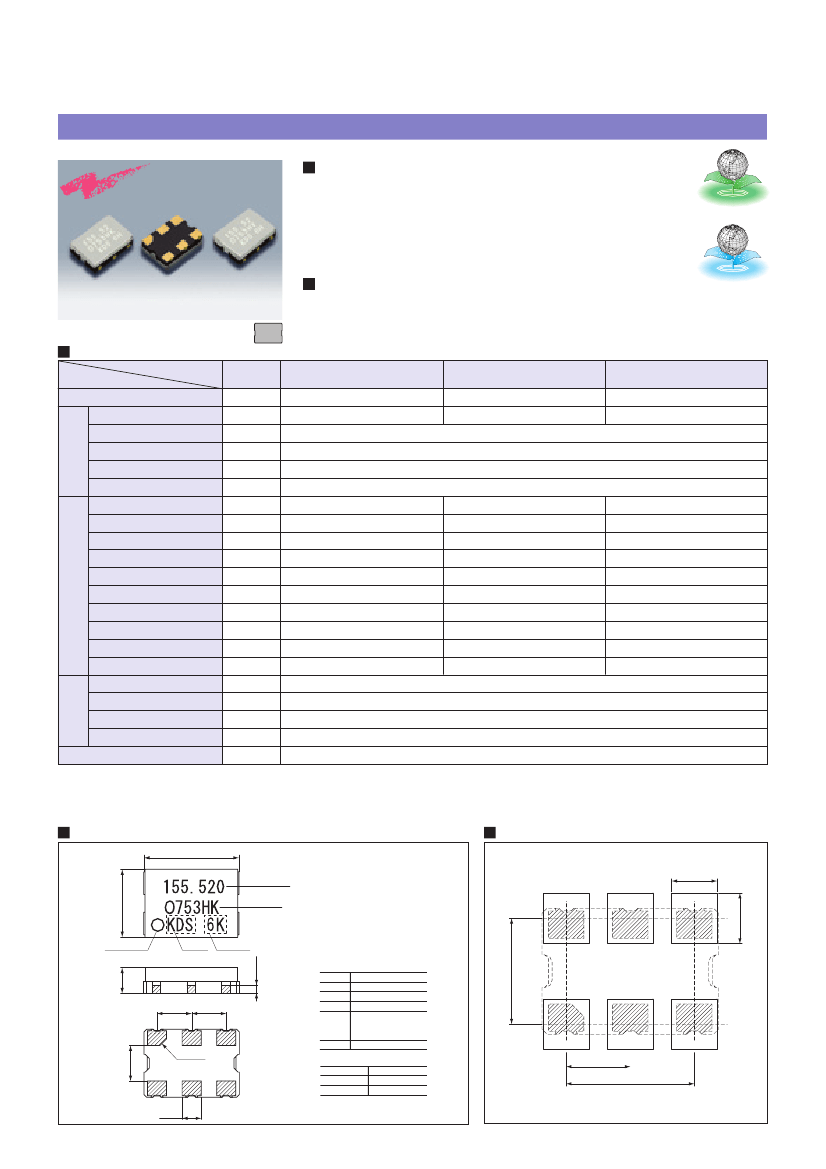

SMD Crystal Oscillators

DSO753H SERIES

NEW

Features

Available with three types of output functions:

CMOS, PECL, LVDS

●

Differential output (PECL, LVDS)

●

Low jitter

●

Tri-state function

●

Pb-Free

Applications

●

Actual size

RoHS Compliant

Optical transmission device

Radio transmitter-receiver equipment

Standard Specification

Item

Standard

Characteristics

Type

Output Specification

Output Frequency Range

Supply Voltage

Storage Temperature Range

Operating Temperature Range

Frequency Tolerance

Current Consumption

Output Load

Symmetry

Output

Characteristics

Rise and Fall Time

"0" Level

"1" Level

Change to V

Offset Voltage

Change to V

Tri-state

Output Enable Time

Output Disable Time

Enable Time

Disable Time

Packing Unit

Legend

−

Vdd

T_stg

T_use

F_tol

Idd

CMOS

SYM

tr, tf

Vol

Voh

⊿V

OS1

, V

OS2

⊿V

Ｔpzl

Ｔplz

Vil

Vih

50mA max.

15pF max.

45%∼55%[50% V

Level]

×0.1 max.

×0.9 min.

−

DSO753HV

CMOS

150∼230MHz

DSO753HK

LV-PECL

160∼230MHz

+3.3V±0.165V

−40℃∼85℃

−20℃∼70℃

±50×10

-6

max.

80mA max.

50Ω to V

−2V

45%∼55%[at 2.0V Level]

45%∼55%[at outputs cross point]

DSO753HJ

LVDS

140∼230MHz

60mA max.

100Ω OUT−OUTN

45%∼55%[at outputs cross point]

−

0.247V∼0.454V

50mV[⊿V

=½V

OD1

−V

OD2

½]

1.125V∼1.375V

100mV[⊿V

=½V

OS1

−V

OS2

½]

2.0ns max.[10%∼90% Vdd] 1.0ns max.[20%∼80% Output Level] 1.0ns max.[20%∼80% Output Level]

−1.025V∼V

−0.88V

−1.81V∼V

−1.62V

−

2ms max.

200ns max.

Vdd×0.7 min.

Vdd×0.3 max.

100pcs. / reel or 500pcs. / reel（φ180）

Consult our sales representative for other specifications.

Differential Output Voltage

OD1

, V

OD2

Dimensions[mm]

7.00±0.2

Frequency

Printed Code

DSO753HV→O753HV

DSO753HK→O753HK

DSO753HJ →O753HJ

Logo

Lot No.

0.60

DSO753H Pin Connections

GND

OUT

- DSV753HV

OUTN - DSV753HK

DSV753HJ

Recommended Land Pattern

[mm]

〈Top View〉

1.80

5.0±0.2

#1 index

2.0±0.2

2.54

2.6

C0.50

Function

#2 pin

Open or "H"

"L"

4.20

2.54

OUTPUT

ENABLE

DISEABE (Hi-Z)

5.08

1.4

2.00

DS0753HJ Related Products

	DS0753HJ	DS0753HV	DS0753HK
Description	LVDS Output Clock Oscillator, 140MHz Min, 230MHz Max, ROHS COMPLIANT PACKAGE-6	CMOS Output Clock Oscillator, 150MHz Min, 230MHz Max, ROHS COMPLIANT PACKAGE-6	LVPECL Output Clock Oscillator, 160MHz Min, 230MHz Max, ROHS COMPLIANT PACKAGE-6
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown
Other features	REEL; TRI-STATE ENABLE/DISABLE FUNCTION	REEL; TRI-STATE ENABLE/DISABLE FUNCTION	REEL; TRI-STATE ENABLE/DISABLE FUNCTION
maximum descent time	1 ns	2 ns	1 ns
Frequency Adjustment - Mechanical	NO	NO	NO
JESD-609 code	e4	e4	e4
Manufacturer's serial number	DS0753H	DS0753H	DS0753H
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	230 MHz	230 MHz	230 MHz
Minimum operating frequency	140 MHz	150 MHz	160 MHz
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
Oscillator type	LVDS	CMOS	LVPECL
Output load	100 OHM	15 pF	50 OHM
physical size	7.0mm x 5.0mm x 2.0mm	7.0mm x 5.0mm x 2.0mm	7.0mm x 5.0mm x 2.0mm
longest rise time	1 ns	2 ns	1 ns
Maximum supply voltage	3.465 V	3.465 V	3.465 V
Minimum supply voltage	3.135 V	3.135 V	3.135 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
maximum symmetry	55/45 %	55/45 %	55/45 %
Terminal surface	Gold (Au)	Gold (Au)	Gold (Au)
Maker	Daishinku Corp.	-	Daishinku Corp.
