PHV12-1.0K5000P datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> PHV12-1.0K5000P

PHV12-1.0K5000P: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, METAL PACKAGE-7/6; CategoryPower/power management The power supply circuit; File Size278KB，4 Pages; ManufacturerBellnix Co., Ltd.

Download Datasheet Parametric Compare View All

PHV12-1.0K5000P Overview

DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, METAL PACKAGE-7/6

PHV12-1.0K5000P Parametric

Parameter Name	Attribute value
Maker	Bellnix Co., Ltd.
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	16.5 V
Minimum input voltage	10.8 V
Nominal input voltage	12 V
JESD-30 code	R-MDMA-P6
length	60 mm
Number of functions	1
Output times	1
Number of terminals	6
Maximum operating temperature	40 °C
Minimum operating temperature	-10 °C
Maximum output voltage	1000 V
Minimum output voltage
Nominal output voltage	1000 V
Package body material	METAL
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Maximum seat height	20.5 mm
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	5 W
Fine-tuning/adjustable output	YES
width	40 mm

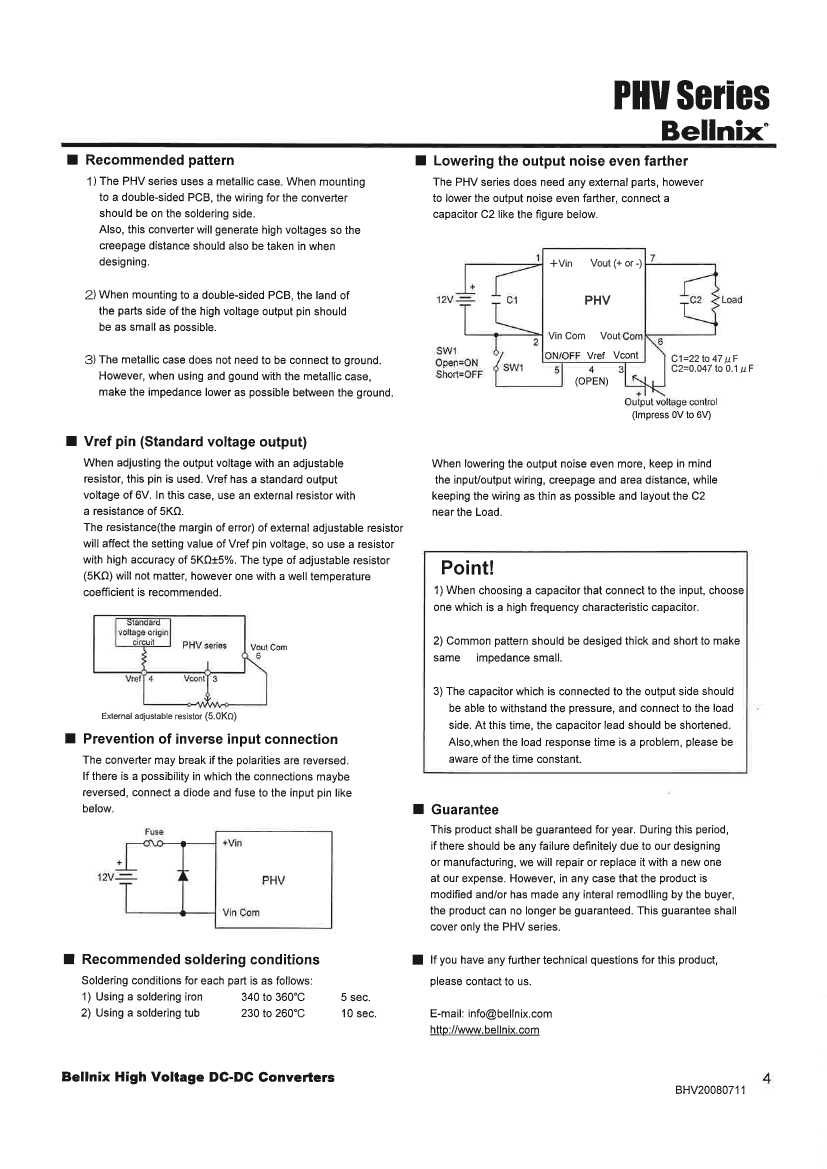

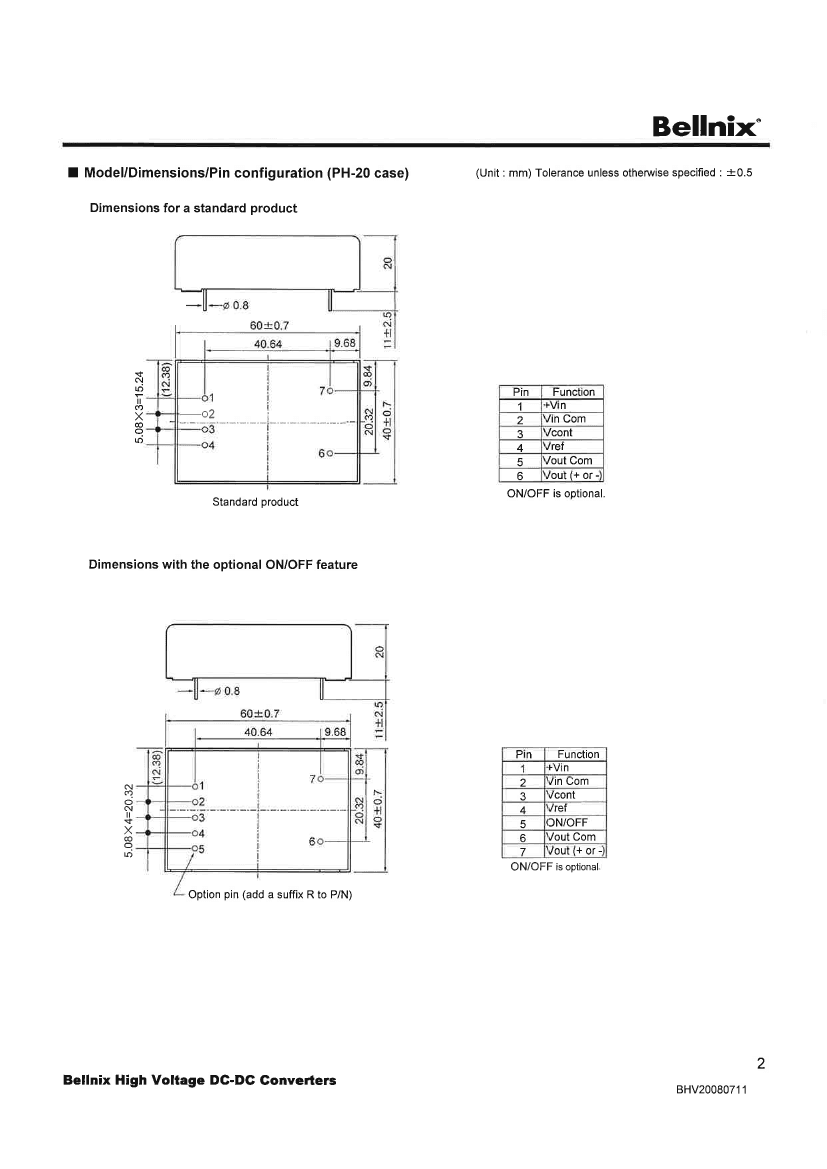

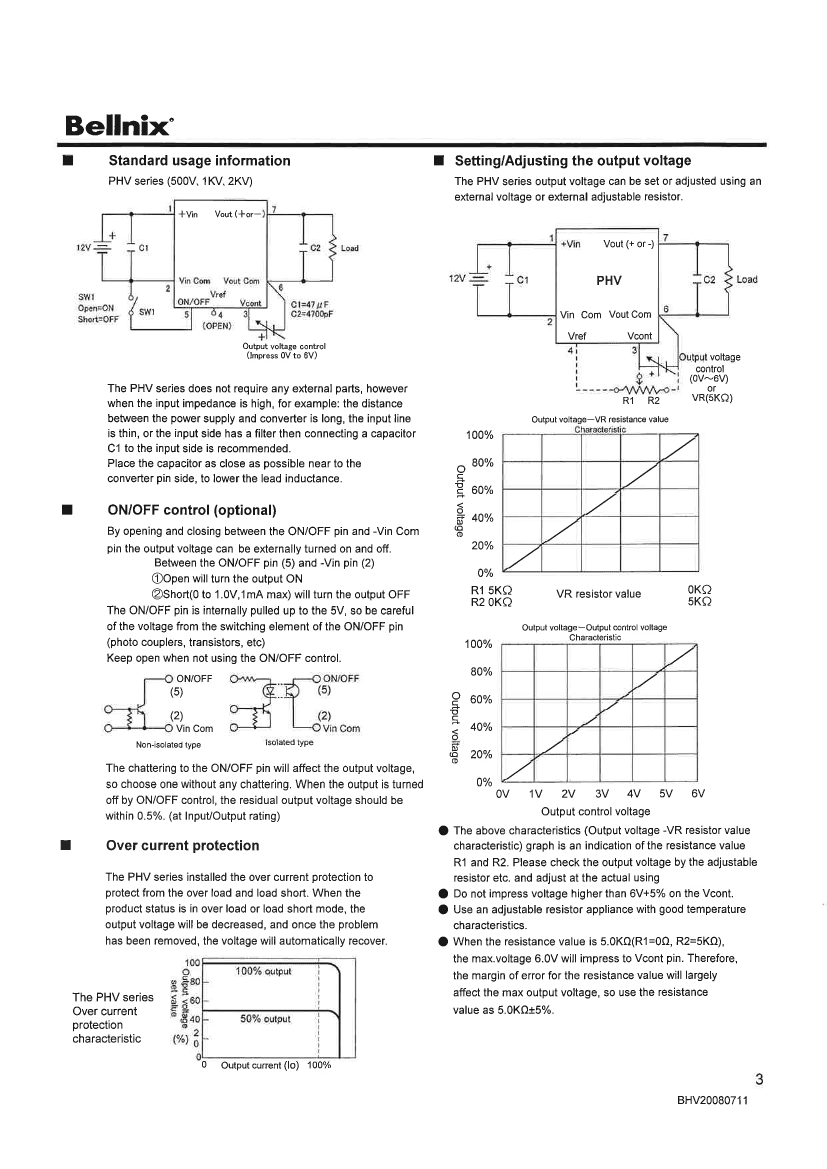

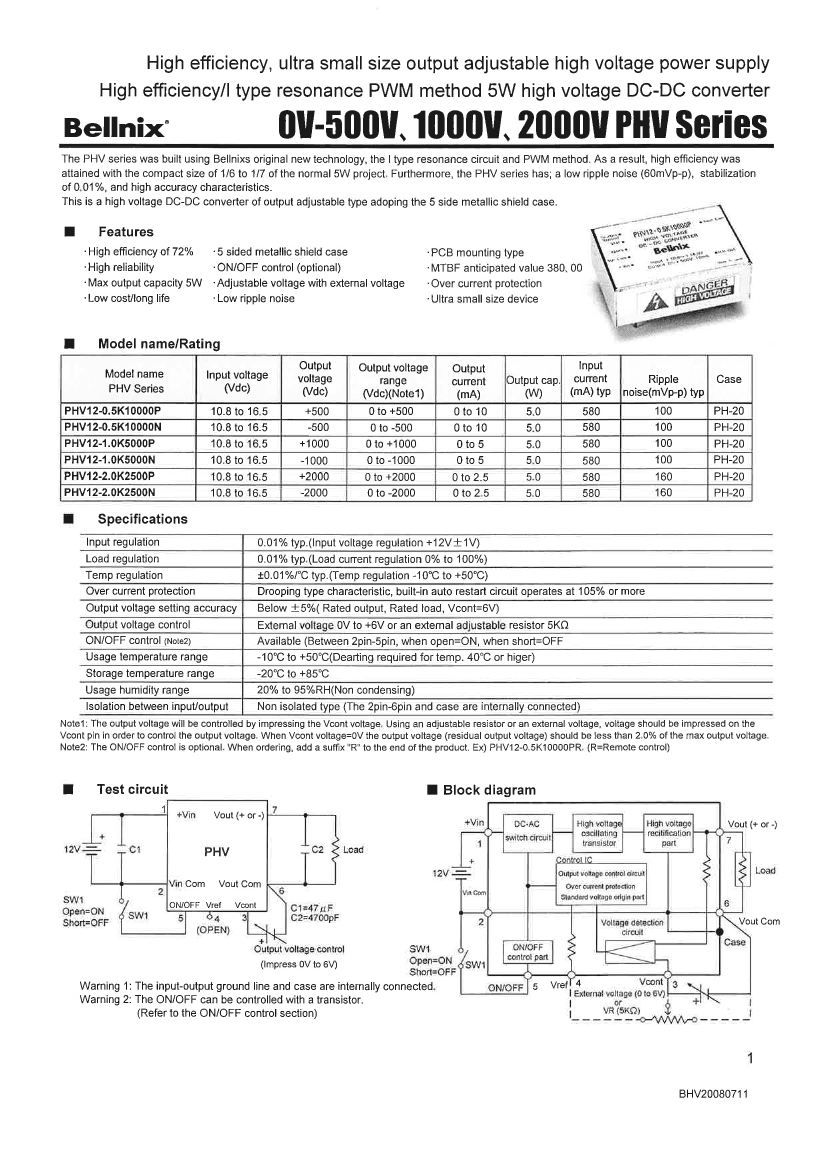

PHV12-1.0K5000P Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

PHV12-1.0K5000P Related Products

	PHV12-1.0K5000P	PHV12-0.5K10000P	PHV12-0.5K10000N	PHV12-0.5K10000NR	PHV12-1.0K5000NR	PHV12-1.0K5000PR	PHV12-2.0K2500N	PHV12-2.0K2500NR	PHV12-2.0K2500P
Description	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, METAL PACKAGE-7/6	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, METAL PACKAGE-7/6	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, METAL PACKAGE-7/6	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, METAL PACKAGE-7	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, METAL PACKAGE-7	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, METAL PACKAGE-7	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, METAL PACKAGE-7/6	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, METAL PACKAGE-7	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, METAL PACKAGE-7/6
Maker	Bellnix Co., Ltd.	Bellnix Co., Ltd.	Bellnix Co., Ltd.	Bellnix Co., Ltd.	Bellnix Co., Ltd.	Bellnix Co., Ltd.	Bellnix Co., Ltd.	Bellnix Co., Ltd.	Bellnix Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	16.5 V	16.5 V	16.5 V	16.5 V	16.5 V	16.5 V	16.5 V	16.5 V	16.5 V
Minimum input voltage	10.8 V	10.8 V	10.8 V	10.8 V	10.8 V	10.8 V	10.8 V	10.8 V	10.8 V
Nominal input voltage	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V
JESD-30 code	R-MDMA-P6	R-MDMA-P6	R-MDMA-P6	R-MDMA-P7	R-MDMA-P7	R-MDMA-P7	R-MDMA-P6	R-MDMA-P7	R-MDMA-P6
length	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm
Number of functions	1	1	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1	1	1
Number of terminals	6	6	6	7	7	7	6	7	6
Maximum operating temperature	40 °C	40 °C	40 °C	40 °C	40 °C	40 °C	40 °C	40 °C	40 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Maximum output voltage	1000 V	500 V	-500 V	-500 V	-1000 V	1000 V	-2000 V	-2000 V	2000 V
Nominal output voltage	1000 V	500 V	-500 V	-500 V	-1000 V	1000 V	-2000 V	-2000 V	2000 V
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Maximum seat height	20.5 mm	20.5 mm	20.5 mm	20.5 mm	20.5 mm	20.5 mm	20.5 mm	20.5 mm	20.5 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum total power output	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W
Fine-tuning/adjustable output	YES	YES	YES	YES	YES	YES	YES	YES	YES
width	40 mm	40 mm	40 mm	40 mm	40 mm	40 mm	40 mm	40 mm	40 mm
