Ultra Low Power 128K x 16 CMOS SRAM

Preview

Download Datasheet

View All

V62C1162048L(L)

Ultra Low Power

128K x 16 CMOS SRAM

Features

• Low-power consumption

- Active: 35mA I

at 70ns

- Stand-by: 10

A (CMOS input/output)

A (CMOS input/output, L version)

• 70/85/100/120 ns access time

• Equal access and cycle time

• Single +1.8V to2.2V Power Supply

• Tri-state output

• Automatic power-down when deselected

• Multiple center power and ground pins for

improved noise immunity

• Individual byte controls for both Read and

Write cycles

• Available in 44 pin TSOPII / 48-fpBGA / 48-

BGA

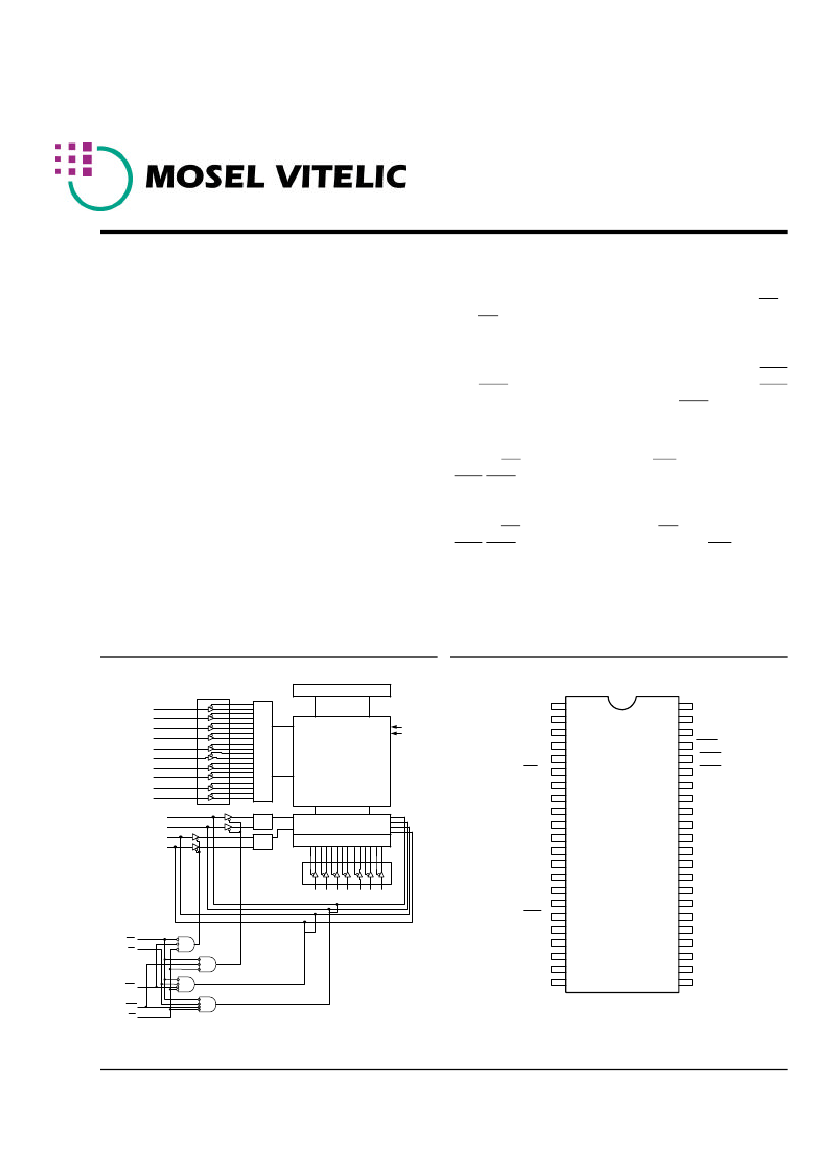

Functional Description

The V62C1162048L is a Low Power CMOS Static

RAM organized as 131,072 words by 16 bits. Easy

Memory expansion is provided by an active LOW (CE)

and (OE) pin.

This device has an automatic power-down mode feature

when deselected. Separate Byte Enable controls (BLE

and BHE) allow individual bytes to be accessed. BLE

controls the lower bits I/O1 - I/O8. BHE controls the

upper bits I/O9 - I/O16.

Writing to these devices is performed by taking Chip

Enable (CE) with Write Enable (WE) and Byte Enable

(BLE/BHE) LOW.

Reading from the device is performed by taking Chip

Enable (CE) with Output Enable (OE) and Byte Enable

(BLE/BHE) LOW while Write Enable (WE) is held

HIGH.

Logic Block Diagram

Pre-Charge Circuit

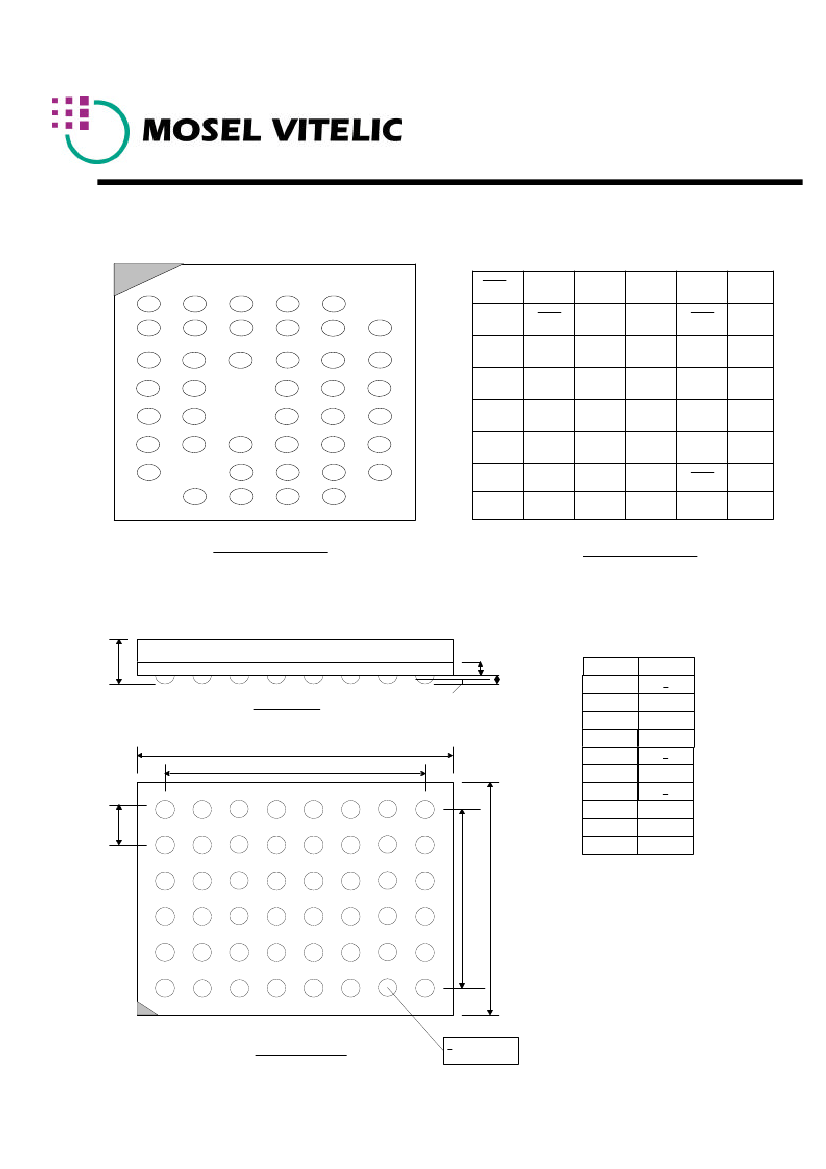

TSOPII / 48-fpBGA / 48-µBGA

(See nest page)

I/O1

I/O2

I/O3

I/O4

Vcc

Vss

I/O5

I/O6

I/O7

I/O8

A16

A15

A14

A13

A12

BHE

BLE

I/O16

I/O15

I/O14

I/O13

Vss

Vcc

I/O12

I/O11

I/O10

I/O9

A10

A11

Row Select

Vcc

Vss

Memory Array

1024 X 2048

I/O1 - I/O8

I/O9 - I/O16

Data

Cont

Data

Cont

I/O Circuit

Column Select

A10 A11 A12 A13 A14 A15 A16

BHE

BLE

REV. 1.2

May

2001 V62C1162048L(L)
